Descripción

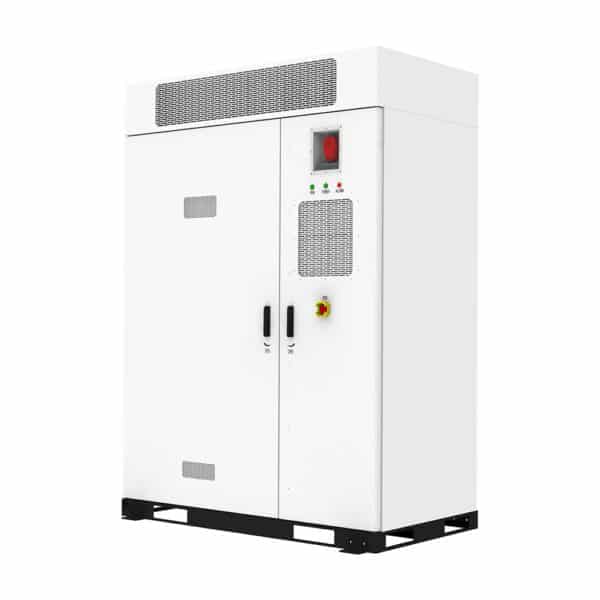

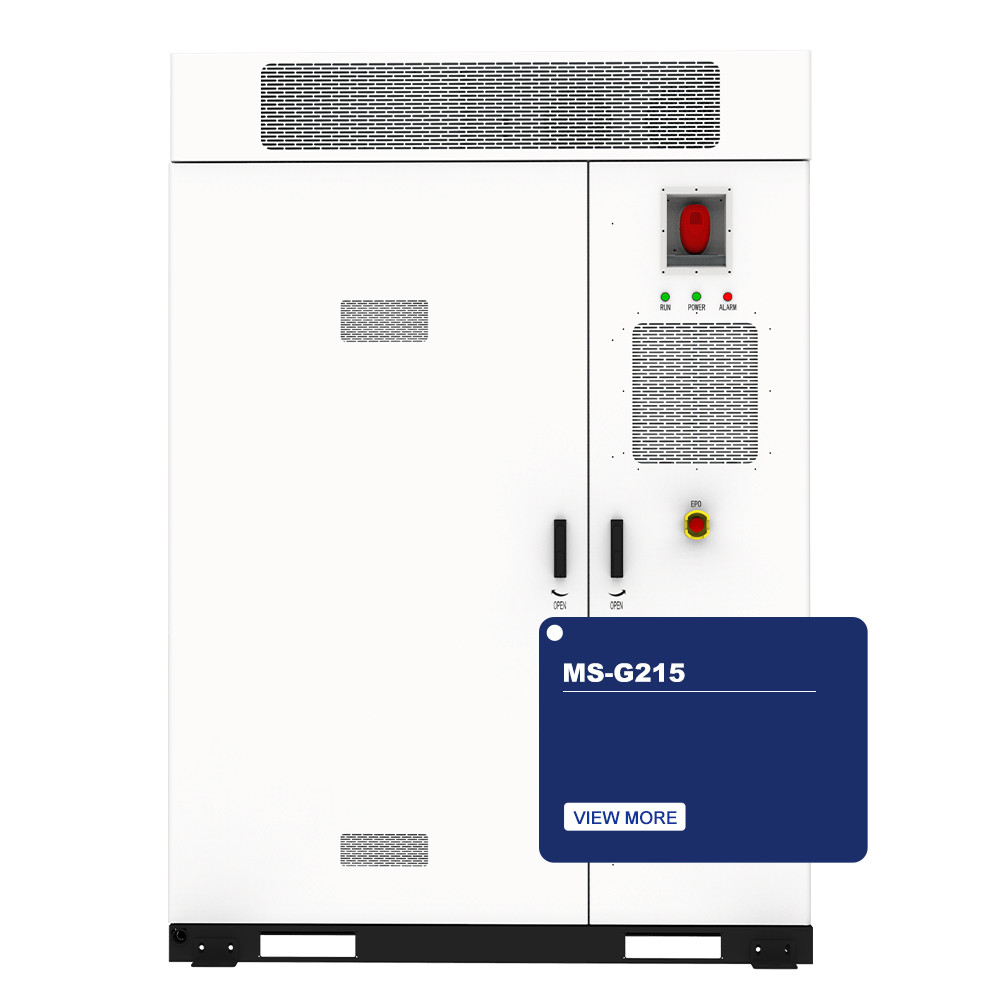

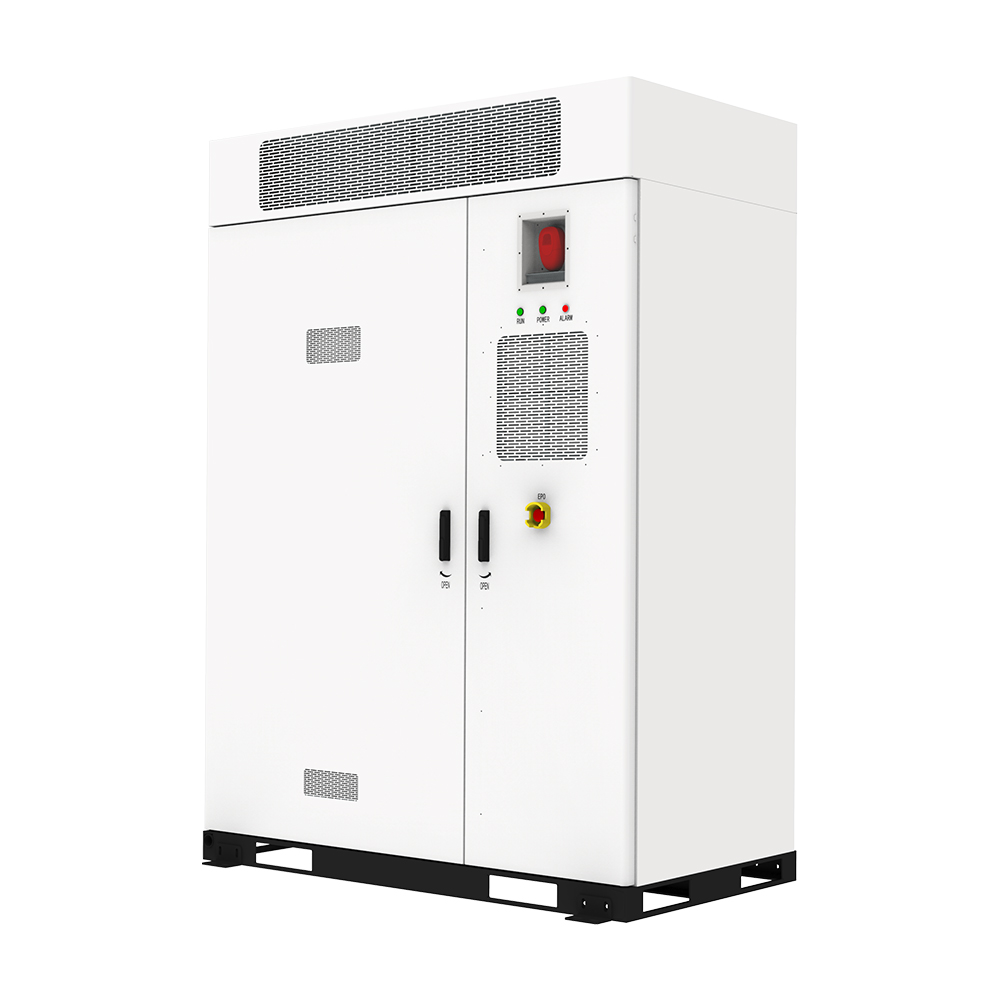

MS-G215 Microgrid System: Reliable and Scalable Energy Storage
Presentando el MS-G215, a robust and intelligent microgrid system designed for reliable, scalable, and safe energy storage. With a nominal output power of 100KW and an energy capacity of 215KWh, the MS-G215 is an ideal solution for a wide range of applications requiring independent and resilient power.
Característica | Especificación |
---|---|
Potencia nominal de salida | 100 KW |
Capacidad energética | 215 kWh |
Tipo de batería | Lithium Iron Phosphate (LPF-280Ah) |
Ciclo de vida | ≥6000 cycles (@25℃±2℃, 0.5C/0.5C, 70%EOL) |
Converter Max. Efficiency | 98.5% |
Dimensiones (An x Pr x Al) | 1765 x 1000 x 2500 mm |
Peso | Approx. 2.7 Tons |
Garantía | 10 años |
Principales características y beneficios:
- All-in-One Integration: The system features a multi-fusion design with an integrated Energy Management System (EMS), converter, and Battery Management System (BMS). It includes a power supply redundancy design and supports black start functionality, ensuring your power stays on even during grid outages.
- Mayor seguridad y confiabilidad: Your safety is paramount. The MS-G215 is built with a Lithium Iron Phosphate (LFP) battery, known for its stability. It incorporates an advanced aerosol fire extinguishing solution, 1-hour flame retardant protection, and a C4-grade anti-corrosion shell. The intelligent BMS provides comprehensive protection and proactive balancing to extend the battery’s life.
- Intelligent Temperature Control: Operate at peak performance without overheating. The system’s intelligent temperature control ensures that even at full power, the battery temperature remains under 35°C with a temperature difference of less than 8°C.
- Built for Durability: Housed in an IP54-rated enclosure, the floor-mounted MS-G215 is designed to withstand demanding environmental conditions, operating in temperatures from -20°C to 45°C and at altitudes up to 3000 meters.
- Scalable and Flexible: Future-proof your energy needs. The MS-G215 is designed for expansion, supporting the addition of MPPT modules, charging modules, and diesel generator connections. For larger power requirements, up to 12 units can be connected in parallel.
The MS-G215 Micro Grid System provides a comprehensive, high-performance energy solution, backed by a 10-year warranty for complete peace of mind.
