| Battery Chemistry | LiFePO₄ |
| Capacity | 100 Ah |

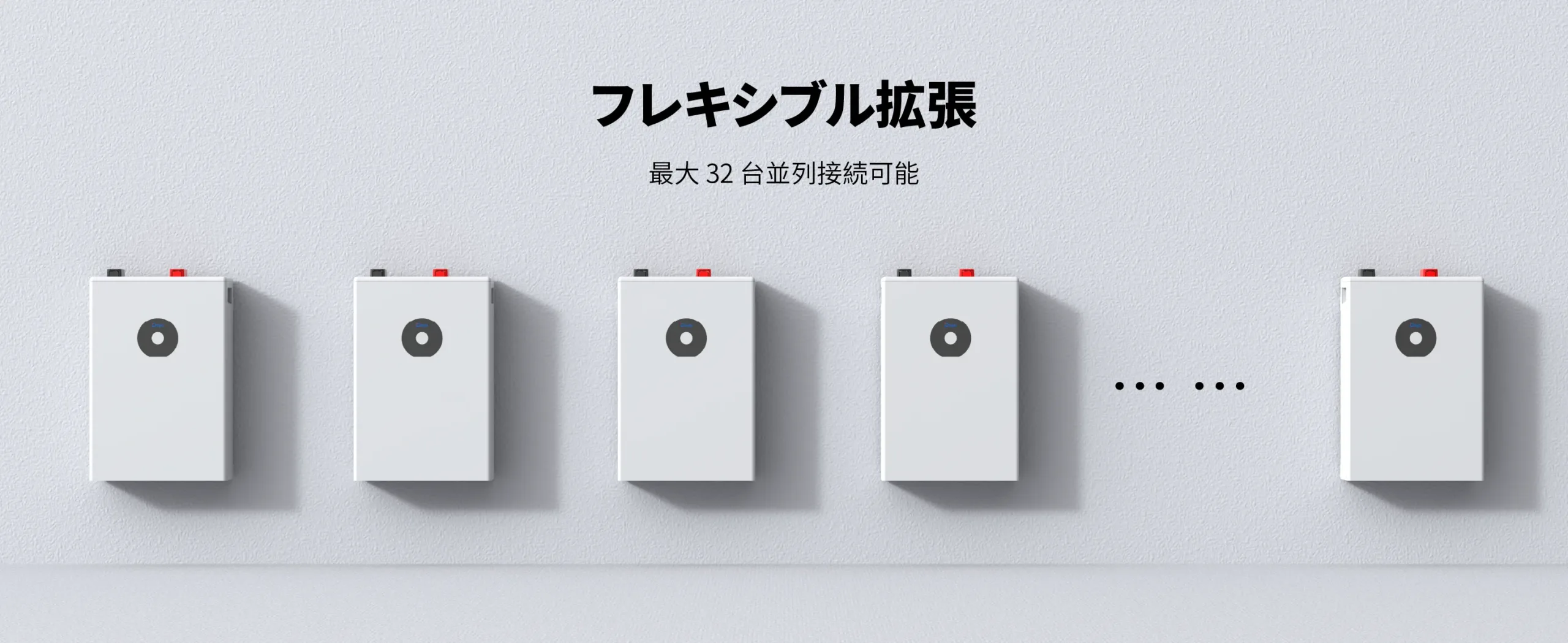

| Scalability | Max 32 pcs in parallel (Max. 64 pcs can parallel with CAN-Bridge) |
| Nominal Voltage | 51.2 V |
| Operating Voltage | 44.8 V – 57.6 V |
| Nominal Energy | 5.12 kWh |
| Charge Current – Max Continuous | 100 A |
| Charge Current – Peak | 120 A (10 sec) |
| Discharge Current – Max Continuous | 120 A |
| Discharge Current – Peak | 150 A (10 sec) |
| Recommended Depth of Discharge | 80% DoD |
| Dimension (W × H × D) (Without hanging board) | 370 × 548 × 140 mm |
| Weight Approximate | 41 kg |
| LED Indicator | LED (SOC, working, protecting) & Buzzer |
| IP Rating of Enclosure | IP21 |
| Operating Temperature | Charge: 0 – 55℃ / Discharge: -20 – 55℃ |
| Storage Temperature | 0 – 35℃ |
| Relative Humidity | 95% (non-condensing) |
| Altitude | ≤3000m |
| Cycle Life | ≥6000 (25℃±2℃, 70% EOL) |

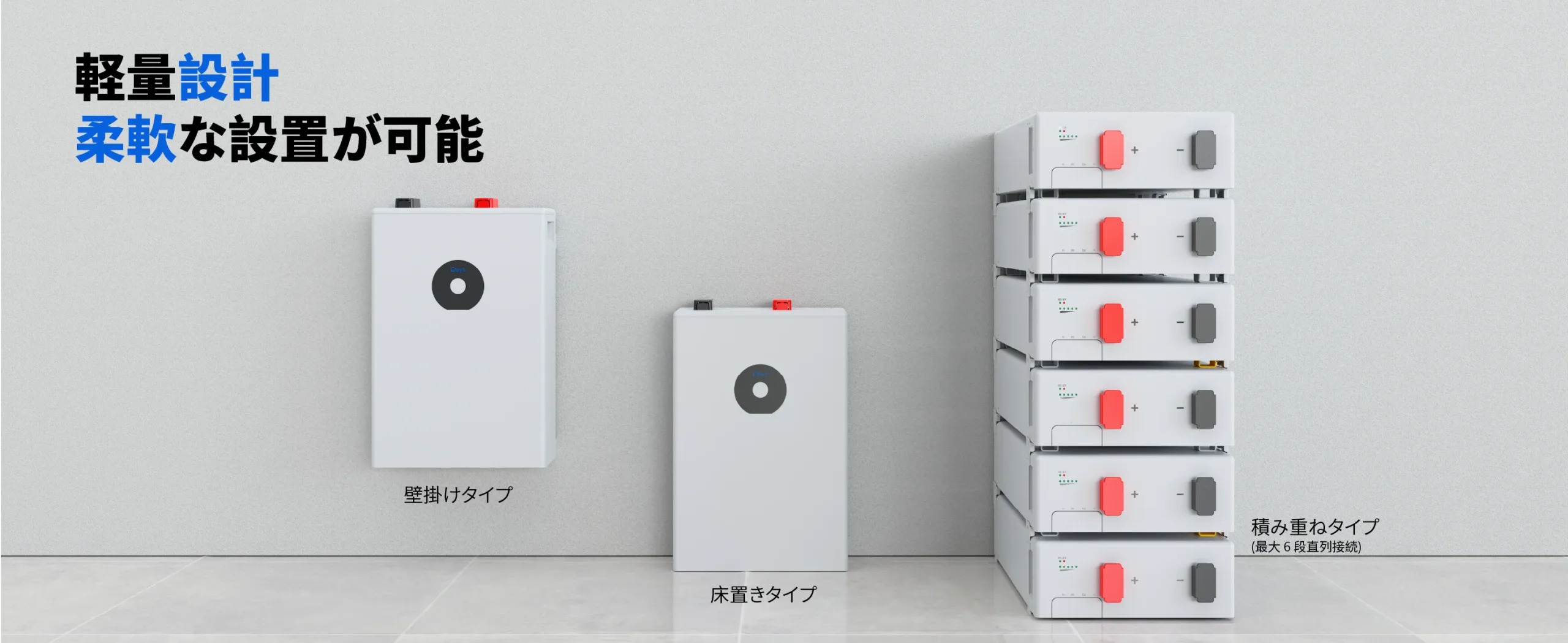

| Installation | Wall-Mounted, Floor-Mounted, Stack-Mounted |

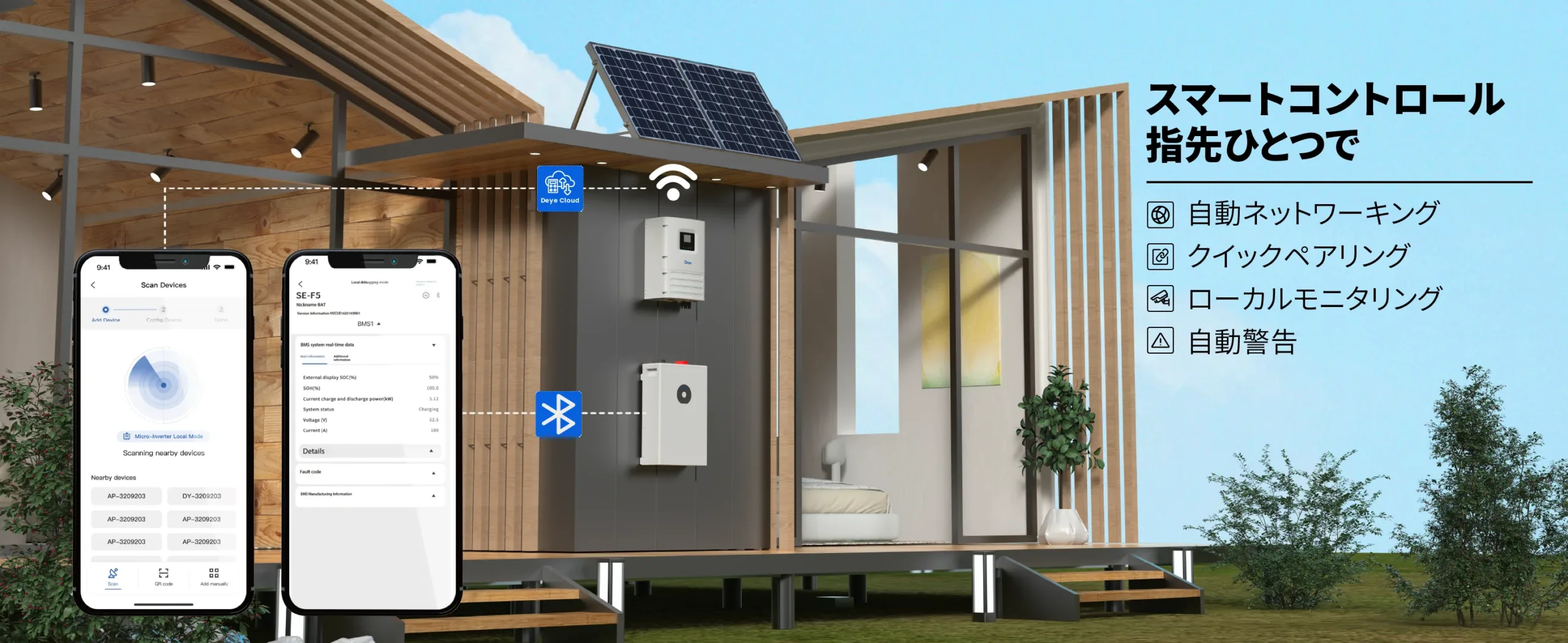

| Communication | CAN2.0, RS485, Bluetooth+APP |
| Warranty Period | 5 years |
| Energy Throughput | 8 MWh |
| Certification | UN38.3, MSDS, CE, CB |
