SE-F5 Pro
Deye Brand-new Residential Solution

For Europe, Asia, Africa & LATAM

説明仕様ダウンロード

Model	SE-F5 Pro
Battery Chemistry	LiFePO₄
Nominal Voltage	51.2 V
Operating Voltage	44.8 V ~ 57.6 V
Capacity	100 Ah
Nominal Energy	5.12 kWh
Max. Continuous Charge/Discharge Current	100 A
Peak Charge/Discharge Current	150 A (for 120 seconds)
Recommended Depth of Discharge (DoD)	90%
Dimensions (W×H×D)	404 × 547 × 141 mm
Weight	44 kg
IP Rating	IP21

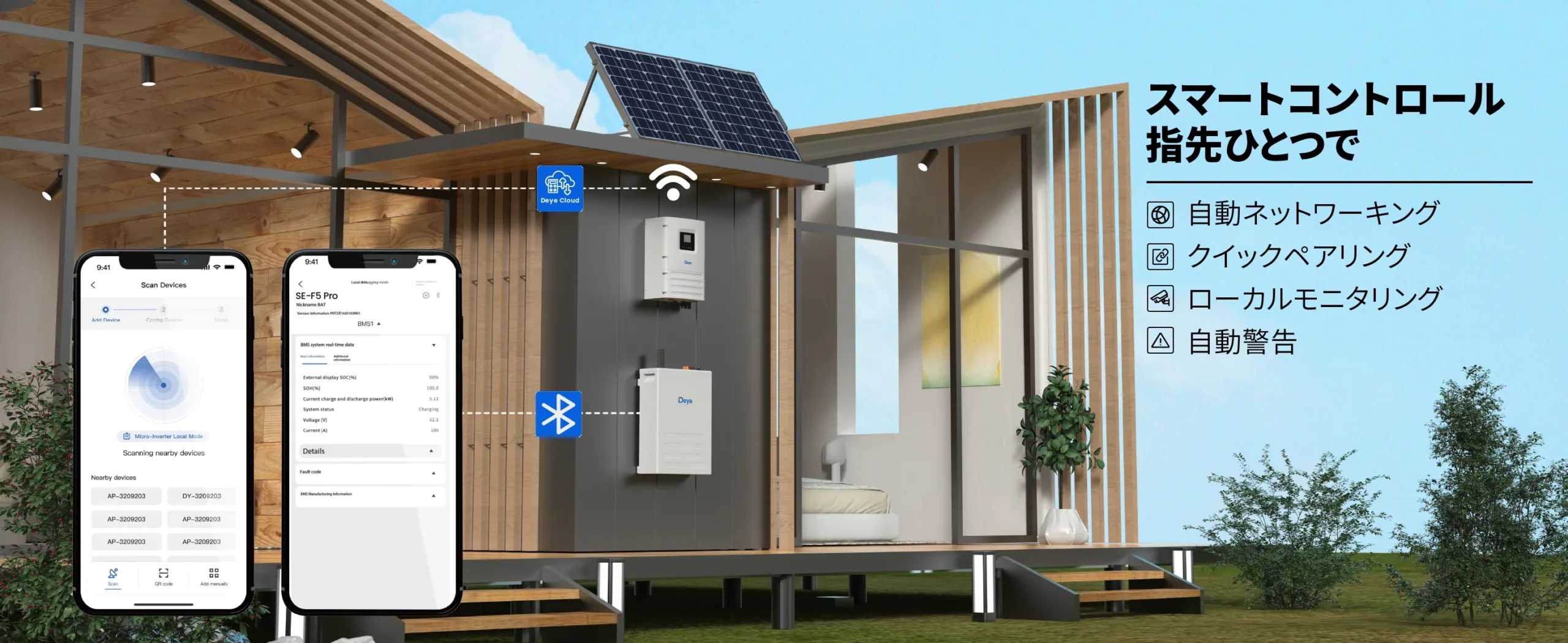

Communication	CAN2.0, RS485, Optional (WiFi + Bluetooth + APP)
