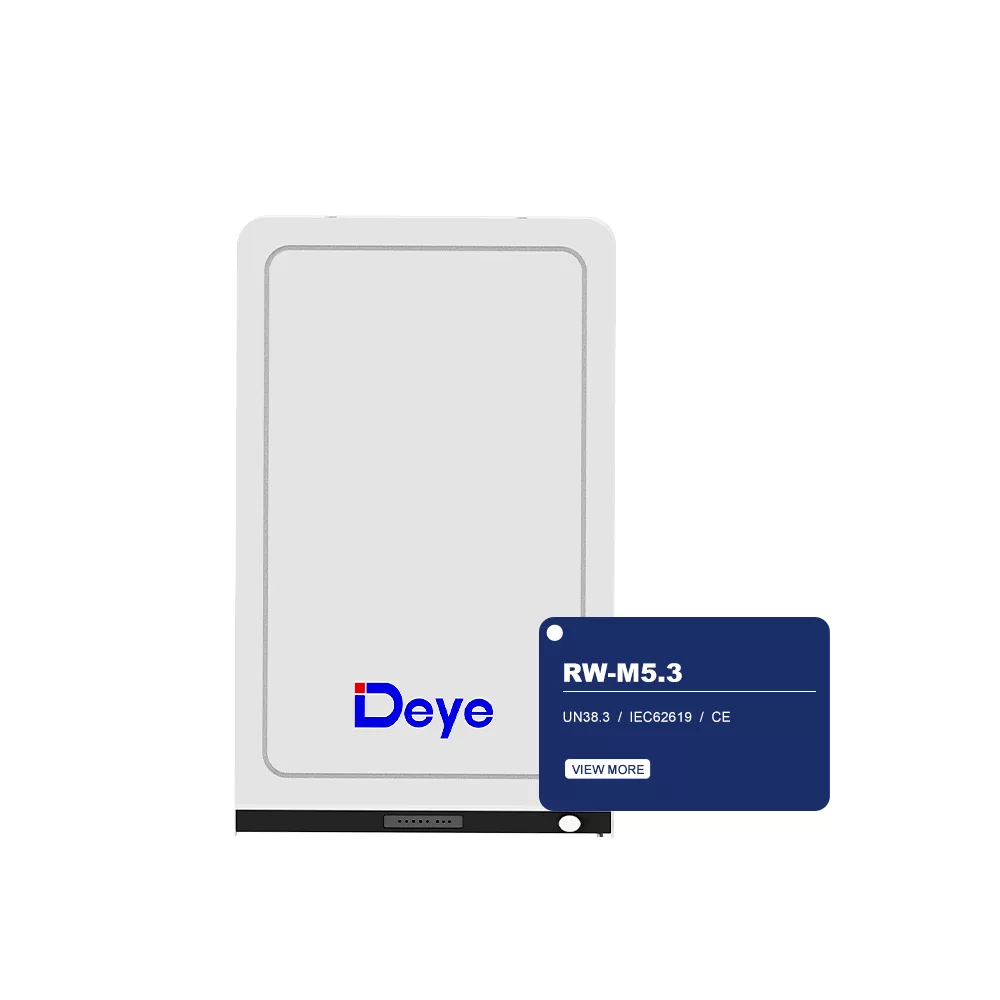

RW-M5.3(LV)

  • Safer
    Cobalt Free Lithium Iron Phosphate (LFP) Battery, safety and long lifespan, high efficiency and high-energy density.
  • Reliable
    Intelligent BMS, providing complete protection. Natural cooling, IP23, wide temperature range: -20℃ to +55℃.
  • Flexible
    Modular design, easy to expand, Max. 32 units in parallel, Max. capacity of 82 kWh. Suited to residential and commercial applications for increasing the self consumption ratio.
  • Convenient
    Battery module auto networking, easy maintenance, support remotely monitoring and upgrade, support USB drive upgrade the firmware.
  • Eco Friendly
    Use environmental protection materials, the whole module non-toxic, pollution-free.
  • Wall Mounted
    Flat design, wall-mounted, saving installation space.
SKU: RW-M5.3 Categories: ,

Description

The RW-M5.3 solar PV batteries from Deye ESS offer safe, reliable energy storage for residential solar systems. Utilizing advanced lithium iron phosphate chemistry, it stores surplus daylight for nighttime use.

Each 5.32kWh LFP battery module provides 104Ah capacity to accumulate renewable energy. Supporting 80A continuous discharge (100A peak), it powers most household loads. Connect up to 32 RW-M5.3 units in parallel to achieve over 170kWh total solar PV batteries capacity.

An integrated battery management system actively balances cells and includes crucial protections against issues like overcharging and short circuits. It enables convenient remote monitoring and firmware updating.

With natural air cooling and an IP23 rating, the compact RW-M5.3 operates from -4°F to 131°F. Wall mounting saves floor space while convenient handles simplify installation and service.

Whether starting small or building a high capacity solar PV batteries system from day one, the modular RW-M5.3 scales to your needs. It stores surplus solar energy for overnight power or backup during grid failures.

The flexible RW-M5.3 solar PV batteries system delivers:

  • 5.32kWh LFP modules
  • Up to 170kWh total capacity
  • 80A continuous / 100A peak discharge
  • Integrated battery monitoring and optimization
  • Wide temperature range
  • Streamlined installation and maintenance

Invest in the modular RW-M5.3 solar PV batteries solution for reliable home energy storage. Contact Deye ESS to customize the perfect system.

Technical Data

Model   RW-M5.3
Main Parameter
Battery Chemistry LiFePO4
Capacity (Ah) 104
Scalability Max.32 pcs in Parallel(170kWh)
Nominal Voltage (V) 51.2
Operating Voltage (V) 43.2~57.6
Energy (kWh) 5.32
Usable Energy (kWh)[1] 4.79
Charge/Discharge Current (A) Recommend[2] 34
Max.[2] 80
Peak 100(10mins, 25℃)
Other Parameter
Recommend Depth of Discharge 90%
Dimension (W/H/D, mm) 380*620*140(without Hanging Board)
Weight Approximate(kg) 44
Master LED Indicator 5LED(SOC: 20%~100%), 3LED (working, alarming, protecting)
IP Rating of Enclosure IP23
Operating Temperature Charge: 0℃~+55℃ / Discharge: -20℃~+55℃
Storage Temperature 0℃~+35℃
Humidity 5%~95%
Altitude ≤2000m
Cycle Life ≥4000(25℃±2℃, 0.2C/0.2C, 90%DOD, 70%EOL)
Installation Wall-Mounted
Communication Port CAN2.0, RS485
Warranty Period[3] 5 years
Energy Throughput[3] 8MWh@70%EOL
Certification UN38.3, IEC62619, CE

[1] DC Usable Energy, test conditions: 90% DOD, 0.2C charge & discharge at 25℃. System usable energy may vary due to system configuration parameters.
[2] The current is affected by temperature and SOC.
[3] The warranty is due whichever reached first of warranty period or energy throughput.
