Description

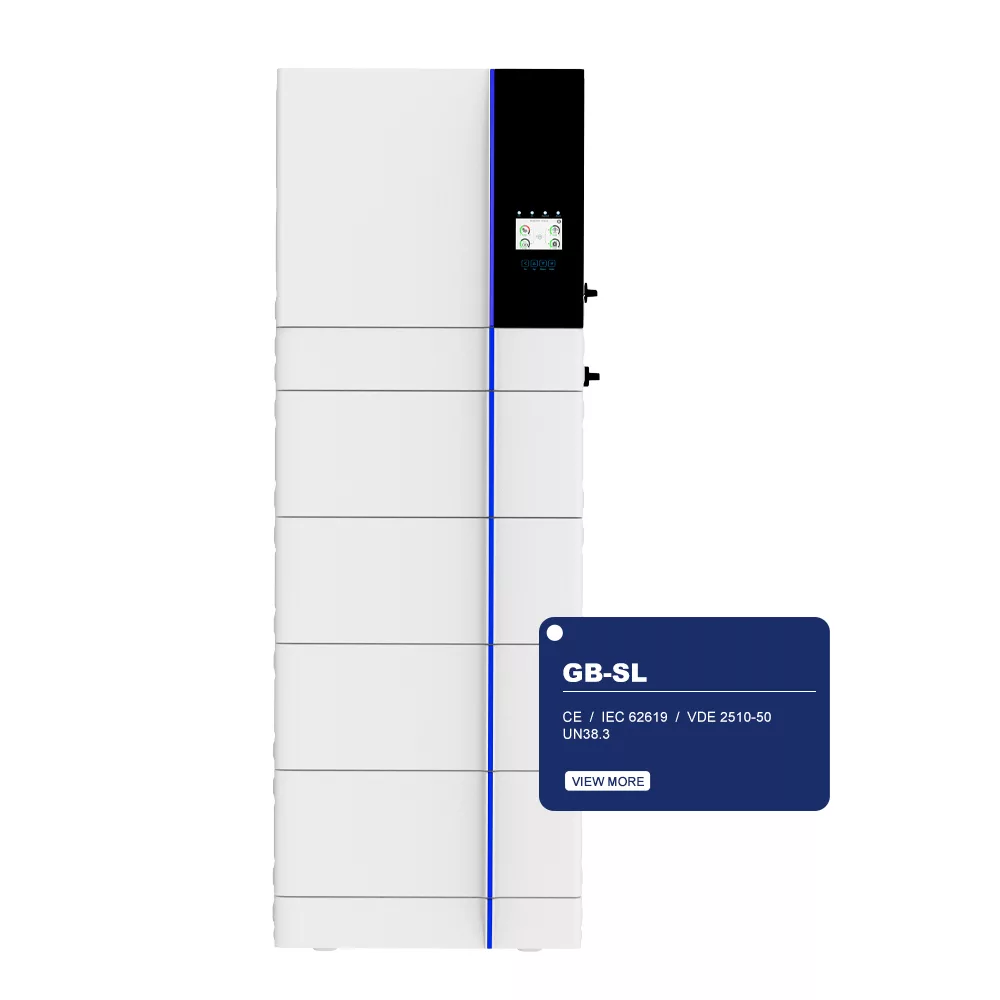

GB-SL is an outstanding energy storage product with multiple superior features.

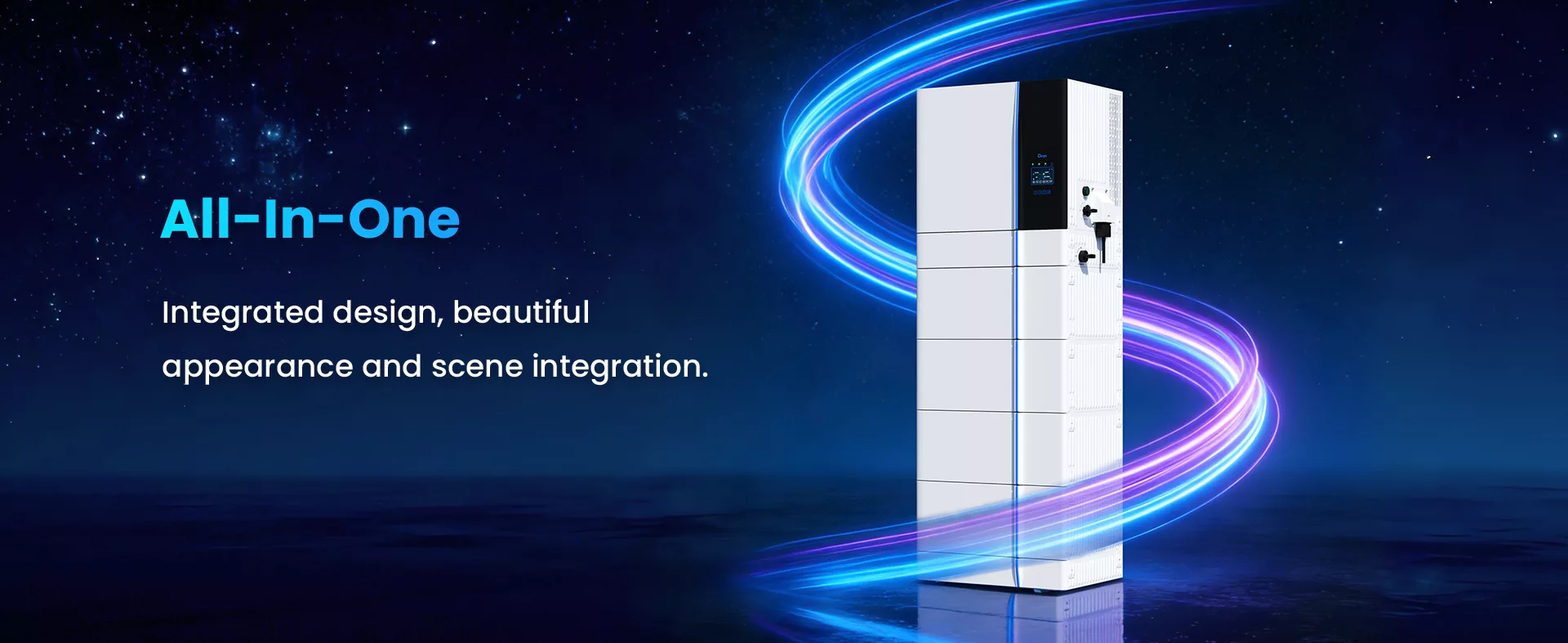

- ALL IN ONE: It adopts an integrated design, boasting a beautiful appearance. Moreover, it enables seamless scene integration, making it highly adaptable to various application scenarios.
- Maximum output: Each phase can achieve 100% unbalanced output, and the maximum output can reach up to 60% of the rated power, ensuring powerful energy supply capacity.
- Maximum connection: It supports a maximum of 10 units in parallel for both on-grid and off-grid operations, providing great flexibility in system expansion.
- More support: It can store energy from diesel generators, enhancing the reliability and diversity of energy sources.

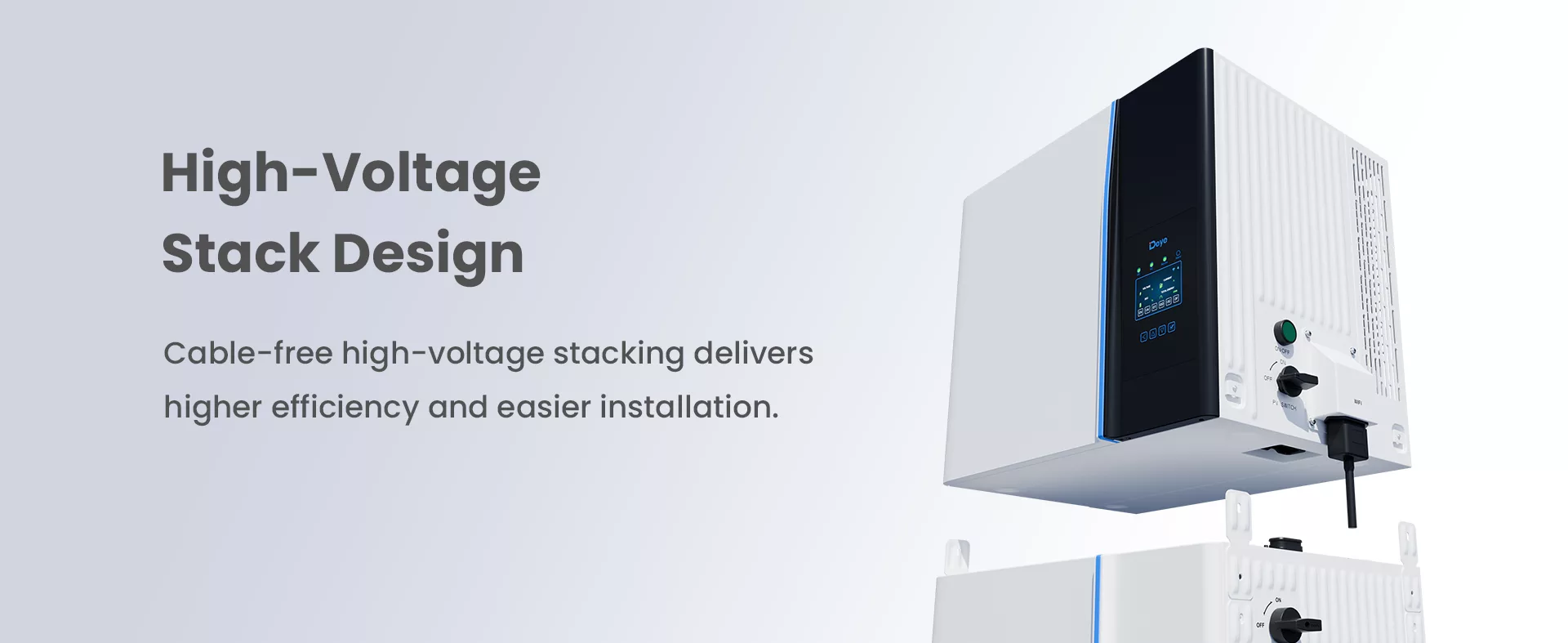

- High-voltage stack: Modules are connected in series without cable connection, and the high-voltage platform improves system efficiency, contributing to better energy conversion and utilization.
- Thermal management: It can detect the temperature of key parts such as cells and power plug-ins, ensuring safe and stable operation.
- Wide temperature operation: An optional heating function is available to meet application scenarios with low temperatures, expanding its usability in extreme environments.

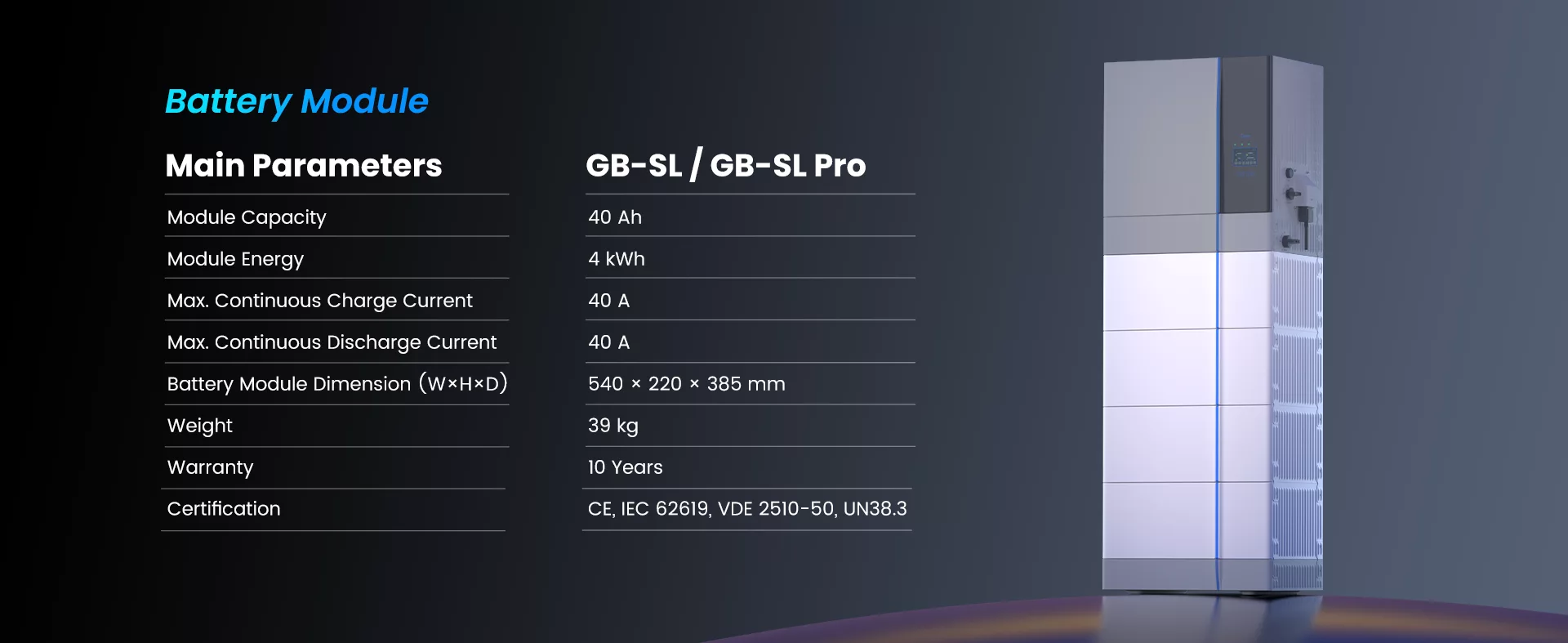

Specification |
Details |
Cell Chemistry |
LiFePO4 (Lithium Iron Phosphate) |
Module Energy |
4.09 kWh per module |
Module Voltage |
102.4V nominal |
Module Capacity |
40Ah |
System Configurations |
2-6 modules (8.18-24.54 kWh total capacity) |
Operating Voltage Range |
204.8V – 614.4V |
Charge/Discharge Current |
20A recommended, 40A maximum, 50A peak |
Operating Temperature |
Charging: 0°C to 55°C
Discharging: -20°C to 60°C |
Cycle Life |
>6,000 cycles at 70% EOL (25°C, 0.5C/0.5C) |
Warranty |
10 years comprehensive coverage |
IP Rating |
IP65 (dust-tight and water-resistant) |
Humidity Range |
5-85% RH |
Maximum Altitude |
2,000 meters |
Noise Level |
<55dB (whisper-quiet operation) |
Storage Temperature |
0°C to 35°C |
Communication Protocols |
CAN2.0/RS485 |
Thermal Management |
Natural cooling system |
Installation Type |
Floor mount design |
Recommended Discharge Depth |
90% |
