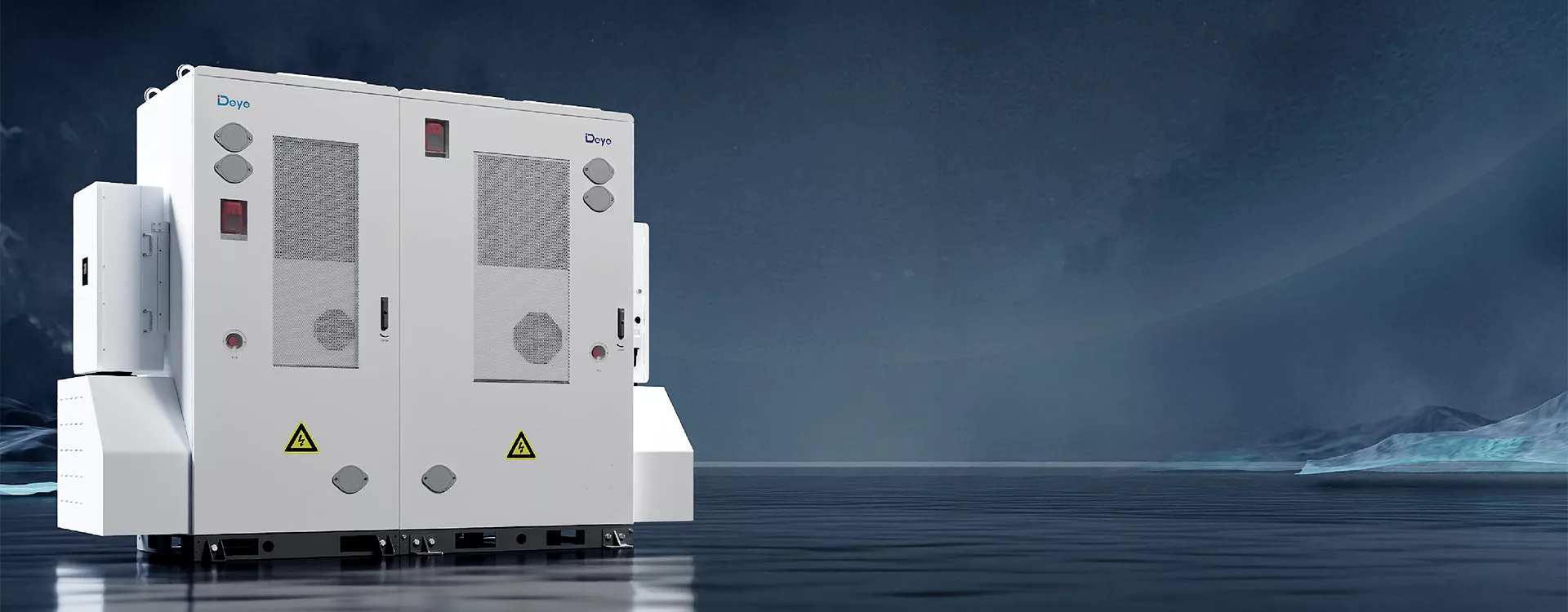

GE-F128 & GE-F240

Deye is excited to usher in 2026 with a series of significant exhibitions showcasing our commitment to solar energy solutions. As industry leaders...

Model	GE-F112-BC-2-A3	GE-F128-BC-2-A3
Main Parameters
Cell Type	LiFePO₄
Module Capacity (Ah)	314
Module Nominal Voltage (Vdc)	51.2
Module Energy (kWh)	16.07
Module Qty In Series	7	8
System Nominal Energy (kWh)	112	128
System Usable Energy (kWh)*1	112	128
System Nominal Voltage (Vdc)	358.4	409.6
System Operating Voltage (Vdc)	280-408.8	320-467.2
Rated DC Power (kW)	56	64
Charge/Discharge Max. Continuous Current(A)*2	180
Peak discharge@15s/25±2℃	285
Other Parameters
Fire Protection System	Aerosol and Water fire interface
Cooling Method	Smart Air Cooling
Communication Port	CAN, RS485
Communication protocol	CAN2.0, Modbus, TCP/IP
Operating Temperature(℃)*3	-30-55
Recommend Storage Temperature(℃)	0-55
Humidity	5% – 95%RH (No Condensing)
Altitude	3000m
IP Protection	IP55
Anti Corrosion Level	C4-M
Dimension(W x D x H mm)	998 x 1240 x 2400
Weight(kg)	1595	1700
Installation Location	Floor mount
Cycle Life	≥8000 (25±2℃ 0.5P EOL70%)
Warranty	10 years
Certification	UN38.3, IEC, CE, VDE, ROHS, REACH

Model

GE-F112-BC-2-A3

GE-F128-BC-2-A3

Main Parameters

Cell Type

LiFePO₄

Module Capacity (Ah)

314

Module Nominal Voltage (Vdc)

51.2

Module Energy (kWh)

16.07

Module Qty In Series

System Nominal Energy (kWh)

112

128

System Usable Energy (kWh)*1

112

128

System Nominal Voltage (Vdc)

358.4

409.6

System Operating Voltage (Vdc)

280-408.8

320-467.2

Rated DC Power (kW)

Charge/Discharge Max. Continuous Current(A)*2

180

Peak discharge@15s/25±2℃

285

Other Parameters

Fire Protection System

Aerosol and Water fire interface

Cooling Method

Smart Air Cooling

Communication Port

CAN, RS485

Communication protocol

CAN2.0, Modbus, TCP/IP

Operating Temperature(℃)*3

-30-55

Recommend Storage Temperature(℃)

0-55

Humidity

5% – 95%RH (No Condensing)

Altitude

3000m

IP Protection

IP55

Anti Corrosion Level

C4-M

Dimension(W x D x H mm)

998 x 1240 x 2400

Weight(kg)

1595

1700

Installation Location

Floor mount

Cycle Life

≥8000 (25±2℃ 0.5P EOL70%)

Warranty

10 years

Certification

UN38.3, IEC, CE, VDE, ROHS, REACH

Model	GE-F176-BC-2-A3	GE-F208-BC-2-A3	GE-F240-BC-2-A3
Main Parameters
Cell Type	LiFePO₄
Module Capacity (Ah)	314
Module Nominal Voltage (Vdc)	51.2
Module Energy (kWh)	16.07
Module Qty In Series	11	13	15
System Nominal Energy (kWh)	176	208	241
System Usable Energy (kWh)*1	176	208	241
System Nominal Voltage (Vdc)	563.2	665.6	768
System Operating Voltage (Vdc)	440-642.4	520-759.2	600-876
Rated DC Power (kW)	88	104	121
Charge/Discharge Max. Continuous Current(A)*2	180
Peak discharge@15s/25±2℃	285
Other Parameters
Fire Protection System	Aerosol and Water fire interface CO gas detection, Active exhaust and Explosion venting
Cooling Method	Smart Air Cooling
Communication Port	CAN, RS485
Communication protocol	CAN2.0, Modbus, TCP/IP
Operating Temperature(℃)*3	-30-55
Recommend Storage Temperature(℃)	0-55
Humidity	5% – 95%RH (No Condensing)
Altitude	3000m
IP Protection	IP55
Anti Corrosion Level	C4-M
Dimension(W x D x H mm)	1300 x 1240 x 2400
Weight(kg)	2080	2290	2500
Installation Location	Floor mount
Cycle Life	≥8000 (25±2℃ 0.5P EOL70%)
Warranty	10 years
Certification	UN38.3, IEC, CE, VDE, ROHS, REACH
