MC-L430-2H3

  • High Capacity: 430.08 kWh Nominal Energy (LiFePO₄ Battery)
  • Powerful Output: 200 kW Rated Power / 220 kW Max Power (AC)
  • Ultimate Safety: 5-Level Protection, Integrated Fire Suppression (Aerosol/Water), IP54 Rating
  • Seamless Switching: 10ms transition between on-grid and off-grid modes
  • Intelligent Management: Cloud platform with remote O&M & customizable algorithms
  • Robust Design: Liquid Cooling, -25°C to +55°C Operating Range, ≥C4 Anticorrosion
  • Versatile Expansion: Supports up to 8 cabinets in parallel
  • Multiple Applications: Peak Shaving, EV Charging (420kW DC Coupling), Off-Grid Power
  • Reliable: 10-Year Warranty
SKU: MC-L430-2H3Categories: High Voltage Series (HV)
Contact Us

Description

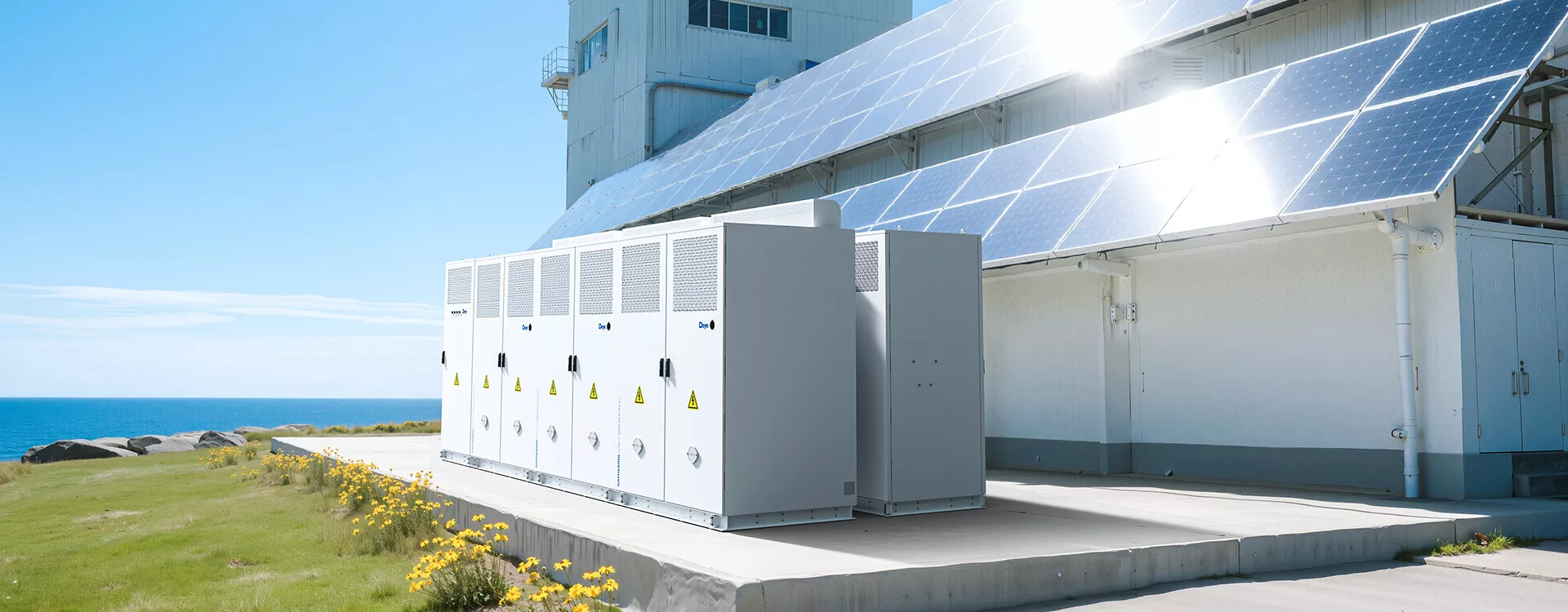

MC-L430-2H3: Robust AC Battery Energy Storage System for Commercial & Industrial Applications

Part of the Deye Winter MS Series, the MC-L430-2H3 is a high-performance AC Battery Energy Storage System (BESS) designed specifically for demanding Commercial and Industrial (C&I) environments. This all-in-one modular solution integrates PCS, BMS, and EMS, delivering reliable power management, enhanced safety, and versatile application capabilities.

Key Features & Performance:

  • High Energy Capacity: Features a 430.08 kWh nominal energy capacity using reliable LiFePO₄ battery chemistry (280Ah nominal capacity).
  • Powerful Output: Delivers 200 kW rated AC power and 220 kW maximum power, operating at 380/400V (3L+N+PE) and 50/60 Hz.
  • Efficient Operation: Supports a charge and discharge rate of 0.5P and a wide DC voltage range (636 Vd.c. – 876 Vd.c.).
  • Seamless Transition: Ensures uninterrupted power with 10ms seamless switching between on-grid and off-grid modes.

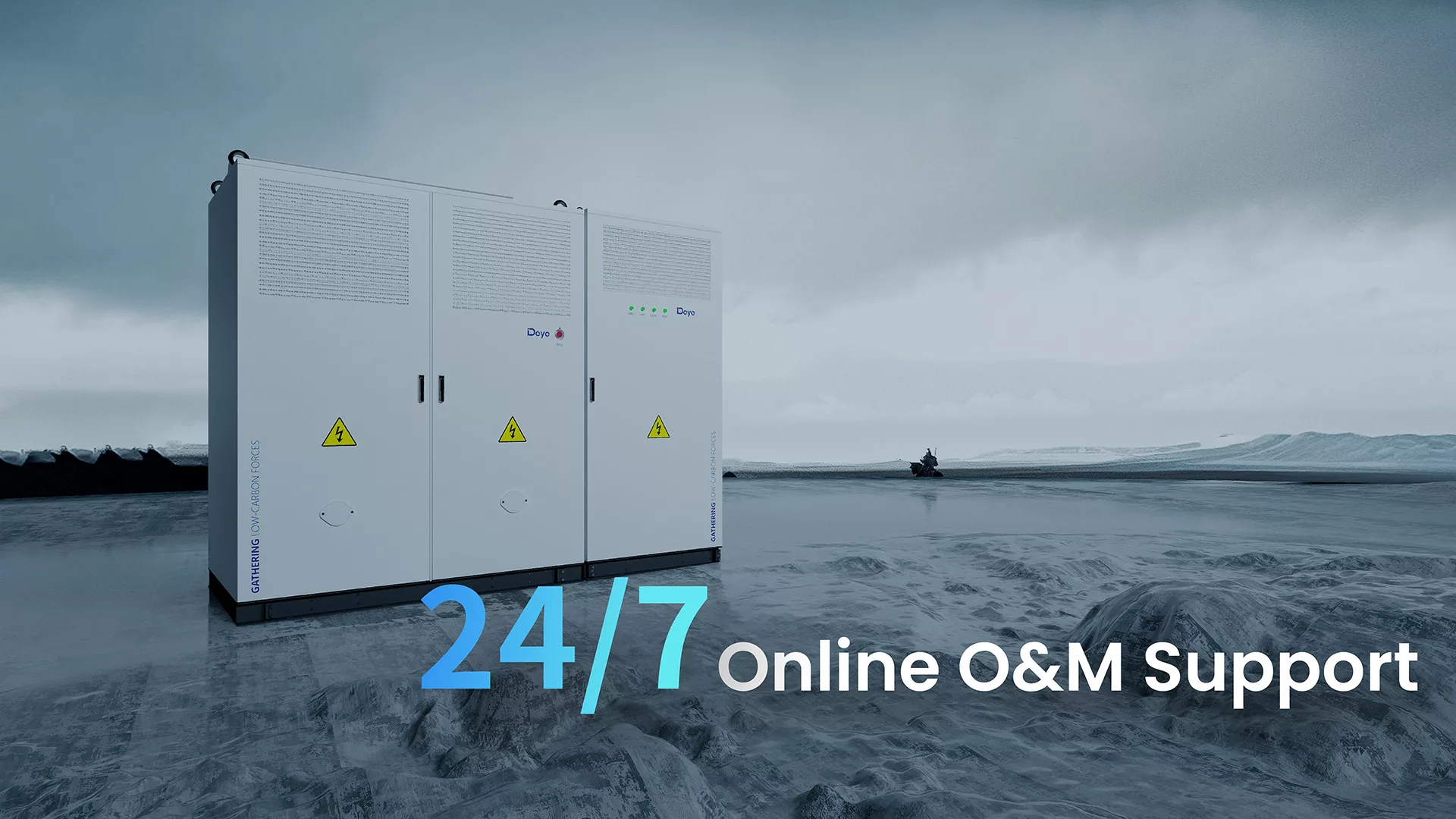

  • Intelligent Management: Utilizes an Intelligent Cloud Platform with customizable load algorithms, 24-hour online O&M, battery life/safety warnings, and device cloud interconnection via RS485, Modbus TCP, and DIDO.

Ultimate Safety & Reliability:

  • Multi-Layered Protection: Incorporates a 5-Level Extreme Safety Protection system encompassing detection, early warning, smoke exhaust, fire fighting, and explosion venting.
  • Integrated Fire Safety: Features a self-contained fire protection system using both Aerosol and Water suppression methods.
  • Electrical Safety: Includes an explosion-proof design, five-level electrical safety protection, high-voltage interlocking, and prevention of loaded arc operation.
  • Durability: Built to withstand demanding conditions with IP54 ingress protection, a ≥C4 anticorrosion grade, and liquid cooling. Operates reliably in temperatures from -25°C to +55°C and altitudes up to 2000m.

Versatile Expansion & Applications:

  • Scalable Design: Supports parallel connection of up to 8 cabinets for increased capacity and features a higher energy density to minimize footprint.
  • Flexible Energy Storage: Suitable for both 2-hour and 4-hour energy storage applications.
  • Broad Application Scope: Ideal for:
    • New energy vehicle charging capacity expansion
    • Peak-to-Valley arbitrage and load shifting
    • Virtual power plant integration
    • Reliable off-grid operation for islands, base stations, etc.
  • DC Fast Charging Ready: Supports 420kW DC coupling for combined ESS and EV charging applications (verify specific configuration).

Warranty & Physical Specifications:

  • Peace of Mind: Backed by a comprehensive 10-year warranty, including a 10-year free replacement of coolant.
  • Dimensions: 2000 mm (W) × 1300 mm (D) × 2480 mm (H)
  • Weight: ≤4600 kg

The MC-L430-2H3 offers a robust, safe, and intelligent solution for businesses seeking to optimize energy usage, ensure power reliability, and integrate renewable energy sources effectively.
