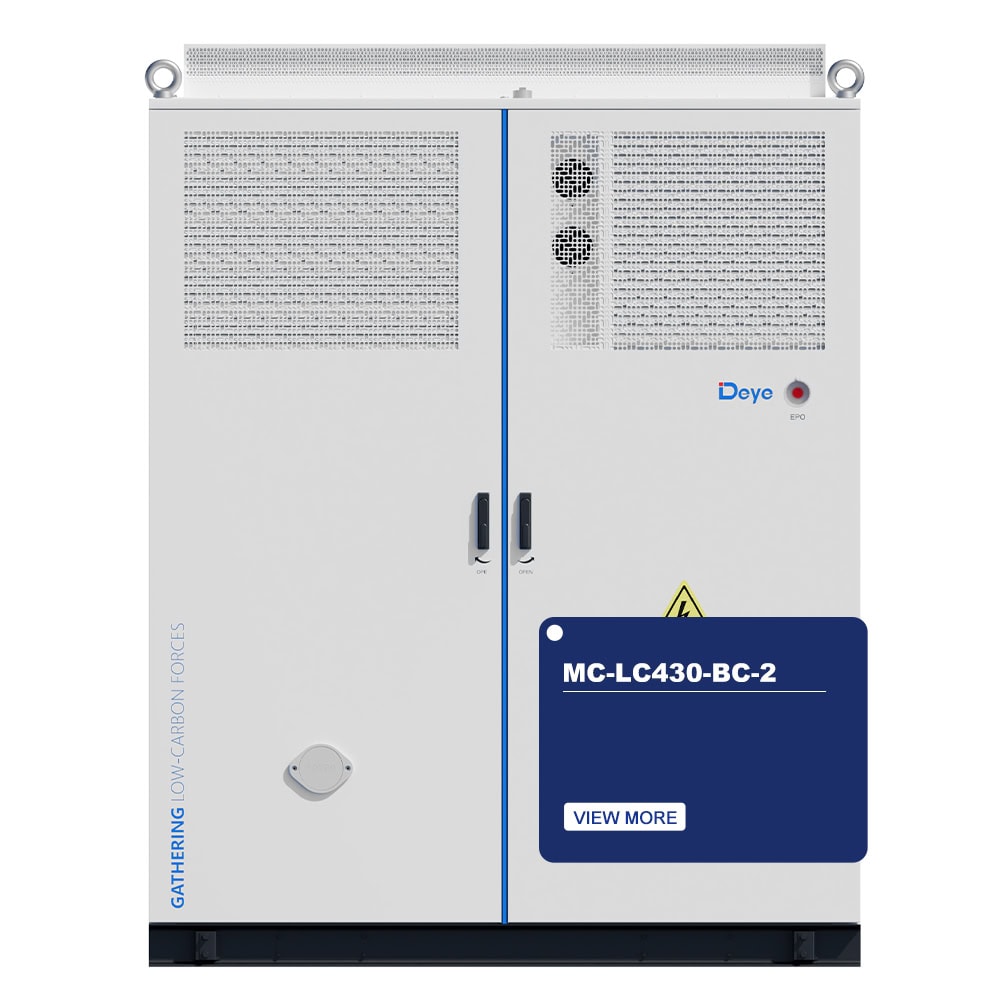

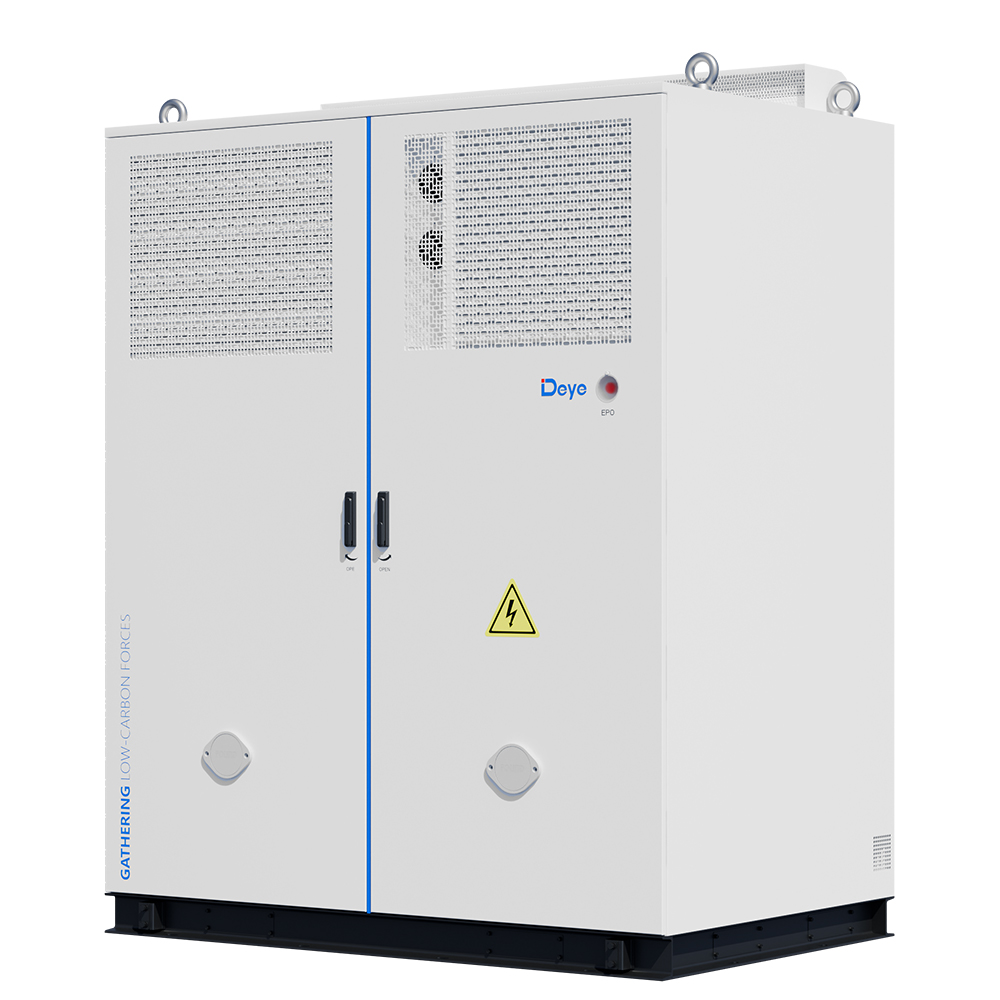

MC-LC430-BC-2

Deye is excited to usher in 2026 with a series of significant exhibitions showcasing our commitment to solar energy solutions. As industry leaders...

Model	MC-LC430-2H2（AC BESS）
System parameter
Operating Temperature	-25℃ ~ +55℃
Storage Temperature	-30℃ ~ +60℃
Humidity	0 ~ 95%（No condensation）
Type of cooling	Liquid cooling
Fire Suppression	Aerosol, Water
Ingress Protection	IP54
Anticorrosion grade	C4-M（Optional C5）
Altitude	≤2000m
Communication	RS485, Modbus TCP, DIDO
Weight	≤5000kg
Dimensions (W × D × H)	2000 × 1350 × 2480mm
DC Data
Battery	LiFePO₄
Nominal Capacity	280Ah
Nominal Energy	430.08kWh
Nominal DC Voltage	768V.d.c.
DC Voltage Range	636V.d.c. ~ 876V.d.c.
Charge and discharge rate	charge 0.5P, discharge 1P
AC Data
Nominal AC Voltage	380/400V 3L+N+PE
Rated Frequency	50 / 60Hz
Rated Power	200kW
Maximum Power	220kW（1.1 times of rated power）
Power Factor	-1~+1

Model

MC-LC430-2H2（AC BESS）

System parameter

Operating Temperature

-25℃ ~ +55℃

Storage Temperature

-30℃ ~ +60℃

Humidity

0 ~ 95%（No condensation）

Type of cooling

Liquid cooling

Fire Suppression

Aerosol, Water

Ingress Protection

IP54

Anticorrosion grade

C4-M（Optional C5）

Altitude

≤2000m

Communication

RS485, Modbus TCP, DIDO

Weight

≤5000kg

Dimensions (W × D × H)

2000 × 1350 × 2480mm

DC Data

Battery

LiFePO₄

Nominal Capacity

280Ah

Nominal Energy

430.08kWh

Nominal DC Voltage

768V.d.c.

DC Voltage Range

636V.d.c. ~ 876V.d.c.

Charge and discharge rate

charge 0.5P, discharge 1P

AC Data

Nominal AC Voltage

380/400V 3L+N+PE

Rated Frequency

50 / 60Hz

Rated Power

200kW

Maximum Power

220kW（1.1 times of rated power）

Power Factor

-1~+1
