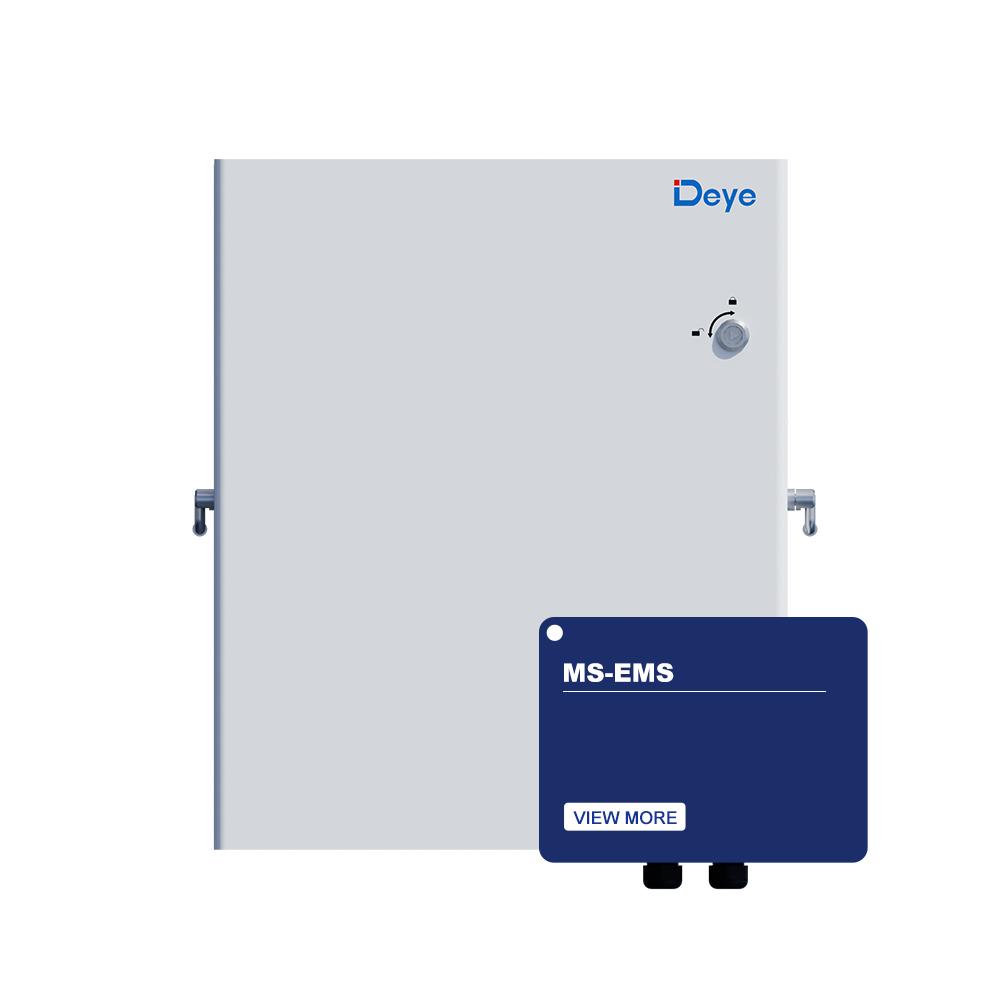

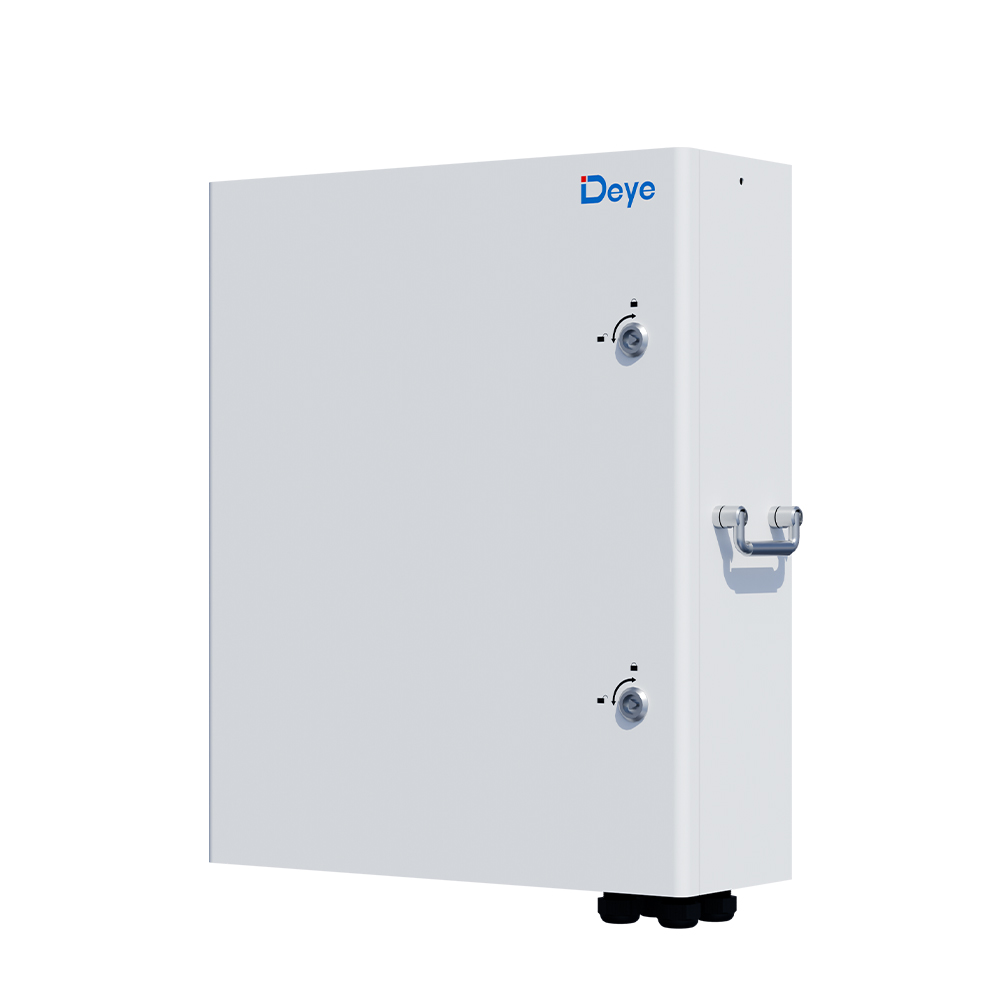

MS-EMS

MS-EMS

Exceptional Durability: LFP batteries offer over 6000 cycles with IP54 and C5 protection for harsh environments.
Flexible Scalability: Supports parallel connections for configurations up to 2MW/4.3MWh for both on-grid and off-grid applications.
Intelligent Management: An integrated EMS provides smart load tracking, thermal control, and stable multi-source power supply.
Enhanced Safety: Utilizes stable LFP chemistry and includes a system-level aerosol fire suppression system.

Description

≥6000 Cycles	C5 Protection Rating	70% EOL

Model	MS-EMS
System
Configuration	EMS controller, lightning protection module, switch power supply, UPS module, switch
Single Point Access Capacity	Energy storage: ≤ 3.44MWh Photovoltaic: ≤ 1.6MWp
Function	Basic functions: peak valley arbitrage, anti backflow, main transformer overload protection, load tracking, demand control, backup power function, phase separation control, SOC balancing, Deye Cloud monitoring Advanced features: load forecasting, production planning, electricity price planning, optimal economic curve
Communicate
Ethernet (5 channels)	10 / 100 / 1000 Mbps
Fiber Optic Port (2 channels)	1Gbps
USB (2 channels)	Host
CAN (3 channels)	Isolation, with 2 channels supporting CAN-FD
RS485 (8 channels)	Isolation
RS232 (3 channels)	2 isolated channels, 1 non isolated debugging channel (DB9 socket)
TF Card (1 channel)	Standard TF card holder
LVDS (1 channel)	The physical interface is DVI (including USB for touch)
M.2 Interfaces (1 channel)	PCIe2.0 X1, Scalable SSD (standard 1TB)
DI (17 channels)	Optocoupler isolation
DO (8 channels)	Relay isolation
WLAN	802.11 b / AC g n, HT 20 / 40, 2.4 GHz / 5 GHz
Power Supply
Communication Input	220Vac
DC IN	24Vdc
UPS Backup Power	24Vdc
Consumption	Max 25W

Environmental parameters
Operation Temperature	-15℃ ~ +50℃
Storage Temperature	-15℃ ~ +50℃
Working Humidity	5% ~ 95%
Max. Working Altitude (m)	≤3000m
IP Rating of Enclosure	IP54
Anti-Corrosion Grade	≥C4
Mechanical parameters
Dimension (W × D × H, mm)	488 × 188 × 588
Weight Appr. (kg)	≤24.5kg
Installation Location	Indoor or outdoor, wall-mounted
Box Material	Metal
Incoming Specifications	AC power cord:Recommended wire diameter 1.5mm² DC power cord : Recommended wire diameter of 1.5mm² Eight core Ethernet cable: Recommended CAT5e Ethernet cable RS485 : Recommended 0.75mm²~1.5mm² outdoor UV protectionwith shielding layer twisted pair cable length<1000m ( baud rate 9600)
