Description

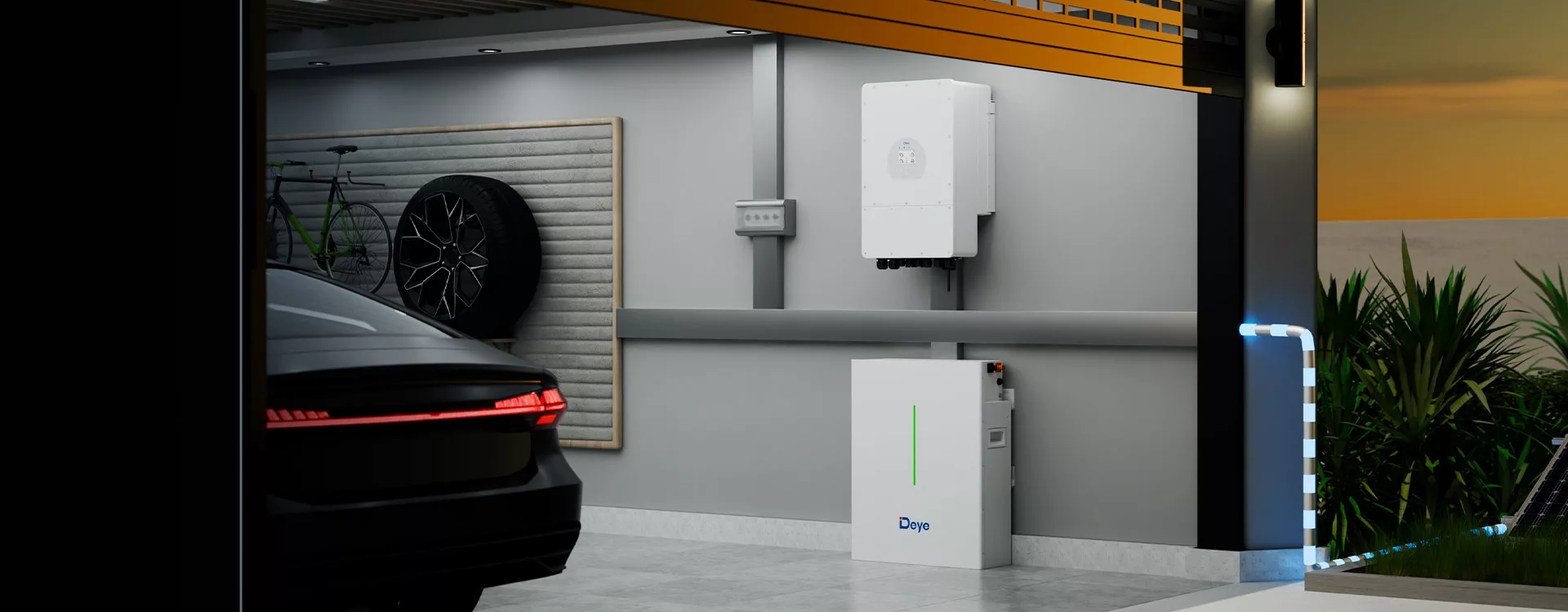

RW-F10.2: A Reliable and Efficient Energy Storage Solution
RW-F10.2 is a top-notch energy storage battery that brings exceptional performance and convenience. Safe and Reliable: Equipped with a LiFePO₄ battery and an intelligent BMS (Battery Management System). The BMS monitors voltage, current, and temperature in real time, ensuring safe operation. It also has a built-in 125A 4P, 60Vdc circuit breaker for added protection.
| Parameter |
Specification |
| Model |
RW-F10.2 |
| Battery Type |
LiFePO₄ |
| Built-in Circuit Breaker |
125A 4P, 60Vdc |
| Capacity (Ah) |
200 |
| Nominal Voltage (V) |
51.2 |
| Operating Voltage (V) |
43.2 ~ 57.6 |
| Rated Energy (kWh) |
10.2 |
| Usable Energy (kWh) |
9.2 (90%DOD) |
| Scalability |
Max. 32 pcs pack (Max. 326kWh) in parallel |
| Rated DC Power (kW) |
6 |
| Max DC Power (kW) |
12 |
| Charge/Discharge Current (A) – Recommend |
Charge: 100 / Discharge: 100 |
| Charge/Discharge Current (A) – Nominal |
Charge: 198 / Discharge: 240 |
| Charge/Discharge Current (A) – Peak |
Discharge: 300 (2mins, 25°C) |
| Operating Temperature (°C) |
Charge: 1 ~ 55°C / Discharge: -20 ~ 55°C |
| Storage Temperature (°C) |
0°C ~ 35°C |
| Weight Approximate (kg) |
104 |
| Dimension (W × H × D, mm) |
600 × 760 × 200 (Without hanging board) |
| Master LED Indicator |
SOC state (20% ~ 100%), work state (alarming, protecting) |
| Humidity |
5% ~ 95% |
| Altitude |
≤3000m |
| Cycle Life |
≥6000 (25°C±2°C, 0.5C / 0.5C, 90%DOD, 70%EOL) |
| IP Rating of Enclosure |
IP65 |
| Installation Location |
Wall-Mounted, Floor-Mounted |
| Recommend Depth of Discharge |
90% |
| Communication Port |
CAN2.0, RS485 |
| Warranty Period |
10 years |
| Energy Throughput |
32MWh (25°C, 0.5C / 0.5C, 70%EOL) |
| Certification |
UN38.3, IEC62619, CE, CEC 02-11, VDE2510-50, CEC |
Key Features:
-
Long Service Life: Supports 1C/1.2C continuous charge/discharge. The BMS balances cell charging, extending the cycle life to ≥6000 cycles at 25°C±2°C, 0.5C/0.5C, 90%DOD, and 70% EOL.
-
Easy Installation: Offers wall-mounted and floor-mounted installation options, making setup hassle-free.
-

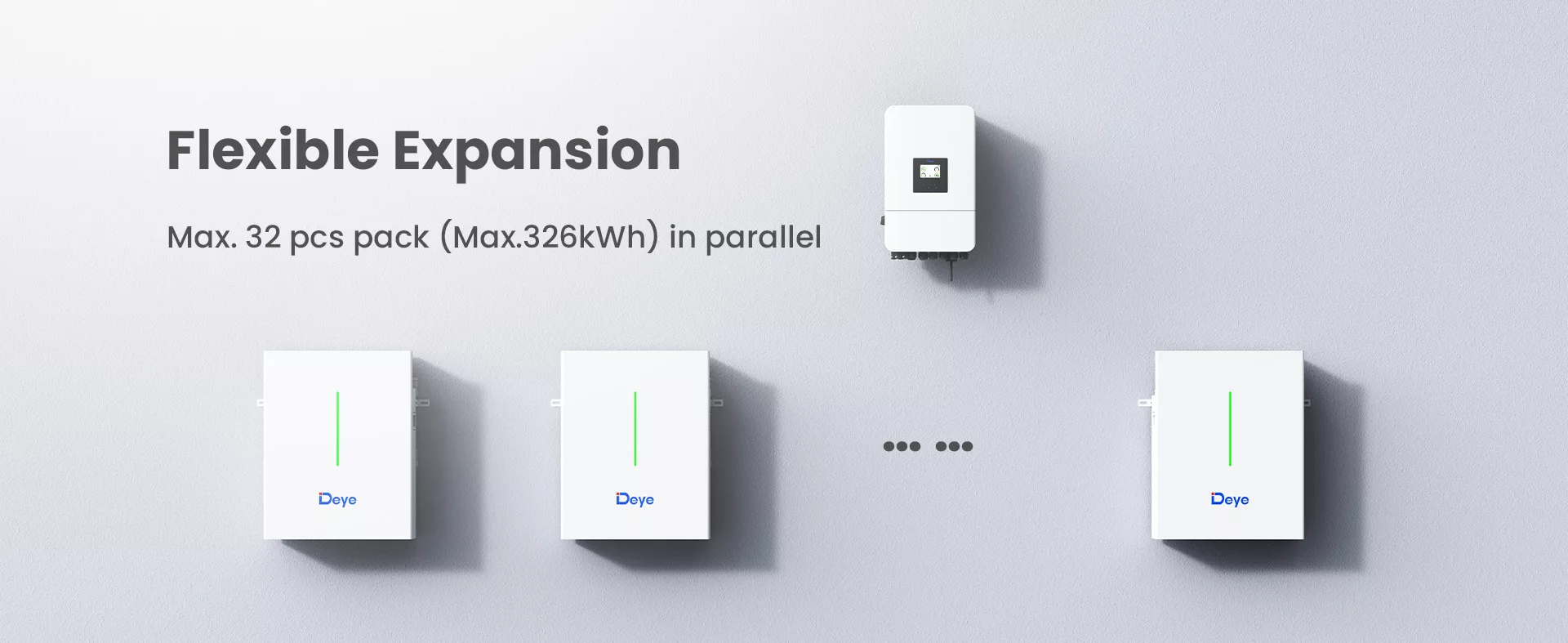

Flexible Expansion: Allows parallel connection of up to 32 units, enabling a maximum capacity of 326kWh. It is compatible with Deye inverters and multiple expansion methods.
-

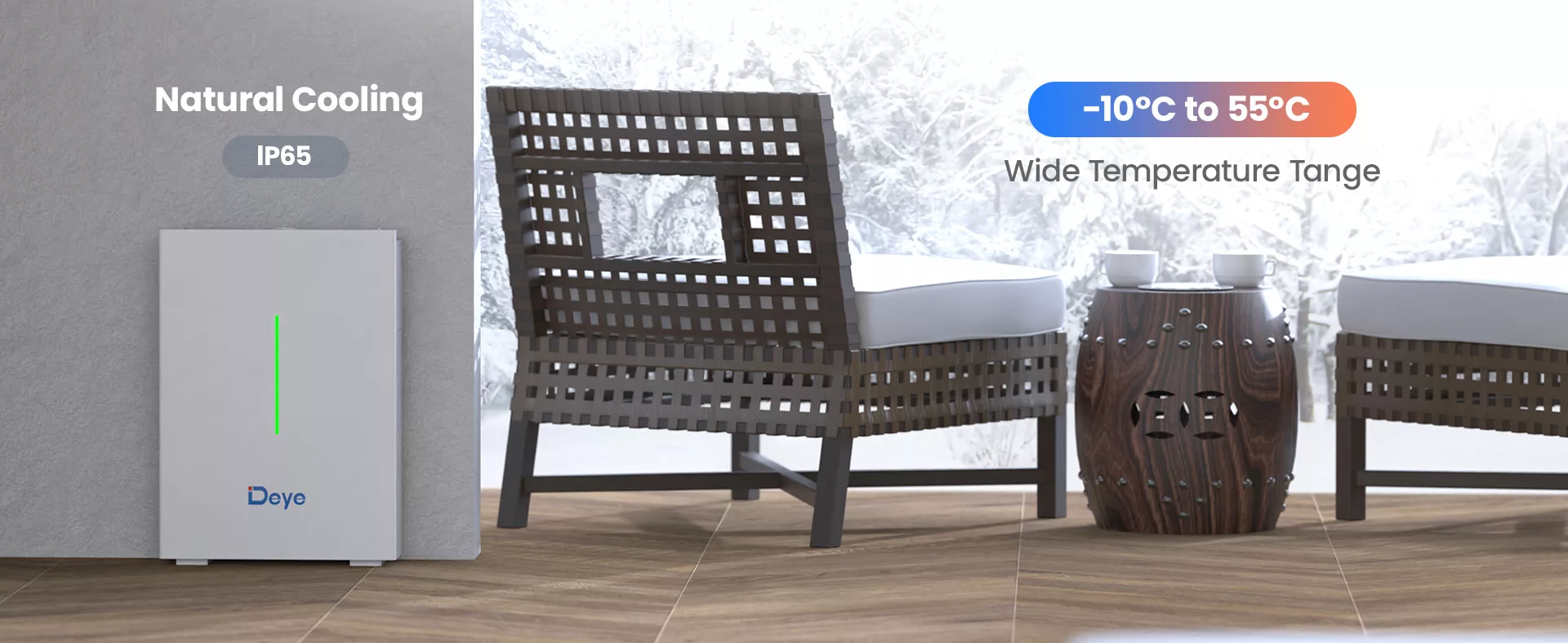

Wide Operating Range: Functions well in a temperature range of -20~55°C for discharge and 1~55°C for charge, with a storage temperature range of 0°C~35°C. It can also operate at altitudes ≤3000m and humidity levels of 5%~95%.
-
Warranty and Certification: Comes with a 10-year warranty for long-term peace of mind. It is certified by UN38.3, IEC62619, CE, CEI 0-21, VDE2510-50, and CEC.
