| Battery Chemistry | LiFePO4 |
| Capacity | 314 Ah |
| Nominal Voltage | 51.2 V |
| Operating Voltage | 44.8 V ~ 57.6 V |
| Nominal Energy | 16 kWh |
| Recommend Depth of Discharge | 90% DoD |
| Dimension ( W × H × D ) (Without hanging board)mm | 400 x 737 x 233 |
| Weight Approximate | 109 kg |

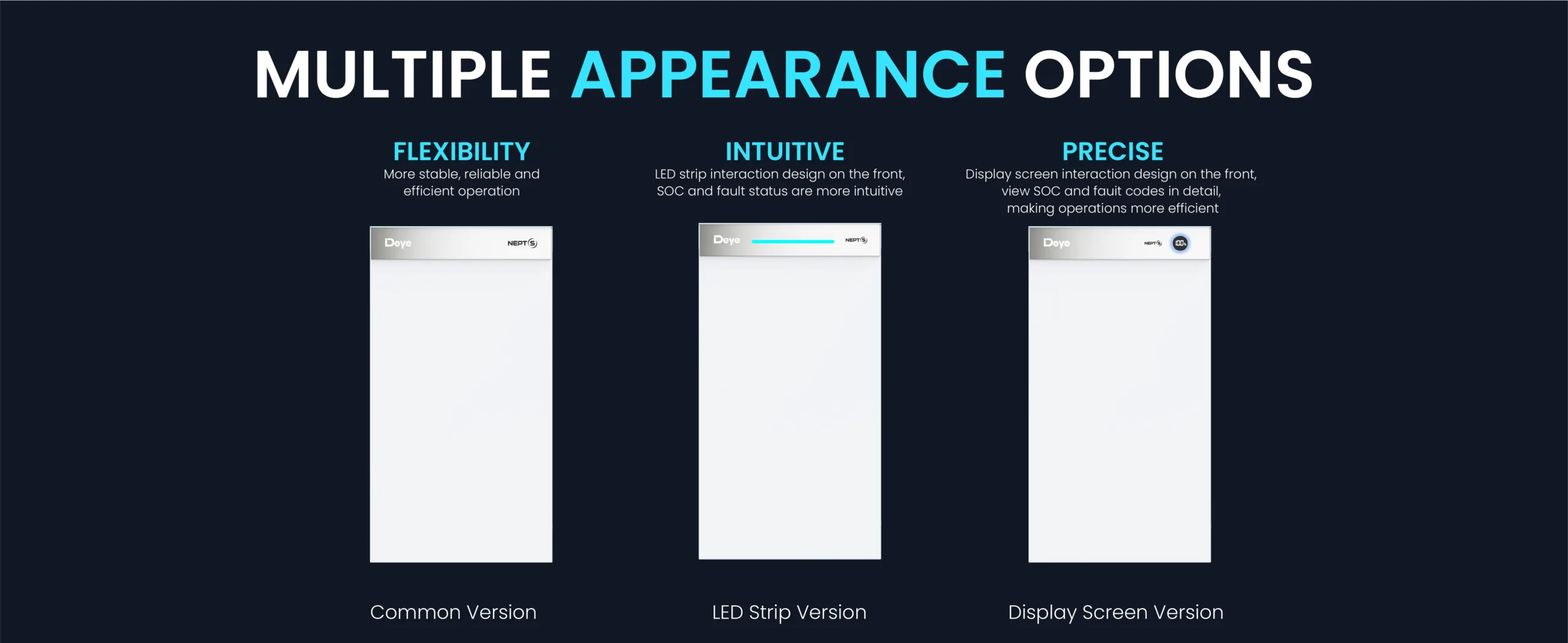

| LED Indicator | LED ( SOC, working, protecting ) & Buzzer |
| IP Rating of Enclosure | IP21 |
| Operating Temperature | Charge :0~55°C/Discharge: -20~55°C |
| Storage Temperature | 0℃~35℃ |
| Relative Humidity | 95% (non-condensing) |
| Altitude | ≤3000m |
| Cycle Life | ≥8000(25℃±2℃ ,70%EOL) |

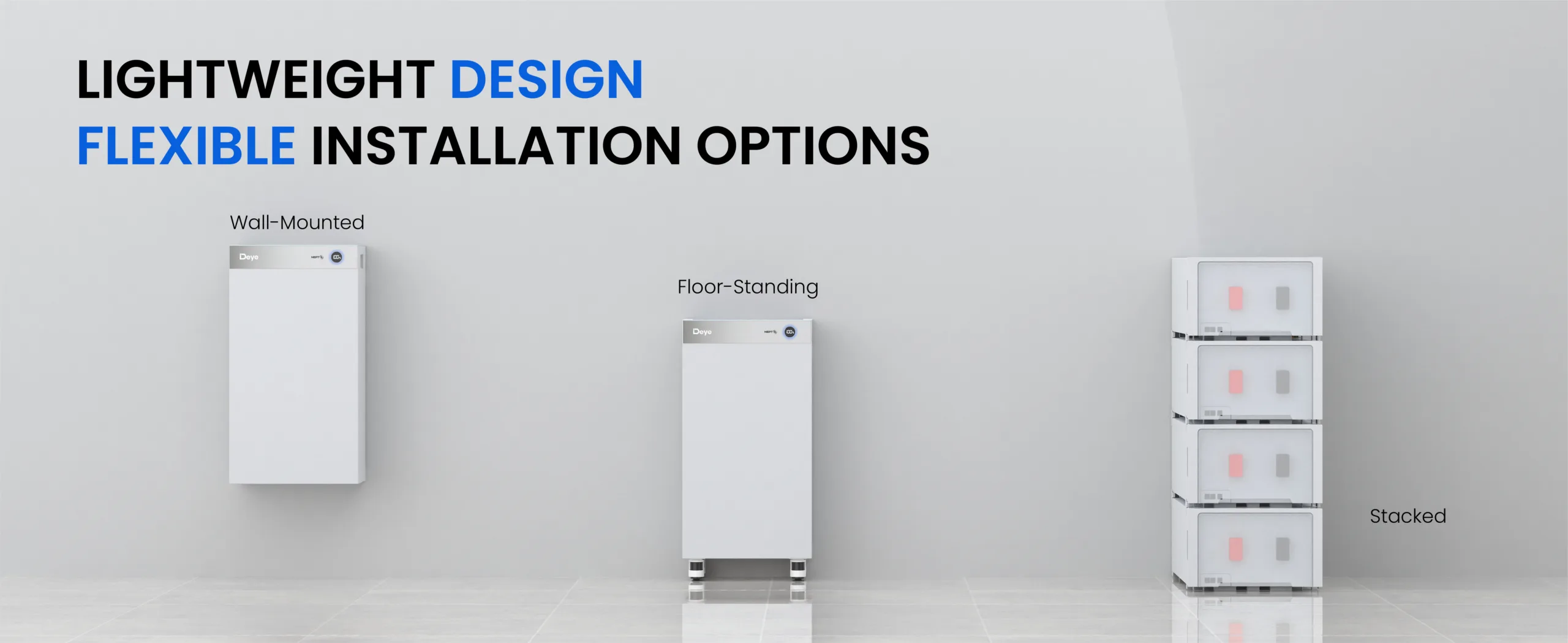

| Installation | Wall-Mounted, Floor-Mounted, Stack-Mounted |
| Communication | CAN2.0,RS485,Bluetooth+APP |
| Certification | UN38.3, CE, CB |
| Warranty | 5 Years / 10 Years The warranty period depends on the final installation site of the battery system. For more information, please refer to the warranty policy. |
