SUN-BK(80-250)-2.56KWH-EU-AM4

SUN-BK(80-250)-2.56KWH-EU-AM4

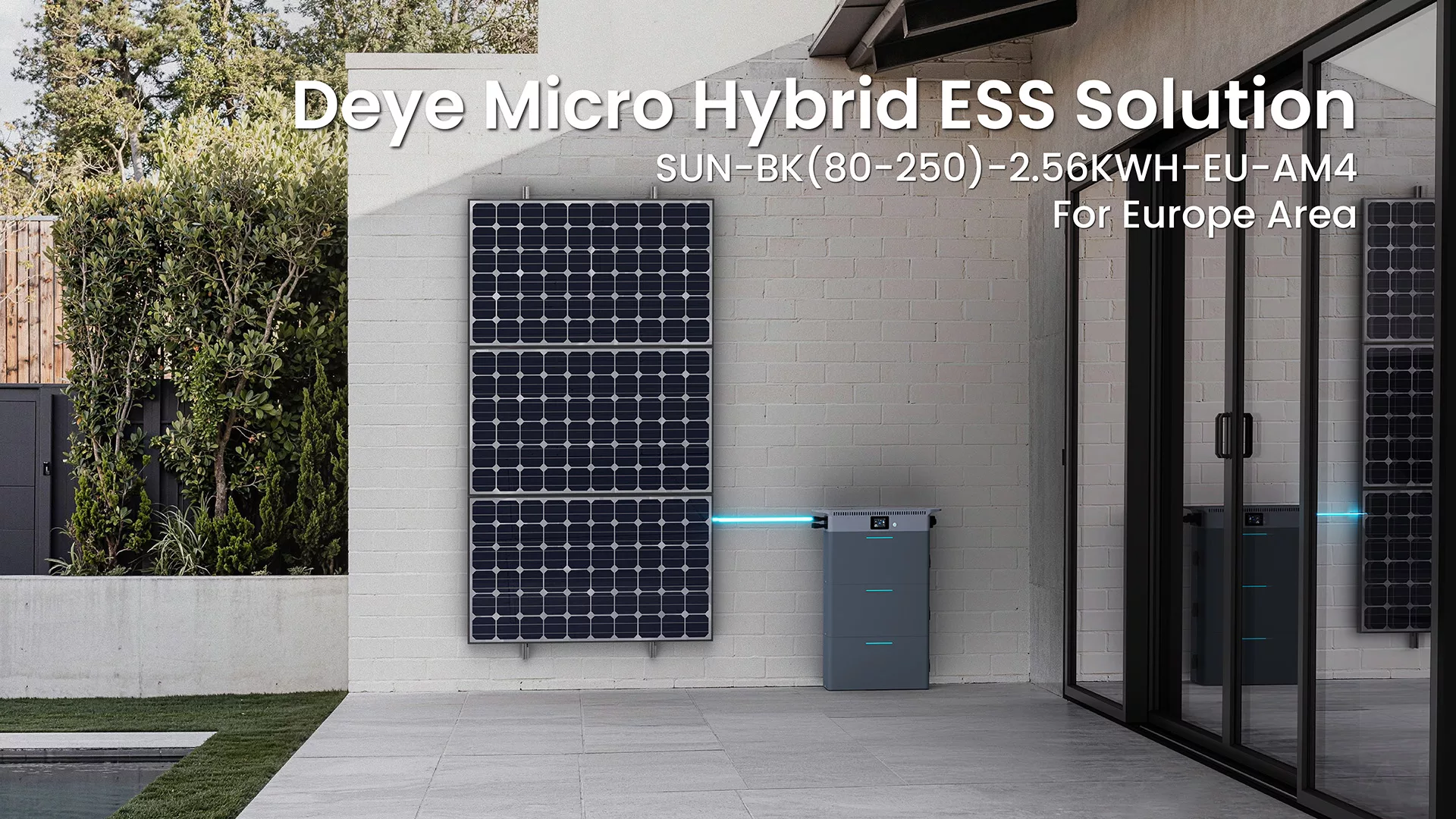

Deye Micro Hybrid ESS Solution

For AS, AF, EU & LATAM

Why Our Residential Energy Storage Stands Out?

ModelSUN-BK80-2.56KWH-EU-AM4-18LSUN-BK160-2.56KWH-EU-AM4-18LSUN-BK200-2.56KWH-EU-AM4-18LSUN-BK250-2.56KWH-EU-AM4-18L
Rated AC Input/Output Active Power800W1600W2000W2500W
Max. AC Input/Output Active Power880W1760W2200W2750W
Max. off grid power2500W
AC Input / Output Frequency and Voltage50Hz (45Hz ~ 55Hz), 60Hz (55Hz ~ 65Hz), L + N + PE, 220 / 230 Vac
Grid TypeSingle phase
Rated AC Input/Output Current3.7A / 3.5A7.3A / 7.0A9.1A / 8.7A11.4A / 10.9A
Max. AC Input/Output Current4A / 3.9A8A / 7.7A10A / 9.6A12.5A / 12A
Peak Power ( off – grid )2 time of rated power, 10s
Power Factor Adjustment Range0.8 leading to 0.8 lagging
Max. Continuous AC Passthrough (grid to load)30A
DC Injection Current<0.5%In

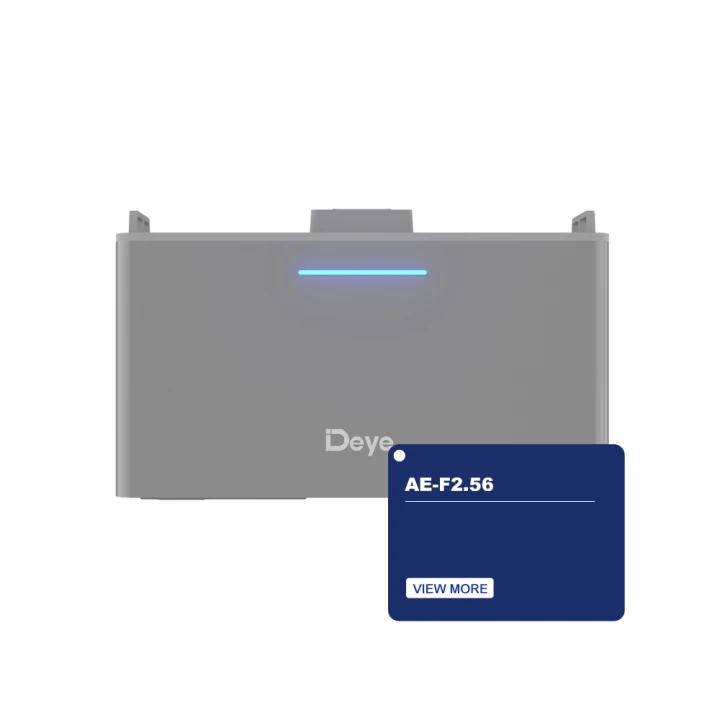

Deye AE-F2.56 Battery Pack User Manual EN+DE

 Download

Deye User Manual SUN-BK(80-250)-2.56KWH-EU-AM4-32-18L EU V1.0.0

 Download

Deye SUN-BK80/160/200/250 Datasheet EN

 Download

DEYE Statement on Battery Expansion and Insulation Fault

 Download
