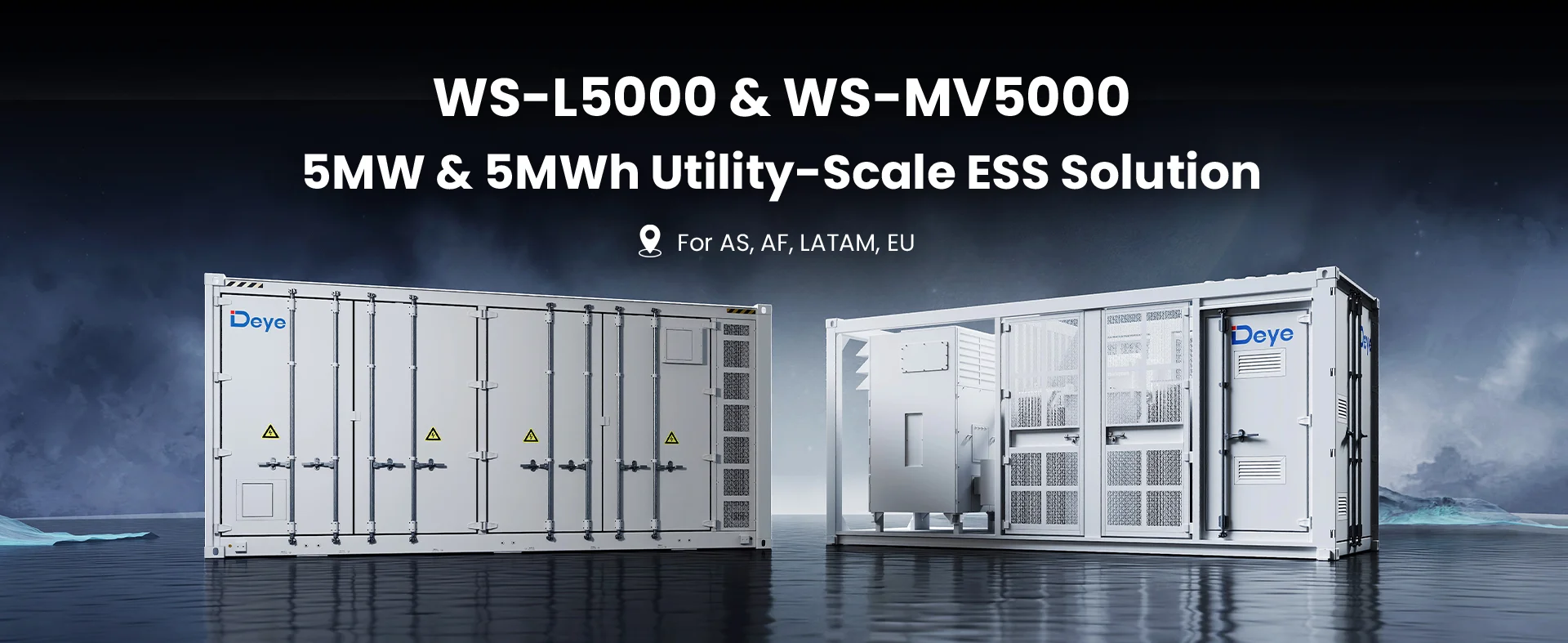

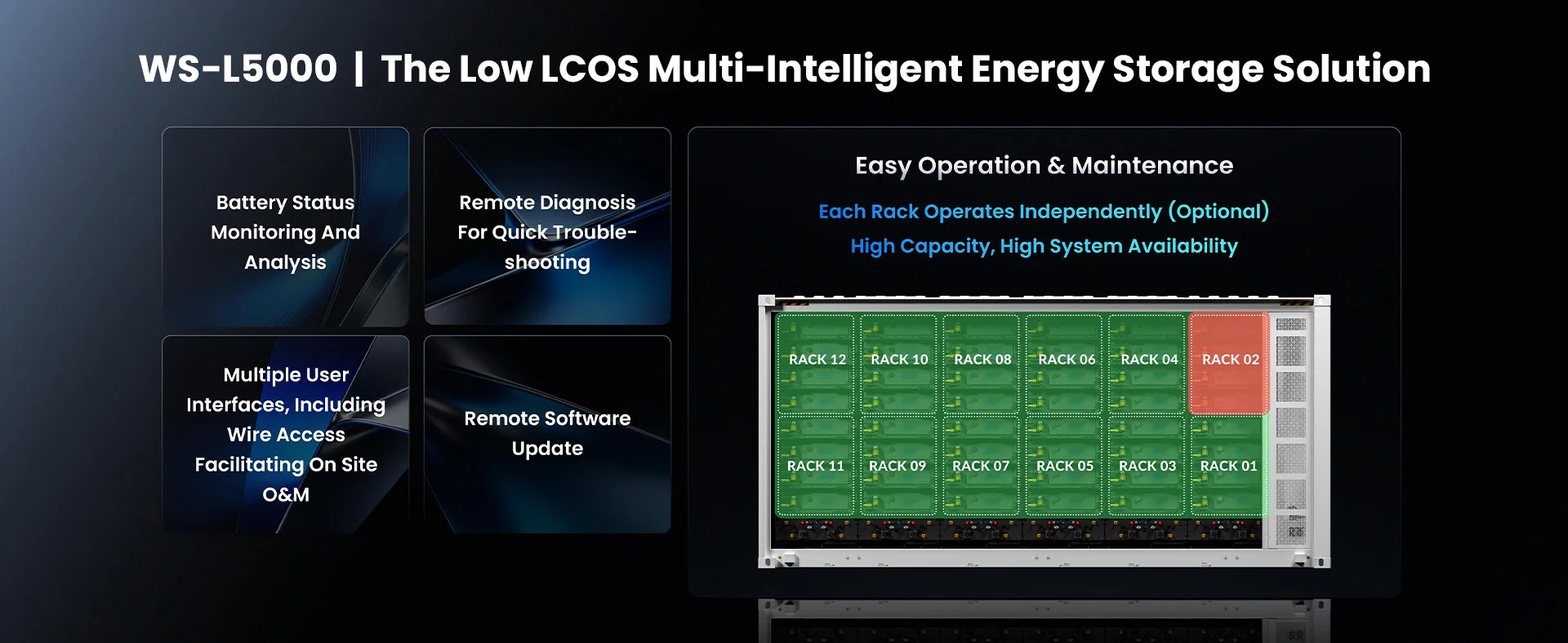

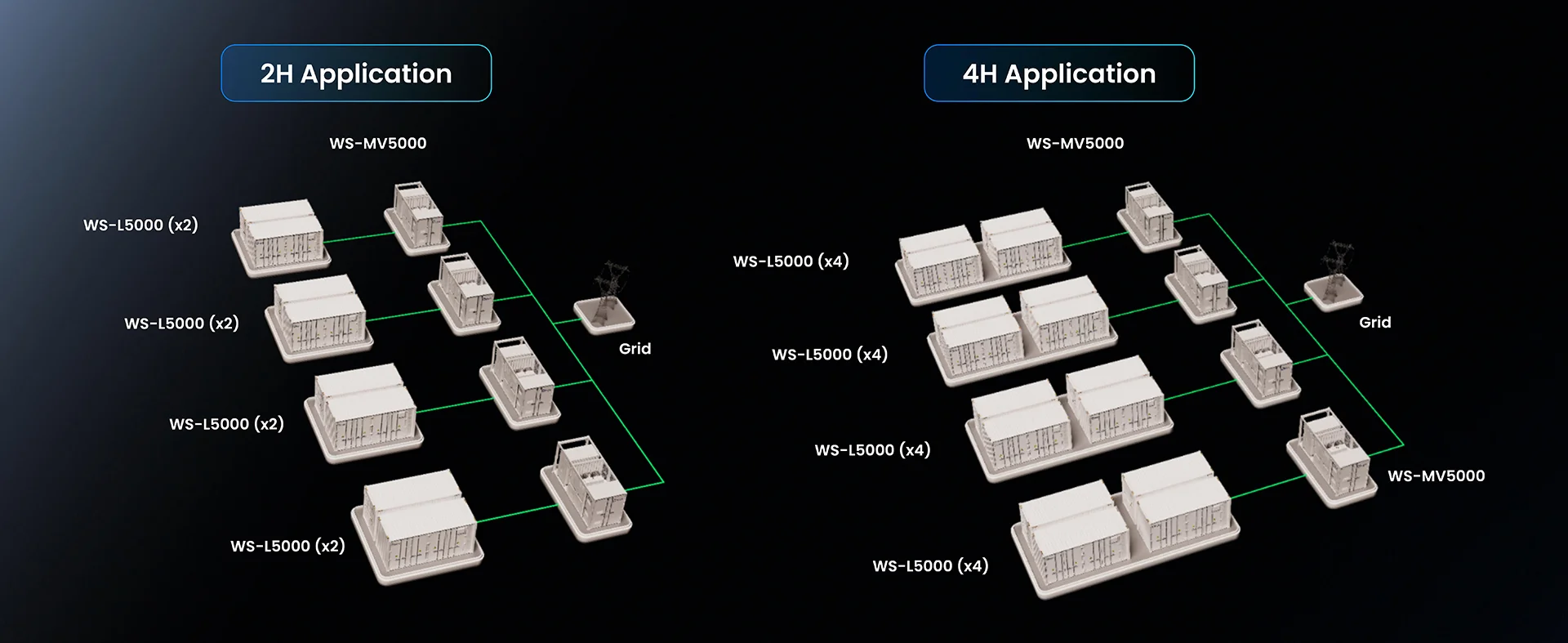

| Model | WS-L5000-BC-2 |
| Battery Data | |
| Battery Type | LiFePO4 |
| Nominal Capacity ( Cell ) | 314Ah |
| PACK Configuration | 1P104S |
| RACK Configuration | 4*1P104S |
| System Configuration | 2*6P416S (12P416S) |
| Nominal Voltage | 1331.2Vdc（1144-1497.6Vdc） |
| Nominal Energy | 5015kWh |
| Nominal Current | 2*939A |
| Charge/Discharge Rate | 0.5P |
| DC efficiency | ≥94.5% |
| System Data | |
| Operating Temperature | -30℃ ~ +55℃（>45℃ derating） |
| Storage Temperature | -30℃ ~ +60℃ |
| Humidity | 0 ~ 95%RH |
| Type of cooling BAT | Liquid cooling |
| Fire Suppression | Aerosol、Water |
| Ingress Protection | IP55 |
| Anticorrosion grade | C4/C5 |
| Altitude | ≤3000m |
| Weight | ≤40500kg |
| Dimensions ( W × D × H ) | 6058*2438*2896mm |
| Communication | Ethernet/CAN |

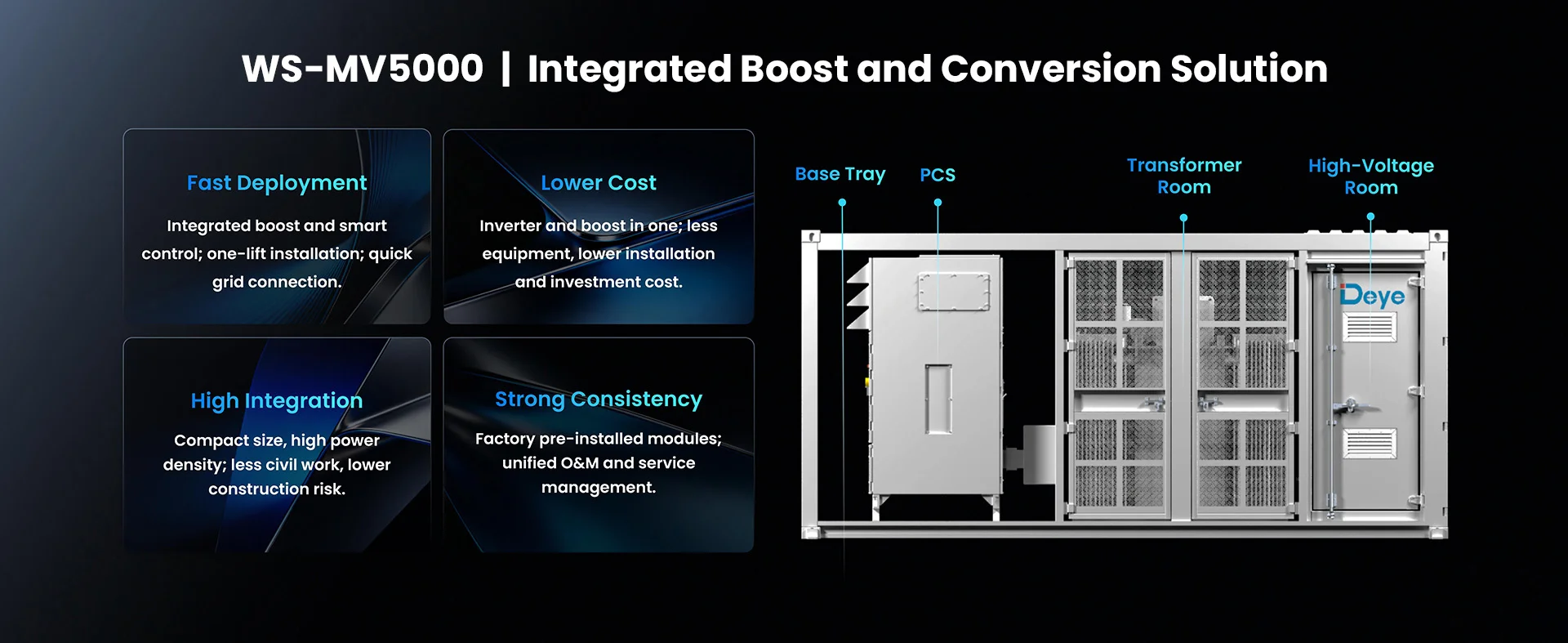

| Model | WS-MV5000-2 |
| DC Side Data | |
| Max. DC voltage | 1500Vdc |
| DC voltage range for nominal power | 1000Vdc~1500Vdc |
| Max. DC current | 1404A*4 |
| No. of DC inputs | 4 |
| PCS AC Side Data | |
| Rated output power | 2500*2 kVA |
| Max output power | 2500*1.1*2 kVA @35℃ |
| Rated AC voltage | 690Vac |
| AC voltage range | 621~759Vac（-10%~+10%） |
| Max AC current | 2300*2 A |
| Nominal grid frequency | 50Hz/60Hz |
| Grid frequency rage | 45~55Hz/55~65Hz |
| AC current THD | <3% @Pn |
| Power factor at nominal power | >0.99 |
| Power factor range | 1 leading ~ 1 lagging |
| Efficiency | |
| Average efficiency | ≥98.3% |
| Transformer | |
| Isolation Mode | Oil-Immersed Transformer |
| Transformer Rated Power | 5200kVA |
| LV/MV Voltage | 0.69kV/10~35kV |
| Transformer Vector | Dy11 |
| Cooling Type | ONAN/KNAN |
| General Data | |
| Dimensions（W*D*H） | 6058*2438*2896mm |
| Weight | ≤23T |
| Protection degree | IP65 for PCS， IP54 others |
| Cooling method | Natural air cooling (transformer)/Air-water cooling (PCS) |
| altitude | 4000m（＞2000m derating） |
| Operating temperature range | -30℃~60℃(>45℃ derating） |
| Humidity range | 0~95% |
| Anticorrosion grade | C4/C5 |
| Over voltage range | DC OVC II / AC OVC III |
| Surge protection | DC Type II / AC Type II |
| Communication | RS485/ETH/CAN |
| Standard compliance | IEC 62477, IEC 61000, IEC 62920, IEC 61727, IEC 62116,IEC 60076, IEC 62271-100/103/200, EN 50549-2/-10,ANSI C57.12.10/20 |
