How to Choose the Best Battery for Your Solar Inverter?

Looking to get the most from your solar system? The right battery makes all the difference. Solar power helps you save money and protect our planet, while giving you more control over your energy use.

Batteries store solar power for later use, while inverters convert solar-generated DC power to AC for household use. With various battery options available, selecting the right one for your inverter requires careful consideration.

Let’s get started to find the best battery to power your solar systems.



What is a Solar Inverter?

A solar inverter functions as the conversion unit that transforms DC electricity from solar panels into AC electricity for household appliances. It coordinates the electricity flow between solar panels, battery storage, and the grid to maintain system efficiency. Understanding your inverter’s specifications and compatibility requirements forms the foundation for appropriate battery selection.



How to Choose the Right Battery for Your Solar Inverter

Battery Compatibility with Solar Inverters

When selecting a battery, ensure it is compatible with your solar inverter. Key considerations include:

• Voltage Compatibility: The battery voltage should match the inverter’s input voltage requirements.
• Communication Protocols: Some inverters and batteries communicate for optimal performance. Ensure they can interface properly.

Types of Batteries Available for Solar Power Systems

Several types of batteries are available for solar power systems, each with its advantages and disadvantages:

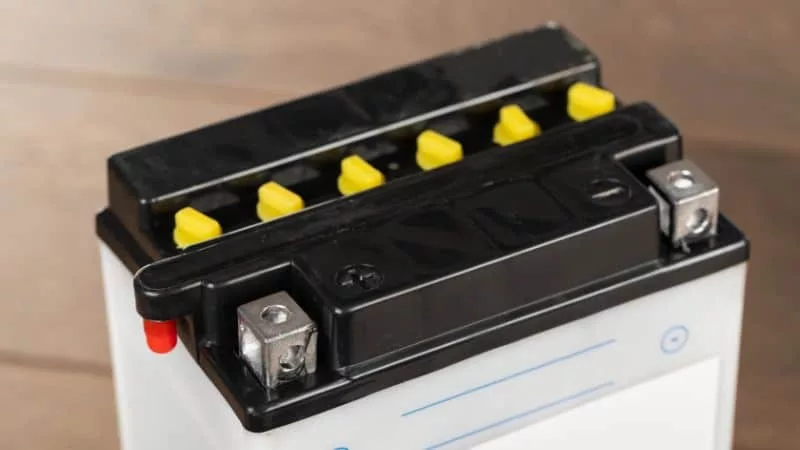

1. Lead-Acid Batteries

Pros	Affordability: Lead-acid batteries are generally more affordable upfront compared to other battery types. Proven Technology: They have been used for decades, making them a reliable and well-understood option. Recyclability: Lead-acid batteries are highly recyclable, contributing to environmental sustainability.
Cons	Maintenance Requirements: Traditional lead-acid batteries require regular maintenance, including checking electrolyte levels. Shorter Lifespan: They typically have a shorter lifespan, especially when subjected to deep discharges. Lower Depth of Discharge (DoD): Allowing only a partial discharge to prolong battery life, which can limit usable energy.
Operating Temperature Ranges	Optimal charging: 15°C to 35°C (59°F to 95°F) Operating range: -10°C to 45°C (14°F to 113°F) Capacity loss: ~2% per °C above 30°C

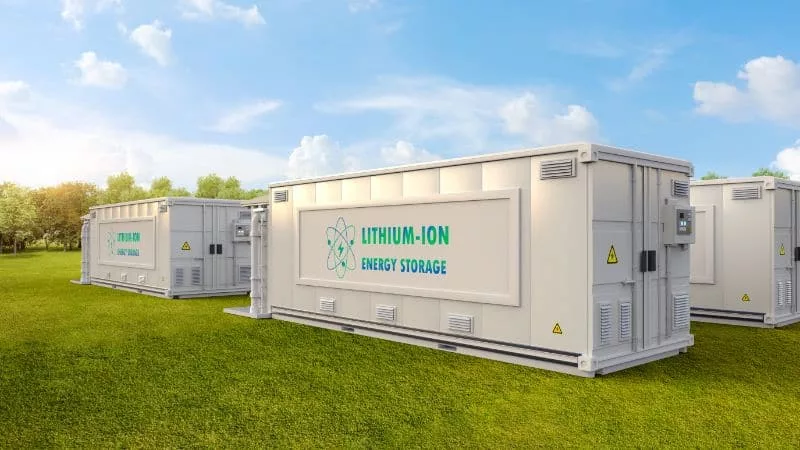

2. Lithium-Ion Batteries

Pros	High Energy Density: Lithium-ion batteries store more energy per unit weight, making them lighter and more compact. Longer Lifespan: They offer a longer cycle life, meaning they can be charged and discharged more times before degrading. Low Maintenance: These batteries require minimal maintenance compared to lead-acid batteries. Higher DoD: They can be discharged deeper without significant damage, providing more usable energy.
Cons	Higher Initial Cost: Lithium-ion batteries typically have a higher upfront cost, though their longevity can offset this over time. Temperature Sensitivity: They can be sensitive to extreme temperatures, which may affect performance and lifespan.
Operating Temperature Ranges	Optimal charging: 20°C to 30°C (68°F to 86°F) Operating range: -20°C to 50°C (-4°F to 122°F) Capacity loss: ~1% per °C above 25°C



3. LiFePO4 Batteries

Pros	Enhanced Safety: LiFePO4 (Lithium Iron Phosphate) batteries are known for their thermal and chemical stability, reducing the risk of overheating and fires. Long Cycle Life: They offer an exceptionally long cycle life, often exceeding that of traditional lithium-ion batteries. Consistent Performance: LiFePO4 batteries maintain consistent performance even under high discharge rates.
Cons	Cost: While prices are decreasing, LiFePO4 batteries are still more expensive than lead-acid options. Weight: They are slightly heavier than other lithium-ion batteries, which might be a consideration for certain installations.
Operating Temperature Ranges	Optimal charging: 10°C to 40°C (50°F to 104°F) Operating range: -20°C to 60°C (-4°F to 140°F) Capacity loss: ~0.5% per °C above 35°C



For those considering advanced battery solutions, Deye offers a range of energy storage systems designed for both residential and commercial applications.

Deye’s Low Voltage (LV) series features safe, long-lasting lithium iron phosphate (LiFePO4) batteries, optimized for small-scale solar systems with operating voltages from 43V to 57V. With over 6000 cycles and a 10-year warranty, these batteries provide reliable energy storage.

Additionally, Deye’s High Voltage (HV) series caters to larger-scale applications, offering robust backup power solutions. Both series incorporate intelligent battery management systems for enhanced safety and efficiency.



Determining Battery Capacity for Your Solar Inverter

To ensure your solar power system meets your energy needs efficiently, you should choose the appropriate battery capacity. Here’s how to determine the right capacity:

Calculating Your Energy Storage Needs Based on Solar Panel Output

Start by assessing your energy consumption and the output of your solar panels:

1. Calculate Daily Energy Usage:

Add up the watt-hours (Wh) each of your appliances uses in a day.

2. Evaluate Solar Panel Output:

Determine the total energy your solar panels generate daily.

3. Determine Storage Needs:

Ensure your battery capacity can store the difference between your daily usage and solar output, accounting for days with low sunlight.



Understanding Battery Discharge Rates and Their Impact on Capacity

Battery capacity isn’t just about storage size; it’s also about how quickly you can access that energy:

• Depth of Discharge (DoD): Indicates how much energy can be used from the battery. Higher DoD means more usable energy.
• Charge/Discharge Rates: Higher rates allow for quicker energy access but can reduce battery lifespan.

To calculate the required battery capacity considering discharge rates:



Balancing Battery Capacity with Your Solar Power System Size

Ensure that your battery capacity aligns with both your energy needs and the size of your solar power system. Oversizing can lead to unnecessary costs, while undersizing might result in insufficient energy storage. Consider future energy needs and possible system expansions when determining capacity.



Factors to Consider When Choosing a Battery for Your Solar Inverter

Selecting the right battery involves evaluating several critical factors to ensure compatibility and long-term performance:

Cycle Life and Its Importance in Solar Power Applications

Cycle Life refers to the number of complete charge and discharge cycles a battery can undergo before its capacity significantly diminishes.

Battery Type	Cycles (80% DoD)	Expected Lifespan	Warranty Period
Lead-Acid	200-300	5-8 years	2-3 years
Lithium-Ion	2000-3000	10-15 years	10 years
LiFePO4	3000-7000	15-20 years	10-12 years



Longer cycle life means the battery will last longer, providing a better return on investment. Batteries with higher cycle life are better suited for systems with frequent charge-discharge cycles.

Compatibility Between Batteries and Solar Inverters

Ensure that the battery you choose is compatible with your solar inverter:

• Voltage Compatibility: The battery voltage should match the inverter’s input voltage requirements.
• Communication Protocols: Some inverters and batteries communicate for optimal performance. Ensure they can interface properly.
• Physical Dimensions and Installation Requirements: Verify that the battery fits within your installation space and meets any other technical specifications.



How do Different Battery Types Affect Solar Power System Performance?

1. Comparing Lead-Acid, Lithium-Ion, and LiFePO4 Batteries for Solar Use:

• Lead-Acid: Best for budget-conscious installations but requires more maintenance and has a shorter lifespan.
• Lithium-Ion: Offers higher efficiency and longer lifespan, suitable for systems requiring frequent cycling.
• LiFePO4: Provides superior safety and the longest cycle life, ideal for high-performance and scalable systems.

2. The Impact of Battery Type on Energy Efficiency and Power Output:

Higher efficiency translates to better power output and longer-lasting systems.

• Lead-Acid: Typically lower round-trip efficiency (around 80%), meaning more energy is lost during charging and discharging.
• Lithium-Ion: Higher efficiency (up to 95%), allowing more of the stored energy to be utilized.
• LiFePO4: Similar to lithium-ion, with high efficiency and minimal energy loss.

3. Discharge Characteristics of Various Battery Types:

Discharge characteristics determine how a battery delivers power:

• Lead-Acid: Slower discharge rates, suitable for applications with steady energy demand.
• Lithium-Ion: Can handle high discharge rates, making them ideal for systems with variable or high energy demands.
• LiFePO4: Offers stable discharge rates with the ability to sustain high power output without significant degradation.



How Do I Choose the Best Battery for Backup Power in a Solar System?

Assessing Your Backup Power Needs During Grid Outages

Determine the essential loads you need to support during an outage:

• Identify Critical Appliances: Choose which devices (e.g., refrigeration, lighting, medical equipment) require uninterrupted power.
• Calculate Total Backup Power: Estimate the total energy required to support these appliances for the desired duration.

Selecting Batteries with Appropriate Depth of Discharge for Backup Use

Opt for batteries that can handle the required DoD without compromising lifespan:

• Higher DoD Batteries: Such as lithium-ion and LiFePO4, are ideal for deep discharge scenarios typical in backup applications.
• Matched Systems: Ensure that the battery capacity aligns with your backup power requirements to avoid excessive cycling.

Integrating Backup Batteries with Your Existing Solar Power System

Ensure seamless integration by considering:

• Compatibility: Verify that the backup battery system is compatible with your current solar setup and inverter.
• System Configuration: You might need additional components like charge controllers or automatic transfer switches.
• Professional Installation: Engage with professionals to ensure safe and efficient integration.



Battery Selection Decision Tree

Budget Assessment

• If budget is primary concern → Consider Lead-Acid
• If long-term value is priority → Consider Li-ion/LiFePO4


Usage Pattern

• Daily cycling needed → LiFePO4
• Occasional backup only → Lead-Acid/Li-ion

Space Constraints

• Limited space → Li-ion
• Space available → Any type

Climate Conditions

• Extreme temperatures → LiFePO4
• Controlled environment → Any type

Maintenance Capability

• Limited maintenance → Li-ion/LiFePO4
• Regular maintenance possible → Any type

Your solar system’s success depends heavily on choosing the right battery. While lead-acid batteries work well for tight budgets, lithium-ion and LiFePO4 options can save you more money over time. Think about your budget, space, local climate, and how much maintenance you can handle.
