Lead Acid and Lithium Solar Battery Banks for Off-Grid Power

Author: DeyeESS

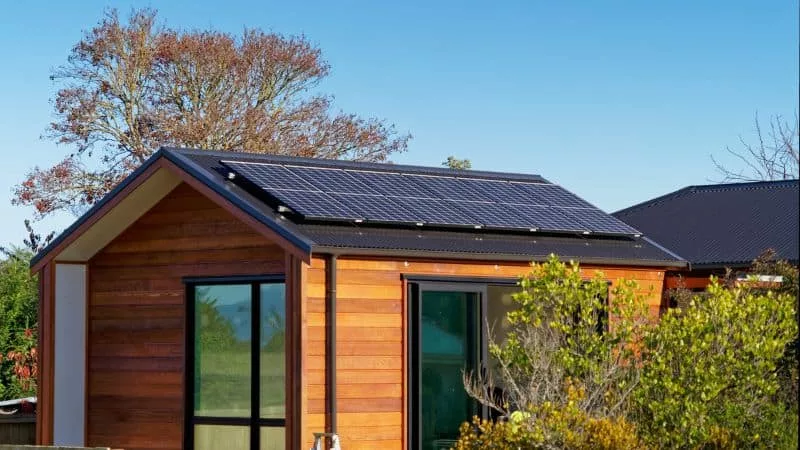

A house with solar cells on the roof

Batteries are the cornerstone of living off the grid. They store the energy collected by solar panels or other renewable resources during the day, so you can have electricity at night or during periods when energy generation is low. Without a reliable battery bank, your off-grid experience can quickly turn challenging, as you’ll be directly dependent on real-time energy production, which is inconsistent.

Choosing the right solar batteries for your off-grid system means considering capacity, depth of discharge, cycle life, and cost. Portability might also be a factor if you’re not just powering a static home but perhaps a mobile setup or need emergency backup power. Solar power integration is crucial for a sustainable and environmentally friendly power supply, ensuring that you harness renewable energy effectively and reduce reliance on fossil fuels.

Key Takeaways

  • Batteries store energy for use when off-grid power sources are unavailable.
  • Selecting suitable batteries involves understanding capacity and cycle life.
  • Integrating solar power is essential for a sustainable off-grid energy system.

Basics of Off-Grid Power

When you choose to live off-grid, understanding your power system’s basics is crucial. This will ensure you have a reliable source of energy for your daily needs.

Understanding Off-Grid Systems

An off-grid system allows you to be completely independent from the public utility grid. By generating and storing your own power, you control your energy supply and consumption, which is especially useful in remote locations or for those seeking a self-sustained lifestyle.

Components of an Off-Grid System

Your off-grid power system primarily consists of:

  • Energy sources: These generate electricity. Common sources include solar panels and wind turbines.
  • Energy storage: Usually accomplished with battery banks, energy storage is vital for maintaining power when your primary sources aren’t generating electricity (e.g., during the night for solar panels).
  • Power management: This includes charge controllers to protect your batteries and inverters to convert the stored energy into usable power for your home’s electrical devices.

Off-Grid Power Sources

You have several options for off-grid power sources:

  1. Solar Power: Solar panels are a popular choice for off-grid systems due to their relative ease of installation and maintenance. Plus, the sun is a consistent and reliable source, albeit affected by weather and seasonal changes.
  2. Wind Power: Harnessing wind can be a complementary source to solar, especially in areas with more wind than sunlight. Wind turbines can produce power day or night, given sufficient wind speeds.

Each power source has its specifications and requirements, so it’s important to choose the combination that best suits your geographical location and energy needs.

Choosing Batteries for Off-Grid Systems

When you’re selecting a battery for your off-grid system, your choices will affect not just the performance but also the efficiency and longevity of your power supply. It’s essential to understand the different types of batteries, their capacities and voltages, and the importance of their lifespan to make an informed decision.

Battery Types

Your off-grid system’s heart is the battery bank, and the type of battery you choose significantly impacts your system’s overall effectiveness. Lithium-ion batteries are highly preferred due to their higher energy density and efficiency. They are lighter, charge faster, and offer a higher depth of discharge than lead-acid batteries. Lithium iron phosphate (LFP) batteries, a subcategory of lithium-ions, provide improved safety and longevity at a higher upfront cost.

TypeEnergy DensityCharge SpeedLifespan
Lithium iron phosphateModerateModerateLongest

Capacity and Voltage

The capacity of your battery, measured in kilowatt-hours (kWh), determines how much power it can store, while voltage affects the flow of electricity. Your battery bank must have enough capacity to power your essential appliances without frequent recharges. For instance, a typical home might require a battery bank with a 13.5kWh capacity, ideally with a voltage that matches your solar system.

  • Total Capacity Needed = Daily Energy Use (kWh) x Days of Autonomy

Importance of Battery Lifespan

The lifespan of a battery, often indicated as the number of charge cycles it can handle, is crucial to determine how often you’ll need to replace it. Most lead-acid batteries offer around 300-700 cycles at 50% depth of discharge, while quality lithium batteries can offer over 2000 cycles at a deeper discharge, making them a more cost-effective solution over time. It’s vital to consider both the immediate cost and the long-term investment when choosing a battery for your off-grid system.

Battery Technologies

When it comes to off-grid living, the type of battery you choose is crucial for ensuring consistent power and efficient energy storage. Let’s explore the two main types and the latest innovations in the field.

Lead Acid vs Lithium

Lead acid batteries have long been the standard choice for off-grid energy storage. They can be further categorized into flooded batteries, which require regular maintenance, and gel batteries, which are maintenance-free but typically more expensive. Although less expensive upfront, lead-acid batteries have a shorter lifespan and lower energy density compared to their lithium counterparts.

On the other hand, lithium-ion batteries, including lithium iron phosphate (LiFePO4), offer several advantages:

  • Higher energy density
  • Greater charge/discharge efficiency
  • Longer lifespans
  • No maintenance requirements

LiFePO4 batteries, a type of lithium-ion technology, have become increasingly popular due to their stability and safety features.

While lithium-ion technology generally uses cobalt, LiFePO4 batteries do not, minimizing environmental concerns associated with cobalt mining.

Emerging Battery Innovations

The world of battery technology is rapidly evolving, with exciting advancements that promise even better performance for off-grid applications.

Innovations to look for include:

  • Increased charging speeds and energy storage capacities.
  • Developments in lithium battery technologies pushing for even longer battery life and higher power output.

These emerging technologies are set to enhance off-grid living by providing more efficient and powerful solutions for storing renewable energy. Keep an eye out for these advancements as they become commercially available and potentially change the landscape of off-grid energy storage.

Solar Power Integration

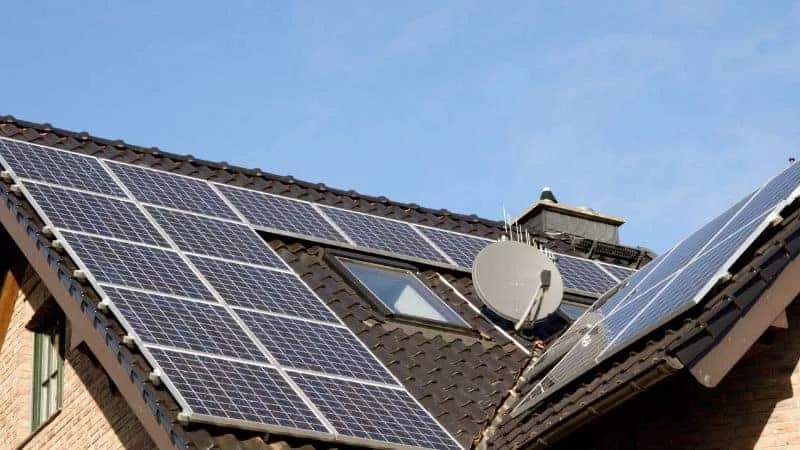

Solar Power Integration

Solar power integration involves coordinating your solar panels and batteries to ensure continuous energy supply. It’s about finding the balance between what you generate and what you store for later use.

Solar Panels and Batteries

Your off-grid solar power system hinges on two key components: solar panels and batteries

Solar panels are responsible for producing electricity, but they do so intermittently. It’s the solar batteries, or “deep cycle batteries,” that ensure a steady supply of electricity for off-grid living throughout the day and night. These batteries are named for their capability to endure lengthy, regular, deep charge and discharge cycles. Aside from solar power, deep cycle batteries can also be utilized in other green energy systems such as wind and hydro-powered setups.

  • Solar Panels: Choose solar panels based on their efficiency and durability. Higher efficiency panels can generate more electricity in less space, but they may come at a higher cost.
  • Batteries: As we talked about before, lead-acid and lithium-ion are the two primary types. Lithium-ion batteries are more expensive but have a higher energy density, longer lifespan, and better charge-discharge efficiency compared to lead-acid.

Balancing Solar Input and Storage

To maintain a well-functioning off-grid solar system, you must balance the solar input with your storage capacity. The goal is to capture enough daily solar energy and store it without overcharging or depleting your batteries.

  • Daily Energy Needs: Calculate your daily energy consumption in kilowatt-hours (kWh).
  • Solar Panel Output: Understand your solar panels’ output, which depends on factors like panel size and the amount of sunlight they receive.
  • Battery Capacity: Your battery storage should match your energy requirement needs and the expected solar panel output.

Here’s a simplified example:

Daily Energy Needs (kWh)Solar Panel Output (kWh)Battery Capacity (kWh)
7.51.58 – 10

Remember, it’s about capturing what you need during the day and making sure you can tap into your stored energy during night or cloudy days.

Practical Applications

When considering off-grid battery applications, your needs will dictate the sizing and selection process. Whether you’re powering a remote cabin, taking to the road in an RV, or ensuring backup power during an emergency, the right battery setup is key to independence and reliability.

Off-Grid Homes and Homesteading

If you’re looking to power your off-grid homestead, carefully calculating your daily energy usage is crucial. You’ll typically include a variety of appliances like refrigerators and lighting systems in your power consumption profile. For example, a 1000 watt fridge running for 24 hours would need 24,000 Wh per day. You’d need a battery bank that can handle these needs and more, while also offering longevity and ease of maintenance.

Emergency Backup

An emergency backup power system is vital for maintaining critical systems when the grid fails. A well-sized battery bank can keep essential services like heating, communication devices, and a few key appliances running until power is restored.

  • Essential Load List:
    • Heating System: Important for cold climates
    • Medical Devices: If applicable, such as CPAP machines
    • Communication: Phones, radios, etc.
    • Refrigerator: To preserve food

Remember, the nature of your needs will directly inform the type of battery system you install — whether it’s for steady residential use, mobile convenience, or crucial backup during the unexpected.

Advanced Considerations

Solar Battery Banks for Off-Grid Power

When considering the optimization of your battery-based off-grid system, it’s crucial to focus on the future prospects. This means planning for expansion, embracing diverse energy sources, and securing professional advice to ensure your system not only meets your current needs but is also primed for future demands.

Upgrading and Expanding Systems

To ensure your off-grid system keeps pace with your growing energy needs, planning for upgrading and expanding your system is vital.

In terms of battery voltage, systems commonly operate on 12V, 24V, or 48V depending on the size and requirements. Upgrading from a 12V to a 24V or 48V system can offer better efficiency and allow for longer wiring runs without significant losses. Also, consider where you might place additional battery banks and whether your inverter can handle the increased load.

Integrating Alternative Energy Sources

Beyond batteries, integrating alternative energy sources can boost your system’s resilience and independence. Solar panels are often the go-to, but don’t overlook wind turbines or micro-hydro systems depending on your location. Use a hybrid inverter that can accept DC current from multiple sources and manage amperage effectively. This diversification ensures that when one source is less potent, others can compensate, maintaining a stable energy supply.

Energy SourceTypical VoltageRole in Off-grid Systems
Solar Panels12V/24V/48VPrimary power generation
Wind Turbines48VSupplementary power when conditions allow
Micro-Hydro12V/24V/48VConsistent power in suitable locations

When adding new energy sources, consider how they integrate with your battery storage. For instance, AGM (Absorbed Glass Mat) batteries might be chosen for their durability and maintenance-free benefits.

Professional Advice and Support

Engaging with experts when making complex decisions about your off-grid setup is highly recommended. These professionals can answer specific questions, such as the best batteries for long-term independence or the most suitable battery technology like AGM batteries for your particular off-grid systems.

Consult with experts to understand the optimal battery storage capacity and the appropriate battery voltage for your energy consumption. Keep in mind that the amperage and type of inverter you select must be compatible with the entire system, including generators if you have them as a backup. By leveraging expert knowledge, you ensure that your system not only operates effectively today but is also ready for tomorrow’s advancement.
