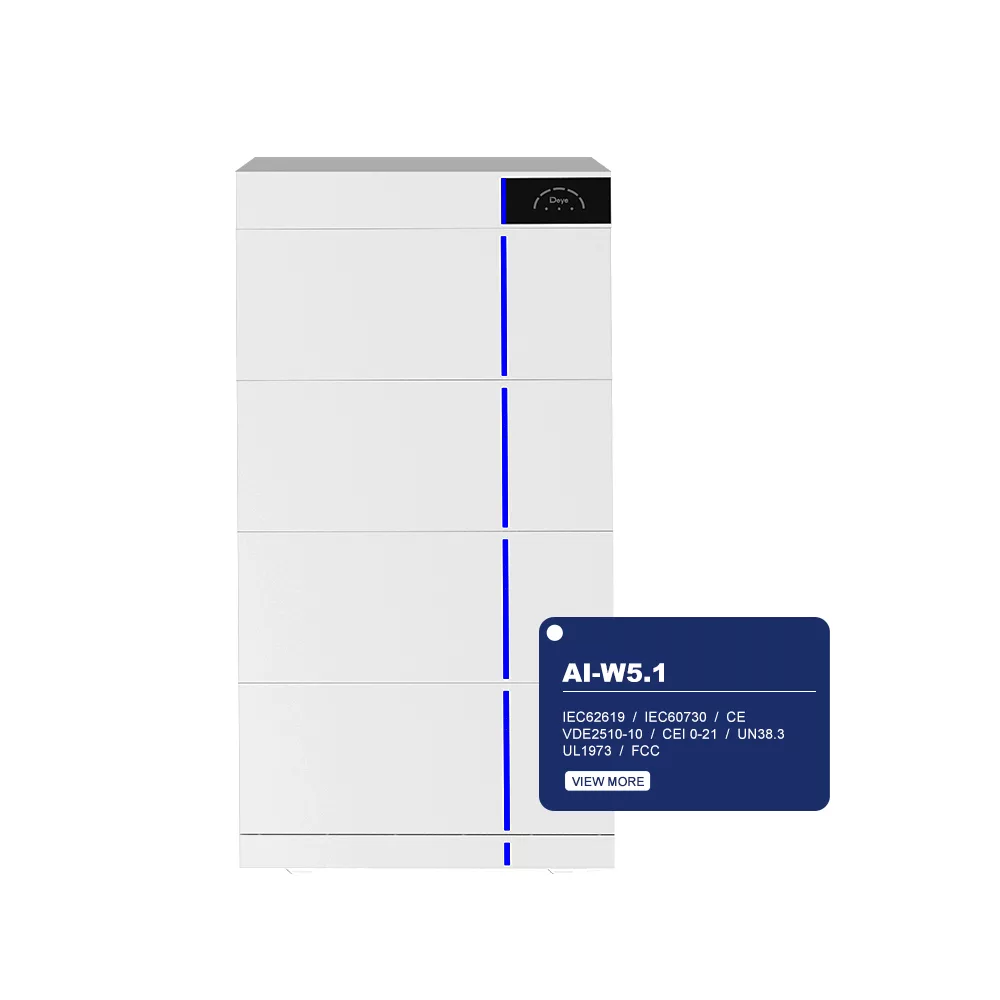

AI-W5.1(LV)

Deye introduces a safer, more reliable and flexible lithium iron phosphate (LFP) solar powered battery pack solution that offers a safe and reliable energy storage solution optimized for residential and commercial applications requiring power in tight spaces or with load restrictions.

SKU: AI-W5.1 Category:

Description

Deye’s lithium iron phosphate solar powered battery pack provides a safe, reliable energy storage solution for residential and commercial applications requiring power in tight spaces or under load restrictions. Compact and lightweight, it is well-suited to high-power equipment operating in limited footprints, delivering long-lasting performance through an extended cycle life.

The battery’s cobalt-free LFP chemistry offers high power density without compromising safety. An intelligent battery management system (BMS) monitors critical cell data points like voltage, current and temperature, balancing charging and discharging to maximize the battery’s lifespan.

Capacity and output can be scaled through parallel connections of multiple batteries based on needs. Larger bank configurations provide greater energy capacity and longer run times. Built for reliability, the battery supports high discharge capabilities, maintaining operation from -20°C to 55°C with an IP55 rating and natural cooling.

Modular and flexible, batteries easily expand capacity up to 184kWh by combining clusters of 36 units.

This solar powered battery pack is an eco-friendly design that employs non-toxic, pollution-free materials.

Installation is simplified through a stackable, floor-mounted design without extra wiring or fasteners. Setup and deployment are rapid and effortless.

Convenience is delivered via automatic module networking for remote monitoring, maintenance and firmware upgrades.

Technical Data

Main Parameter
Battery Chemistry LiFePO4
Battery Module Energy (kWh) 5.12
Battery Module Voltage (V) 51.2
Battery Module Capacity (Ah) 100
Scalability 2 3 4 5 6
Nominal Voltage (V) 51.2
Operating Voltage(V) 43.2~57.6
Charge/Discharge Current (A) Recommend[2] 100 150 200 200 200
Max.[2] 180 210 240 250 250
Peak(10s, 25℃) 270 315 360 360 360
Other Parameter
Recommend Depth of Discharge 90%
System Dimension (W/D/H,mm) 720*255*765 720*255*1050 720*255*1335 720*255*1620 720*255*1905
System Weight (kg) 124 177 230 283 336
Battery Module Dimension(W/D/H) 720*255*285
Battery Module Weight (kg) 53
Master LED Indicator 5LED(SOC: 20%~100%), 3LED (working, alarming, protecting)
IP Rating of Enclosure IP55
Operating Temperature Charge: 0℃~55℃ / Discharge: -20℃~55℃
Storage Temperature -20℃~35℃
Humidity 5%~95%
Altitude ≤2000m
Cycle Life[3] ≥6000 (25℃±2℃, 0.5C/0.5C, 70%EOL)
Installation Floor-Mounted
Communication Port CAN2.0, RS485
Warranty Period[3] 10 years
Energy Throughput[3] 16MWh(Battery Module @70%EOL)
Certification IEC62619, CE, UK, VDE2510-50, CEI 0-21, UN38.3, CE-LVD, CEC

[1] DC Usable Energy, test conditions: 90% DOD, 0.5C charge & discharge at 25°C. System usable energy may vary due to system configuration parameters.
[2] The current is affected by temperature and SOC.
[3] The warranty is due whichever is reached first of the warranty period or energy throughput.
