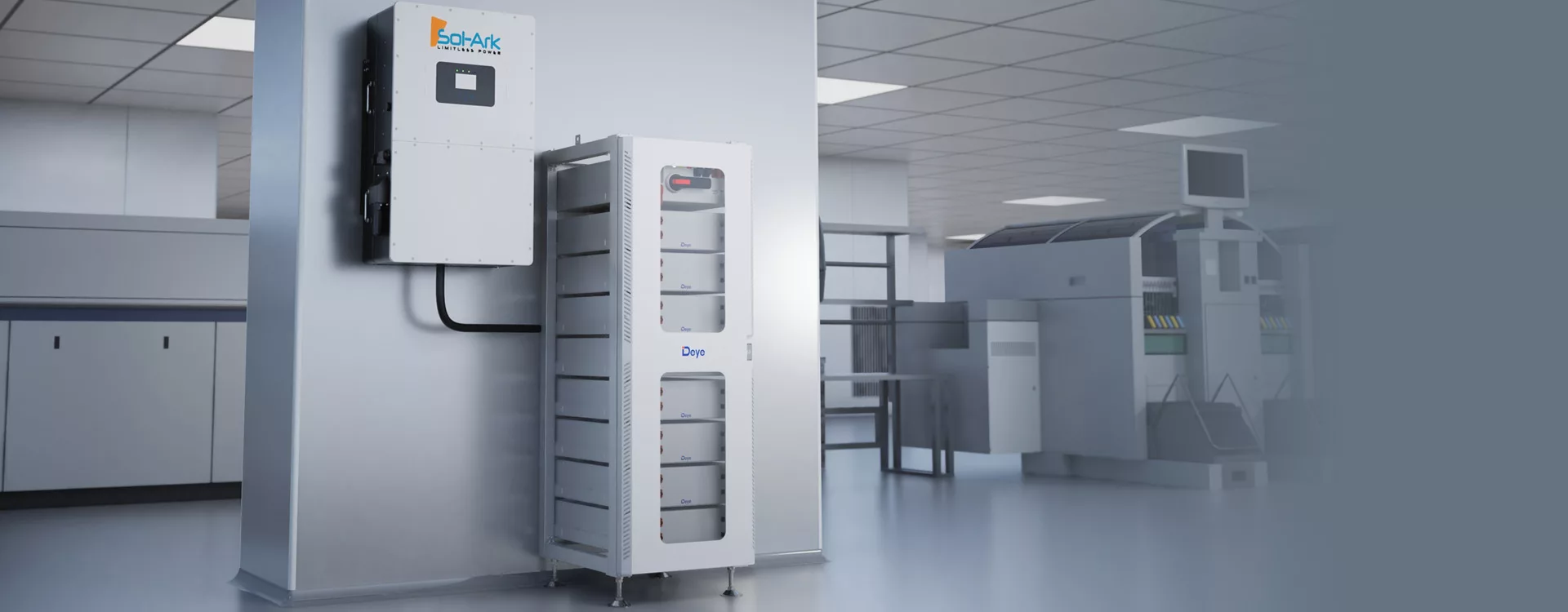

BOS-GH & BOS-GL

BOS-GL & BOS-GH
Small-Scale C&I Energy Storage Solutions

For NA

ParameterBOS-GL60BOS-GH40BOS-GH60
Cell ChemistryLiFePO₄
Module Energy (kWh)5.12
Nominal Voltage (V)51.2
Module Capacity (Ah)100
Modules in Series (optional)6812
System Voltage (V)307.2409.6614.4
System Energy (kWh)61.4440.9661.44
Usable Energy (kWh)55.2936.8655.29
Charge/Discharge CurrentRecommend: 100 A
Nominal: 100 A
Peak 2 min: 125 A		Recommend:50 A
Nominal: 100 A
Peak 2 min: 125 A		Recommend: 50 A
Nominal: 100 A
Peak 2 min: 125 A
Recommended DoD90%
Cycle Life≥ 6,000 cycles to 70 % EOL (0.5C/0.5C, 25 ± 2 °C)
Warranty10 years
Dimensions (W×D×H mm)530 × 667 × 2,187530 × 667 × 1,629530 × 667 × 2,187
Weight (kg)75+45 × 12+20=635kg53+45 × 8+20=433kg75+45 × 12+20=635kg
Communication PortCAN 2.0 / RS485
Ingress ProtectionIP20
InstallationRack Mounting
CertificationsUL1973, UL9540A, UN38.3, UL9540
