Description

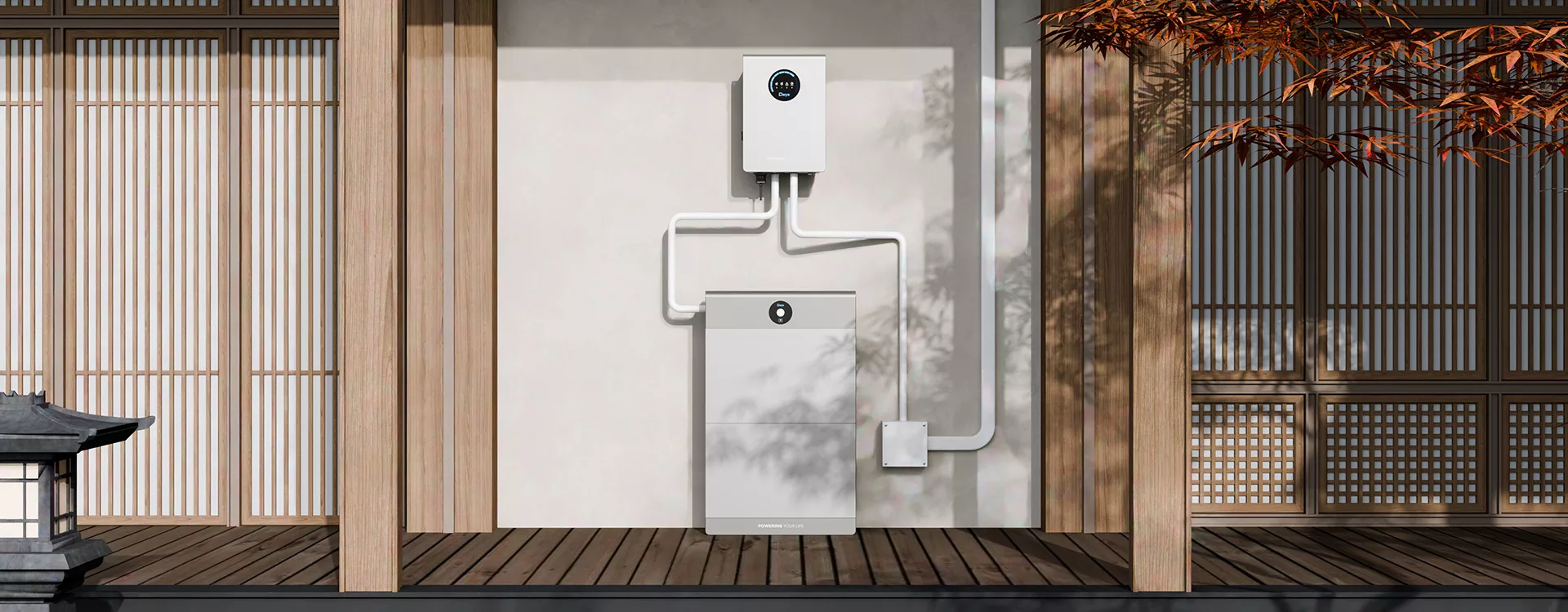

GB-A Series Residential Energy Storage System
The GB-A series is a cutting-edge energy storage solution designed for residential use. It allows homeowners to store electricity generated from solar panels or the grid, providing backup power during outages and reducing reliance on the utility grid.
Key Features:
- Self-Sufficient and Grid-Connected Operation: Seamlessly switch between self-sufficient power and grid power.
- Backflow Prevention: Equipped with backflow prevention measures to protect the grid.
- Single-Function and Full Load Support: Can handle both single appliances and full household loads.
- 101V/202V Load Support: Compatible with both 101V and 202V electrical systems.
Models:
The GB-A series is available in different models to suit varying energy needs:
- Power Conditioner Models: SUN-5K-SG02HP2-JP-FM2, SUN-6K-SG02HP2-JP-FM2, SUN-8K-SG02HP2-JP-FM2
- Battery Models: GB-A-PACK4.0, GB-A-PACK4.0+GB-A-PACK6.0, GB-A-PACK4.0+GB-A-PACK6.0*2
Battery Specifications (General):
- Battery Type: Lithium-ion
- Voltage Range: 80-500V
- Maximum Charge/Discharge Current: 50A
- Charging Method: BMS self-adapted
- Operating Temperature: -40°C to 60°C (with derating above 45°C)
- Protection Grade: IP65
- Weight: 30.5 kg
Power Output:
The GB-A series offers varying power output capabilities depending on the model:
| Feature | SUN-5K-SG02HP2-JP-FM2 | SUN-6K-SG02HP2-JP-FM2 | SUN-8K-SG02HP2-JP-FM2 |
|---|---|---|---|
| Rated AC Output Power | 5000W | 6000W | 8000W |
| Maximum AC Output Power | 5500W | 6600W | 8800W |
| Rated AC Output Current | 27.8A | 29.8A | 39.7A |
