| Model | GB-L11 Plus | GB-L17 Plus | GB-L23 Plus | GB-L28 Plus | GB-L34 Plus | GB-L40 Plus | |
| Module Energy (kWh) | 5.76 | ||||||
| Module Norminal Voltage (V) | 57.6 | ||||||
| Module Capacity (Ah) | 100 | ||||||
| Battery Module Qty In Series（Optional) | 2 | 3 | 4 | 5 | 6 | 7 | |
| System Nominal Voltage ( V ) | 115.2 | 172.8 | 230.4 | 288.0 | 345.6 | 403.2 | |
| System Operating Voltage ( V ) | 90~131.4 | 135~197.1 | 180~262.8 | 225~328.5 | 270~394.2 | 315~459.9 | |
| System Normal Energy (kWh) | 11.52 | 17.28 | 23.04 | 28.8 | 34.56 | 40.32 | |
| Charge Current (A) | Max.Continuous | 75 | |||||
| Peak | 135(15s） | ||||||
| Disharge Current (A) | Max.Continuous | 75 | |||||
| Peak | 135(2min) | ||||||

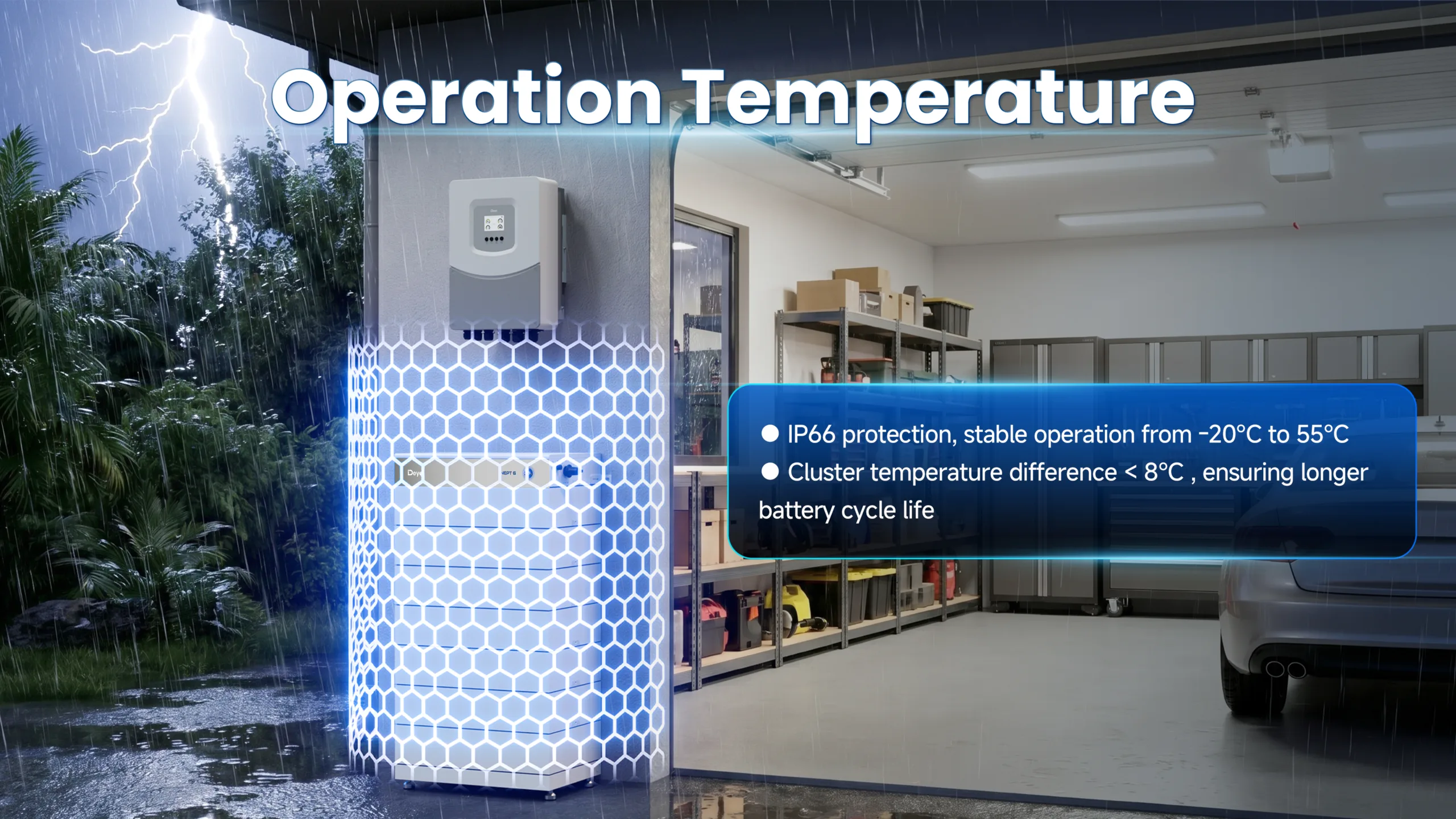

| Working Temperature( °C ) | Charge | 0~ 55 （-20~55 optional heating） | |||||
| Discharge | -20 ~ 55 | ||||||
| Type of Cooling | Natural Cooling | ||||||

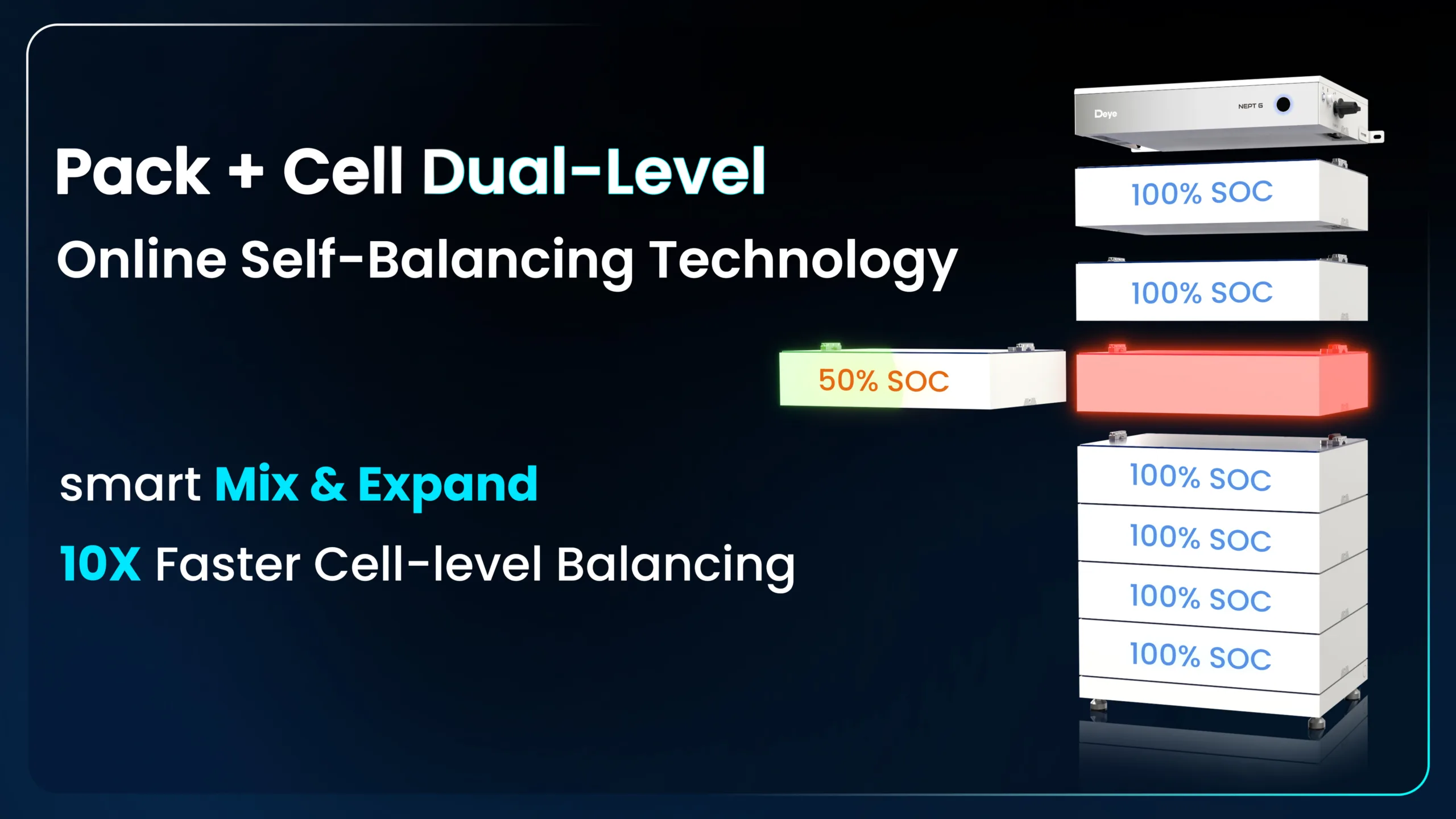

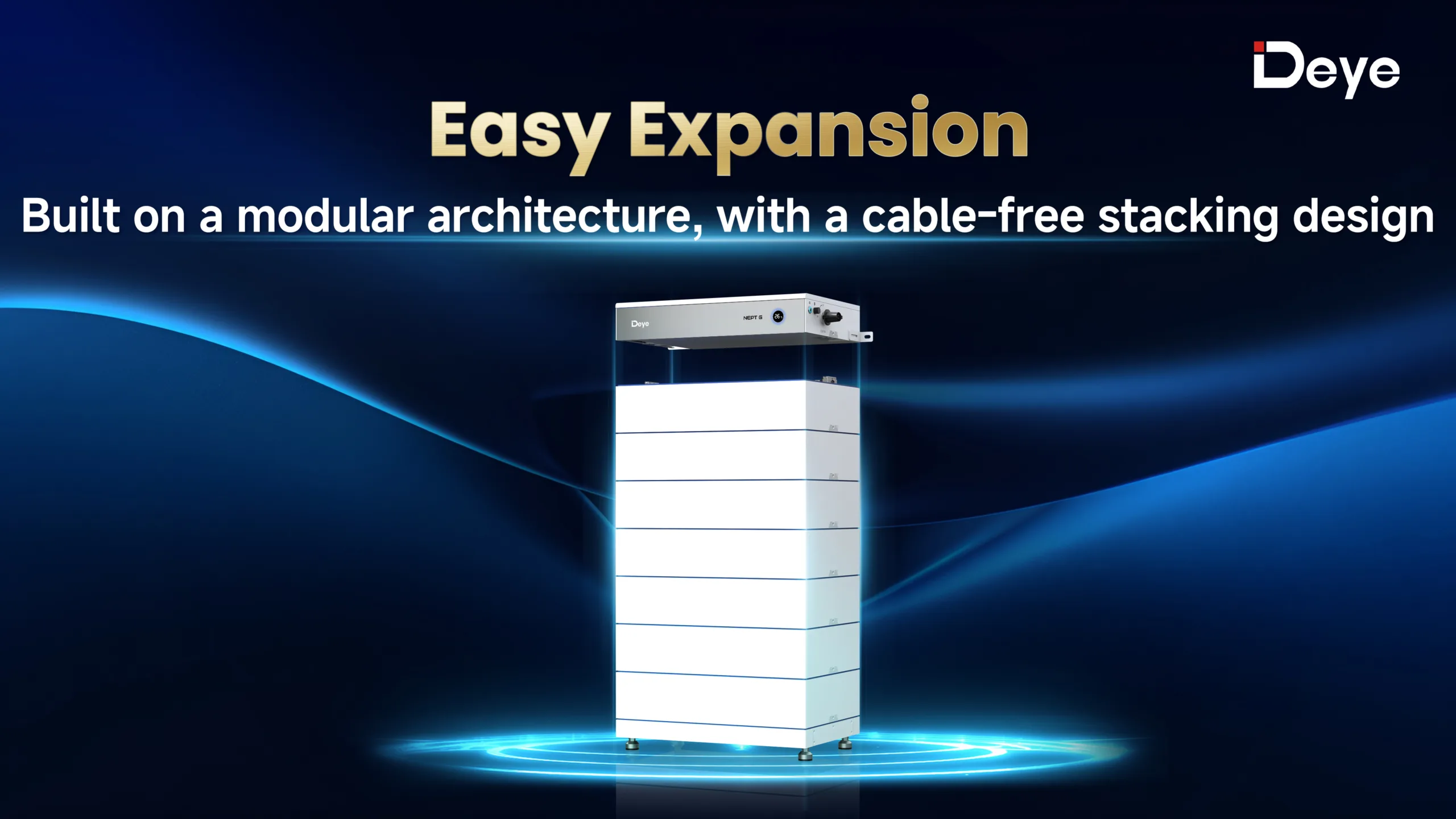

| Scalability | Max.16 Modules in parallel | ||||||
