GB-L Pro (EU, AU) High Voltage Battery System – Efficient & Safe

  • High Voltage Stack Design: Modules connected in series
  • LiFePO₄ Chemistry: Safe and reliable lithium iron phosphate battery cells
  • Wide Capacity Range: Available in capacities from 8 kWh to 24 kWh
  • Wide Temperature Operation: -20°C to 55°C, suitable for various climates
  • Real-Time Monitoring: Remote upgrades, real-time battery warnings
  • Safety Features: Built-in explosion relief and fire protection devices
  • Environmental Protection: IP65 rating and anti-corrosion grade ≥C2
  • Long Cycle Life: Over 6000 cycles at 25 ± 2°C
  • 10-Year Warranty: Ensuring long-term reliability
  • Suitable Deye Inverter Model:
      • SUN-5K/6K/8K/10K/12K/15K/20K-SG01HP3-EU-AM2
SKU: GB-L Pro (EU, AU)Categories: High Voltage Series (HV)
Contact Us

Description

Introducing our advanced LiFePO₄ battery system, designed to deliver reliable and efficient energy storage for various applications.

Technical Specifications Details
Cell Chemistry LiFePO₄
Module Energy Capacity 4 kWh with 102.4 V nominal voltage
Variants Available GB – L8 PRO, GB – L12 PRO, GB – L16 PRO, GB – L20 PRO, GB – L24 PRO
Usable Energy Range 7.2 kWh to 21.6 kWh
Performance Metrics 20 A recommended charge/discharge current, 50 A peak discharge
User – Friendly LCD Display Real – time updates on SOC, power output, and total voltage
Dimensions and Weight Varies depending on model, ranging from 540 × 385 × 650 mm to 540 × 385 × 1530 mm; weight from 97 kg to 253 kg

Key Features:

  • Safety First: Equipped with a built-in explosion relief device to dredge gas and a fire protection device that cuts off the fire source in just 3 seconds, ensuring utmost safety.

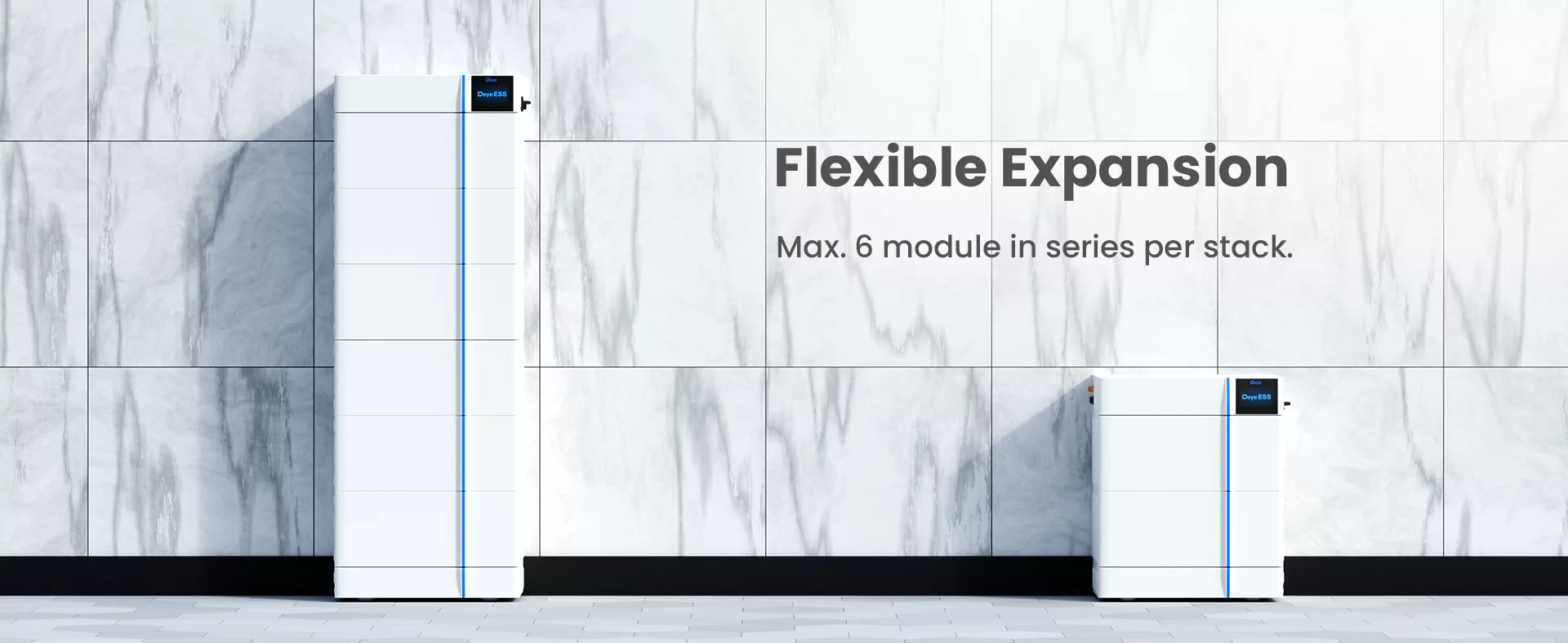

  • High-Voltage Stack: Modules are connected in series without cable connection, and the high-voltage platform enhances system efficiency significantly.
  • Thermal Management: Features temperature detection for key parts like cells and power plug-ins, keeping the battery operating within optimal temperature ranges.
  • Wide Temperature Operation: An optional heating function makes it suitable for low-temperature application scenarios where heating is needed.
  • Environmental Friendliness: Boasts an IP protection grade of 65, an anti-corrosion grade of ≥C2, and uses an environmental protection battery, making it durable and eco-friendly.
  • Intelligent and Visual: Supports remote upgrade, pushes real-time battery warning information, and has an LCD display for easy monitoring.
With a module energy capacity of 4 kWh (102.4 V nominal voltage) and usable energy ranging from 7.2 kWh to 21.6 kWh, variants like GB-L8 PRO, GB-L12 PRO, GB-L16 PRO, GB-L20 PRO, and GB-L24 PRO cater to different needs. The recommended charge/discharge current is 20 A, with a 50 A peak discharge. Dimensions range from 540×385×650 mm to 540×385×1530 mm, and weight from 97 kg to 253 kg, offering flexibility for various setups.

Download

Deye GB-L Pro Datasheet EN

Deye ESS User Manual GB-L-Pro EU (DE+EN) V01

Certificate

CB_IEC 62619_GB-L-Pro_DSS_FI-61995

CE-EMC_GB-L-Pro_DSS_SZEM2408007001AT Ver_CE

VDE_GB-L-Pro_DSS_PCS-25-20003

IEC 62477_GB-L-Pro_DSS_LVD SZES2408005611BA

Statement

DEYE Statement on Battery Expansion and Insulation Fault
