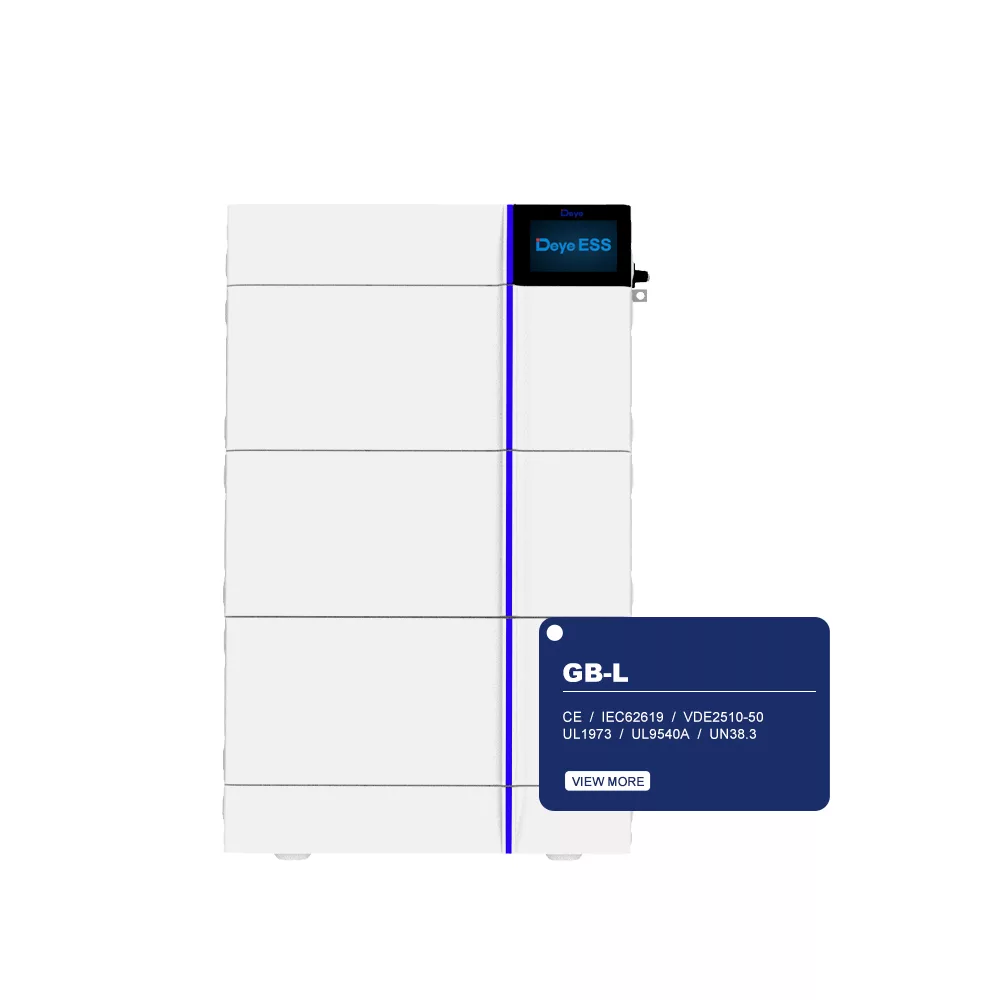

GB-L(HV)
- Safety
Built in explosion relief device to dredge gas, and built in fire protection device to cut off the fire source for 3 seconds - High voltage stack
Modules are connected in series without cable connection, and high-voltage platform improves system efficiency. - Thermal management
Temperature detection of key parts, cell, power plug in, etc. - Wide temperature operation
The heating function is optional to meet the application scenarios with low temperature and no sense. - Environmental friendliness
IP protection grade 65, anti corrosion grade ≥C2, environmental protection battery - Intelligent and visual
Support remote upgrade, real time battery warning information push, LCD data display.
Description
Technical Data
| Main Parameter | ||||||
| Cell Chemistry | LiFePO4 | |||||
| Module Energy (kWh) | 4.09 | |||||
| Module Nominal Voltage (V) | 102.4 | |||||
| Module Capacity (Ah) | 40 | |||||
| Battery Module Qty In Series (Optional) | 2 | 3 | 4 | 5 | 6 | |
| System Nominal Voltage (V) | 204.8 | 307.2 | 409.6 | 512 | 614.4 | |
| System Operating Voltage(V) | 166.4~700 | |||||
| System Energy (kWh) | 8.18 | 12.27 | 16.36 | 20.45 | 24.56 | |
| SystemUsableEnergy(kWh)[1] | 7.36 | 11.04 | 14.72 | 18.40 | 22.10 | |
| Charge/Discharge Current (A)[2] | Recommend | 20 | ||||
| Nominal | 40 | |||||
| Peak Discharge(2 mins, 25℃) | 50 | |||||
| Working Temperature (°C) | Charge: 0~55°C /Discharge: -20~ 60°C | |||||
| LCD Display | SOC%, Power, Total Voltage | |||||
| Communication Port | CAN2.0, RS485 | |||||
| Humidity | 5%~90% | |||||
| Altitude | ≤2000m | |||||
| IP Rating of Enclosure | IP65 | |||||
| Storage Temperature (°C) | 0~35°C | |||||
| Dimension (W/D/H,mm) | 540*385*650 | 540*385*870 | 540*385*1090 | 540*385*1310 | 540*385*1530 | |
| Weight(kg) | 97 | 136 | 175 | 214 | 253 | |
| Installation Location | Floor Mount | |||||
| Recommend Depth of Discharge | 90% | |||||
| Cycle Life | 25±2°C, 0.5C/0.5C, EOL70%≥6000 | |||||
| Warranty[3] | 10 years | |||||
| Certification | CE / IEC62619 / VDE2510-50 / UL1973 / UL9540A / UN38.3 | |||||
[1] DC Usable Energy, test conditions: 90% DOD, 0.2C charge & discharge at 25°C. System usable energy may vary due to system configuration parameters.
[2] The current is affected by temperature and SOC.
[3] The warranty is due whichever reached first of warranty period or life cycle power.
