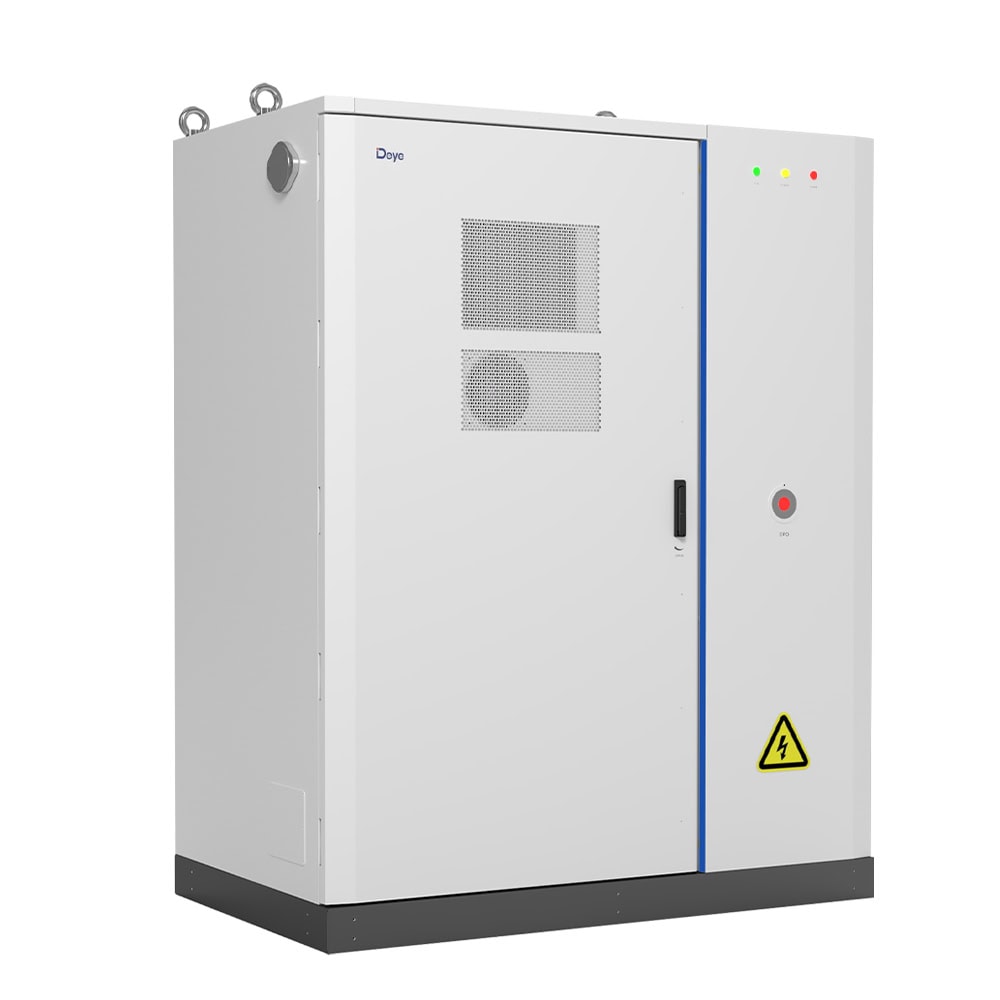

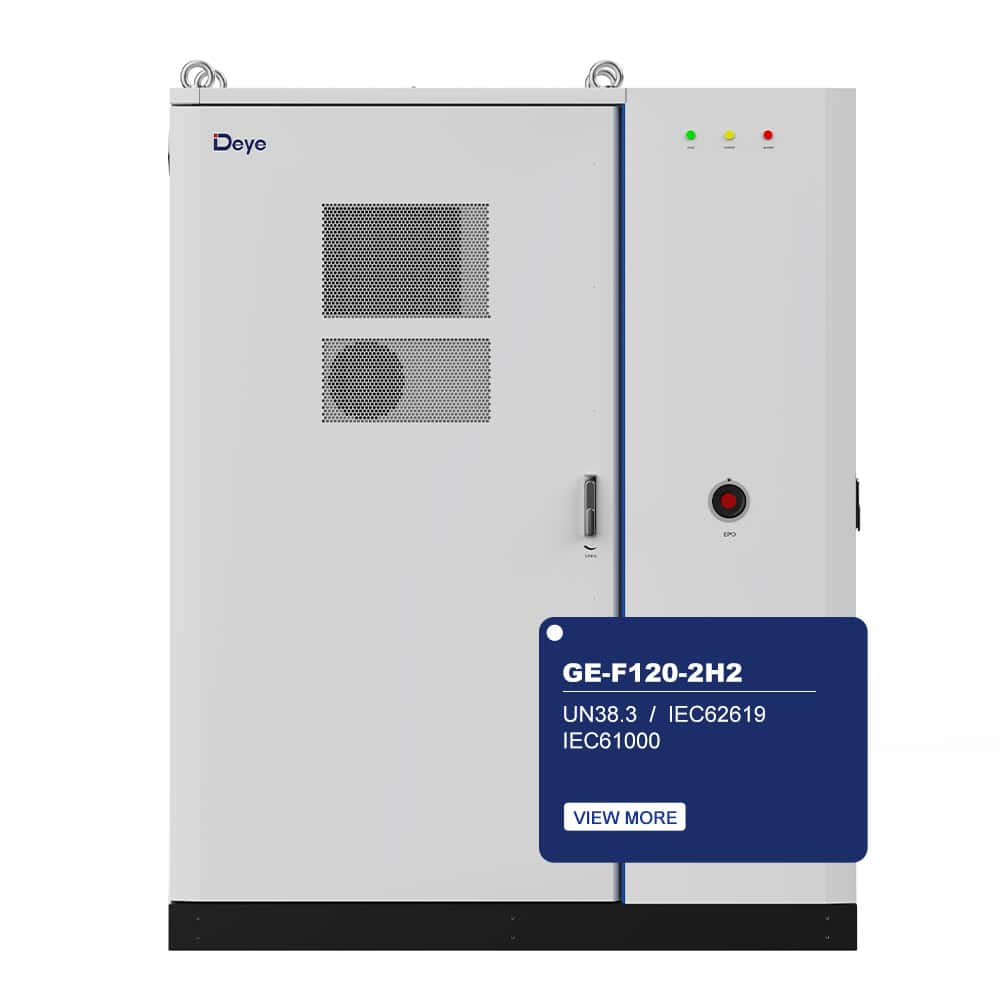

Deye GE-F120-2H2 (EU) 50kW High-Voltage Hybrid ESS

  • 50KW rated power and 120KWh storage capacity
  • Suitable for high-rate cyclic charging and discharging scenarios
  • All-in-One integrated technology: PCs, inverters, BMS, and EMS
  • Power supply redundancy design, black start function
  • Lithium Iron Phosphate (LFP) battery with aerosol fire-extinguishing solution
  • Safety features: combustible gas, smoke, and temperature detection, active exhaust, and fire alarm
  • The battery energy is 120KWh
  • Maximum battery temperature remains below 35℃ during rated power operation
SKU: GE-F120-2H2 (EU)Categories: Small-Scale C&I ESS
Contact Us

Description

Introducing the GE-F120-2H2, a top – tier energy storage system designed to deliver reliable and efficient power solutions.

Parameter GE-F120-2H2
Nominal Output Power / UPS Power (W) 50000
AC Output Frequency and Voltage 50 / 60Hz; 220 / 380, 230 / 400Vac
Grid Type 3L / N / PE

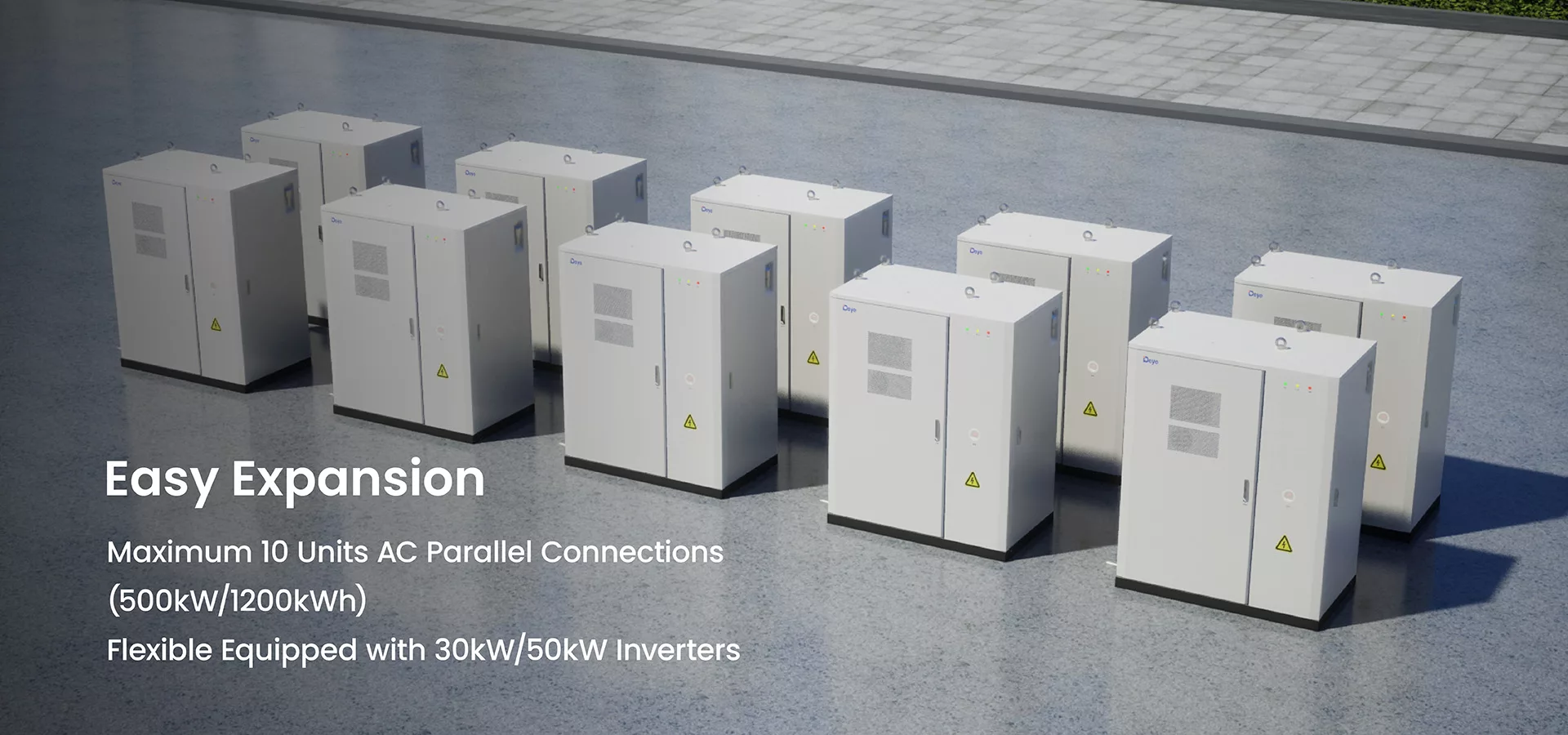

Number of Parallel (Off-grid) 10
Energy Configuration (kWh) 122.8
Dimension (W × D × H, mm) 1780 × 1056 × 2235
Weight Approximate (kg) 2090
AC Output Rated Current (A) 75.8
Battery Operating Voltage (V) 500 ~ 700
Max. RTE 89%
Battery Chemistry LiFePO₄
IP Rating of Enclosure IP55
Installation Method Floor-Mounted
Storage Temperature (°C) 0 ~ 35
Operating Temperature (°C) -20 ~ 55 (>43 derating)
Warranty 10 years

Key Features:

  • Power and Performance: Boasts a nominal output power/UPS power of 50,000 W. With an AC output frequency of 50/60Hz and voltages of 220/380, 230/400Vac, it adapts well to various power needs. The AC output rated current reaches 75.8 A, ensuring robust power delivery.
  • Battery and Safety: Utilizes LiFePO₄ battery chemistry for long – lasting performance, with a cycle life of ≥6000 cycles and 70% EOL capacity retention. It features 5 – level extreme safety protection, including combustible gas, smoke, and temperature detection, an active exhaust system, fire alarm, and aerosol fire suppression for batteries, packs, and systems.

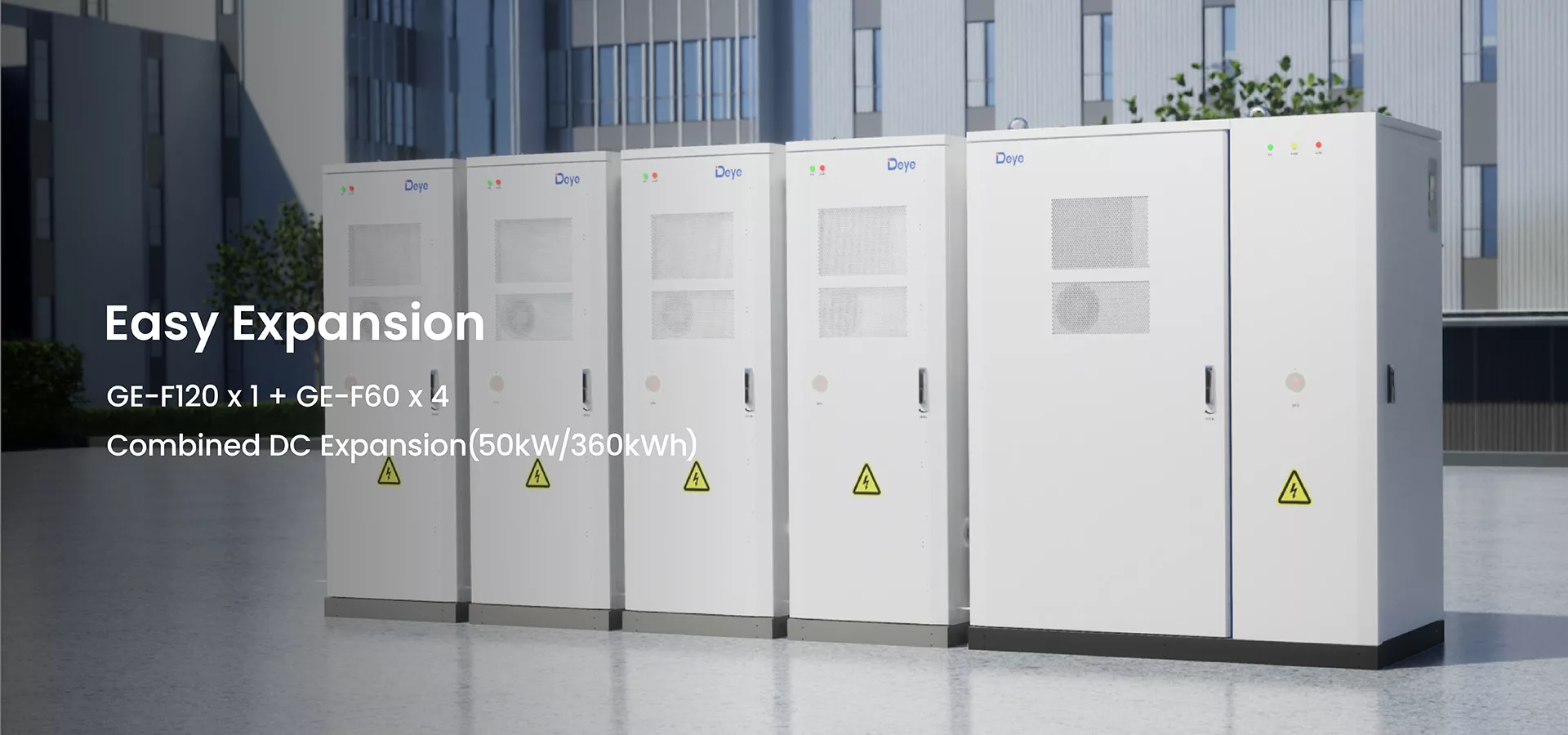

  • Flexibility and Durability: Supports off – grid battery expansion up to 3600kWh. The system has a 10 – year warranty, providing long – term peace of mind. It’s floor – mounted, with dimensions of 1780×1056×2235 mm and a weight of 2090 kg. Operates in temperatures from – 20 to 55°C (with derating above 43°C) and stores in 0 – 35°C environments, with an IP55 enclosure rating for protection against dust and water.
