MS-G215

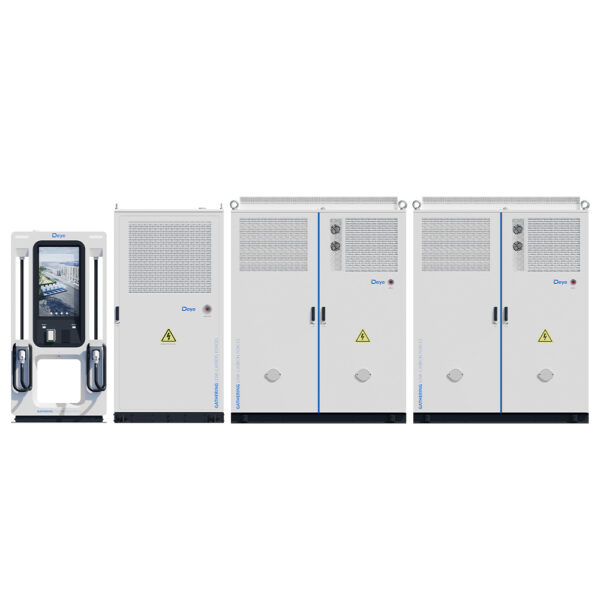

MS-G215 Micro Grid System
Reliable and Scalable Energy Storage

For China

ModelMS-G215
Nominal Output Power (KW)100
AC Output Frequency and Voltage50/60Hz; 380/400Vac
Grid Type3L/PE
Energy (kWh)215
Dimension (W x D x H, mm)1765x1000x2500
Weight Appr. (kg)2.7T
Battery Operating Voltage (V)DC: 660 ~ 876
Max. RTE88%
System CommunicationETH/4G
System Operating temperature range (°C)-20~45
Max. working altitude (m)≤3000
IP Rating of EnclosureIP54
Anti-corrosion gradeC4
Installation StyleFloor-Mounted
Warranty10 years

Deye MS-G215 User Manual Chinese

 Download

Deye MS-G215 Datasheet EN

 Download

DEYE Statement on Battery Expansion and Insulation Fault

 Download
