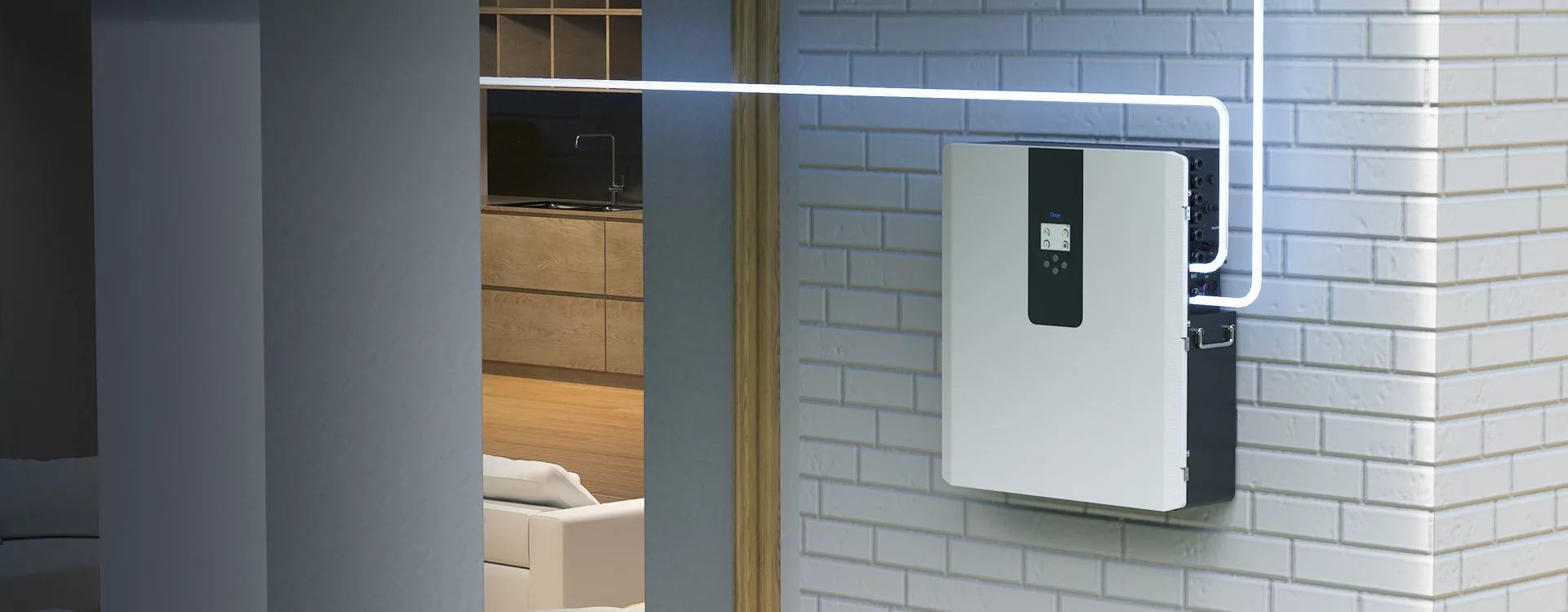

RW-F5.3-1H3

Description

Key Features

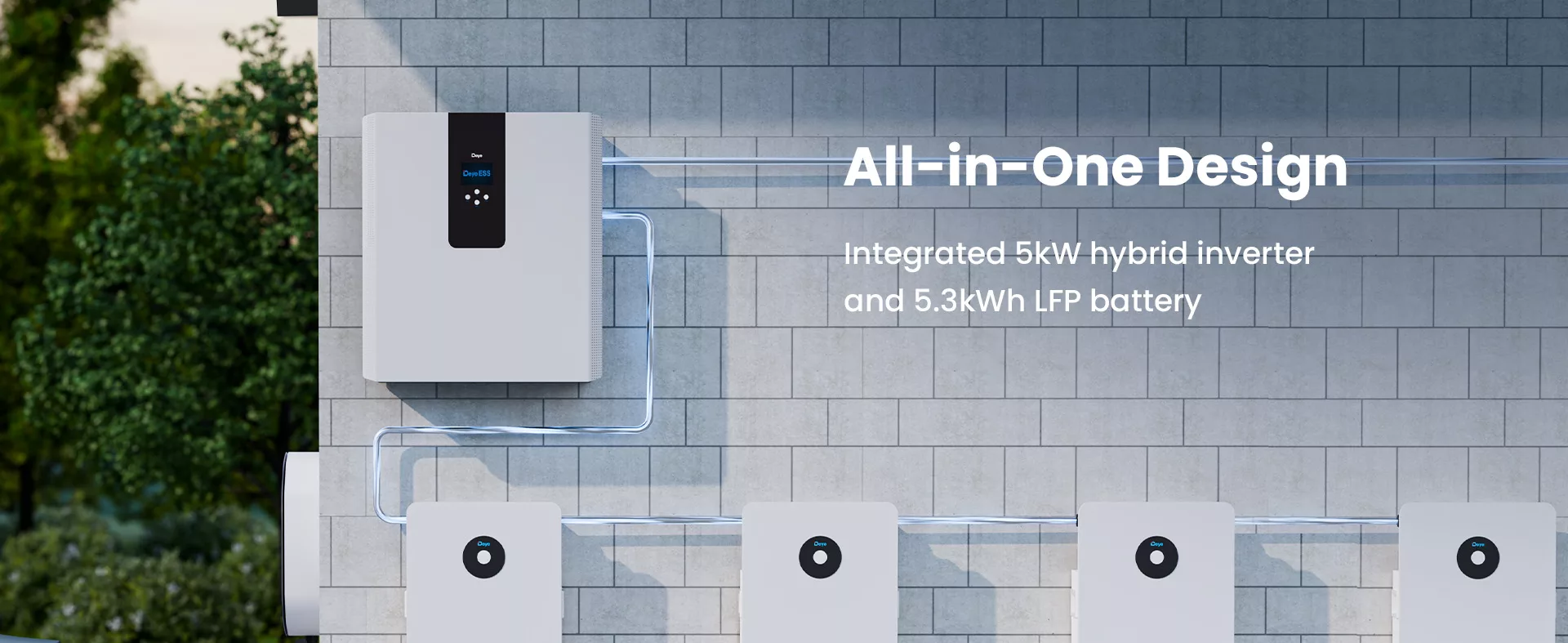

• Integrated Design: The RW-F5.3-1H3 integrates a hybrid inverter with either a 3.6kW or a 5kW power rating, combined with a robust 5.3kWh Lithium Iron Phosphate (LFP) battery. This all-in-one construction ensures safety, reliability, and a long lifespan, making it a cost-effective choice for both residential and commercial use.
• Optimized Energy Security: One of the standout features of the RW-F5.3-1H3 is its incredibly fast switching time of 4ms. This rapid response ensures that your energy supply remains stable and secure even during power outages or fluctuations.

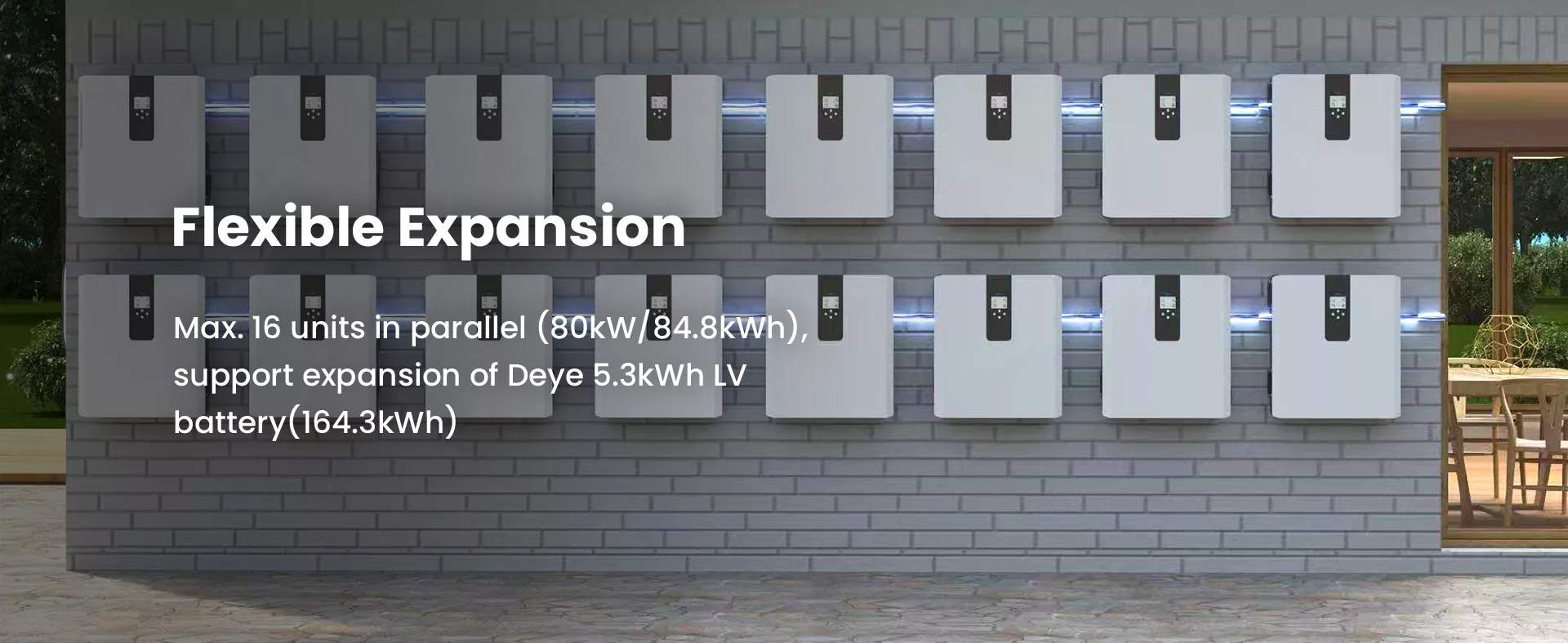

• Scalability and Expandability: The system is designed with scalability in mind, supporting up to 16 units connected in parallel for a maximum power output of 80kW and a total capacity of 84.8kWh. Additionally, it can be expanded with Deye 5.3kWh LV batteries, allowing up to 31 additional batteries for a staggering total capacity of 164.3kWh.

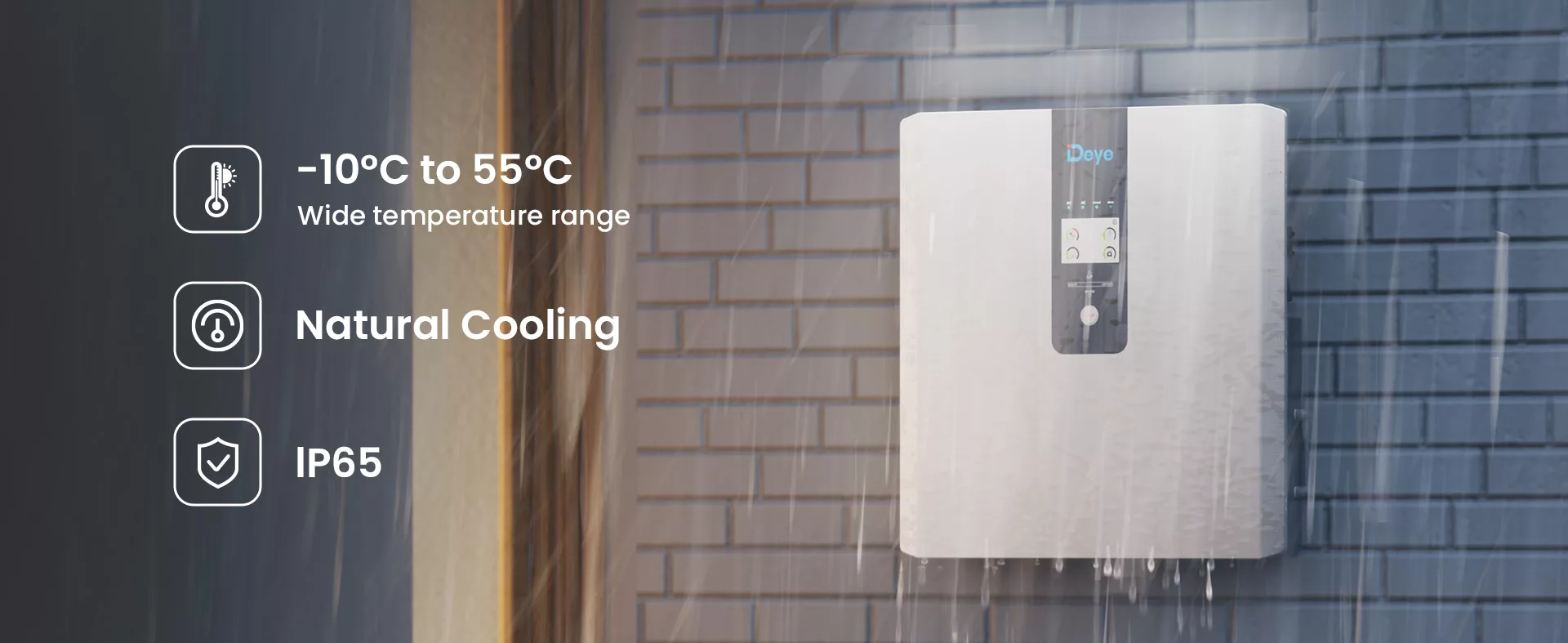

• Cooling and Protection: Equipped with Intelligent Air Cooling and an IP65 rating, the RW-F5.3-1H3 is built to withstand diverse environmental conditions. It operates efficiently within a wide temperature range of -10°C to 55°C. The built-in Intelligent Battery Management System (BMS) offers comprehensive protection against overcharging, discharging, and other potential hazards.
• High Efficiency: The system boasts an impressive 97% maximum solar to home/grid efficiency and a 99% MPPT efficiency, ensuring optimal energy conversion and utilization. The solar to battery to home/grid efficiency is also noteworthy at 89%.

Technical Specifications

• Inverter Details:
  • Nominal Power Output: 3,600W / 5,000W
  • AC Input/Output Frequency: 50Hz or 60Hz, with a Voltage rating of 220/230 Vac
  • Peak Power (Off-grid): Capable of delivering twice the rated power for 10 seconds
• Battery Details:
  • Chemistry: Advanced Lithium Iron Phosphate (LiFePO4)
  • Nominal Voltage: 51.2V
  • Energy Capacity: 5.32kWh
  • Max. Charging/Discharging Current: 75A
  • Battery Cycle Life: Exceeds 6,000 cycles at 25°C
• Physical Dimensions:
  • Size: 616mm x 191mm x 690mm
  • Weight: Approximately 71kg
  • Installation: Designed for wall mounting
• Noise Levels: Operates quietly with a noise output of less than 30dB.

Applications and Compliance

The RW-F5.3-1H3 is versatile and ideal for a range of applications, including on-grid home load, backup load, smart load management, and integration with solar energy systems. It supports various energy sources such as grid, generator, and solar connections, facilitating efficient and reliable energy management.

This system complies with international standards including IEC/EN 61000, IEC/EN 62109, and a host of grid regulations, ensuring both safety and reliability. It comes with a generous 5-year warranty, underscoring its quality and durability, with further details available in the warranty policy.

The RW-F5.3-1H3 Energy Storage System from Deye is a comprehensive solution that combines cutting-edge technology with practical design to deliver exceptional performance, scalability, and reliability. Whether for residential or commercial use, its robust features and expandable capacity make it an excellent investment for sustainable energy management.
