RW-L2.5A (Special for Asia-Africa-Latin America)

Scalable Design: Connect up to 32 units in parallel for customized energy capacity.
Versatile Compatibility: Works seamlessly with various inverters; 10A current limit for charging and discharging.
Robust Safety: Features LFP battery technology with built-in circuit protection and intelligent BMS.
Weather-Resistant: IP65-rated enclosure suitable for both indoor and outdoor installation.
Widely Operational: Functions efficiently in temperatures ranging from -20°C to 55°C.
Smart Monitoring: Remote monitoring and upgrades available via Deye’s cloud services.
Long Cycle Life: Over 6000 cycles ensuring long-lasting performance and reliability.

SKU: RW-L2.5A Category: Regional Exclusive Supply

Description

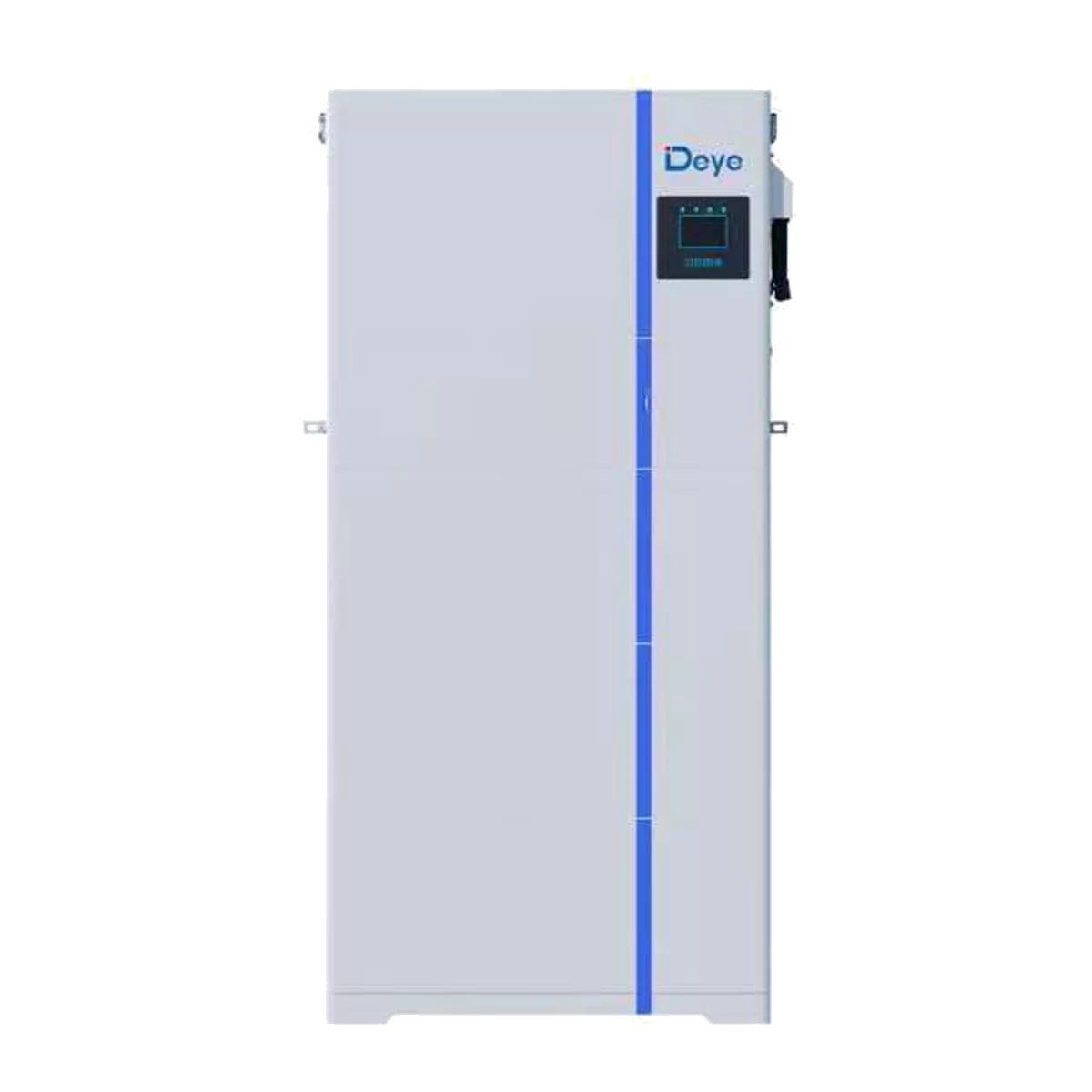

The Deye Residential Energy Storage System (ESS) is engineered to offer reliable and flexible energy storage solutions for residential use. With advanced technology and a robust design, this system can efficiently meet the energy demands of your home while providing peace of mind during power outages.

Key Features:

Flexible Configuration:
- Supports up to 32 units connected in parallel for scalable energy solutions.
- Compatible with any inverter for charging and discharging with a maximum current limit of 10A.
Reliable Performance:
- Peak discharge current capabilities of up to 2C for 10 seconds.
- Designed with an IP65-rated enclosure, providing protection against dust and water, suitable for both indoor and outdoor use.
- Operational temperature range from -20°C to 55°C ensures performance under various conditions.
Convenient Operation:
- No DIP switches required due to the battery module’s auto networking feature.
- Remote monitoring and upgrade capabilities through Deye’s cloud services for user convenience.
Safety & Smart Design:
- Incorporates LFP (Lithium Iron Phosphate) battery chemistry for long lifespan and high efficiency.
- Features built-in circuit breakers and intelligent Battery Management System (BMS) for enhanced safety.

Specifications:

Main Parameter	RW-L2.5A	RW-L5.1	RW-L10.2
Battery Chemistry	LiFePO₄	LiFePO₄	LiFePO₄
Built-in Circuit Breaker	125A 1P, 60V	125A 1P, 60V	125A 2P, 60V
Capacity (Ah)	100Ah	100Ah	200Ah
Nominal Energy (kWh)	2.56	5.12	10.24
Usable Energy (kWh)	2.3	4.61	9.22
Charge / Discharge Current (A)	100 / 120	100 / 120	200 / 240
Dimension (W × H × D, mm)	350x680x160	420x680x160	745x745x170
Weight Approximate (kg)	32	50	100
IP Rating of Enclosure	IP65	IP65	IP65
Cycle Life	≥6000 (as per cycle conditions)	≥6000 (as per cycle conditions)	≥6000 (as per cycle conditions)
Warranty Period	10 years	10 years	10 years
Certification	UN38.3, MSDS	UN38.3, MSDS	UN38.3, MSDS
