SE-G10.2 (Special for Asia-Africa-Latin America)

High Capacity: 200 Ah and 10.24 kWh nominal energy output, suitable for diverse energy needs.
Safe & Reliable: Cobalt Free Lithium Iron Phosphate (LFP) battery with intelligent BMS for maximum safety and longevity.
Modular Design: Scalable up to 64 units in parallel, offering a maximum output of 655 kWh for growing energy requirements.
Wide Operating Range: Functioning in temperatures from -20℃ to 55℃, ensuring performance in extreme conditions.

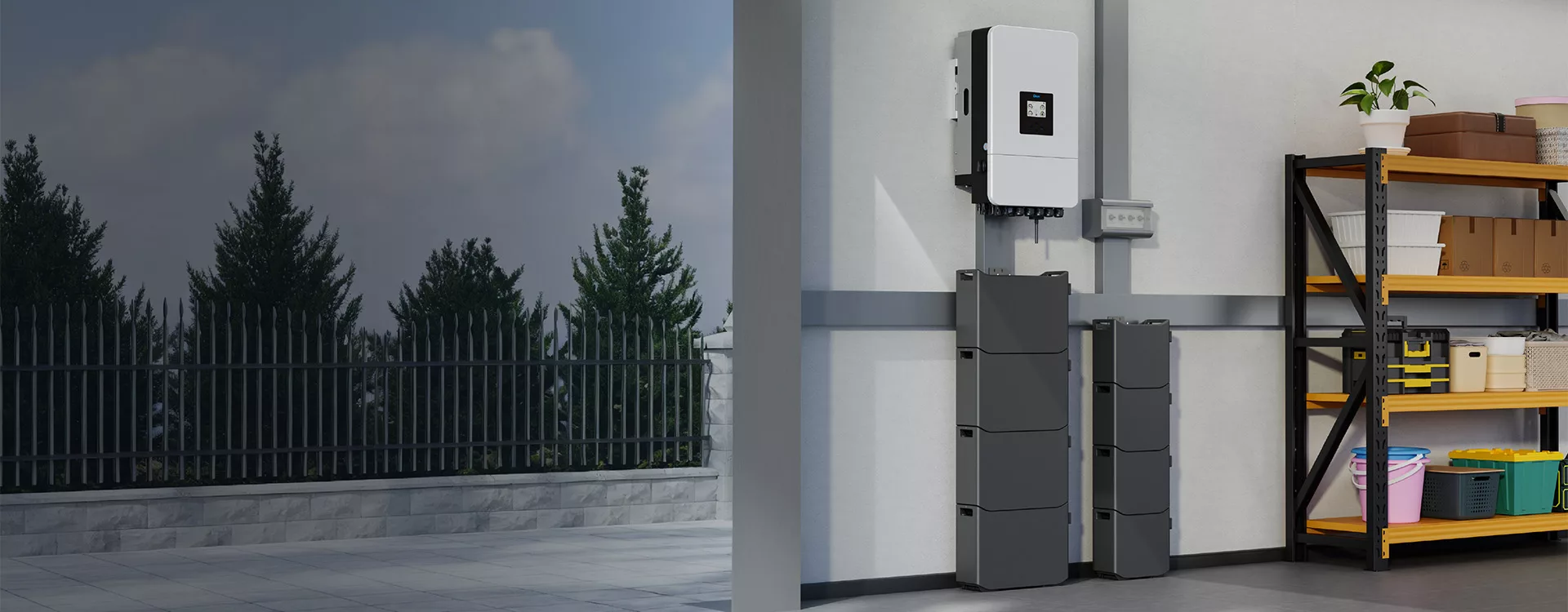

Flexible Installation: Supports rack-mounted, wall-mounted, and stack-mounted configurations for space-saving setup.
Smart Features: Auto networking for easy maintenance and remote monitoring capabilities.
Eco-Friendly: Constructed with non-toxic, pollution-free materials, promoting sustainability.
Long Lifecycle: 6000+ cycles at 25℃ with 80% depth of discharge, backed by a 5-year warranty.

SKU: SE-G10.2 Category: Regional Exclusive Supply

Description

The Deye SE-G10.2 is a state-of-the-art energy storage solution designed to meet the demands of both residential and commercial applications. With its robust performance, eco-friendly materials, and advanced safety features, the SE-G10.2 stands out as an ideal choice for those looking to enhance their energy independence and efficiency.

Key Features:

High-Capacity Battery: The SE-G10.2 boasts a nominal capacity of 200 Ah and a nominal energy output of 10.24 kWh, making it capable of supporting a variety of power needs and ensuring energy availability during peak times.
Safety First: Utilizing Cobalt Free Lithium Iron Phosphate (LFP) technology ensures a high level of safety with a long lifespan and excellent power density. The intelligent Battery Management System (BMS) provides comprehensive protection against overcharging, overheating, and other potential risks.
Versatile Design: With a modular design, up to 64 units can be connected in parallel for a maximum output of 655 kWh, allowing for significant scalability to accommodate larger energy needs as they grow.
Wide Operational Range: The SE-G10.2 operates efficiently in a wide temperature range from -20℃ to 55℃, offering reliable performance even in extreme conditions. The natural cooling feature and IP20 rating ensure durability and reliable operation.
Convenient Installation Options: Designed with a standard 3U height, the SE-G10.2 supports multiple mounting methods including rack-mounted, wall-mounted, and stack-mounted installations, maximizing flexibility and saving space.
Smart Connectivity: The battery module supports auto networking for easy maintenance and provides remote monitoring capabilities. Firmware upgrades can be performed to ensure the product remains up to date with the latest technology.
Eco-Friendly Composition: Built using environmentally protective materials, the SE-G10.2 is both non-toxic and pollution-free, making it a sustainable choice for eco-conscious consumers.

Specifications:

Model: SE-G10.2
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Nominal Capacity: 200 Ah
Nominal Voltage: 51.2 V
Operating Voltage: 44.8 V – 57.6 V
Nominal Energy: 10.24 kWh
Cell Configuration: 2P16S
Max. Charge Current: 100 A continuous, 200 A peak (10 sec)
Max. Discharge Current: 100 A continuous, 200 A peak (10 sec)
Recommended Depth of Discharge: 80% DoD
Dimensions: 710 mm (W) × 540 mm (D) × 133 mm (H)
Weight: Approx. 85 kg
Cycle Life: ≥6000 cycles (at 25℃ with 0.2C discharge and 80% DoD)
Warranty Period: 5 years
Communication Port: CAN2.0, RS485
IP Rating: IP20
Operating Temperature: Charging: 0℃ to 55℃, Discharge: -20℃ to 55℃
Storage Temperature: 0℃ to 35℃
Relative Humidity: Up to 95%
Altitude: ≤2000 m

Installation Options:

Mounting Methods: Floor-mounted (stacked), wall-mounted, rack-mounted (requires cabinet depth ≥600mm).
Included Accessories: Comes with necessary fixed ears, cables for battery parallel connections, and brackets for various mounting methods.
