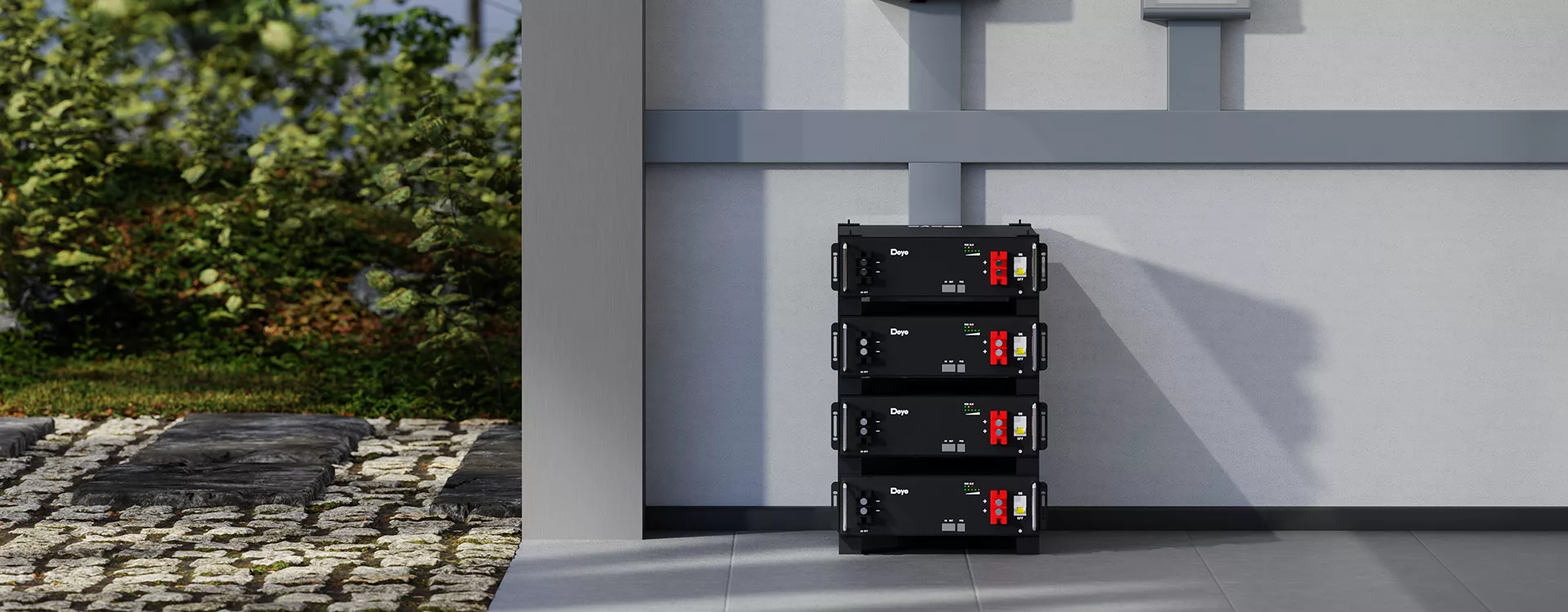

SE-G5.1 (Special for Asia-Africa-Latin America)

Description

The Deye SE-G5.1 is a cutting-edge residential energy storage solution designed to enhance energy efficiency and sustainability in your home. Utilizing Cobalt Free Lithium Iron Phosphate (LFP) technology, this battery offers unparalleled safety, longevity, and performance, making it an ideal choice for both residential and commercial applications.

Key Features:

• Superior Safety: The SE-G5.1 is built with Cobalt Free Lithium Iron Phosphate (LFP) chemistry, ensuring a safe and stable battery performance. It features an intelligent Battery Management System (BMS) that provides comprehensive protection against overcharging, overheating, and other potential hazards.
• High Reliability: Capable of supporting high discharge power, the SE-G5.1 operates effectively in a wide temperature range from -20℃ to 55℃. Its IP20 rating indicates solid protection from dust, ensuring long-lasting performance.
• Flexible Scalability: With a modular design, the SE-G5.1 allows for easy expansion, supporting up to 64 units in parallel, enabling a maximum capacity of 327 kWh. This makes it perfectly suited for increasing self-consumption ratios in both residential and commercial settings.
• User-Friendly Maintenance: The battery module is equipped with auto networking capabilities, simplifying maintenance. It also supports remote monitoring and firmware upgrades, allowing users to manage their energy systems efficiently.
• Eco-Friendly Construction: Made from environmentally protective materials, the SE-G5.1 module is non-toxic and pollution-free, making it a responsible choice for environmentally-conscious consumers.
• Versatile Installation Options: The 3U height design allows for multiple mounting methods, including rack-mounted, wall-mounted, and stack-mounted configurations, saving valuable installation space.

Technical Specifications:

• Model: Deye SE-G5.1
• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
• Nominal Capacity: 100 Ah
• Nominal Voltage: 51.2 V
• Operating Voltage Range: 44.8 V – 57.6 V
• Nominal Energy: 5.12 kWh
• Cell Configuration: 1P16S
• Scalability: Up to 64 units in parallel (327 kWh)
• Max Charge Current: 50 A (Continuous), 100 A (Peak for 10 sec)
• Max Discharge Current: 50 A (Continuous), 100 A (Peak for 10 sec)
• Recommended Depth of Discharge: 80% DoD
• Dimensions: 440 × 540 × 133 mm (W x D x H)
• Weight: Approximately 44 kg
• Master LED Indicator: 5 LEDs (SOC indication from 20% to 100%)
• Communication Ports: CAN2.0, RS485
• IP Rating: IP20
• Operating Temperature: Charging: 0 to 55℃; Discharge: -20 to 55℃
• Storage Temperature: 0 to 35℃
• Cycle Life: ≥6000 cycles at 25℃ (0.2C charge/discharge, 80% DoD)
• Warranty Period: 5 years
• Installation Methods: Floor-mounted (stacked), wall-mounted, rack-mounted

Accessories Included:

• Battery Rack
• Parallel Connection Cables
• Mounting Brackets
