WD-G 12100, WD-G12200 & WD-G24100
Deye Residential Solution

For AS, AF & LATAM Area

WD-G12100 Lithium Iron Phosphate Battery

Model	WD – G12100
Battery Chemistry	LiFePO₄
Nominal Capacity	100 Ah
Nominal Voltage	12.8 V
Operating Voltage	11.2 V ~ 14.6 V
Nominal Energy	1.28 kWh
Cell Configuration	Prismatic, 1P4S

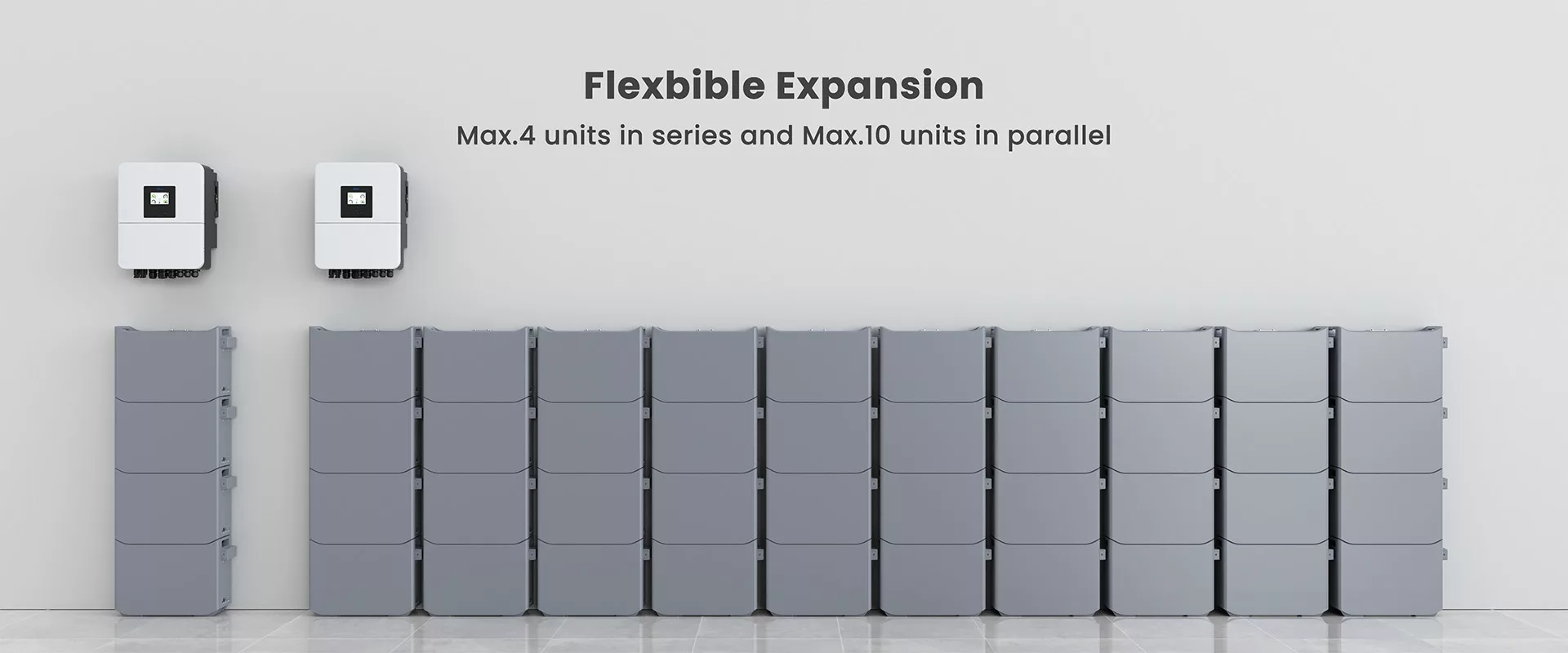

Scalability	Max 4 units in series (51.2 V) and Max 10 units in parallel
Charge Current	– Max. Continuous: 100 A – Peak: 200 A (10 sec)
Discharge Current	– Max. Continuous: 100 A – Peak: 200 A (10 sec)
Recommend Depth of Discharge	80% DoD
Dimension Approximate (W×D×H, mm)	310 × 160 × 298
Weight Approximate	11 kg
Case Material	ABS+PC
LED Indicator	LED (SOC, working, protecting) & Buzzer
Communication	RS485
IP Rating of Enclosure	IP20
Operating Temperature	– Charge: 0 – 55°C – Discharge: -20°C – 55°C
Storage Temperature	0 – 35°C
Relative Humidity	95%
Altitude	≤2000m
Cycle Life	≥6000 (25°C±2°C, 0.2C charging and discharging, 80% DoD, 70% EOL)
Warranty Period	5 years

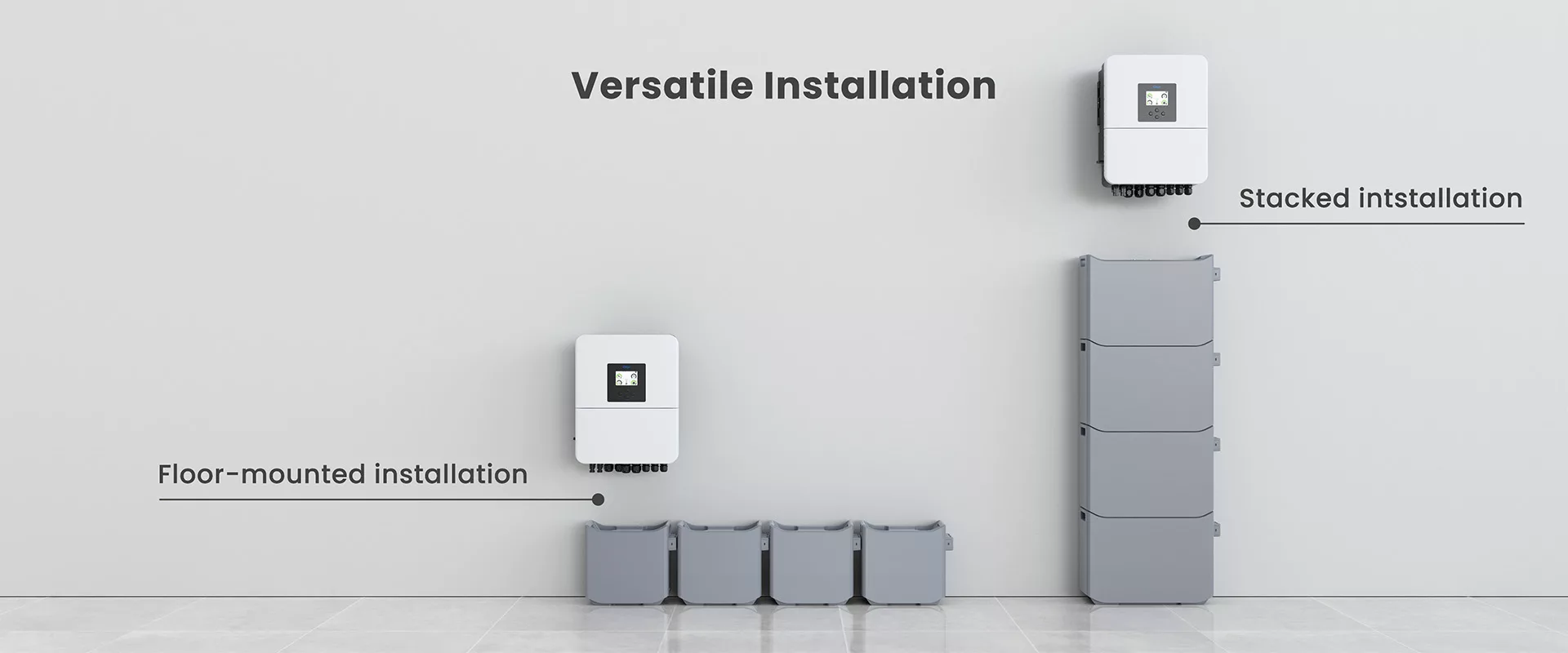

Installation	Floor – Mounted, Stack – Mounted
Certification	UN38.3, MSDS

WD-G12200: High – Performance LiFePO₄ Battery for Diverse Needs

Battery Chemistry	LiFePO₄
Nominal Capacity	200 Ah
Nominal Voltage	12.8 V
Operating Voltage	11.2 V ~ 14.6 V
Nominal Energy	2.56 kWh
Cell Configuration	Prismatic, 2P4S
Scalability	Max 4 units in series (51.2 V) and Max 10 units in parallel
Charge Current	– Max. Continuous: 200 A – Peak: 300 A (10 sec)
Discharge Current	– Max. Continuous: 200 A – Peak: 300 A (10 sec)
Recommend Depth of Discharge	80% DoD
Dimension Approximate (W×D×H, mm)	471 × 160 × 348
Weight Approximate	21 kg
Case Material	ABS+PC
LED Indicator	LED (SOC, working, protecting) & Buzzer
Communication	RS485
IP Rating of Enclosure	IP20
Operating Temperature	– Charge: 0 – 55°C – Discharge: -20°C – 55°C
Storage Temperature	0 – 35°C
Relative Humidity	95%
Altitude	≤2000m
Cycle Life	≥6000 (25°C±2°C, 0.2C charging and discharging, 80% DoD, 70% EOL)
Warranty Period	5 years
Installation	Floor – Mounted, Stack – Mounted
Certification	UN38.3, MSDS
