WS-GS2000-2H3 (AS, AF, LATAM)

  • All-in-One: 1 MW PCS, 1.6 MWp Solar Input, 2057 kWh LFP Battery
  • High Performance: Achieves 88.5% Max. RTE with 1.1x continuous and 1.5x transient overload capability
  • Advanced Safety: Features 2-hour fire resistance, gas/smoke detection, multiple suppression systems (aerosol, water), and LFP battery chemistry
  • Reliable & Durable: Offers 4-level power redundancy, 8000 cycle life (EOL 70%), and a 10-year warranty. Operates from -20°C to 50°C (IP54, C4-M)

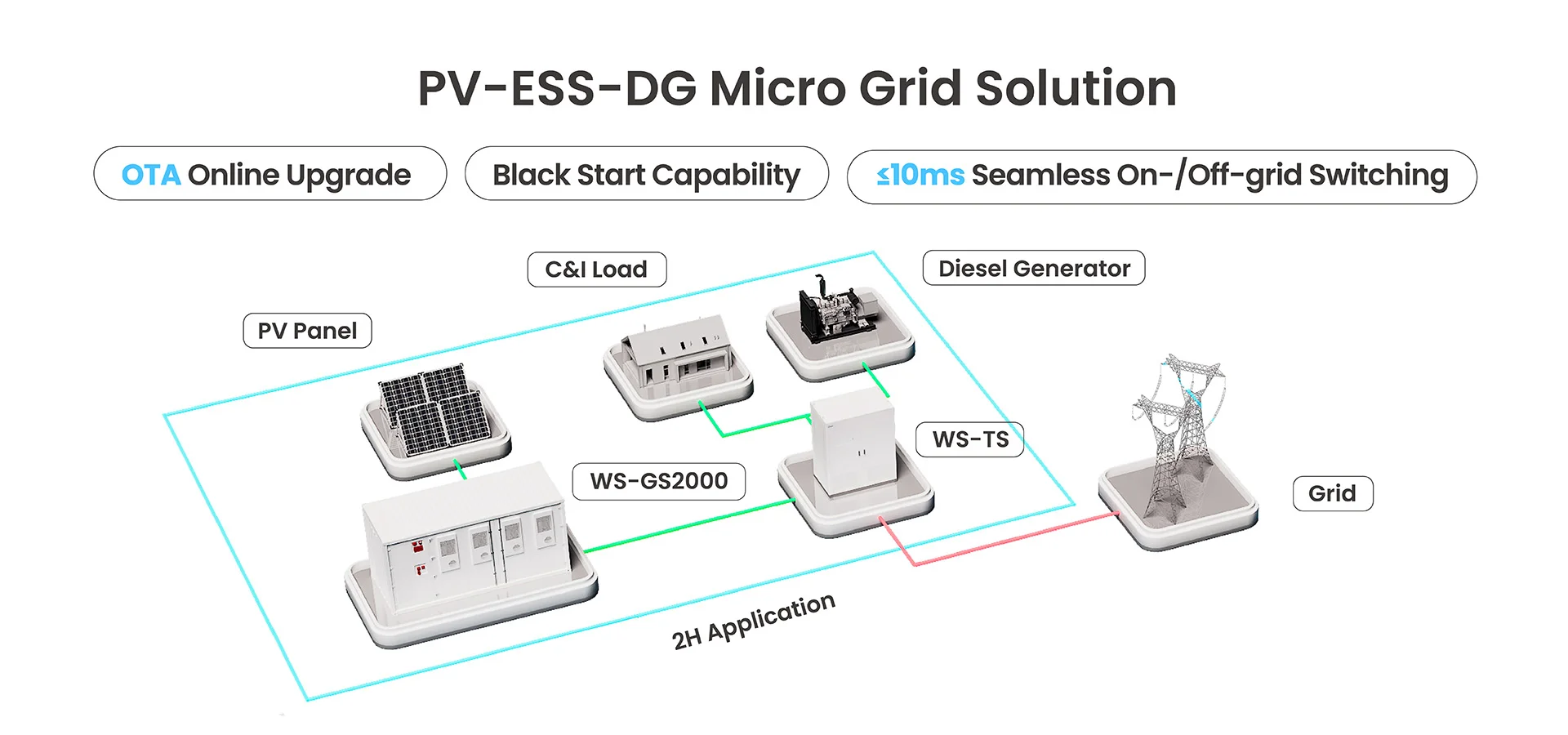

  • Versatile Applications: Supports black start, off-grid operation, peak shaving, and transformer capacity control

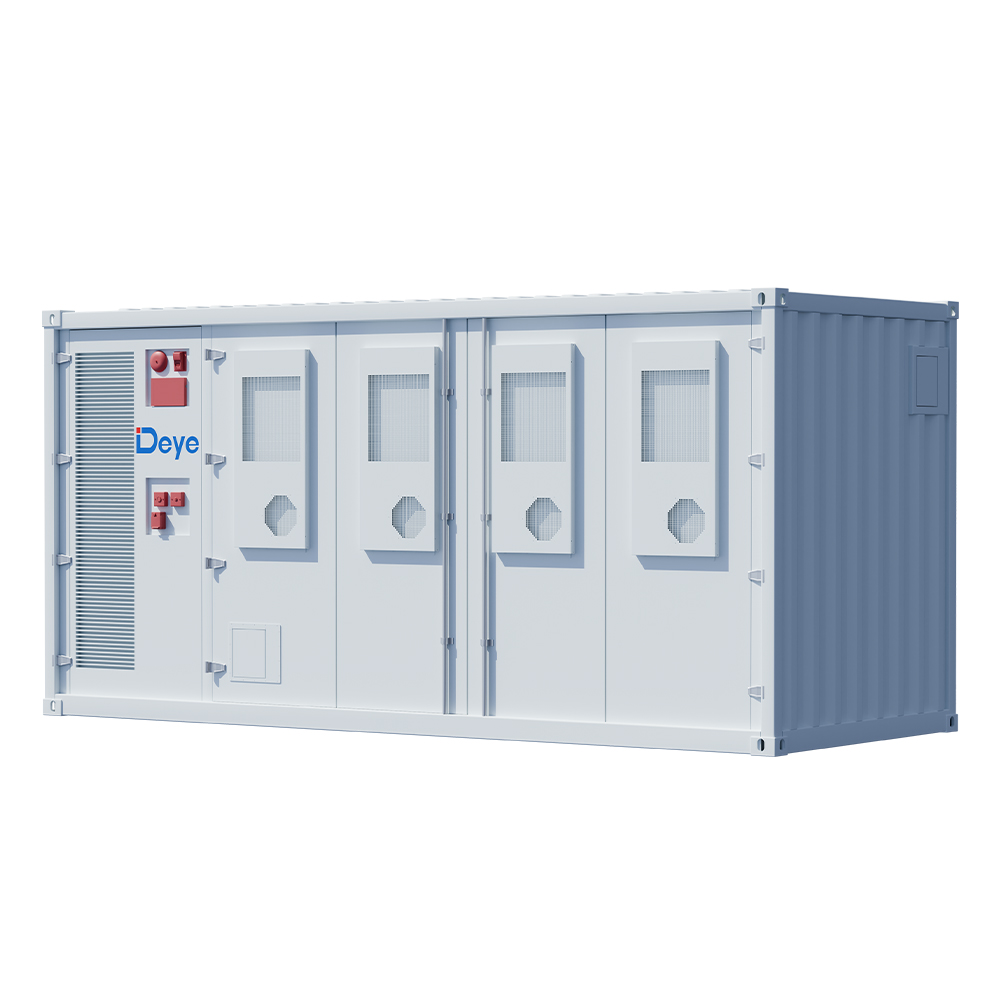

  • Containerized Solution: Housed in a standard 20ft High Cube container for easy deployment
SKU: WS-GS2000-2H3Categories: High Voltage Series (HV)
Contact Us

Description

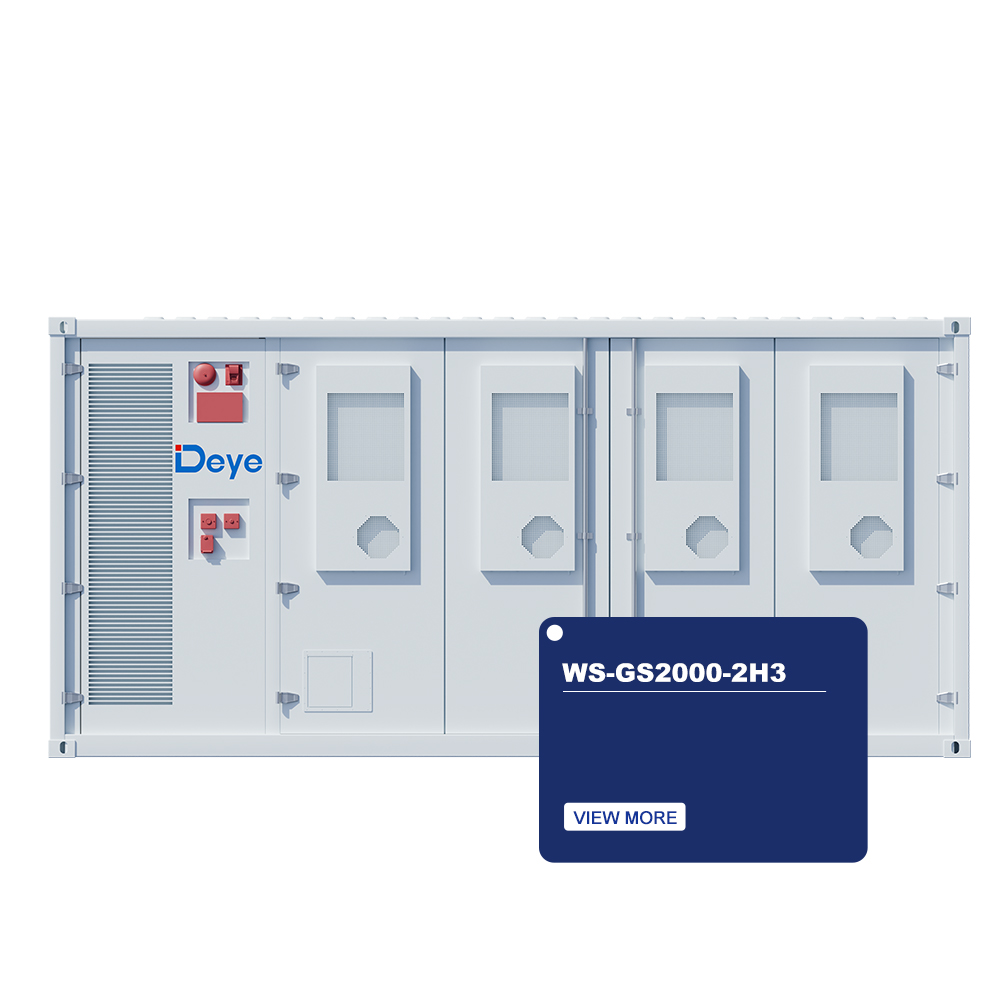

Deye Winter WS Series: WS-GS2000-2H3 Utility-Scale ESS Solution

Experience robust and reliable energy storage with the Deye WS-GS2000-2H3, a fully integrated, utility-scale Energy Storage System (ESS) solution. Designed for demanding applications, this system combines power conversion, battery storage, and system management into a single, pre-engineered package.

Integrated Technology:

  • Combines LC filter, Power Conversion System (PCS), Maximum Power Point Tracking (MPPT), and battery storage.
  • Features an integrated Energy Management System (EMS) for comprehensive system control.
  • Includes Automatic Transfer Switch (ATS) for seamless on/off-grid switching.
  • 1 MW PCS output paired with 1.6 MWp solar input capability.

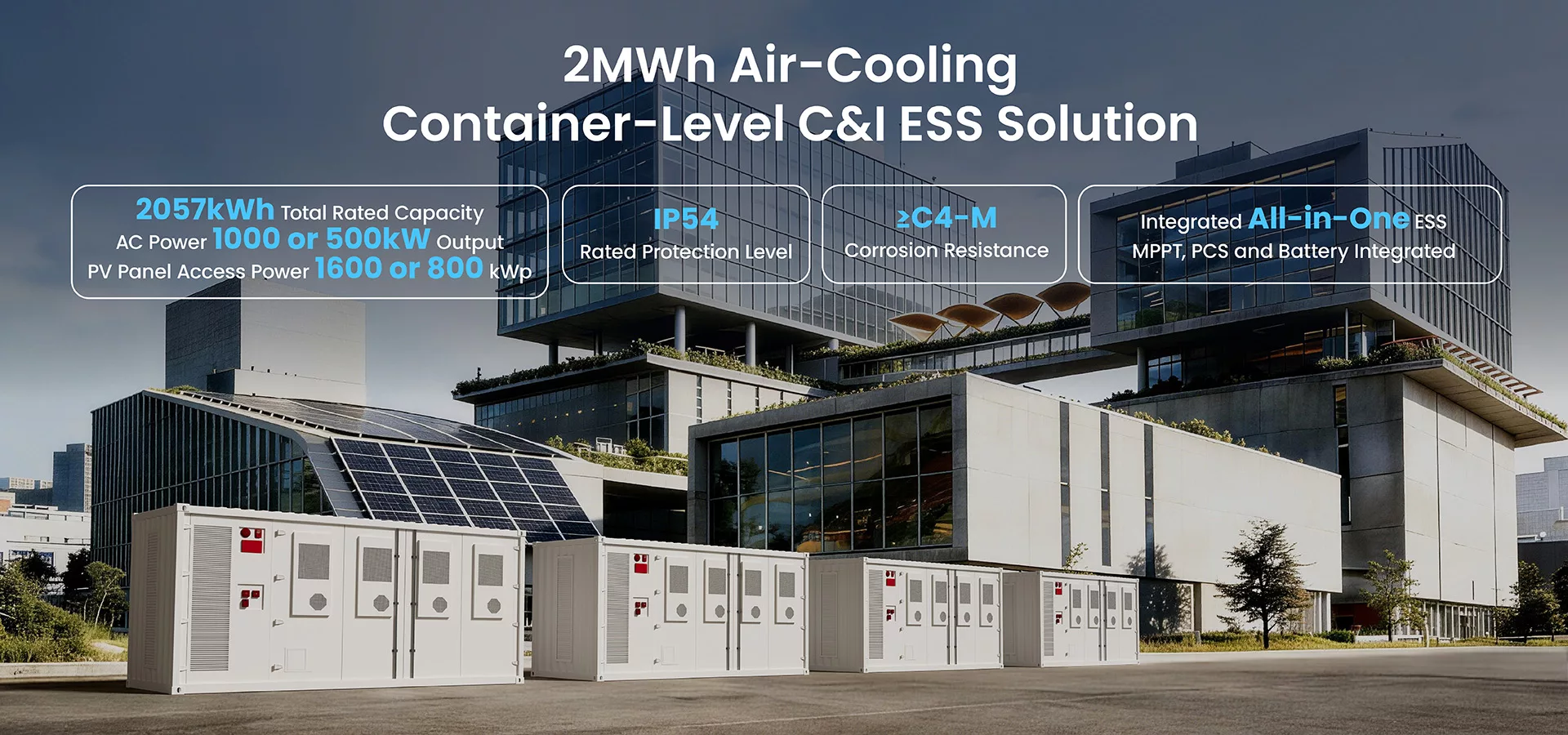

  • Substantial System Energy Capacity: 2057 kWh.

High Performance:

  • Handles 1.1x overload continuously and 1.5x overload transiently.
  • Achieves a Maximum Round Trip Efficiency (Max. RTE) of 88.5%.
  • Operates reliably in harsh conditions: -20°C to 50°C ambient temperature range.
  • Built to withstand the elements with IP54 rating and C4-M anti-corrosion level.
  • Supports parallel operation (up to 2 PCS) for 2 MW off-grid capability.

Advanced Safety & Reliability:

  • Features a 4-Level Power Redundancy Design.

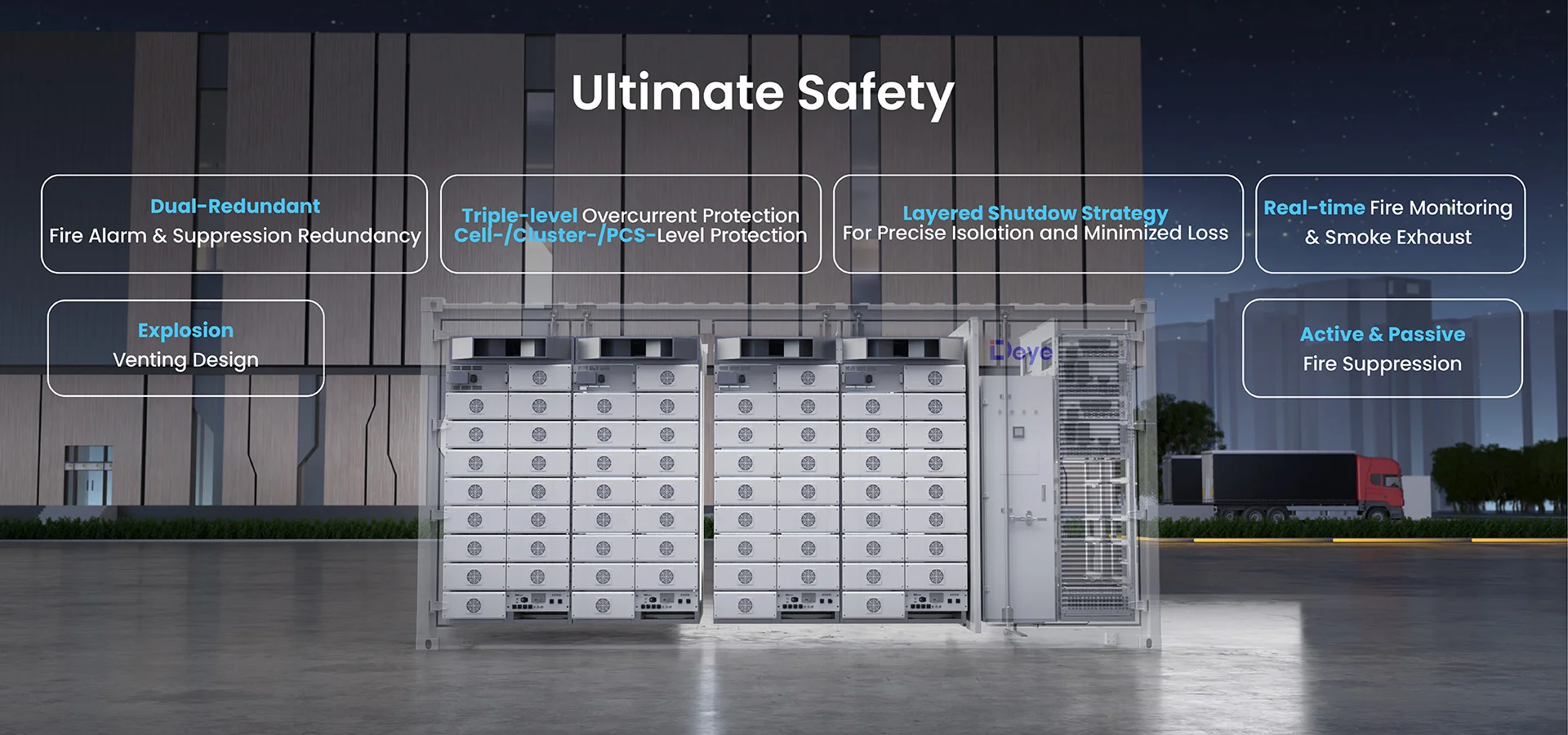

  • Incorporates robust fire safety measures: 2-hour fire resistance, combustible gas detection, smoke evacuation, aerosol extinguishers, and water sprinklers (Gas fire protection + Water fire protection).
  • Utilizes safe and long-lasting LFP (Lithium Iron Phosphate) battery cells.
  • Designed for longevity with an End-of-Life (EOL) of 70% after 8000 cycles.
  • Backed by a 10-Year Warranty.

Versatile Applications:

  • Supports black start function for grid restoration.

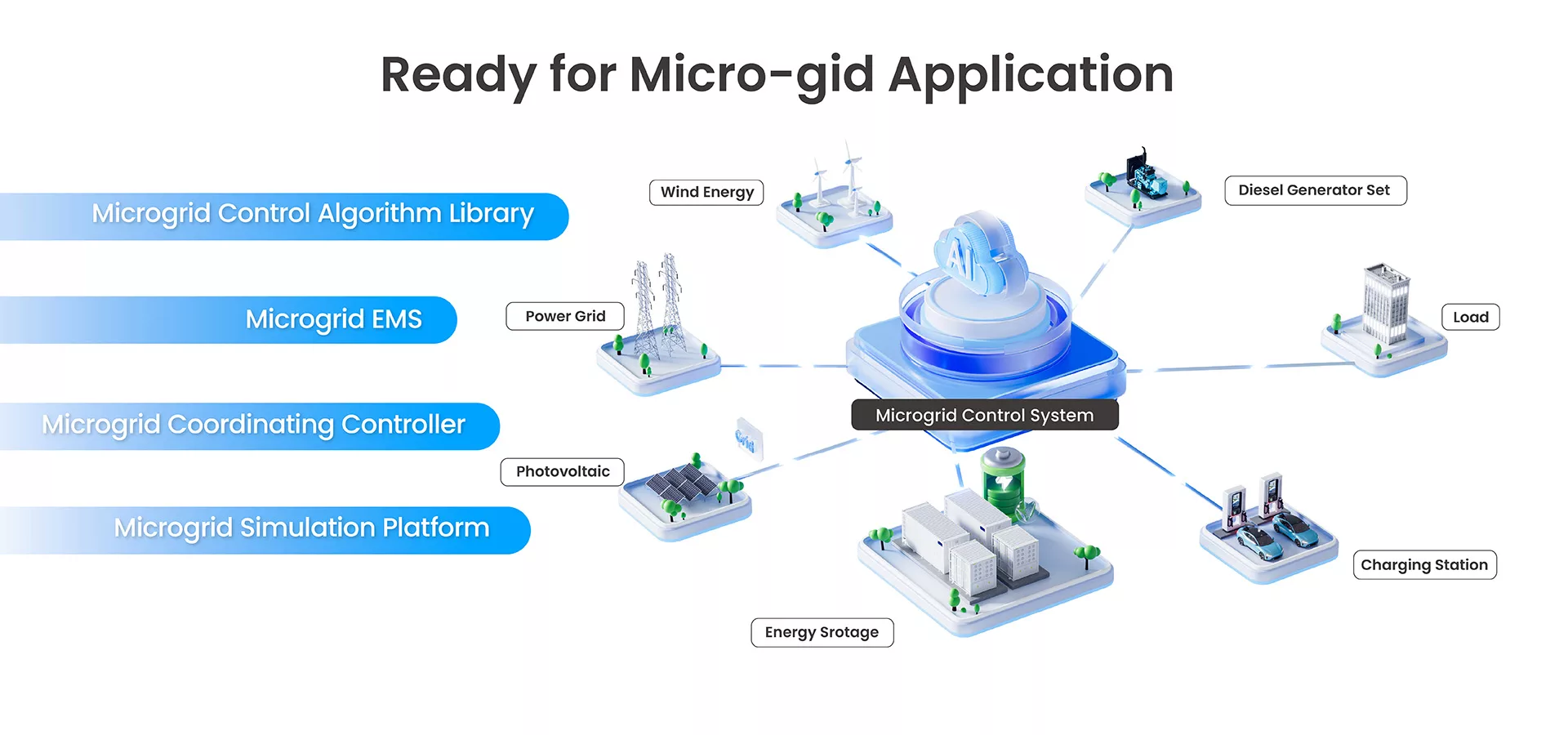

  • Enables off-grid operation and backup power.
  • Facilitates peak shaving to reduce demand charges.
  • Allows for transformer capacity control.

PV Integration:

  • Max. PV Input Power: 1600kW (200kW * 8 MPPTs)
  • Max. PV Input Voltage: 1000Vdc
  • MPPT Voltage Range: 180-850Vdc (Full Load: 450-850Vdc)
  • 8 MPP Trackers (2*20A or 3*13A per tracker) for optimized solar harvesting.

System Specifications:

  • Rated Power: 1000kW
  • Max. Apparent Power: 1100kVA
  • Battery Energy: 2057 kWh (Configuration: 256S1P*8)
  • Grid Connection: 3L+N+PE, 50Hz/45Hz-55Hz
  • Communication: RJ45 Port, Modbus TCP, IEC104, IEC61850 protocols.
  • Physical: Standard 20ft High Cube (HC) container, approx. 25,000 kg, floor mount installation.
  • Seismic Grade: Moderate performance level (0.5g).

The WS-GS2000-2H3 provides a powerful, safe, and flexible solution for utility-scale energy storage needs, ensuring grid stability, renewable energy integration, and reliable power management.
