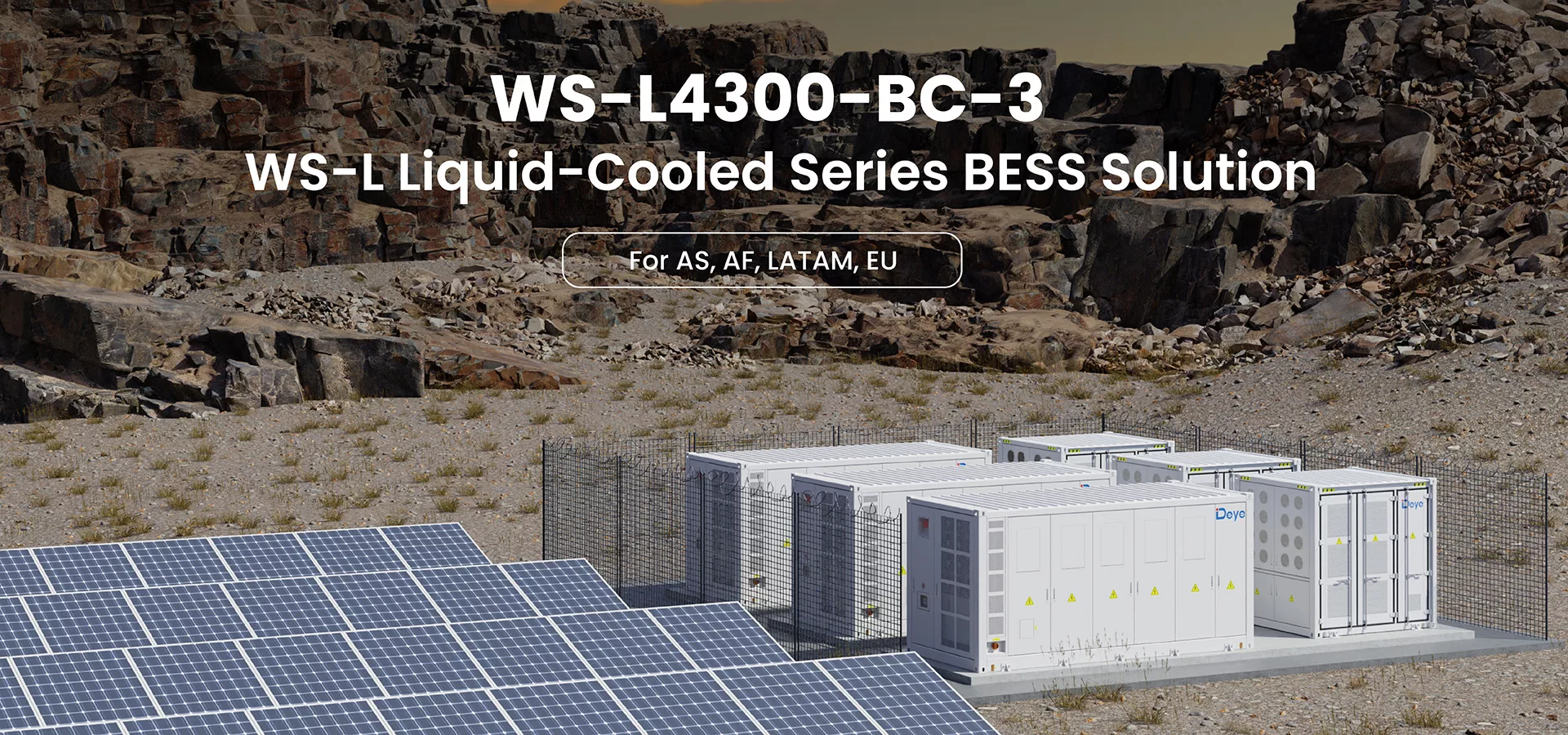

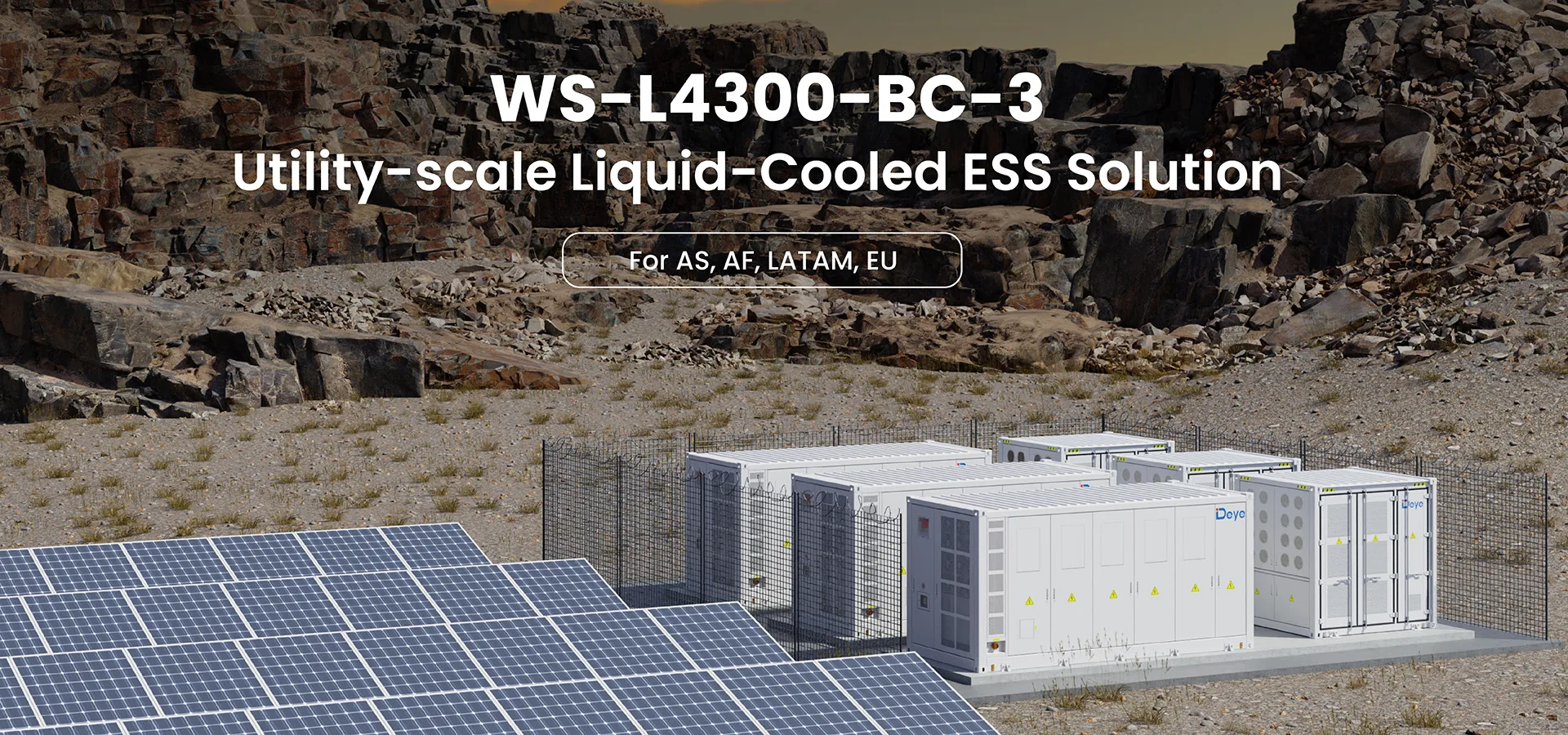

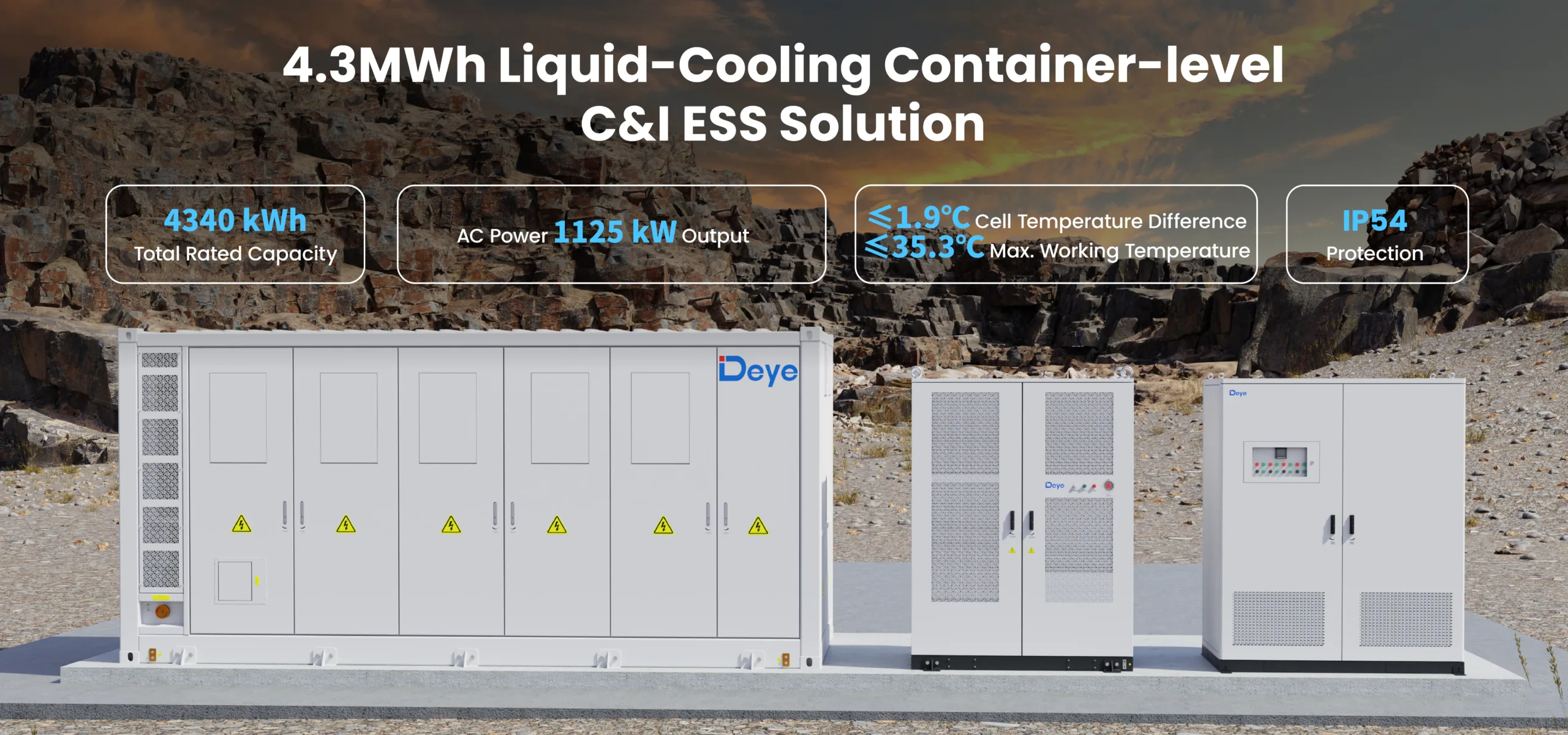

WS-L4300-BC-3
WS-L Liquid-cooled Series BESS Solution

For AS, AF, LATAM & EU

Description Specifications Downloads

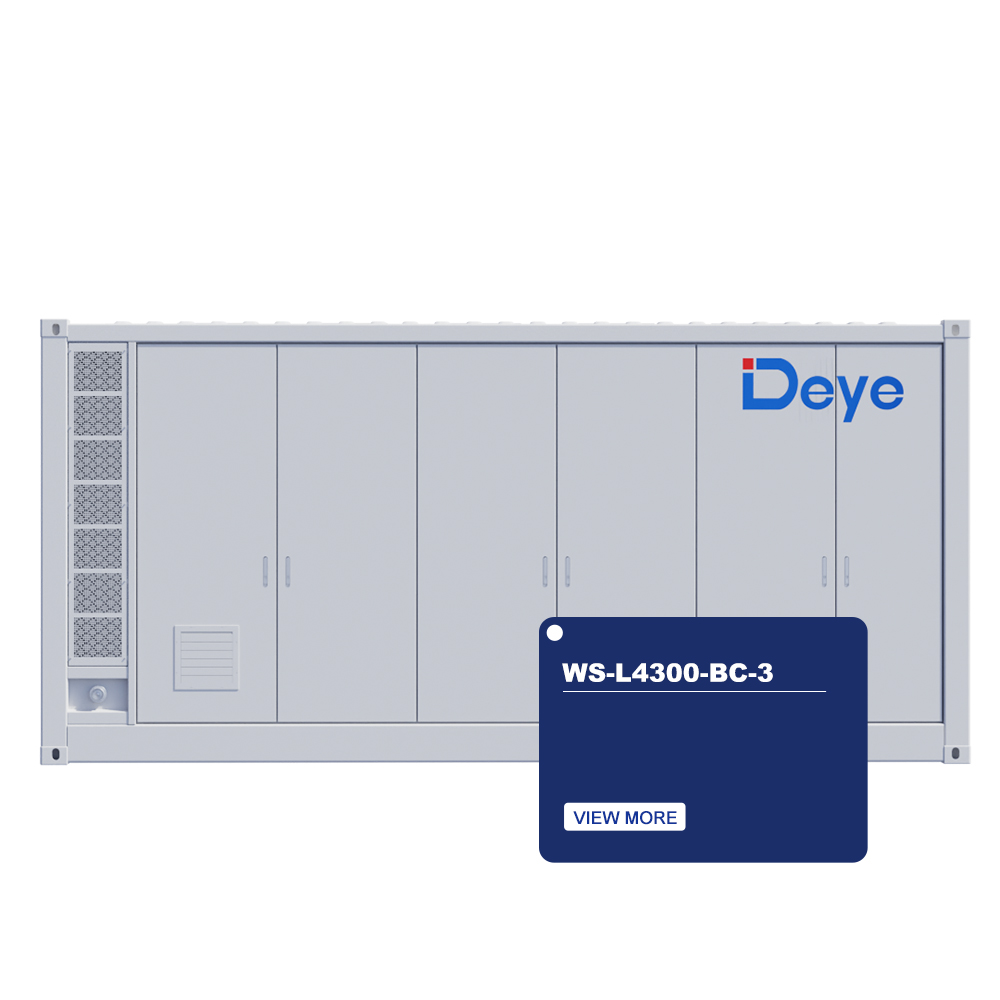

Model: WS-L4300-BC-3

DC Battery
Battery Type	LiFePO₄
Nominal Capacity (Cell)	314Ah
Nominal Energy	4340kWh
PACK Configuration	1P48S
RACK Configuration	18 × 1P240S
Nominal DC Voltage	768Vdc
DC Voltage Range	648Vdc ~ 876Vdc
Charge and discharge rate	≤0.5P
Max. Charging / Discharging Current	3150A (18 × 175A)
No. of DC Output	18
System
Operating Temperature	-30℃ ~ +55℃
Storage Temperature	-30℃ ~ +60℃
Humidity	0 ~ 95% (No condensation)
Type of cooling	Liquid cooling
Fire Suppression	Aerosol, Water
Ingress Protection	IP55
Anticorrosion grade	≥C4
Altitude	≤2000m
Communication	CAN、RS485、TCP、DIDO
Weight	40000kg
Dimensions (W × D × H)	6058 × 2438 × 2896mm

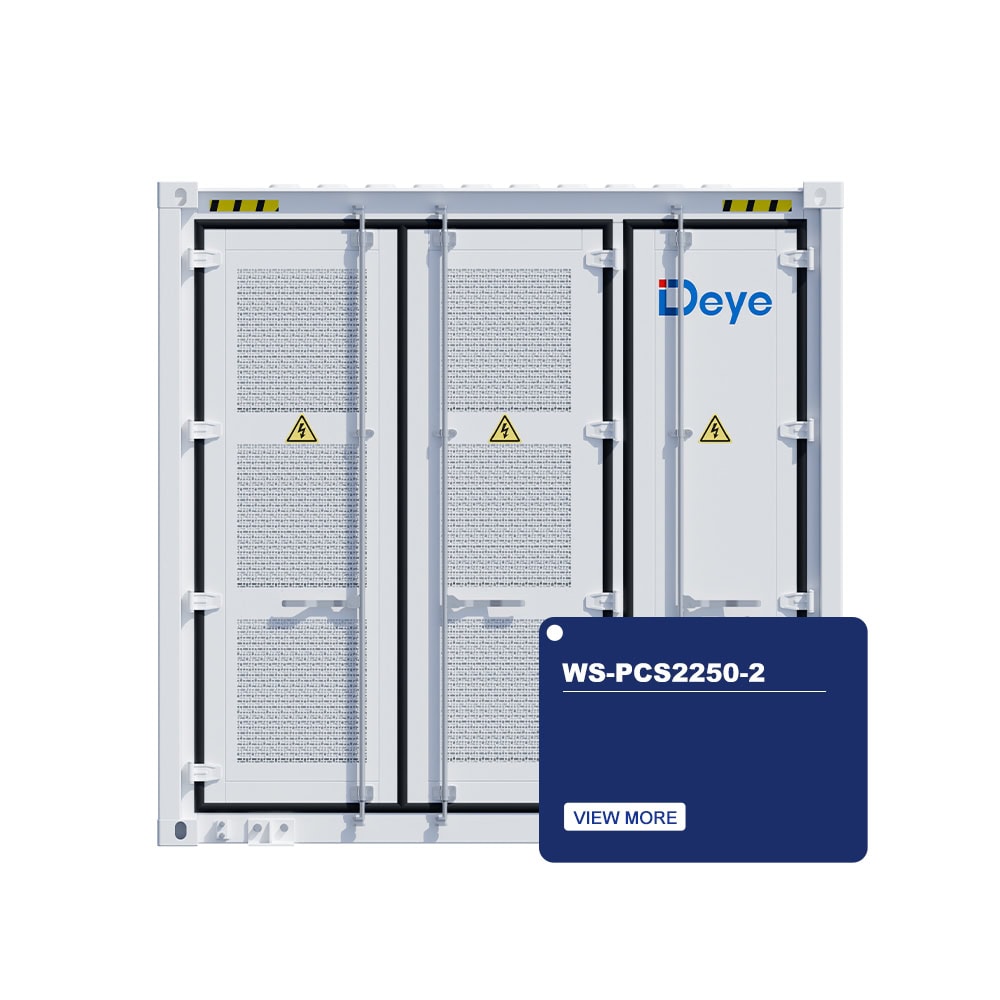

Model: WS-PCS2250-2

PCS Data
AC Rated Power	2250kW (18 × 125kW)
AC Rated Voltage / Frequency	400Vac / 50Hz (3L+N+PE)
AC Rated Current	3248A (18 × 180.4A)
Max Power	2475kW (18 × 137.5kW)
Power Factor	-0.8 ~ +0.8
Battery Input Voltage Range	630Vdc ~ 1000Vdc
Max. Charging / Discharging Current	3420A (18 × 190A)
MPPT Data
Max. PV Input Power	3600kW (18 × 200kW)
Max. PV Input Voltage	800Vdc
Start-up Voltage	200Vdc
Max Operating PV Input Current	18x(40+40+40+40+40+40+40+40)A
No. of MPP Trackers	144 (18 × 8)
