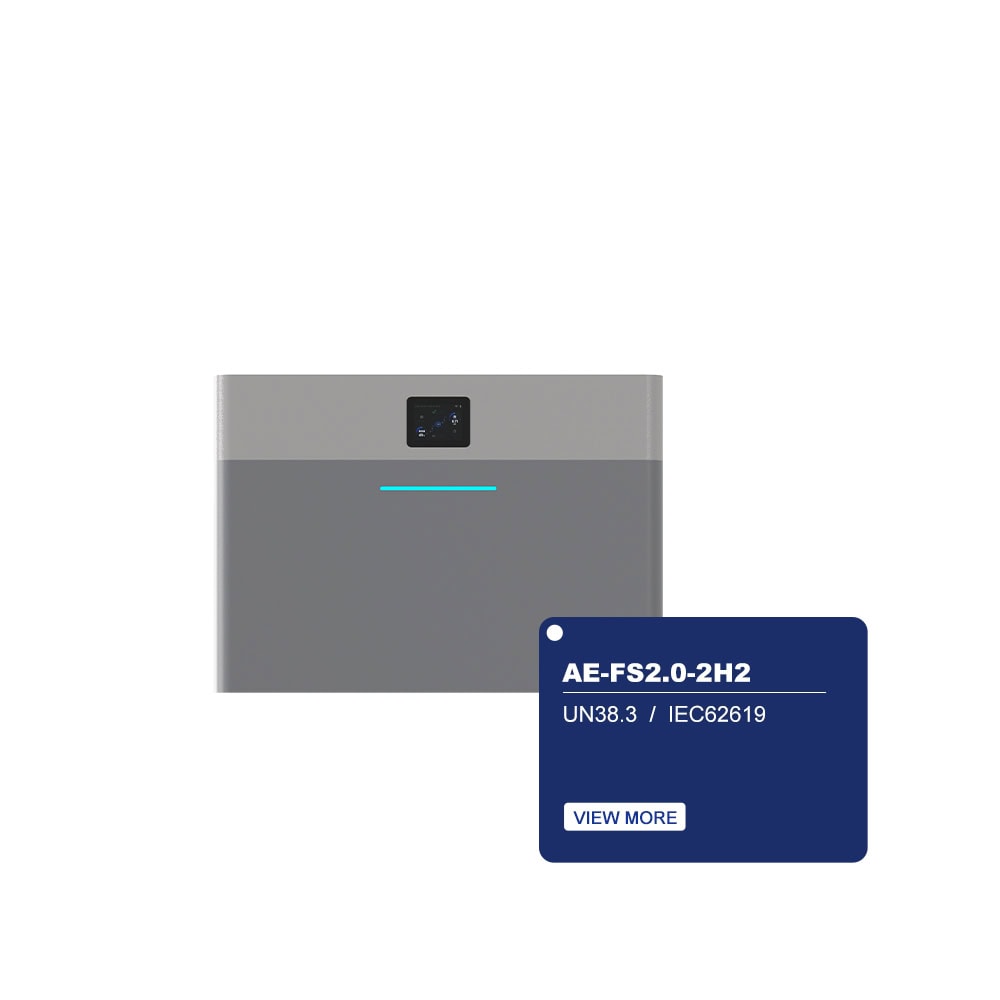

Deye AE-FS2.0-2H2 (EU) Home Solar Battery System | Balcony Energy Solution

  • Power Capacity: 1000W output and 2000Wh battery for reliable energy supply
  • High Efficiency: Dual MPPT supports up to 1600W solar input for optimized power capture
  • User-Friendly Management: Monitor and control via Deye Cloud for real-time insights
  • Weather Resistant: IP65 rating ensures durability in various outdoor conditions
  • Longevity: Over 6000 charge cycles with 70% capacity retention at end of life
  • Convenient Ports: Multiple USB-A and USB-C ports for easy device charging
  • Warranty: 5-year warranty
SKU: AE-FS2.0-2H2 (EU)Categories: Low Voltage Series (LV)
Contact Us

Description

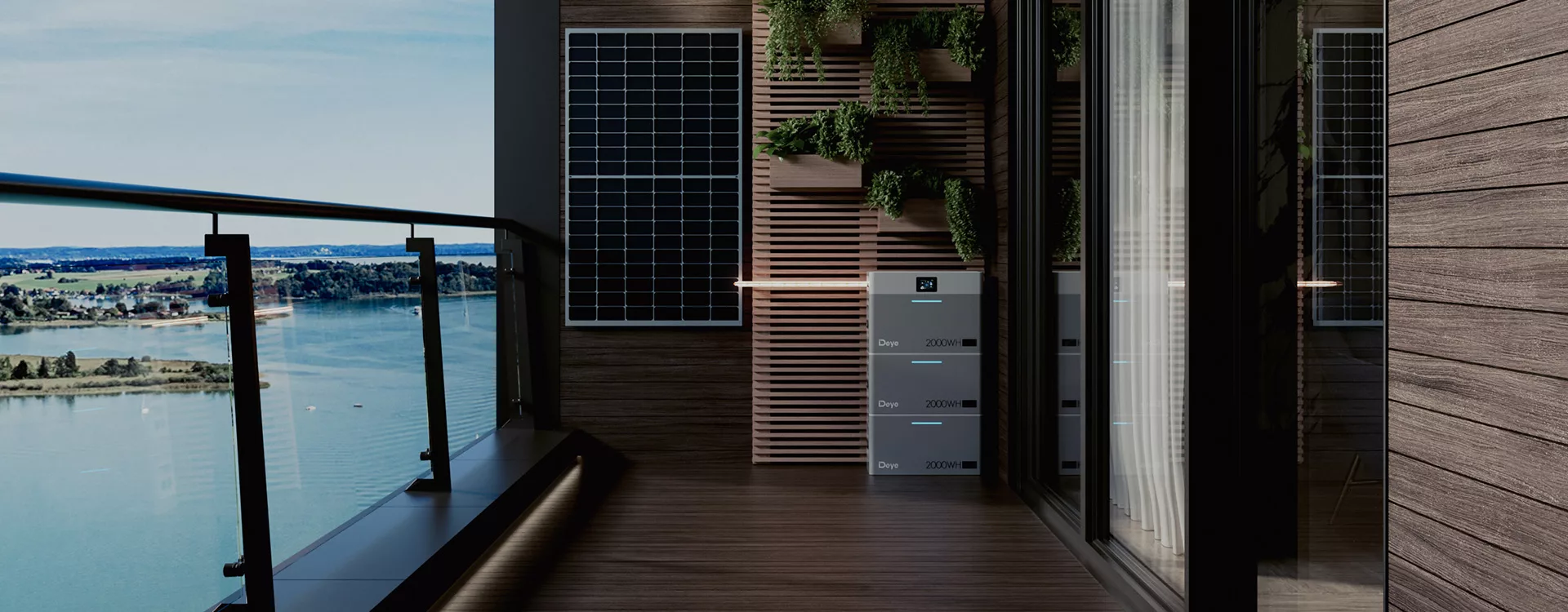

AE-FS2.0-2H2: Your Ideal Balcony Energy Storage Solution

Introducing the AE-FS2.0-2H2 from Deye’s Autumn AE Series, a top-notch balcony energy storage solution. It’s designed to save your electricity bill while offering more efficient, safe, convenient, and intelligent energy management.

Category Specification
Model AE – FS2.0 – 2H2/7
AC Technical Specification
Nominal Input/Output Power/UPS Power 1000 / 1000W
AC Input/Output Frequency and Voltage 50Hz (45Hz ~ 55Hz), 60Hz (55Hz ~ 65Hz), L / N (PE), 220 / 230 Vac
Grid Type Single phase
Rated Grid Input/Output Current 4.6A / 4.4A
Max.Grid Input/Output Current 5.0A / 4.8A
Peak Power (off – grid) 2 times of rated power, 10s
Power Factor Adjustment Range 0.8 leading to 0.8 lagging
Max. bypass Grid to load 10A
DC injection current THD < 3% (Linear load ≤ 1.5%) mA
DC Technical Specification
Max. PV Access Power (W) 2200W
Max. PV Input Power 1600W
Max. PV Input Voltage (V) 60V
Start – up Voltage (V) 25
MPPT voltage range (V) 20 – 55
Full Load MPPT Voltage Range (V) 30 – 55
Rated PV Input voltage (V) 42.5V
Max. Input Short – Circuit Current (A) 27 + 27A
Max. Operating PV Input Current (A) 18 + 18A
No. of MPP Trackers / No. of Strings per MPP Tracker 2 / 1
Battery Technical Specification
Battery Chemistry LiFePO₄
Battery Nominal Voltage 51.2V
Battery Nominal Energy 2000Wh
Max.Charging/Discharging Current 25A
Battery Operating Voltage 44.8V – 57.6V
Battery Cycle Life ≥ 6,000 (@25°C ± 2°C, 0.5C / 0.5C, 70% EOL)
Parallel Capability Supports up to 4 AE – F2.0 Smart Extra Batteries up to 10kWh

Key Features:

  • Convenient Charge: Comes with USB-A and Type C ports, providing portable power for your devices whenever you need it.
  • High Protection: Boasts an IP65 rating, ensuring water and dust protection for long-term durability.
  • Extreme Weather Adaptability: Operates smoothly in a wide temperature range of – 10°C to 50°C, suitable for various climates.
  • Smart Connection: Enables easy control via Bluetooth, Wi-Fi, and a mobile app, putting energy management at your fingertips.
  • Long Lifespan: Backed by a 10-year warranty and capable of 6000 cycles while retaining 70% capacity, it’s a reliable long-term investment.
  • Flexible Operation: Supports both on-grid and off-grid operation, adapting to your energy needs seamlessly.
With a nominal input/output/UPS power of 1000W, max PV access power of 2200W, and a 2000Wh nominal energy battery (LiFePO₄ chemistry), the AE – FS2.0 – 2H2 is efficient, safe, and intelligent—your perfect energy companion.

Download

Deye AE-FS2.0-2H2 Datasheet

Deye AE-FS2.0-2H2 User Manual

Deye AE-F2.0 User Manual

Certificate

Statement

DEYE Statement on Battery Expansion and Insulation Fault
