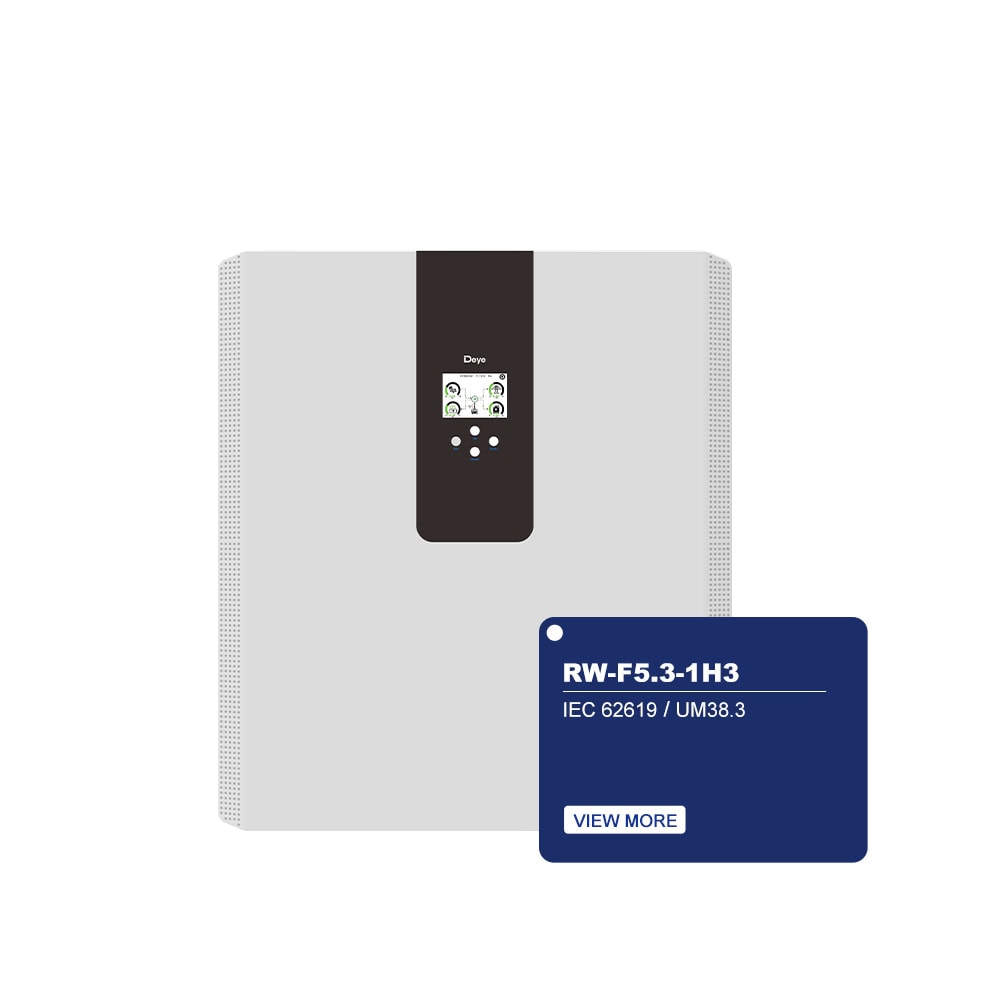

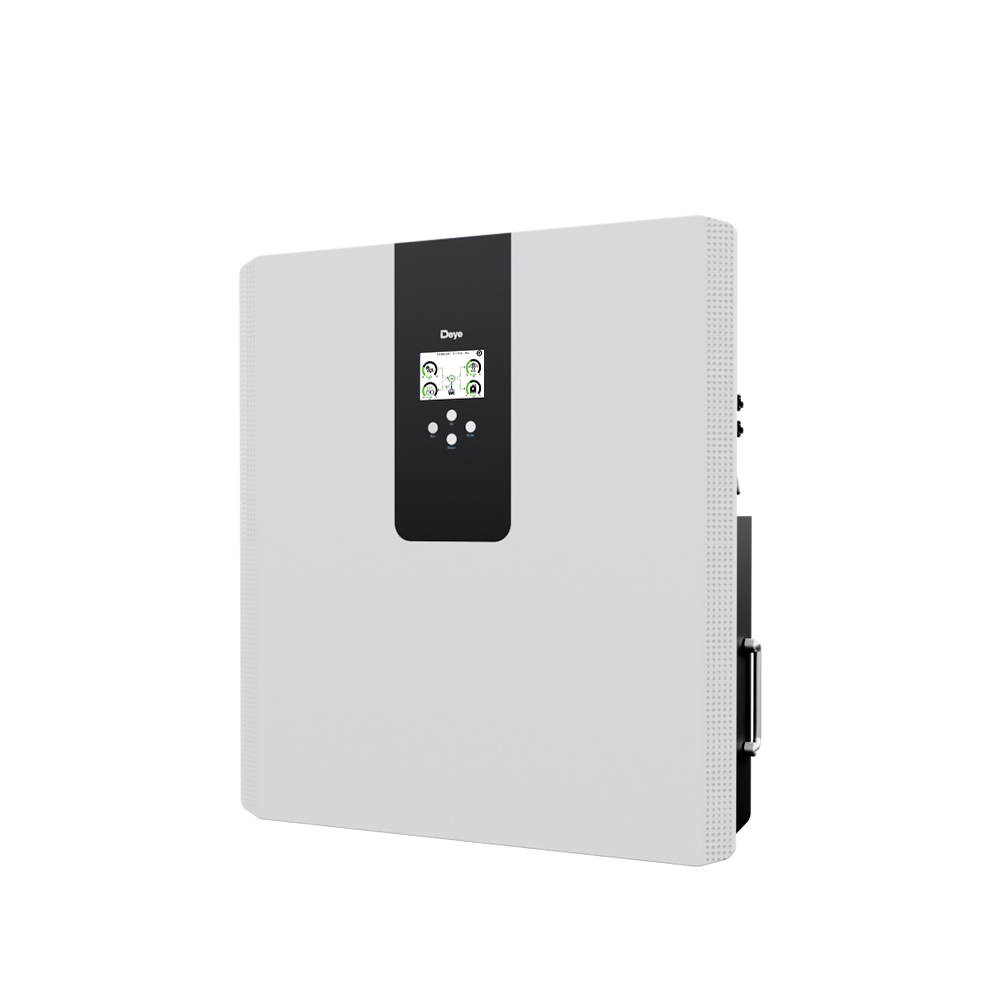

Deye RW-F5.3-1H3 RESIDENTIAL ESS SOLUTION

RW-F5.3-1H3 (For Romania)

Reliability: Built-in intelligent BMS, IP65 protection, operates in -20℃ to 55℃ (with heating), natural cooling
Smart & Secure: Supports peak-shaving, smart load, etc., 4ms fast switching time
Flexible Expansion: Up to 16 units parallel (80kW/84.8kWh), expandable with Deye 5.1kWh LV battery to max 163.2kWh
All-in-One Design: Integrates 5kW hybrid inverter and 5.3kWh LFP battery, safe and long-lasting
Easy Installation: Flat, wall-mounted design, saves space, quick to install
Intelligent Control: Controllable via App, PC or Touch-Display
Long Lifespan: ≥6000 cycles, 80% EOL

SKU: RW-F5.3-1H3 (For Romania)Categories: Low Voltage Series (LV)

Description

RW-F5.3-1H3 RESIDENTIAL ESS SOLUTION
Enhanced Reliability Built-in Intelligent BMS, providing complete protection Natural cooling, IP65, wide temperature range: -20℃ to 55℃ (with heating)	Smart Application Peak-shaving, smart load, AC couple etc. Fast switching time of 4ms, ensuring your energy security	Flexible Expansion Max.16 units in parallel (80kW/84.8kWh ) Support expansion of Deye 5.1kWh LV battery, Max. capacity of 163.2kWh
All-in-One Design Integrated 5kW hybrid inverter and 5.3kWh LFP battery, safety and long lifespan	Easy Installation Flat design, wall-mounted, saving installation space, quick and easy installation	Intelligent Control Comfortable and easy control via App, PC or Touch-Display

Max.16 units in parallel (80kW/84.8kWh ) Support expansion of Deye 5.1kWh LV battery, Max. capacity of 163.2kWh

Flat design, wall-mounted, saving installation space, quick and easy installation

AC Technical Specification		DC Technical Specification
Rated AC Input / Output Active Power (W)	5000 / 5000	Max. PV Access Power (W)	10000
Max AC Input / Output Apparent Power (VA)	5500	Max. PV Input Power (W)	8000
Peak Power (off grid)	2 time of rated power, 10s	Max. PV Input Voltage (Vdc)	500
AC Output Rated Current (A)	22.8 / 21.8	Start Up PV Voltage (Vdc)	125
Max. AC Current (A)	25 / 24	MPPT Voltage Range (Vdc)	150 ~ 425
Max Continuous AC Passthrough (grid to load) (A)	35	Full Load MPPT Voltage Range (Vdc)	300 ~ 425
Rated Input / Output Voltage / Range (V)	220V / 230, 0.85Un-1.1Un	Rated PV Input Voltage (Vdc)	370
Rated Input / Output Grid Frequency/Range (Hz)	50Hz / 45Hz – 55Hz, 60Hz / 55Hz – 65Hz	Max. Operating PV Input Current (A)	18+18
Grid Connection Form	L+N+PE	Max. PV Input Short-circuit Current (A)	27+27
Power Factor	0.8 leading to 0.8 lagging	Number of MPP Trackers	2
Total Harmonic Distortion (THDi)	<3% (of nominal power)	No. of Strings Per MPP Tracker	1 + 1
DC injection current (mA)	<0.5% In	Battery Chemistry	LiFePO₄

Other Technical Specification
Dimension (W × D × H, mm)	616 × 191 × 690 (Excluding connectors and brackets)
Weight Appr. (kg)	71
IP Rating of Enclosure	IP65
Operating Temperature Range (℃)	-20℃ ~ 55℃ (with heating)
Permissible Ambient Humidity	0~100%
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II (DC), OVC III (AC)
Type Of Cooling	Natural Cooling
Noise (dB)	<30
Display	Touch LCD
Monitor Mode	WIFI, Bluetooth
Installation Style	Wall-Mounted, Floor-Mounted
Max. Efficiency	97%
Max. charging / discharging Efficiency	95.5%
MPPT Efficiency	>99%
Safety EMC / Standard	IEC / EN 61000-6-1 / 2 / 3 / 4, IEC / EN 62109-1, IEC / EN 62109-2
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Certification	UN38.3, IEC62619
Warranty	5/10 years (the Warranty Period Depends the Final Installation Site. More Info Please Refer to Warranty Policy)
