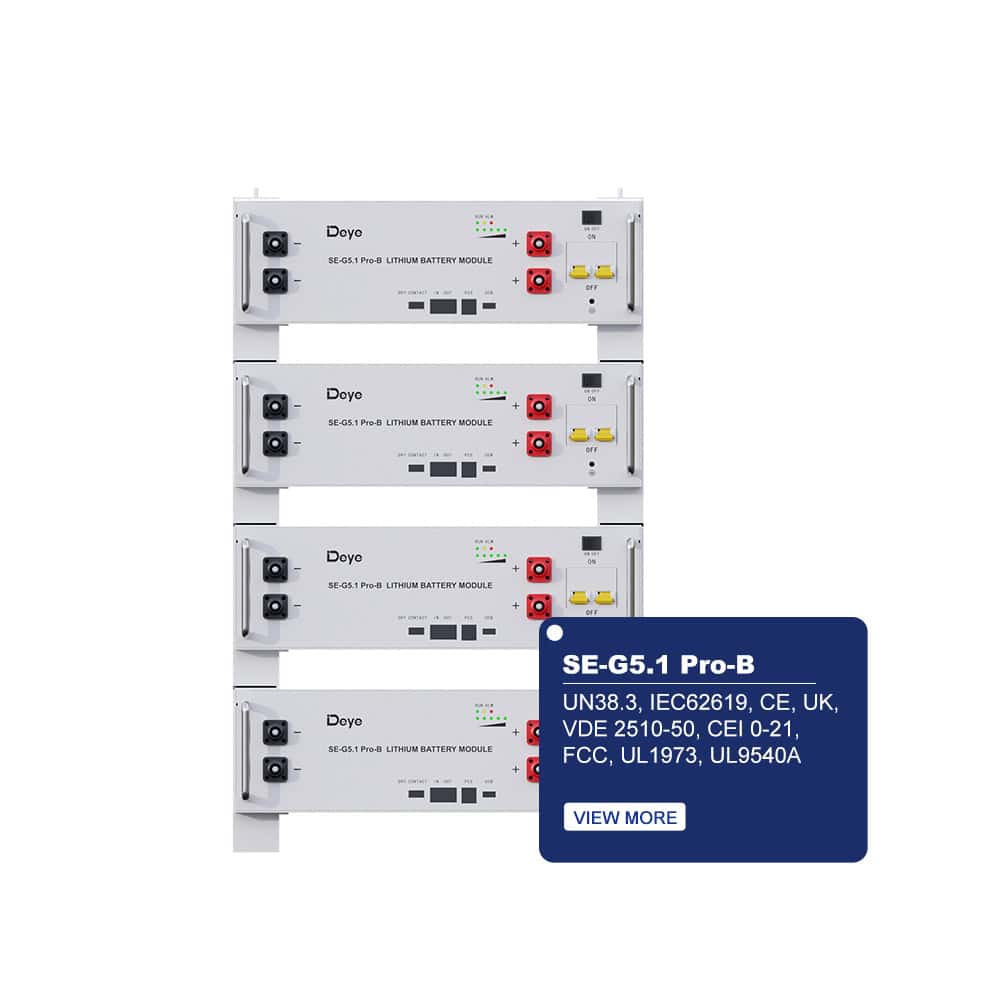

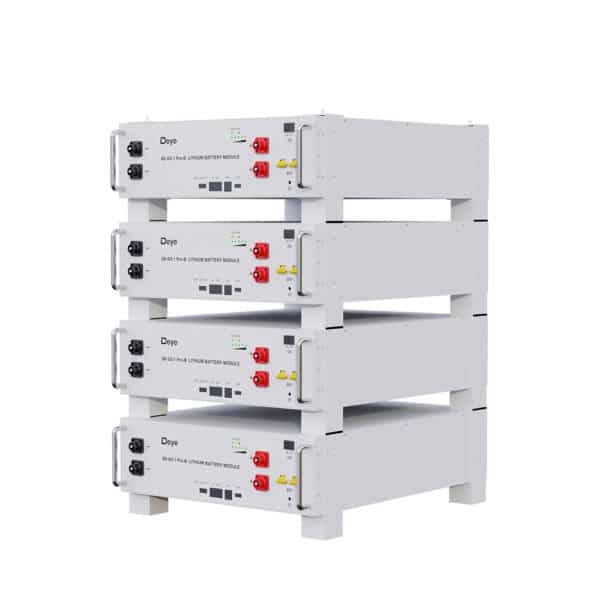

SE-G5.1 Pro-B
- Safer
Cobalt Free Lithium lron Phosphate (LFP) Battery: Safety and
long Lifespan, high efidiency and high power density.
Inelligent BMS, providing complete protection. - Reliable
Support highdischarge pover. IP20, natural coling, wide
temperature range: -20C to 55*C. - Flexible

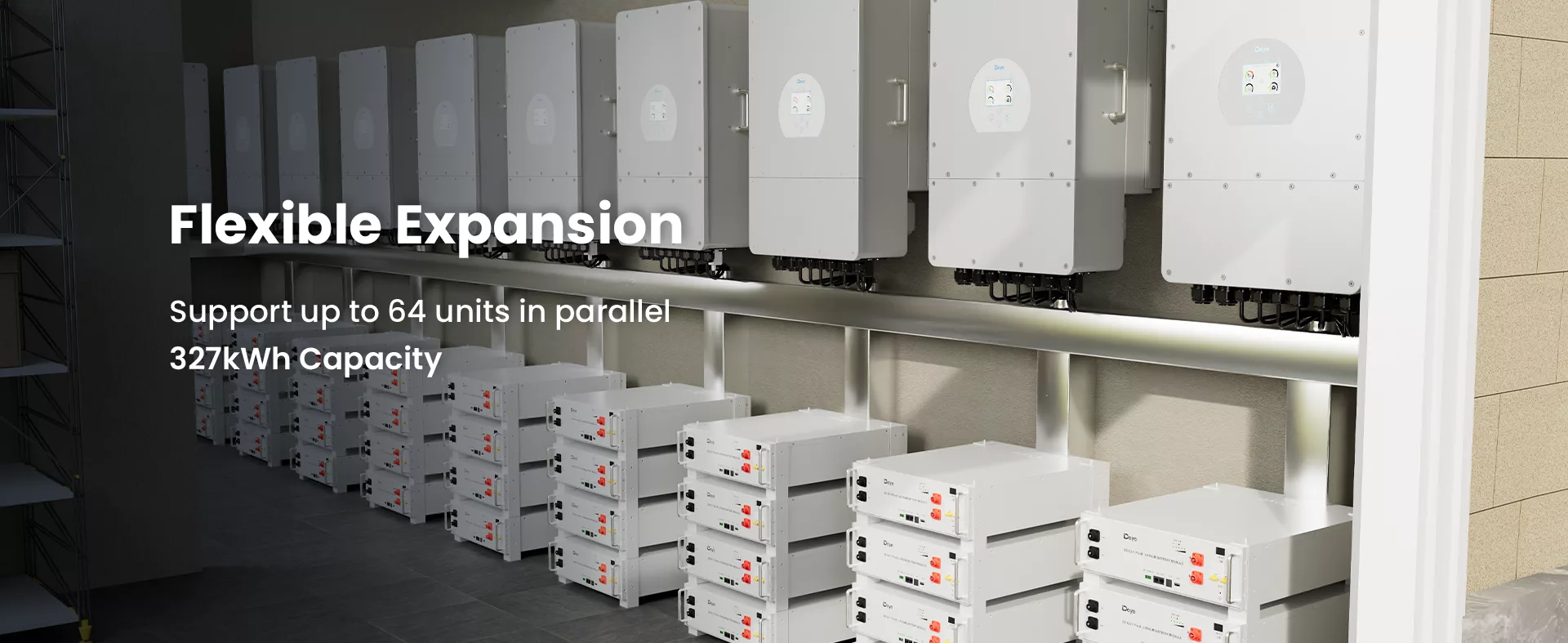

Modular design, easy to expand, Max. 64 units in parallel,
Max. capacity of 327kWh.

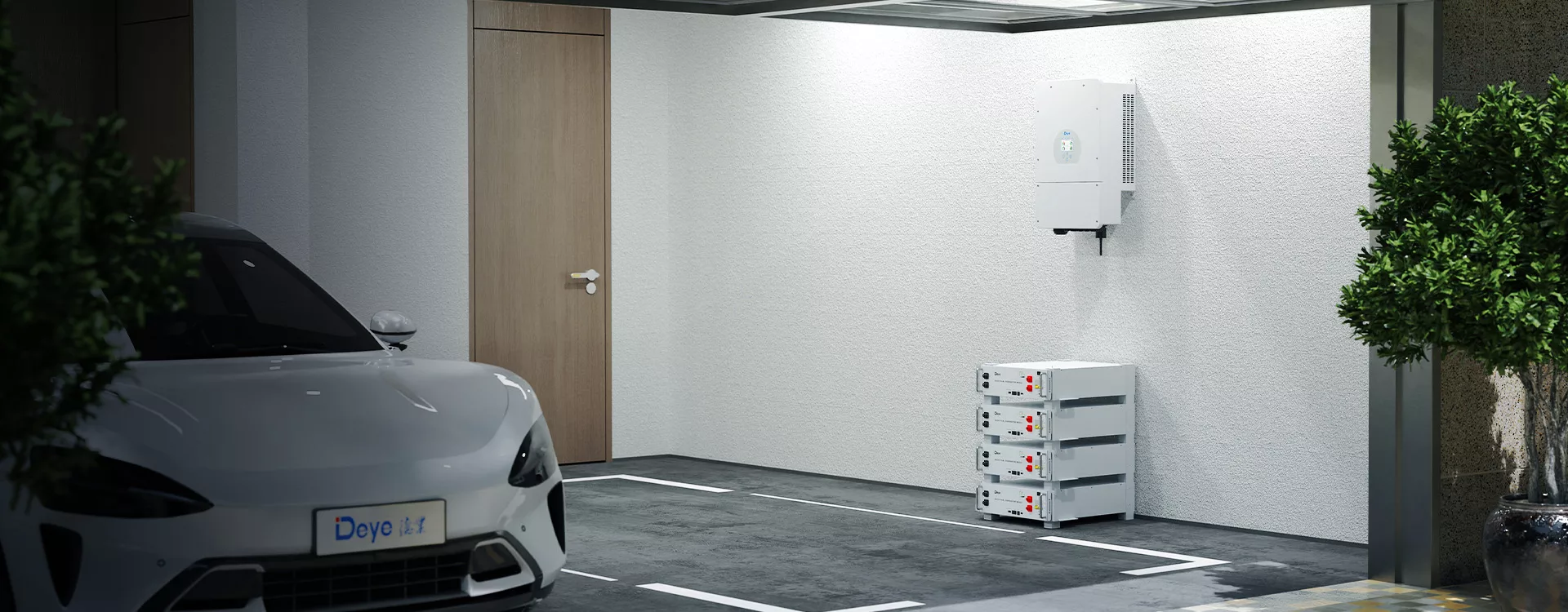

Suited to residential and commercial apliations for increasing
the slf-consumptionratio. - Convenient
Battery module auto networking, easy maintenance, support
remotely monitoring and upgrade, support USB drive upgrade
the firmware. - Eco-Friendly
Use environmental protection materials, the whole module

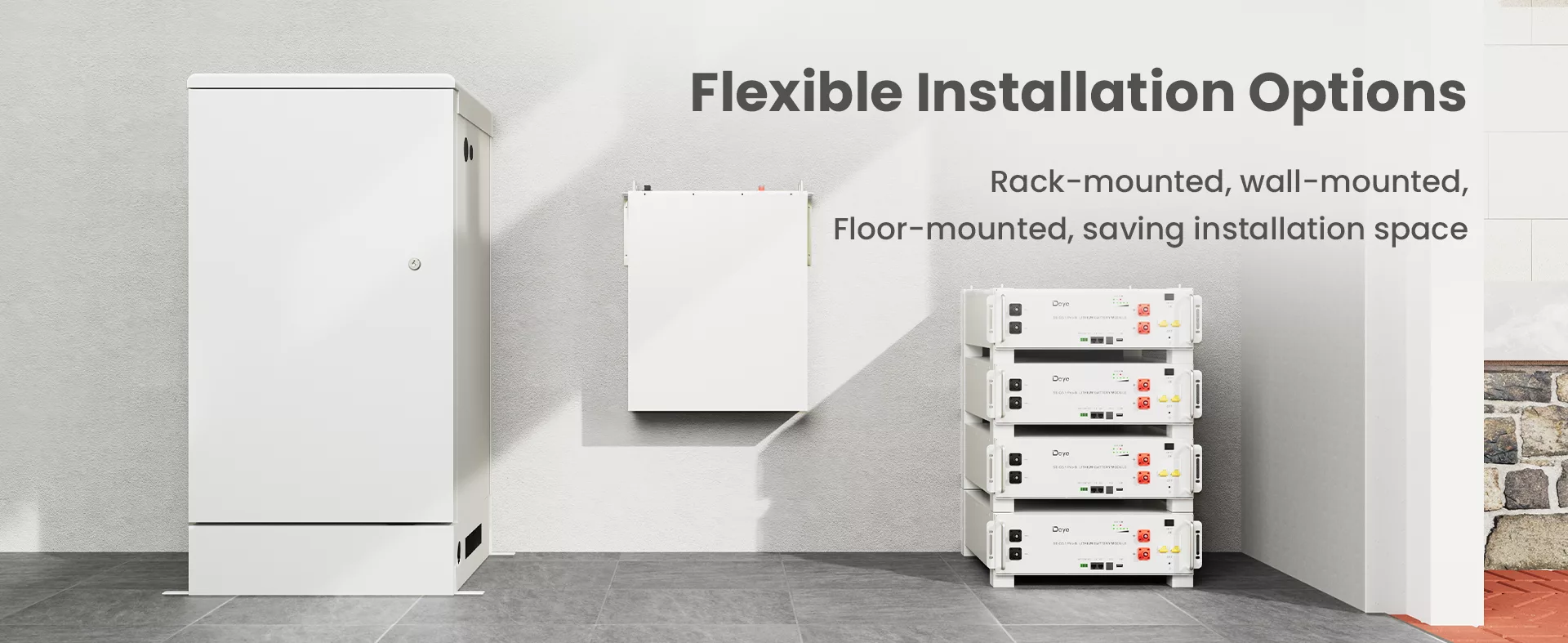

non-toxic, pollution-free. - Three Mounting Methods
19inch Standard design, support rack-mounted, wall-mnounted,
and floor-mounted, saving installaion space.
Description
Technical Data
| Model | SE-G5.1 Pro-B | |
| Main Parameter | ||
| Battery Chemistry | LiFePO4 | |
| Capacity (Ah) | 100 | |
| Scalability | Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup) | |
| Nominal Voltage (V) | 51.2 | |
| Operating Voltage(V) | 43.2~57.6 | |
| Nominal Energy (kWh) | 5.12 | |
| Usable Energy (kWh) [1] | 4.6 | |
| Charge/Discharge Current (A) [2] | Recommend | 50 |
| Max. | 100 | |
| Peak(2mins,25℃) | 150 | |
| Other Parameter | ||
| Recommend Depth of Discharge | 90% | |
| Dimension (W/H/D, mm) | 440*133*540 | |
| Weight Approximate(kg) | 45 | |
| Master LED Indicator | 5LED(SOC:20%~SOC100%),3LED (working, alarming, protecting) | |
| IP Rating of Enclosure | IP20 | |
| Operating Temperature | Charge: 0～55℃ ( Optional heating: -20℃~55℃ ),Discharge: -20℃～55℃ | |
| Storage Temperature | 0～35℃ | |
| Humidity | 5%~95% | |
| Altitude | ≤2000m | |
| Cycle Life | ≥6000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL) | |
| Installation | Wall-Mounted, Floor-Mounted,Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm ) | |
| Communication Port | CAN2.0, RS485 | |
| Warranty Period [3] | 10 years | |
| Energy Throughput | 16MWh@70%EOL | |
| Certification | UN38.3, IEC62619, CE,UK, VDE2510-50, CEI 0-21, FCC, UL1973, UL9540A | |
[1] DC Usable Energy, test conditions: 90% DOD, 0.5C charge & discharge at 25℃. System usable energy may vary due to system configuration parameters.
[2] The current is affected by temperature and SOC.
[3] Conditions apply, refer to Deye Warranty Letter.
