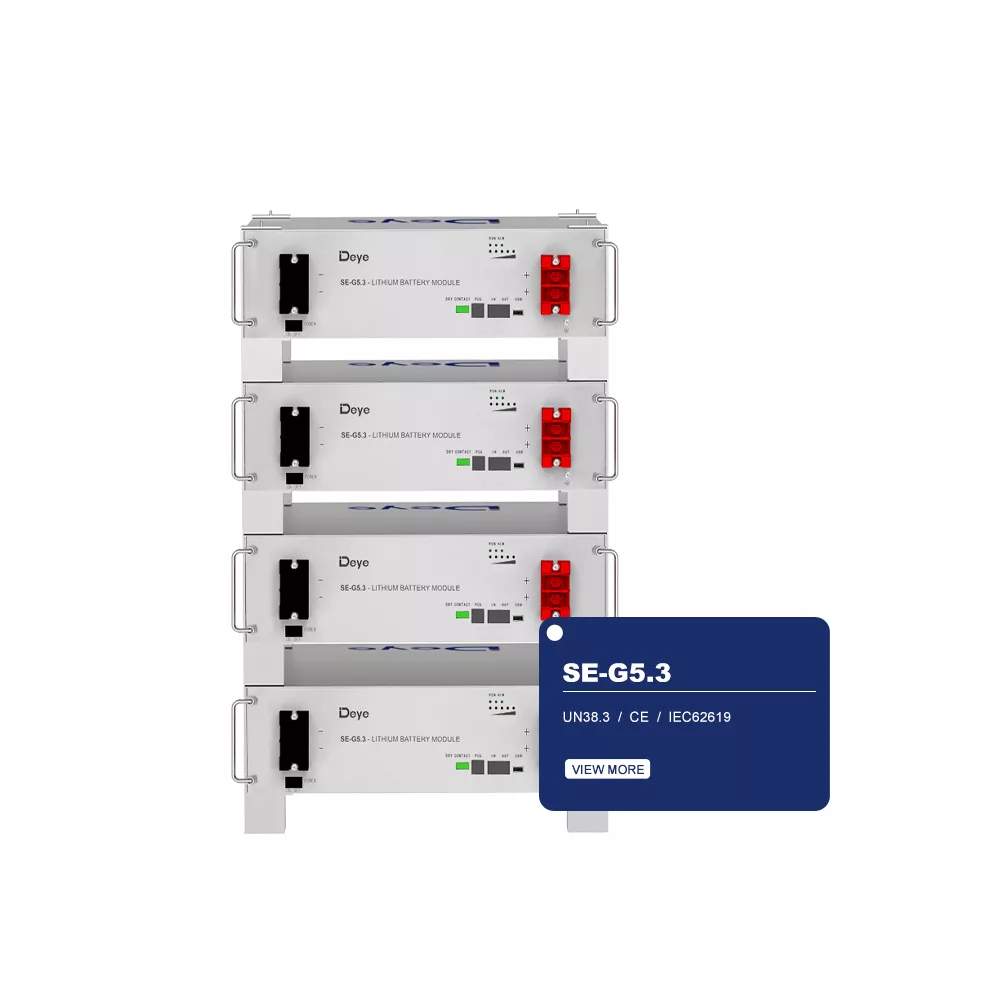

SE-G5.3(LV)
- Safer
Cobalt Free Lithium Iron Phosphate (LFP) Battery: Safety and long Lifespan, high efficiency and high power density.
Intelligent BMS, providing complete protection. - Reliable
Support high discharge power. IP20, natural cooling, wide temperature range: -20℃ to 55℃. - Flexible
Modular design, easy to expand, Max. 64 units in parallel, Max. capacity of 340kWh.
Suited to residential and commercial applications for increasing the self-consumption ratio. - Convenient
Battery module auto networking, easy maintenance, support remotely monitoring and upgrade, support USB drive upgrade the firmware. - Eco-Friendly
Use environmental protection materials, the whole module non-toxic, pollution-free.
Description
This series lithium iron phosphate battery is one of new energystorage products developed and produced by Deye , it can be used to support reliable power for various types of equipment and systems.
This series is especially suitable for application scene of high power,limited installation space, restricted load bearing and long cycle life.
This series battery has built in BMS B attery M anagement S ystem which can manage and monitor cells information including voltage, current and temperature. What’s more, BMS can balance cells charging to extend cycle life.
Multiple batteries can connect in parallel for larger capacity and longer power supporting duration requirements.
Technical Data
| Main Parameter | ||
| Battery Chemistry | LiFePO4 | |
| Capacity (Ah) | 104 | |
| Scalability | Max. 64 pcs pack (340kWh) in parallel (Max. 32 pcs no external setup) | |
| Nominal Voltage (V) | 51.2 | |
| Operating Voltage(V) | 43.2~57.6 | |
| Energy (kWh) | 5.32 | |
| Usable Energy (kWh) [1] | 4.79 | |
| Charge/Discharge Current (A) | Recommend [2] | 50 |
| Max.[2] | 100 | |
| Peak | 120(30s,25) | |
| Other Parameter | ||
| Recommend Depth of Discharge | 90% | |
| Dimension (W/H/D, mm) | 440*133*560 | |
| Weight Approximate(kg) | 45 | |
| Master LED Indicator | 5LED(SOC:20%~SOC100%), 3LED (working, alarming, protecting) | |
| IP Rating of Enclosure | IP20 | |
| Operating Temperature | Charge: 0～55℃(Optional heating) / Discharge: -20℃～55℃ | |
| Storage Temperature | 0℃～35℃ | |
| Humidity | 5%~95% | |
| Altitude | ≤2000m | |
| Cycle Life | ≥6000(25℃±2℃,0.3C/0.3C, 90% DOD, 70% EOL) | |
| Installation | 19 inch standard rack (depth ≥600mm / with), Floor-Mounted, Wall-Mounted, | |
| Communication Port | CAN2.0, RS485 | |
| Warranty Period [3] | 5 years | |
| Energy Throughput [3] | 16MWh@70%EOL | |
| Certification | CE, IEC62619, UN38.3 | |
[1] DC Usable Energy, test conditions: 90% DOD, 0.5C charge & discharge at 25°C. System usable energy may vary due to system configuration parameters.
[2] The current is affected by temperature and SOC.
[3] The warranty is due whichever reached first of warranty period or life cycle power.
