SE-F16

SE-F16
Deyeブランド新規住宅向けソリューション

For Europe, Asia, Africa & LATAM Area

スマートエネルギーがあなたの家をどのように動かすか？

当社の家庭用エネルギー貯蔵が優れている理由は？

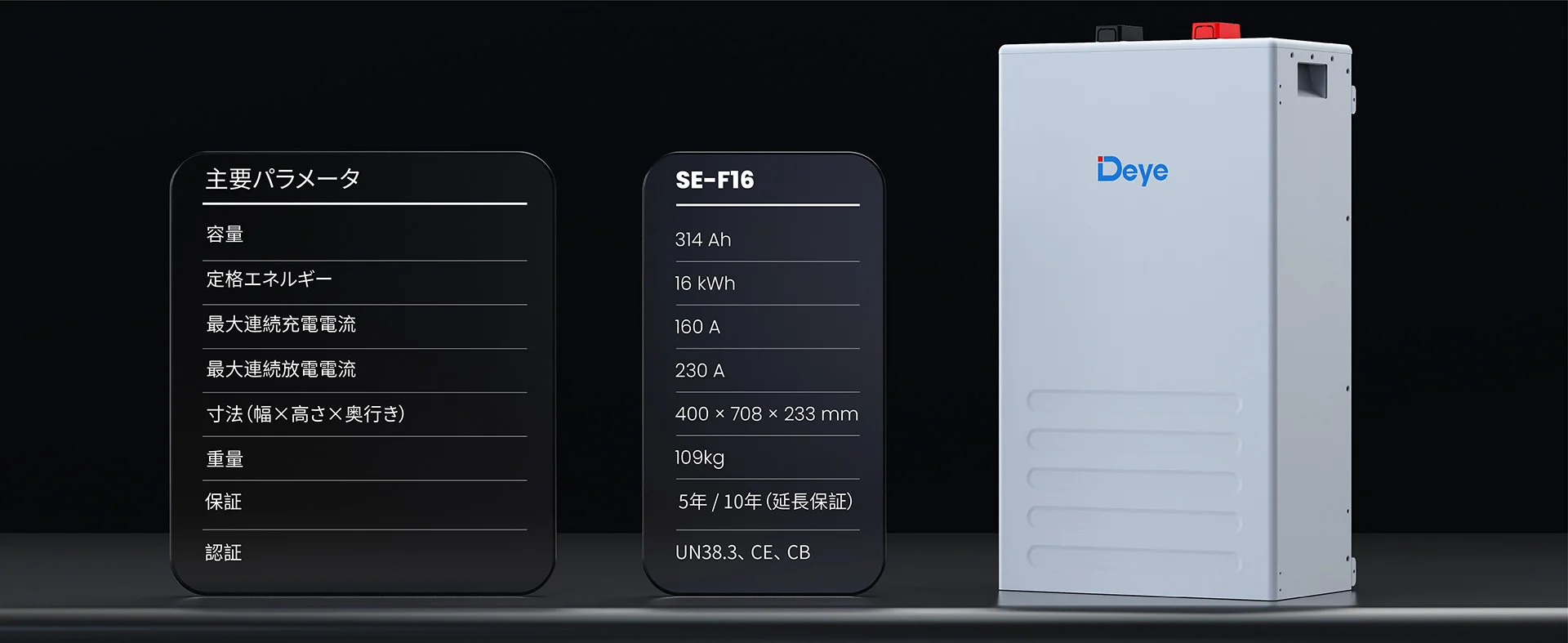

ModelSE-F16
Battery ChemistryLiFePO₄
Nominal Capacity314 Ah
Nominal Energy16 kWh
Nominal Voltage51.2 V
Operating Voltage44.8 V – 57.6 V
Max. Cont. Charge Current160 A
Max. Cont. Discharge Current230 A
Peak Discharge Current280 A (10 sec)
Dimensions (W×H×D)400 × 708 × 233 mm (Without hanging board)
Weight Approximate109 kg
Recommended DoD90%
Cycle Life>6000 cycles (25°C±2°C, 70%EOL)
IP RatingIP21
Operating TemperatureCharge: 0~55°C / Discharge: -20°C~55°C
CommunicationCAN2.0, RS485, Bluetooth+APP

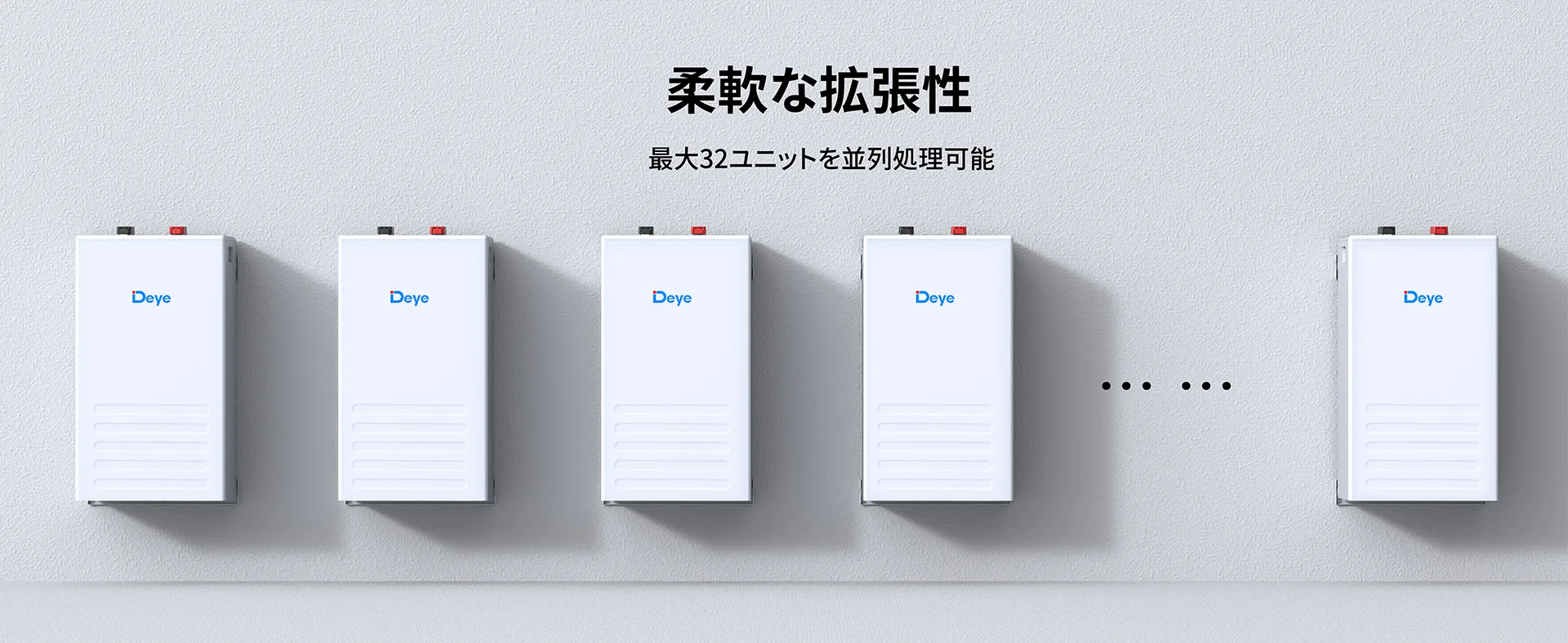

ScalabilityMax 32 pcs in parallel (Max. 64 pcs can parallel with CAN-Bridge)
Warranty5 years / 10 years (extended)
CertificationsUN38.3, MSDS
