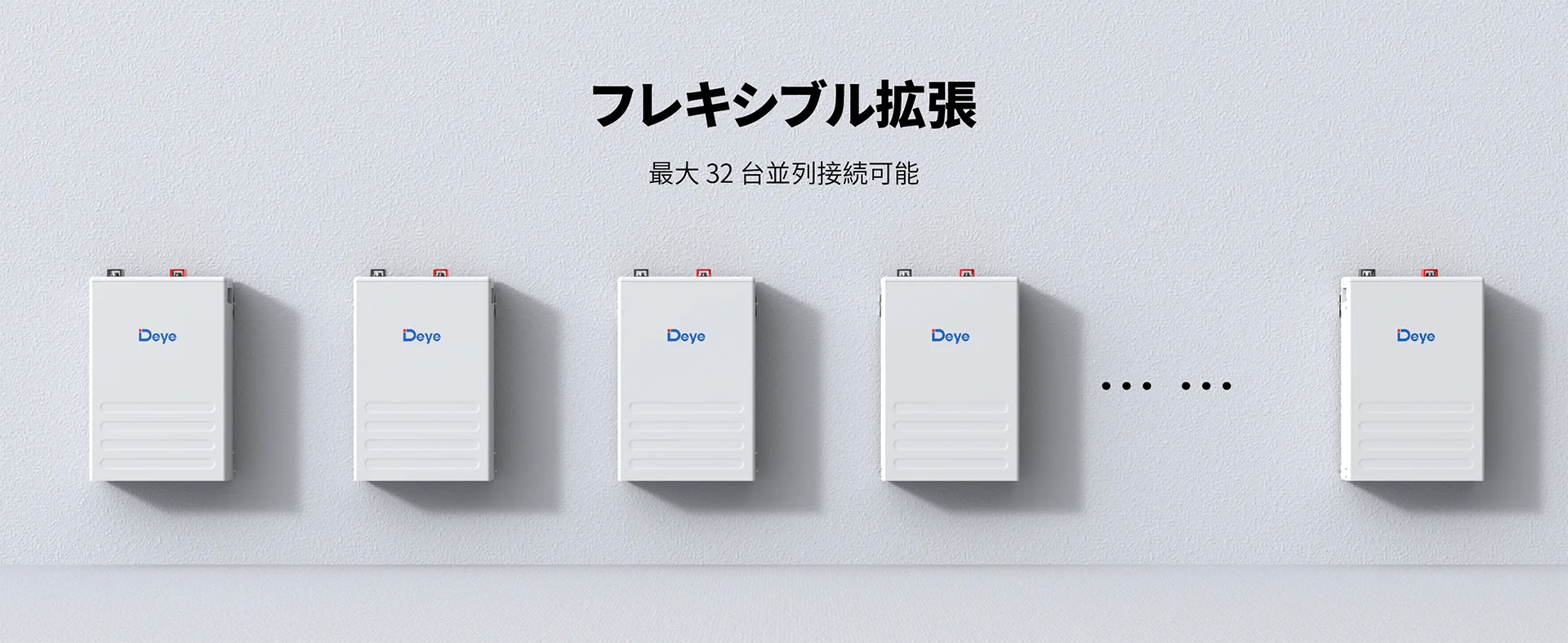

| Scalability | Max 32 pcs in parallel (Max. 64 pcs can parallel with CAN-Bridge) |
| Battery Chemistry | LiFePO₄ |
| Capacity | 100 Ah |
| Nominal Voltage | 51.2 V |
| Operating Voltage | 44.8 V – 57.6 V |
| Nominal Energy | 5.12 kWh |

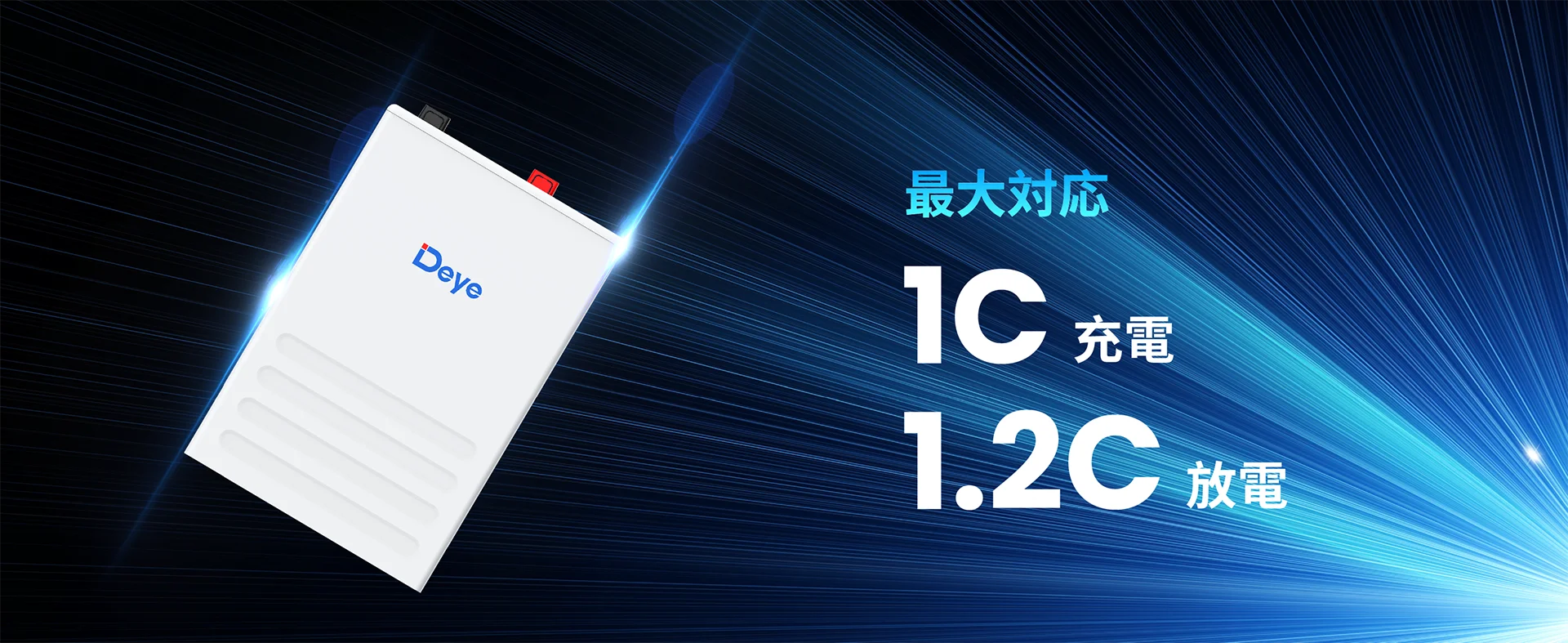

| Charge Current (Max Continuous) | 100 A |
| Charge Current (Peak, 10 sec) | 120 A |
| Discharge Current (Max Continuous) | 120 A |
| Discharge Current (Peak, 10 sec) | 150 A |
| Recommend Depth of Discharge (DoD) | 90% |
| Dimensions (W × H × D) | 370 × 548 × 140 mm (without hanging board) |
| Weight Approximate | 41 kg |
| LED Indicator | SOC, working, protecting & Buzzer |
| IP Rating of Enclosure | IP21 |
| Operating Temperature (Charge) | -10~55°C |
| Operating Temperature (Discharge) | -20°C~55°C |
| Storage Temperature | 0~35°C |
| Relative Humidity | 95% (non-condensing) |
| Altitude | ≤3000m |

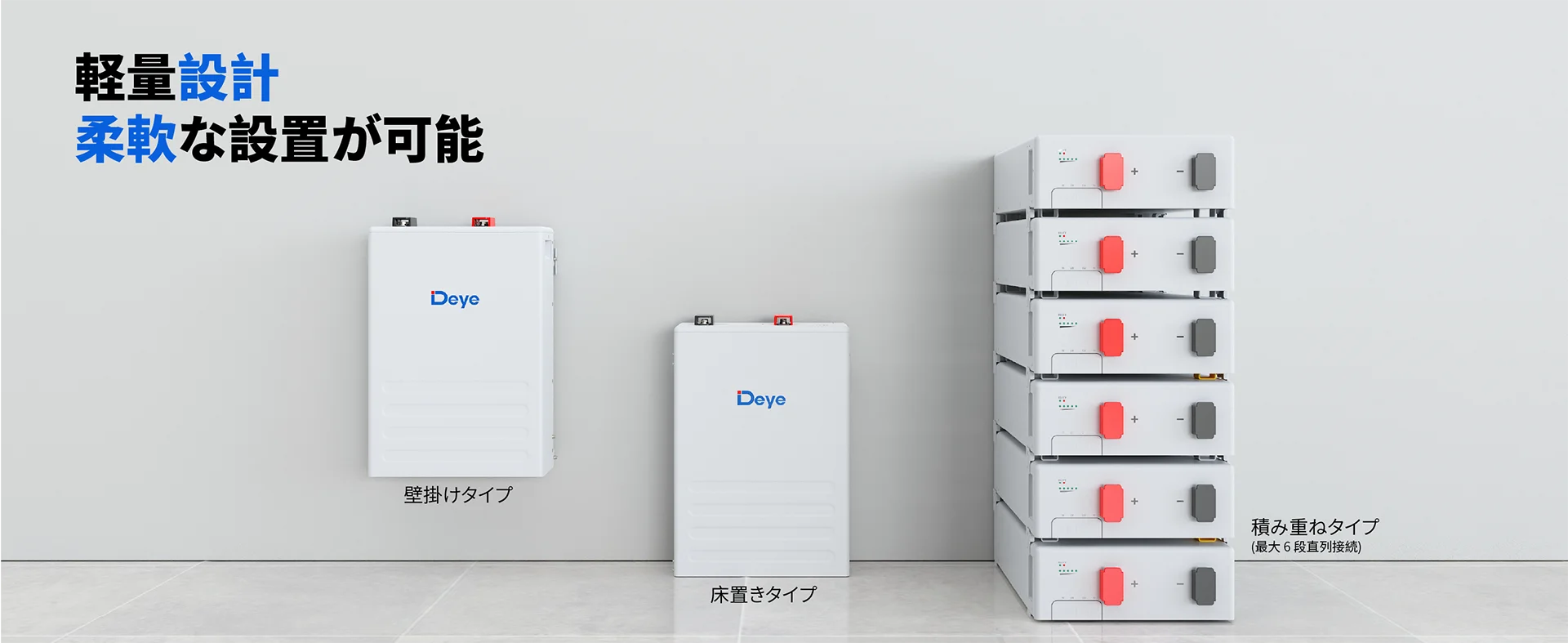

| Installation Options | Wall-Mounted, Floor-Mounted, Stack-Mounted |

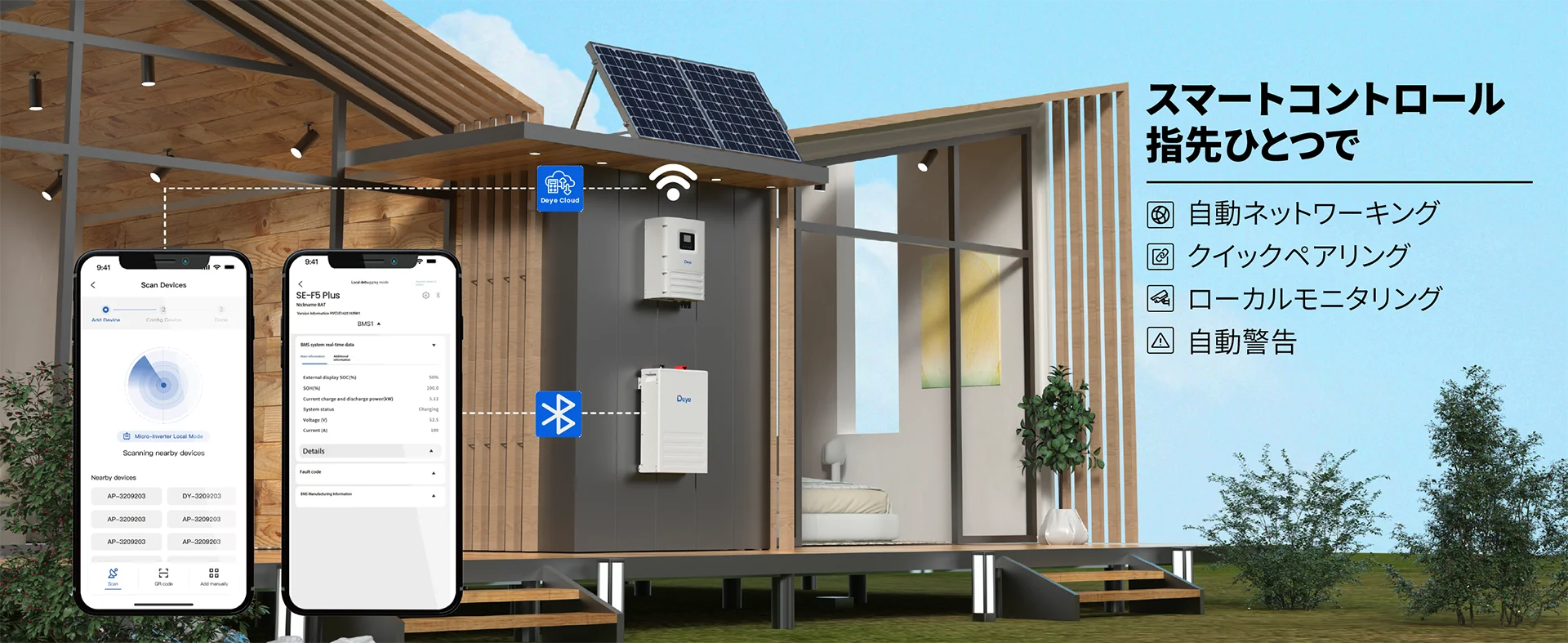

| Communication | CAN2.0, RS485, Bluetooth+APP |
| Certifications | UN38.3, MSDS |
