SE-F12 (AS, AF, LATAM)

  • High Capacity & Scalability: 11.8 kWh nominal energy, expandable up to 32 units (18 MWh total)
  • Efficient Power Handling: Max continuous current of 230A; peak current of 280A (10 seconds)
  • Durable & Long-Lasting: Over 6,000 cycles at 80% DoD with LiFePO4 chemistry
  • Wide Operating Range: Functions in temperatures from -20°C to 55°C (discharge)
  • Smart Monitoring: Features LED indicators and supports CAN2.0, RS485, Bluetooth, and Deye App integration
  • Flexible Installation: IP21-rated for wall-mounted or stack-mounted configurations
SKU: SE-F12 Category:

Description

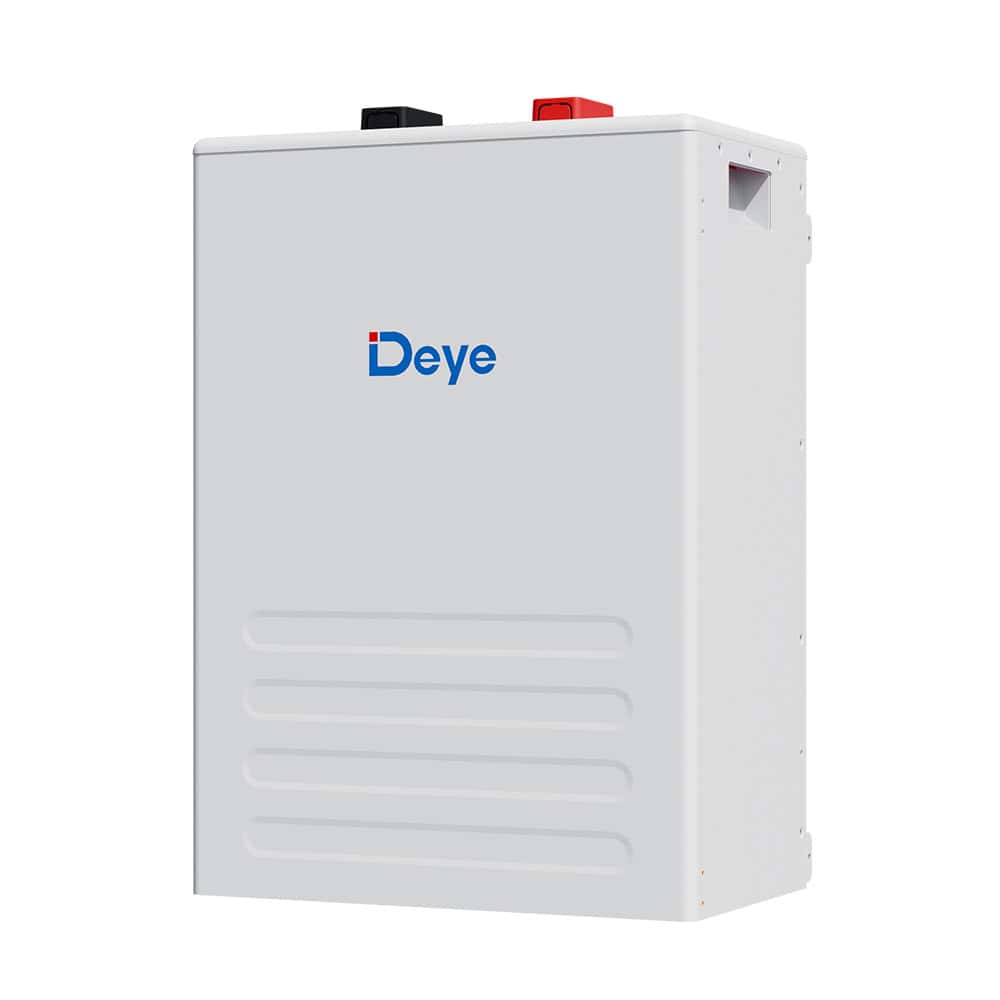

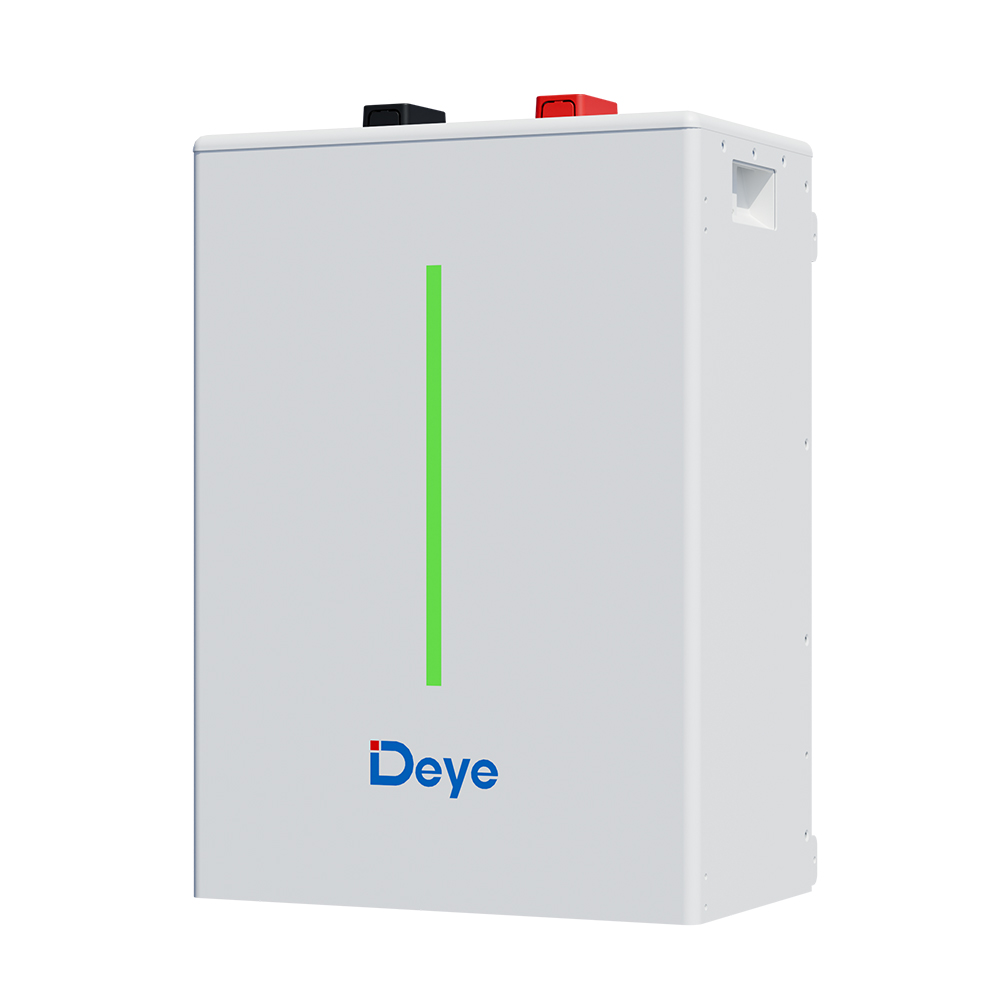

The Deye SE-F12 is a high-performance, off-grid energy storage solution designed to deliver reliability, scalability, and efficiency for both residential and commercial applications. With an advanced LiFePO4 battery chemistry and cutting-edge features, the SE-F12 ensures a long-lasting, energy-efficient system tailored for modern energy management needs.

Parameter SE-F12
Battery Chemistry LiFePO4
Nominal Energy 11.8 kWh
Voltage Range 44.8 V ~ 57.6 V
Max. Continuous Current 230 A
Peak Current 280 A (10 seconds)
Cycle Life 6,000+ cycles at 80% DoD
Dimensions 400 × 583 × 232 mm
Weight 78 kg

Key Features

  • Large Capacity & Scalability:
    The SE-F12 offers a nominal energy capacity of 11.8 kWh, making it ideal for applications requiring significant energy storage. It is scalable up to 32 units in parallel, expanding to a total maximum system capacity of 18 MWh for larger setups.
  • Highly Efficient Power Handling:
    With a nominal voltage of 51.2 V and an operating voltage range of 44.8 V – 57.6 V, the SE-F12 delivers peak performance with a maximum discharge current of 280 A (for up to 10 seconds) and continuous current of 230 A.
  • Durable Design and Longevity:

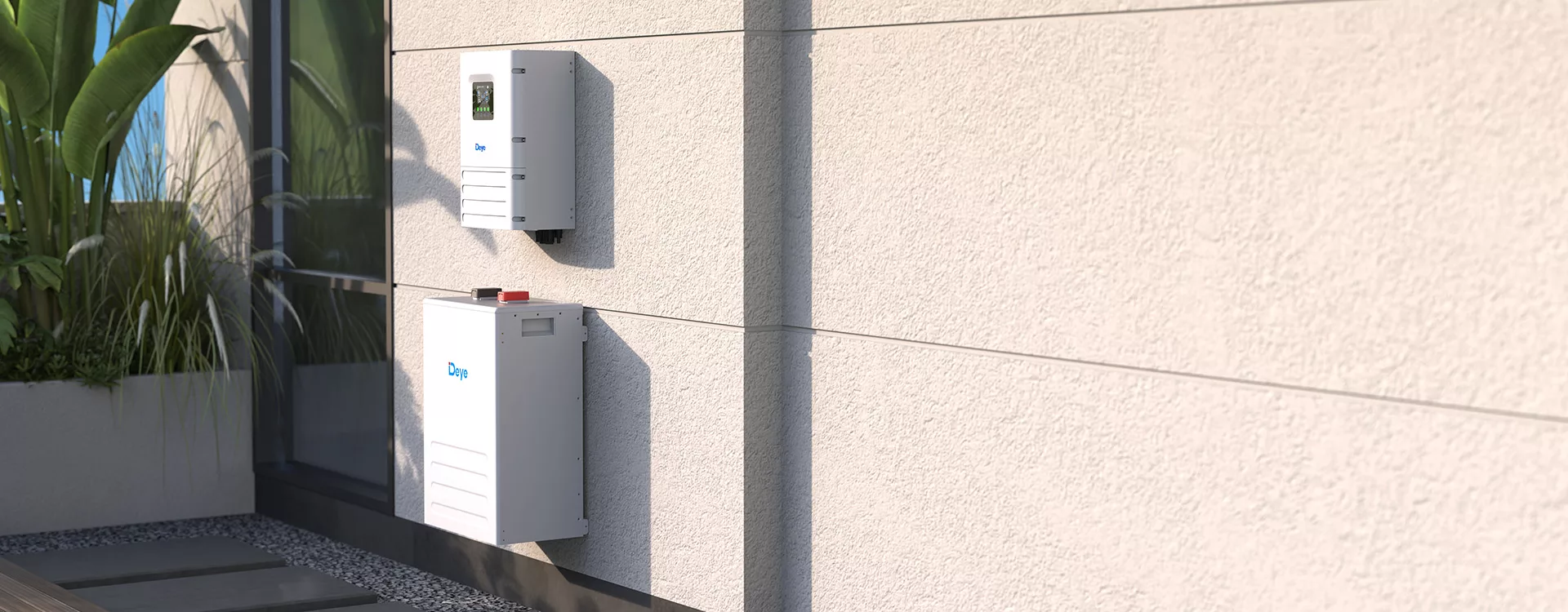

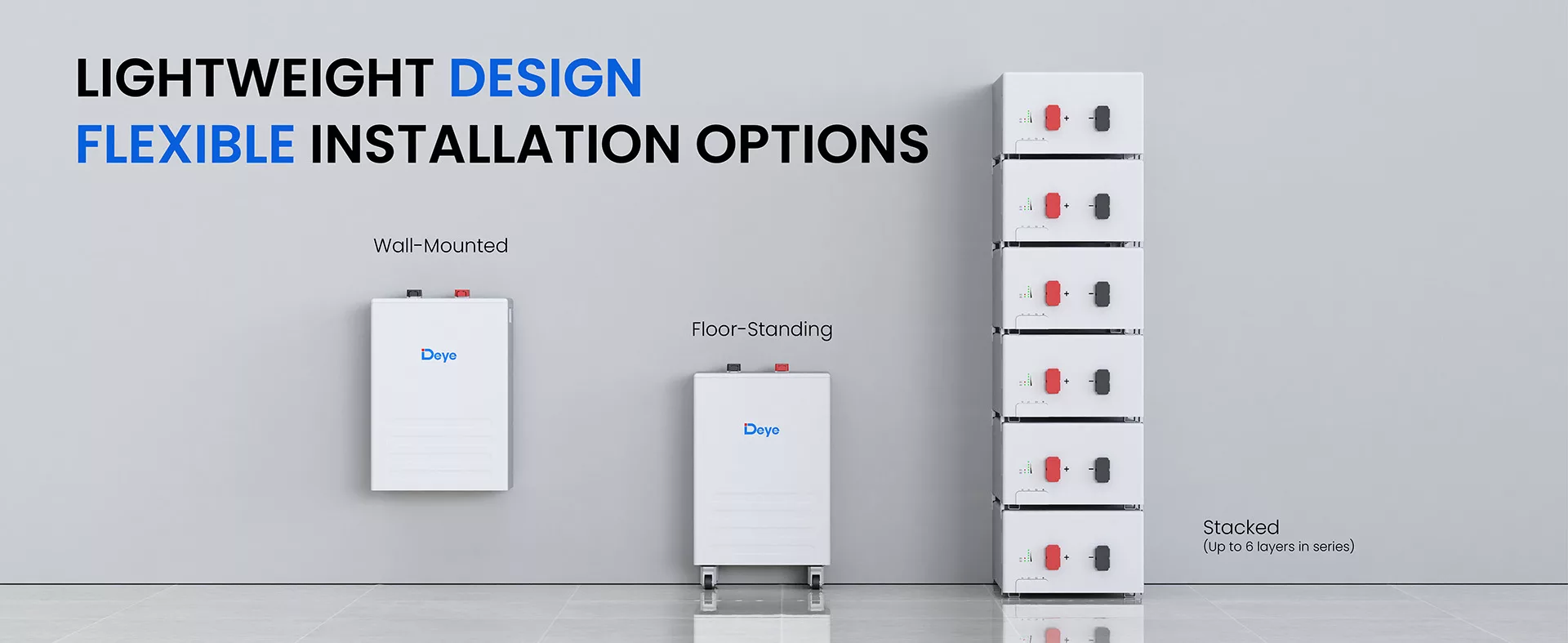

    The structure is IP21-rated, protecting the internal components while supporting wall-mounted or stack-mounted installation formats. It boasts a cycle life of over 6,000 cycles (at 80% Depth of Discharge), ensuring dependability for long-term use.
  • Adaptability and Monitoring:

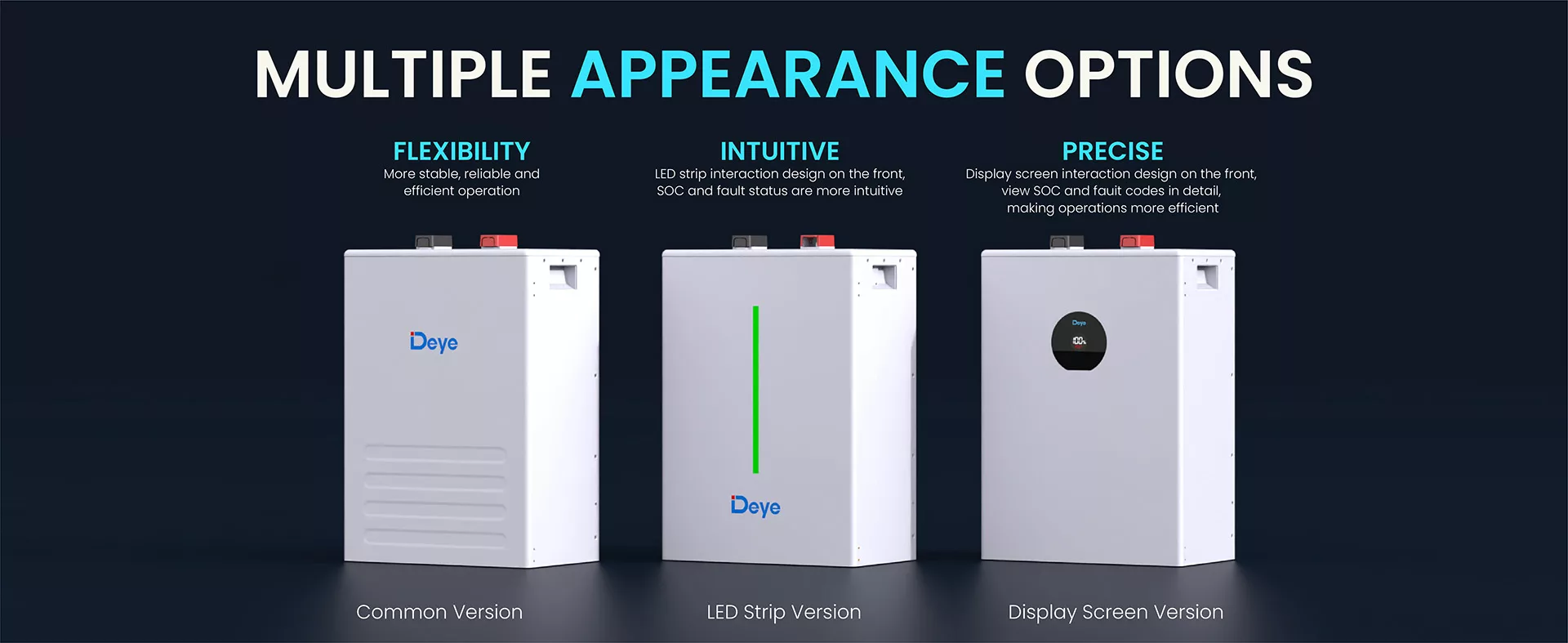

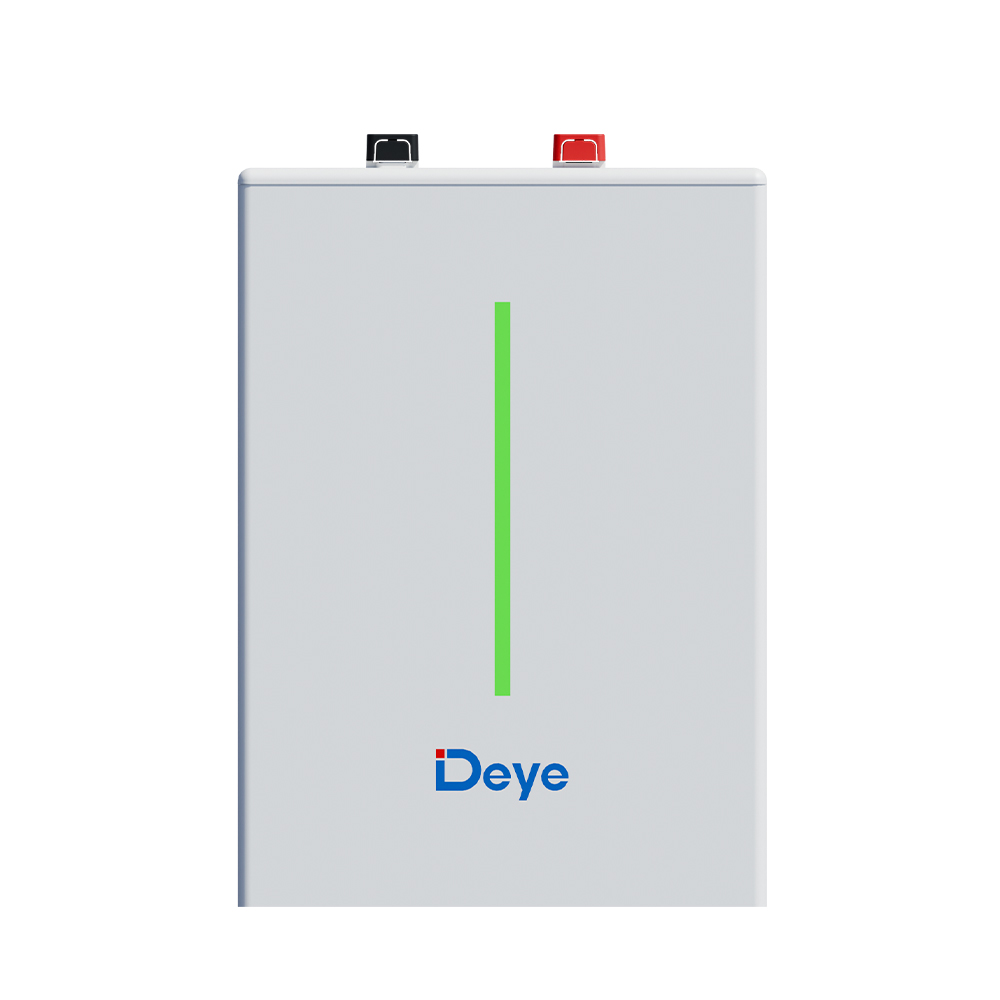

    Integrated LED indicators (SOC, running, and alarm status) offer real-time visibility of system operations, while CAN2.0, RS485, and Bluetooth communication interfaces support seamless integration with inverters and local monitoring systems through the Deye App.
  • Wide Operating Range:
    The unit operates efficiently in diverse conditions, with a charging temperature range of 0°C to 55°C and discharging range of -20°C to 55°C.

Seamless Integration

The SE-F12 is compatible with Deye’s Smart Energy Management System, enabling features such as zero-export control, intelligent load management, and solar EV charging. Paired with Deye inverters and monitoring tools, it ensures smooth operation and smart energy distribution for your specific needs.
