Deye SE-F5 (AS, AF, EU, LATAM) – High-Performance Solar Power Battery for Scalable Energy Storage

  • Capacity: 5.12 kWh (scalable up to 163.8 kWh with 32 units in parallel)
  • Battery Type: Long-lasting LiFePO4 with 6000+ cycles
  • High Power Output: 115A continuous discharge and 175A peak (10 seconds)

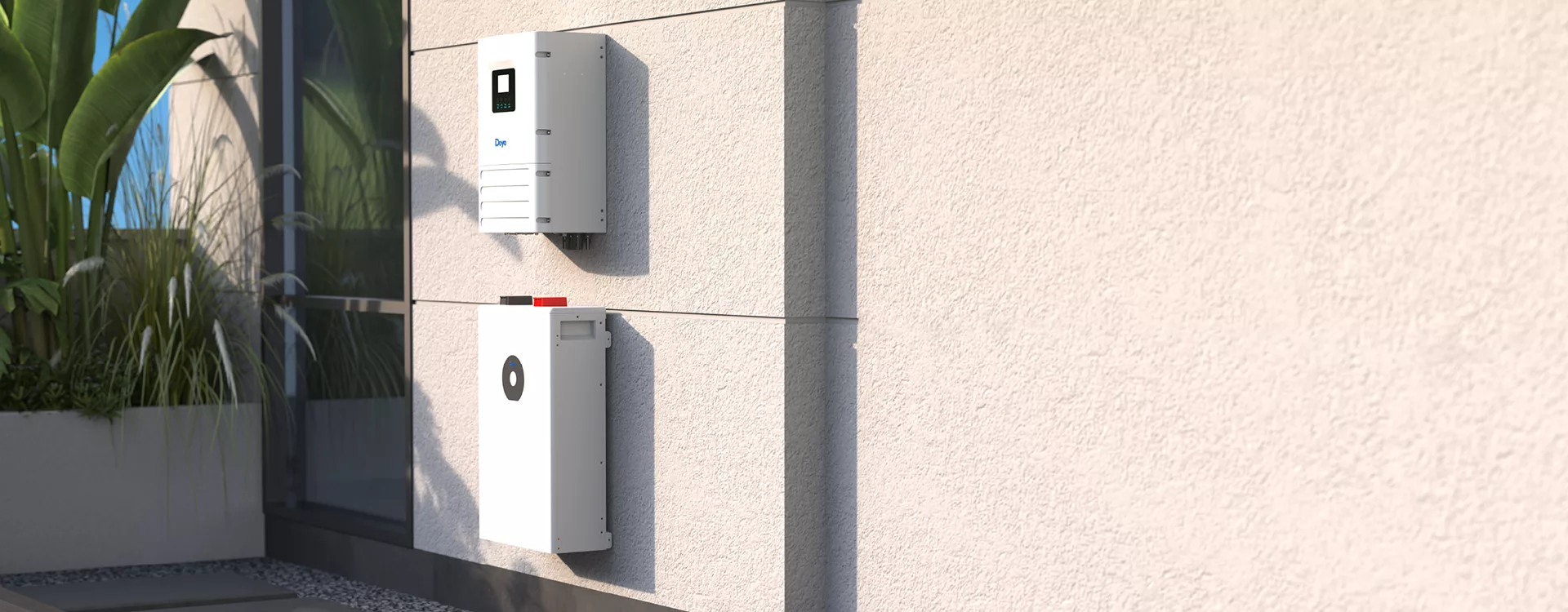

  • Compact Design: Wall-mountable, lightweight (41kg), and space-saving
  • Wide Compatibility: CAN 2.0 and RS485 communication for inverter integration
  • User-Friendly Monitoring: Bluetooth app and LED indicators for status updates
  • Durable & Reliable: Operates in extreme temperatures (-20°C to 55°C) with IP21 protection
  • Warranty: Backed by a 5-year product warranty
SKU: SE-F5 (AS, AF, EU, LATAM)Categories: Low Voltage Series (LV)
Contact Us

Description

SE-F5: Your Reliable ESS Solution

SE-F5 is a standout energy storage system (ESS) that brings excellent performance and reliability.

Parameters Details
Battery Chemistry LiFePO₄
Capacity 100 Ah
Scalability Max 32 pcs in parallel
Nominal Voltage 51.2 V
Operating Voltage 44.8 V – 57.6 V
Nominal Energy 5.12 kWh
Charge Current – Max Continuous 100 A
Charge Current – Peak 120 A (10 sec)
Discharge Current – Max Continuous 120 A
Discharge Current – Peak 150 A (10 sec)
Recommended Depth of Discharge 80% DoD
Dimension (W × H × D) (Without hanging board) 370 × 548 × 140 mm
Weight Approximate 41 kg

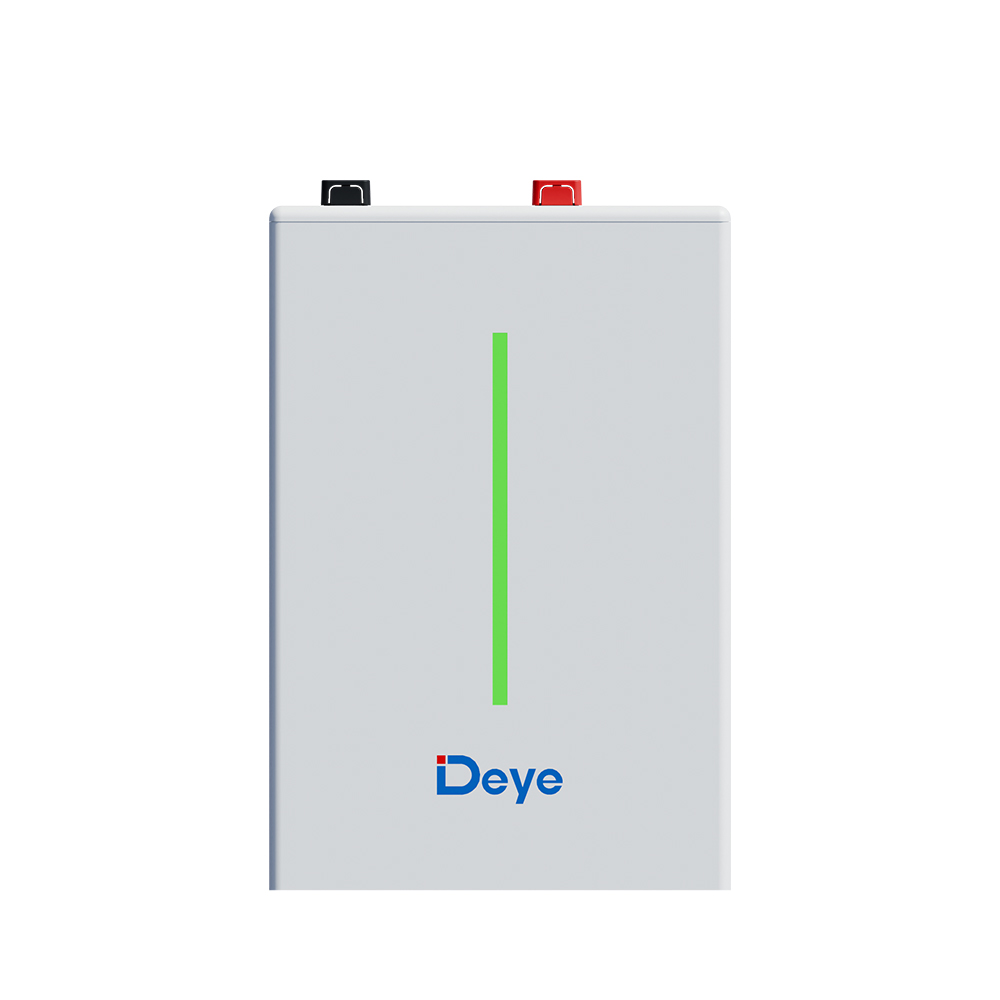

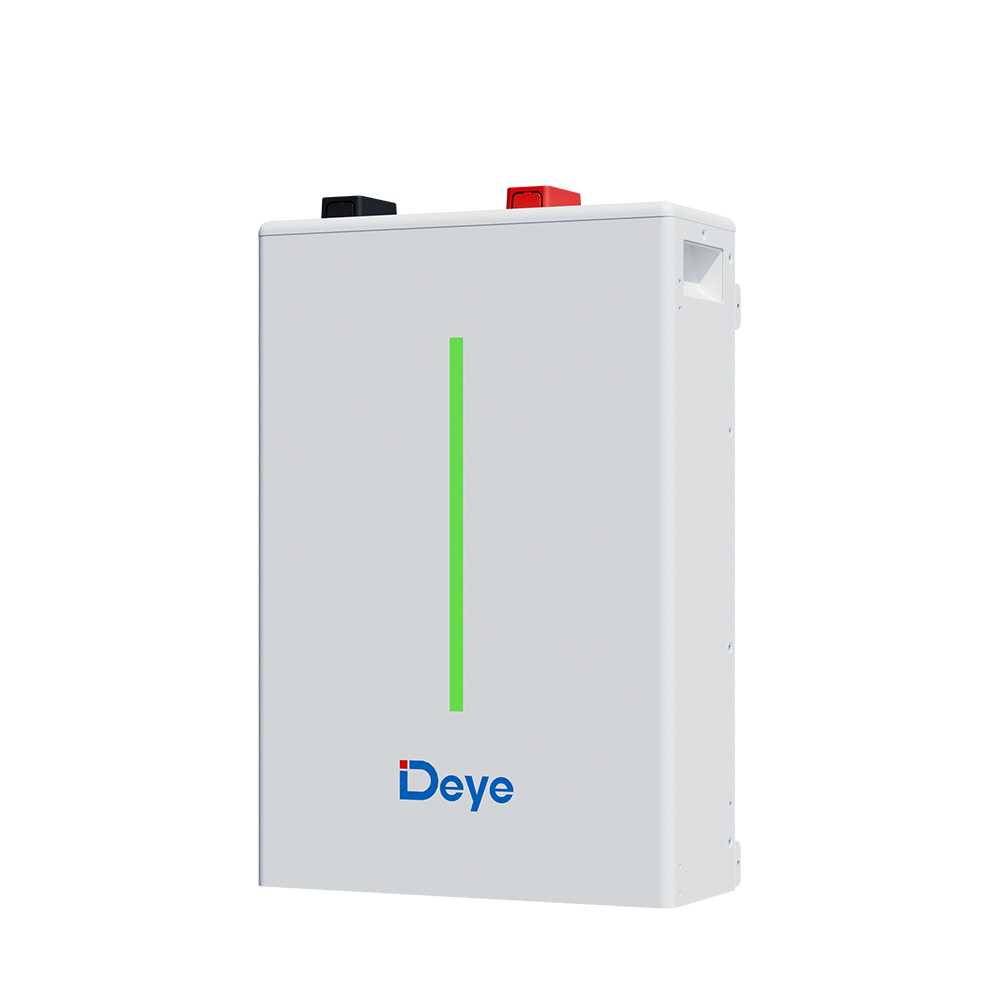

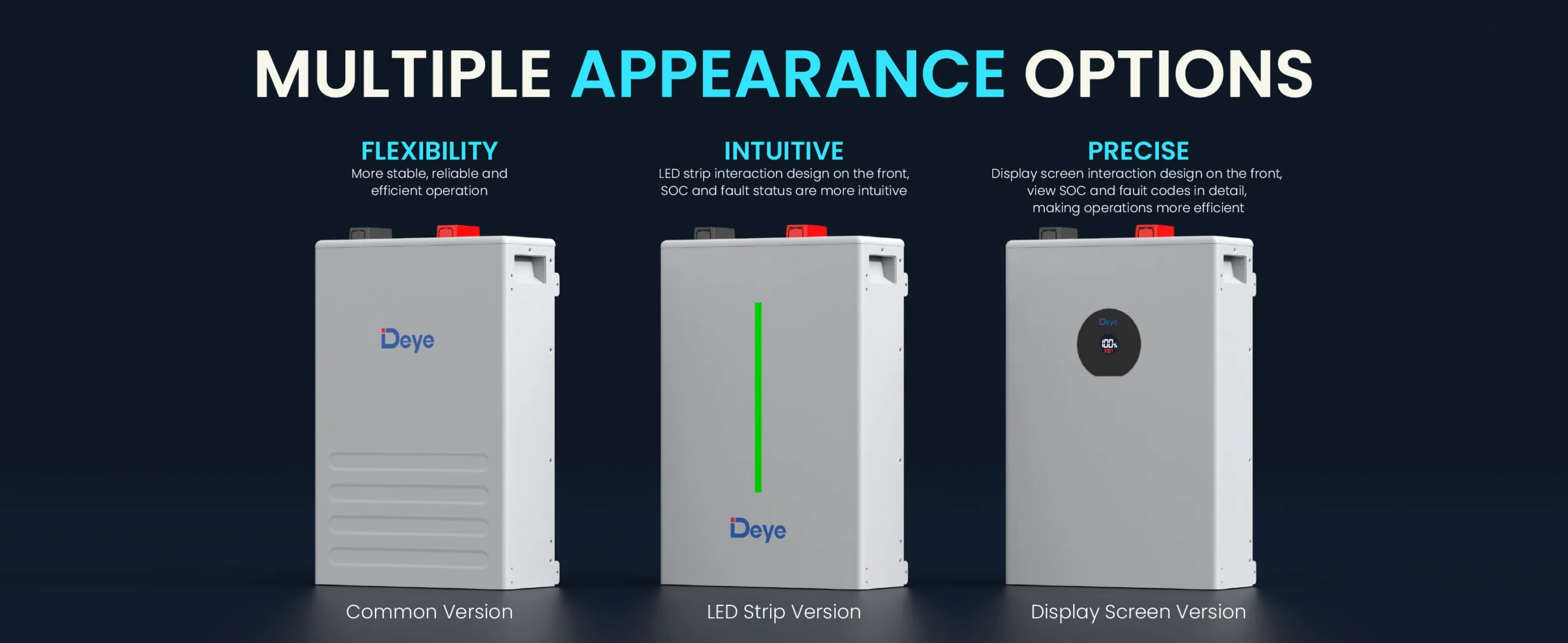

LED Indicator LED (SOC, working, protecting) & Buzzer
IP Rating of Enclosure IP21
Operating Temperature Charge: 0 – 55℃ / Discharge: -20 – 55℃
Storage Temperature 0 – 35℃
Relative Humidity 95% (non-condensing)
Altitude ≤3000m
Cycle Life ≥6000 (25℃±2℃, 70% EOL)

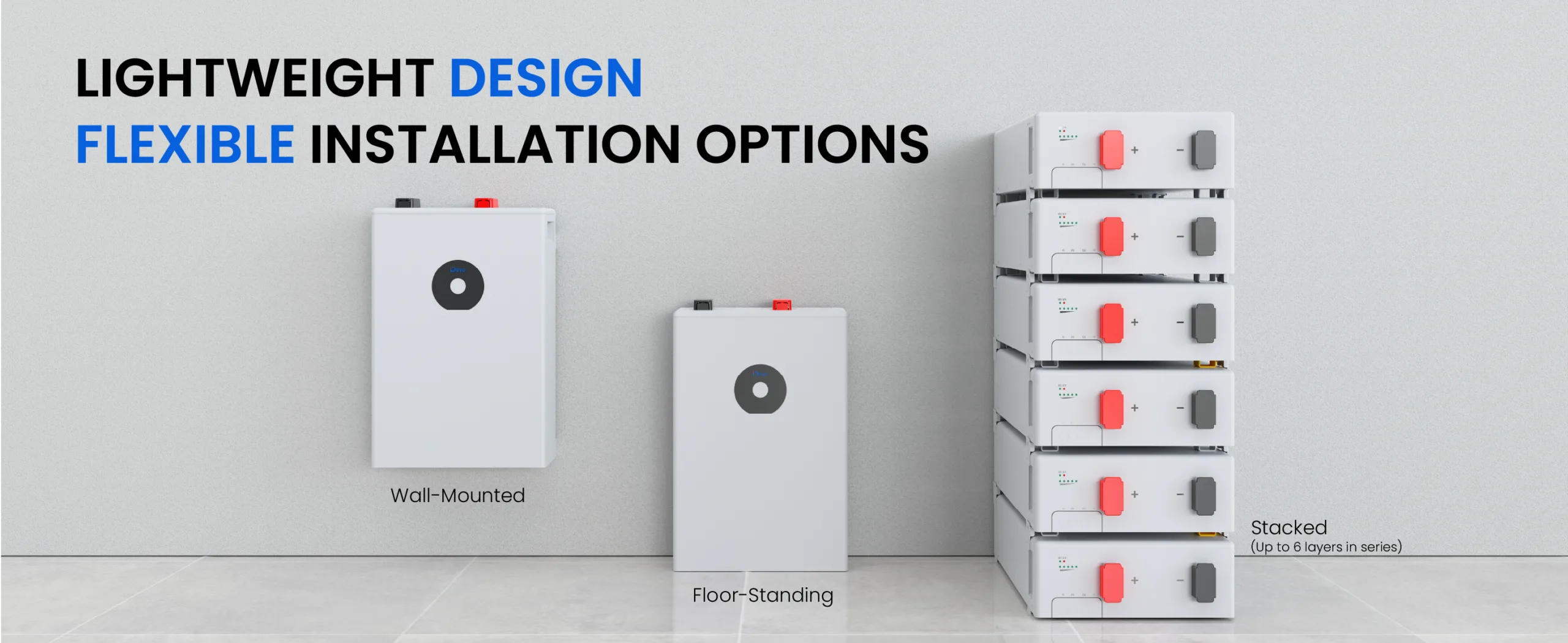

Installation Wall-Mounted, Floor-Mounted, Stack-Mounted
Communication CAN2.0, RS485, Bluetooth+APP
Warranty Period 5 years
Energy Throughput 8 MWh

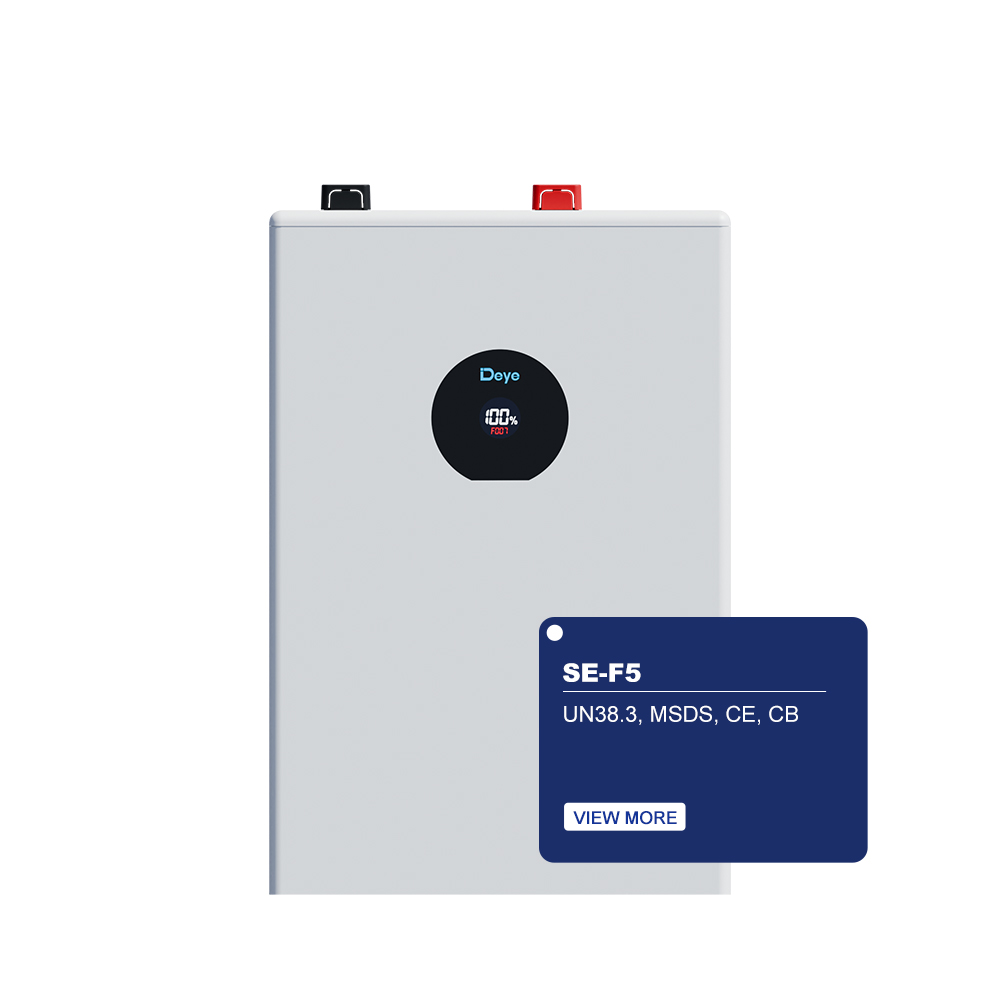

Certification UN38.3, MSDS, CE, CB

Key Features

  • Comprehensive Protection: Equipped with an advanced Battery Management System (BMS) featuring an active fuse, it ensures safe operation by preventing overcharging, over-discharging, and short-circuits.

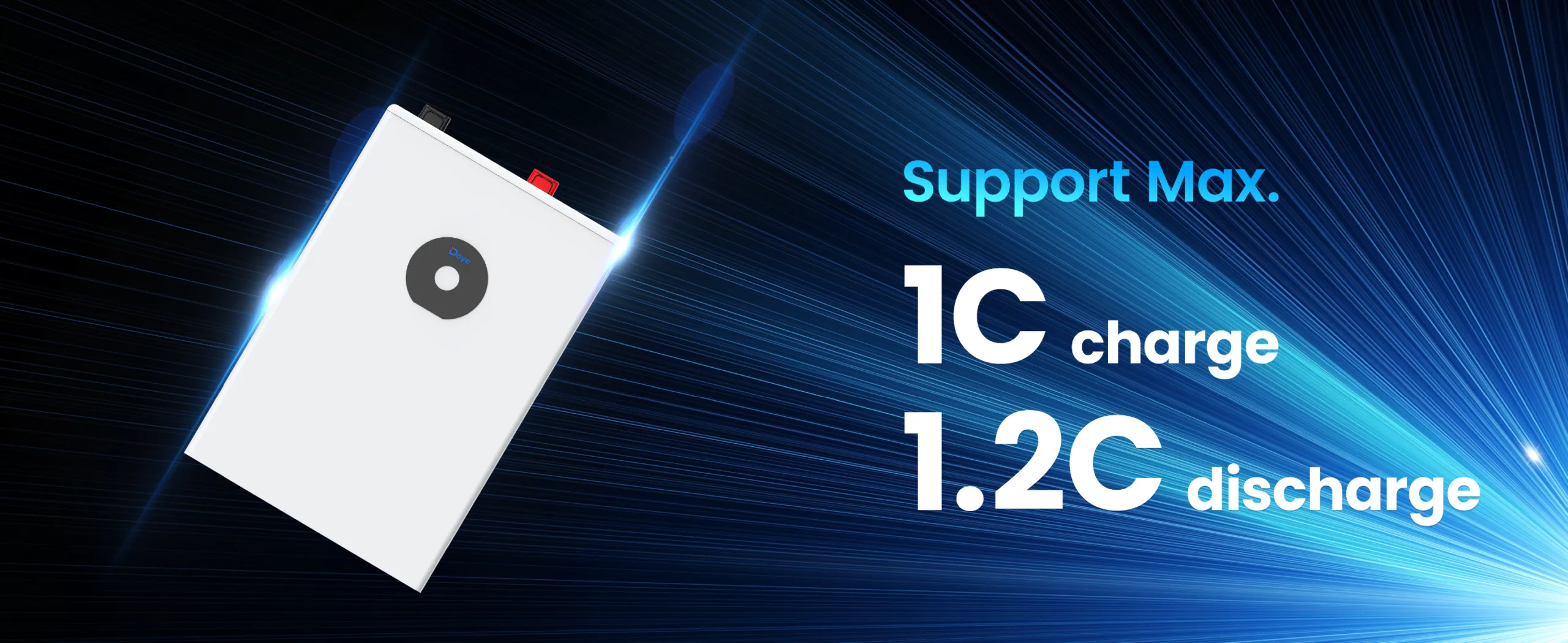

  • Superior Performance: It supports a maximum 1C charge and 1.2C discharge, enabling efficient energy transfer. With GaN MOSFETs, energy loss is reduced by 50%, and it also boasts high-temperature resistance, performing well in various environments.

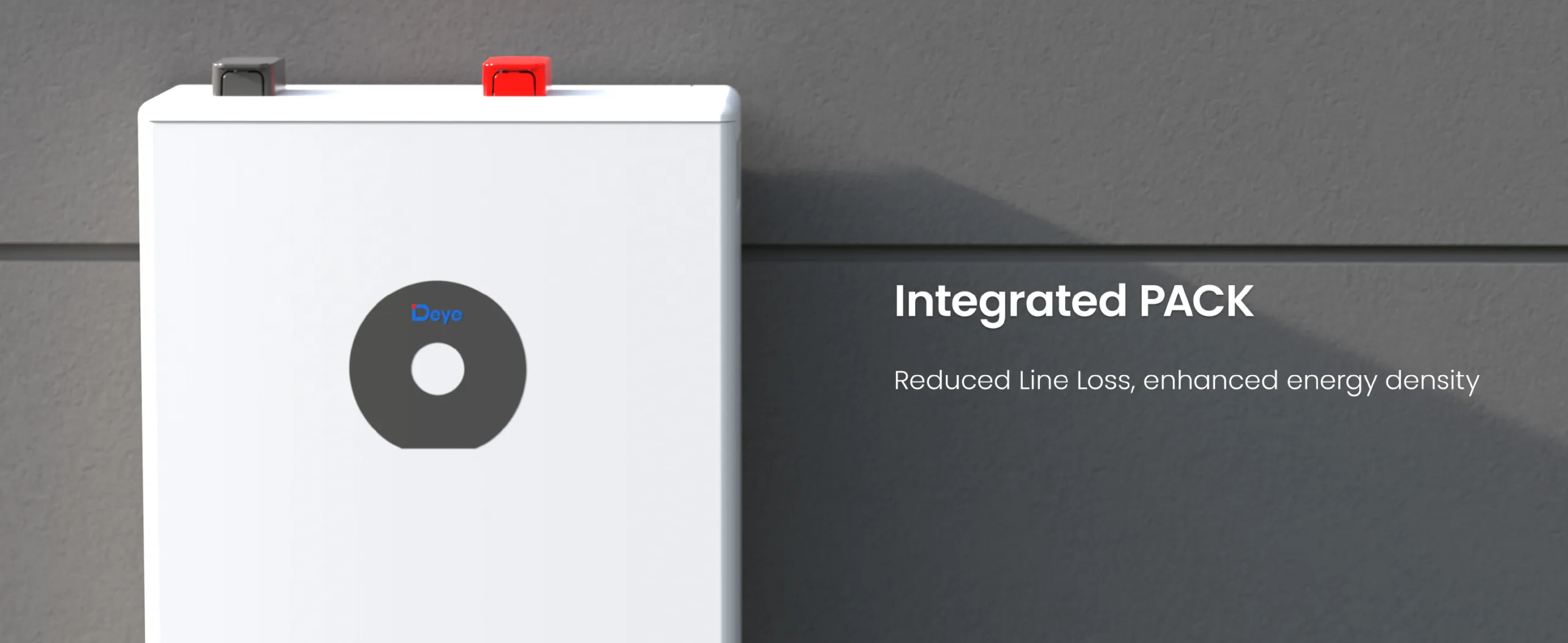

  • Optimized Energy Density: The integrated PACK design cuts down line loss, enhancing energy density for more efficient energy storage.

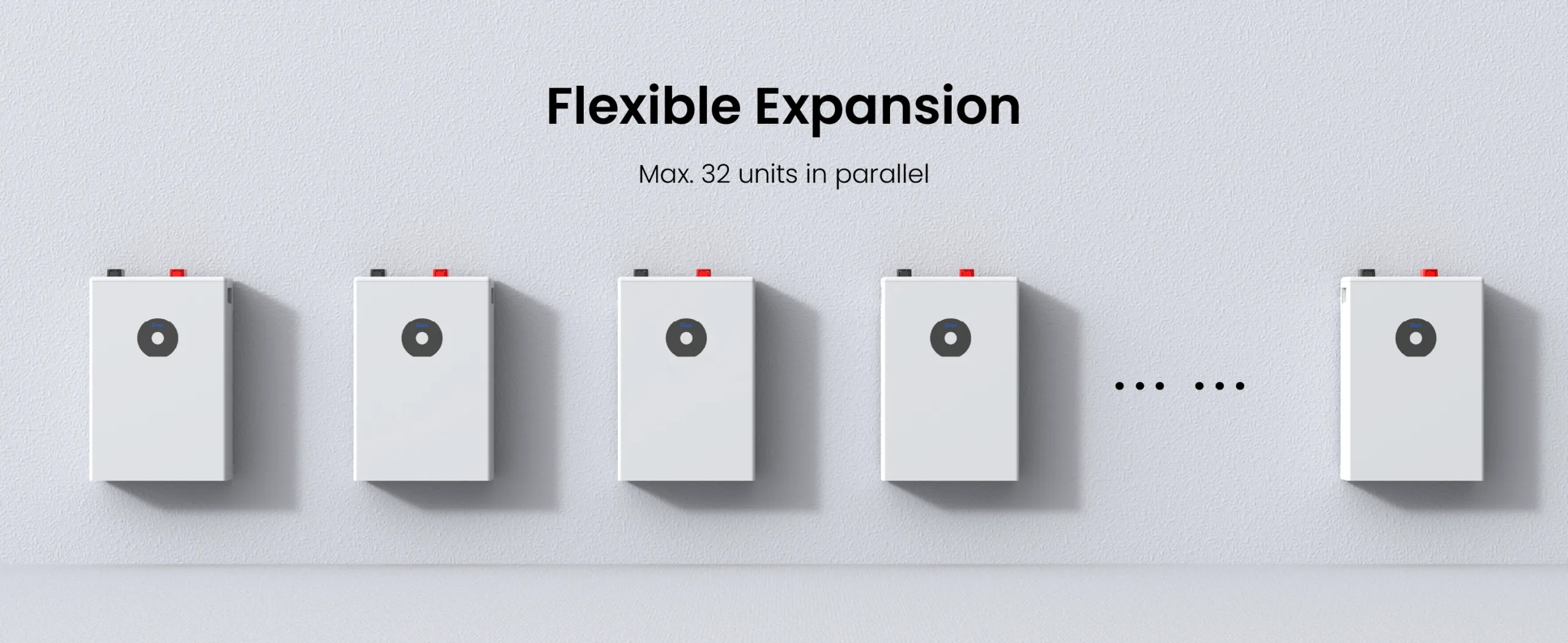

  • Flexible Expansion: You can parallel up to 32 units, allowing you to scale the energy storage capacity as your needs grow.

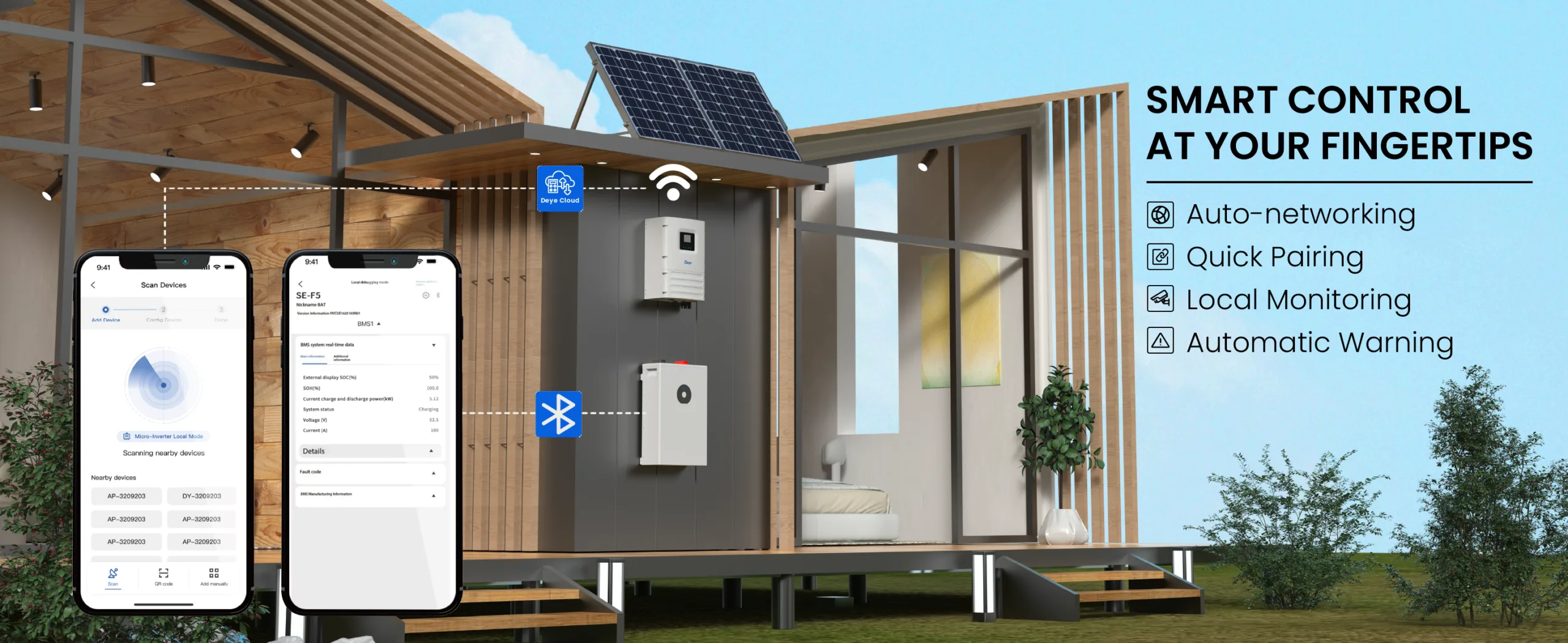

  • Easy Maintenance: It offers auto-networking, local battery monitoring, and remote ESS monitoring, making maintenance a breeze.
  • Reliable Durability: Operating reliably in temperatures ranging from -20℃ to 55℃ with natural cooling, it’s built to last in diverse climates.
With a nominal energy of 5.12 kWh and a 5-year warranty, SE-F5 is a trustworthy choice for your energy storage requirements.
