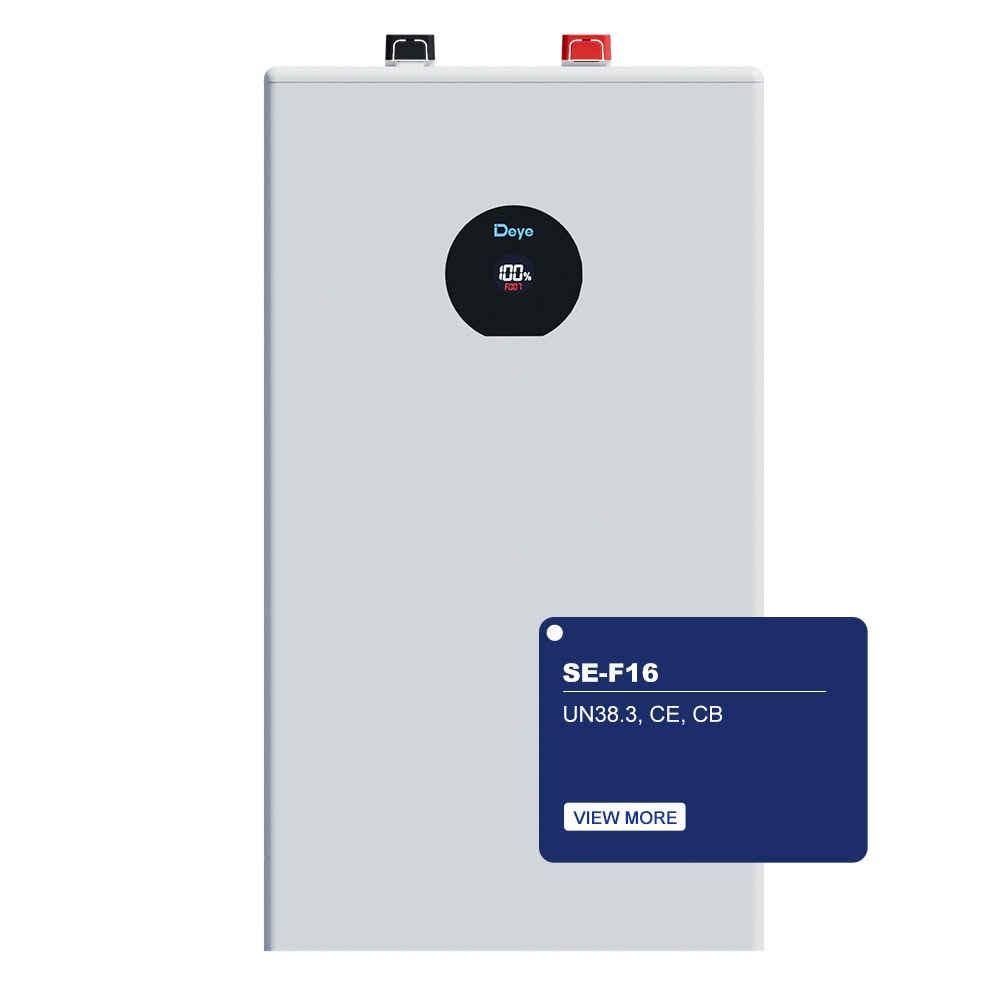

SE-F16

  • High Capacity: 16 kWh nominal energy & 314 Ah capacity with LiFePO₄ chemistry
  • Scalable Power: Expandable up to 32 units in parallel for increased capacity
  • Superior Durability: Over 6000 cycle life with 90% recommended DoD
  • Advanced Protection: Integrated BMS with active fuse for enhanced safety
  • Robust Performance: Reliable operation from -20°C to 55°C
  • Easy Monitoring: Local battery and remote ESS monitoring via app/interfaces
  • Flexible Installation: Wall, floor, or stack-mounted options
SKU: SE-F16Categories: Low Voltage Series (LV)
Contact Us

Description

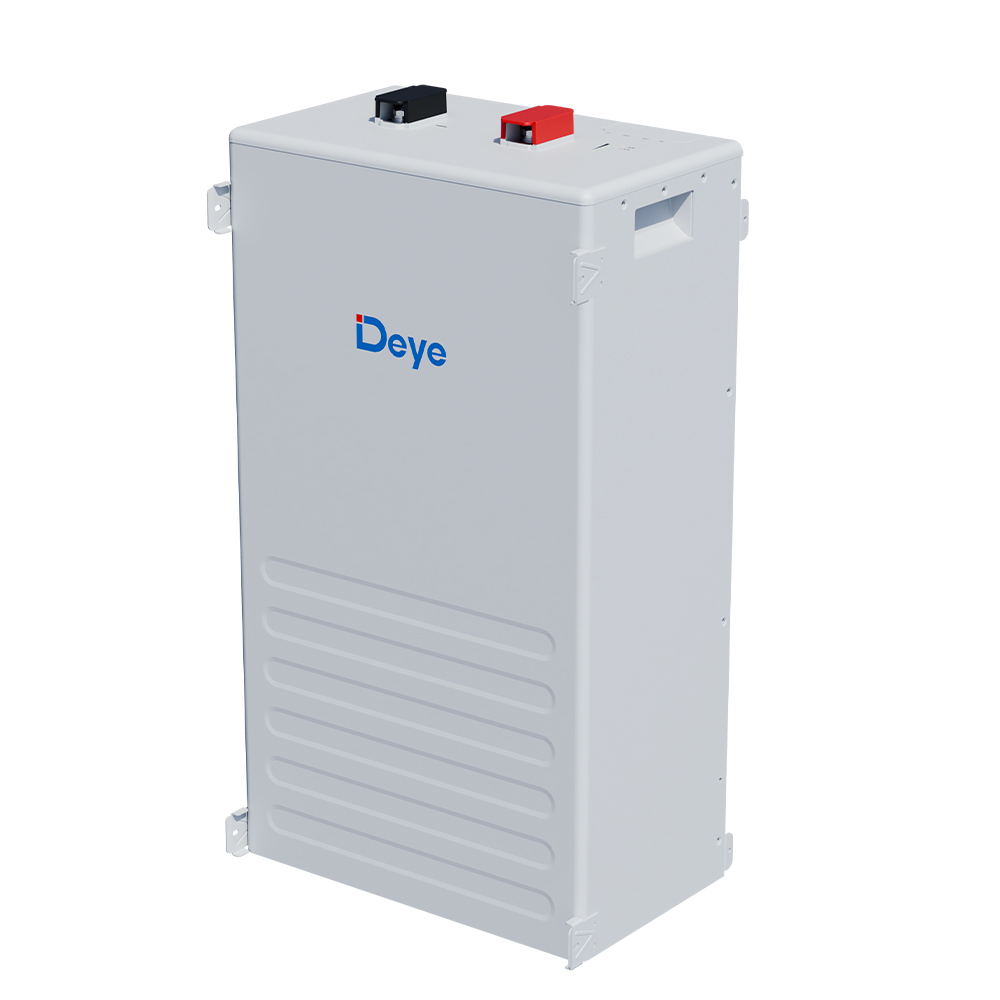

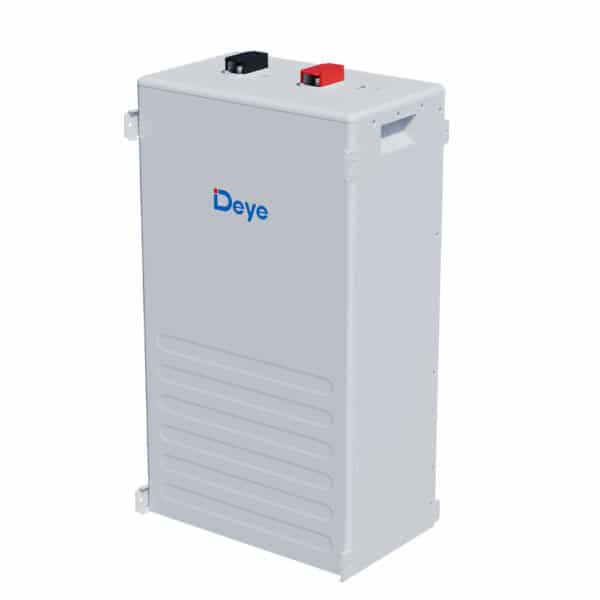

SE-F16: High-Capacity LiFePO₄ Energy Storage Solution

Unlock robust and reliable energy storage with the SE-F16, a premier solution designed for demanding applications. Engineered with advanced LiFePO₄ (Lithium Iron Phosphate) battery chemistry, the SE-F16 delivers exceptional performance, longevity, and safety, making it an ideal choice for residential, commercial, and industrial energy storage systems.

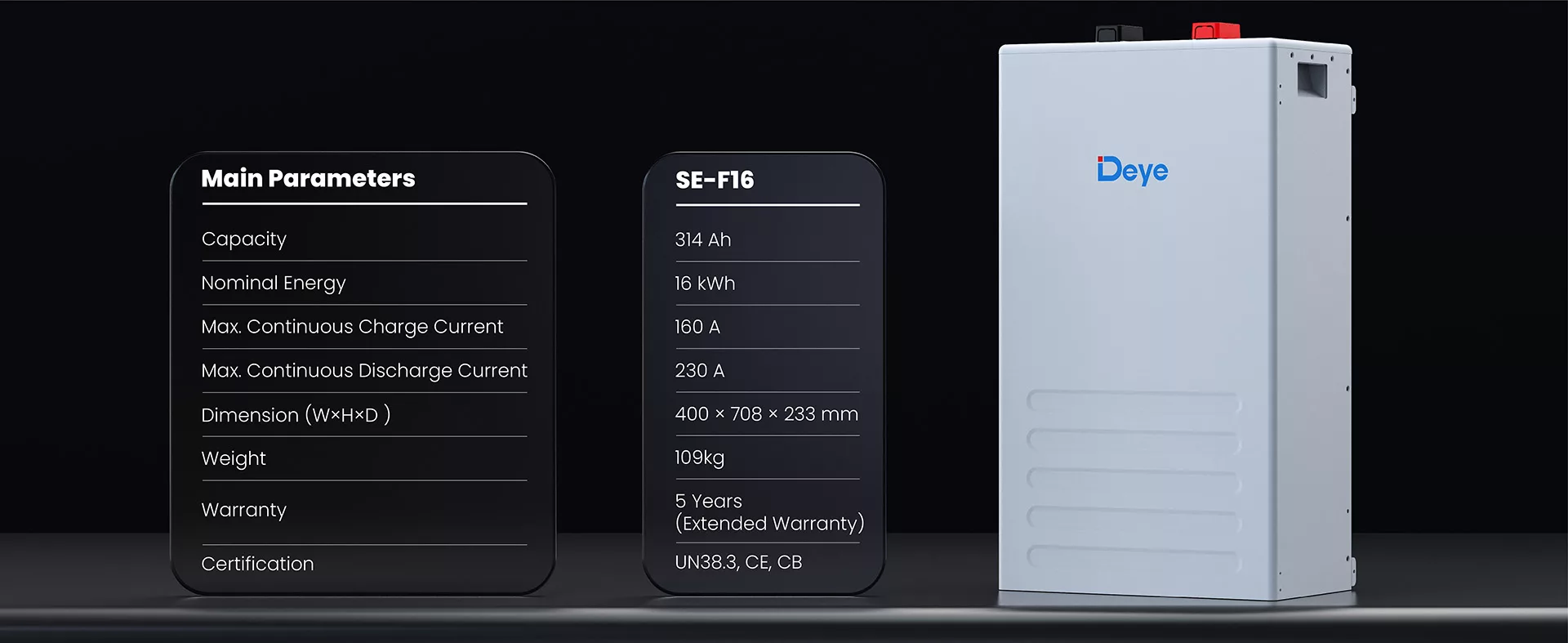

Parameter Value
Model SE-F16
Battery Chemistry LiFePO₄
Nominal Capacity 314 Ah
Nominal Energy 16 kWh
Nominal Voltage 51.2 V
Operating Voltage 44.8 V – 57.6 V
Max. Cont. Charge Current 160 A
Max. Cont. Discharge Current 230 A
Peak Discharge Current 280 A (10 sec)
Dimensions (W×H×D) 400 × 708 × 233 mm (Without hanging board)
Weight Approximate 107 kg
Recommended DoD 90%
Cycle Life >6000 cycles (25°C±2°C, 70%EOL)
IP Rating IP21
Operating Temperature Charge: 0~55°C / Discharge: -20°C~55°C
Communication CAN2.0, RS485, Bluetooth+APP
Scalability Max. 32 units in parallel
Warranty 5 years / 10 years (extended)
Certifications UN38.3, MSDS

Key Features & Benefits:

  • High Energy Capacity: Boasting a substantial 16 kWh nominal energy and a 314 Ah capacity, the SE-F16 provides ample power to meet significant energy demands.
  • Superior Performance & Durability:
    • Experience reliable power delivery with a max continuous discharge current of 230 A and a peak discharge of 280 A (10 sec).
    • The system supports a max continuous charge current of 160 A.
    • Built for longevity, it offers a cycle life of over 6000 cycles (at 25°C±2°C, 70% End-of-Life) and a recommended 90% Depth of Discharge (DoD) for optimal utilization.
    • Operates reliably across a wide temperature range (Charge: 0~55°C / Discharge: -20°C~55°C) with natural cooling.
  • Comprehensive Protection: Features an Advanced Battery Management System (BMS) with an active fuse, ensuring the safety and integrity of your energy storage.

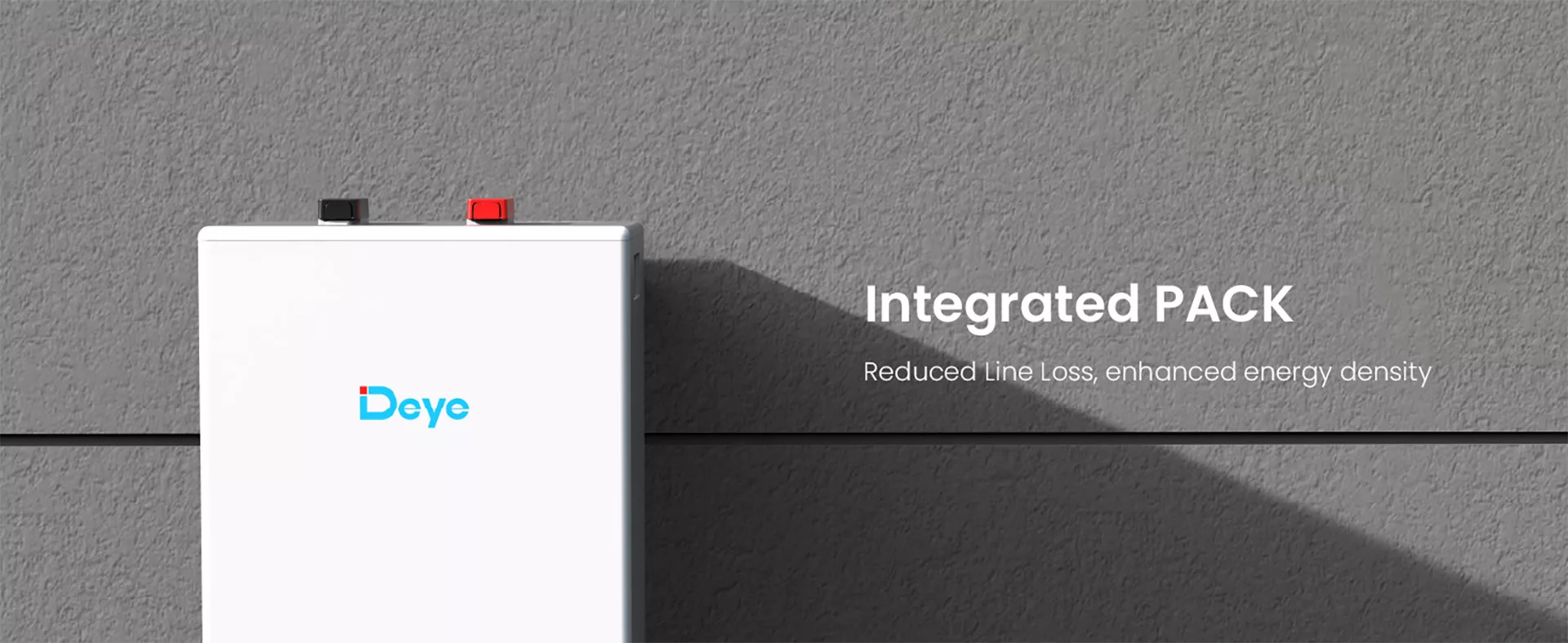

  • Optimized Energy Density: The integrated PACK design minimizes line loss and enhances overall energy density, providing more power in a compact footprint.

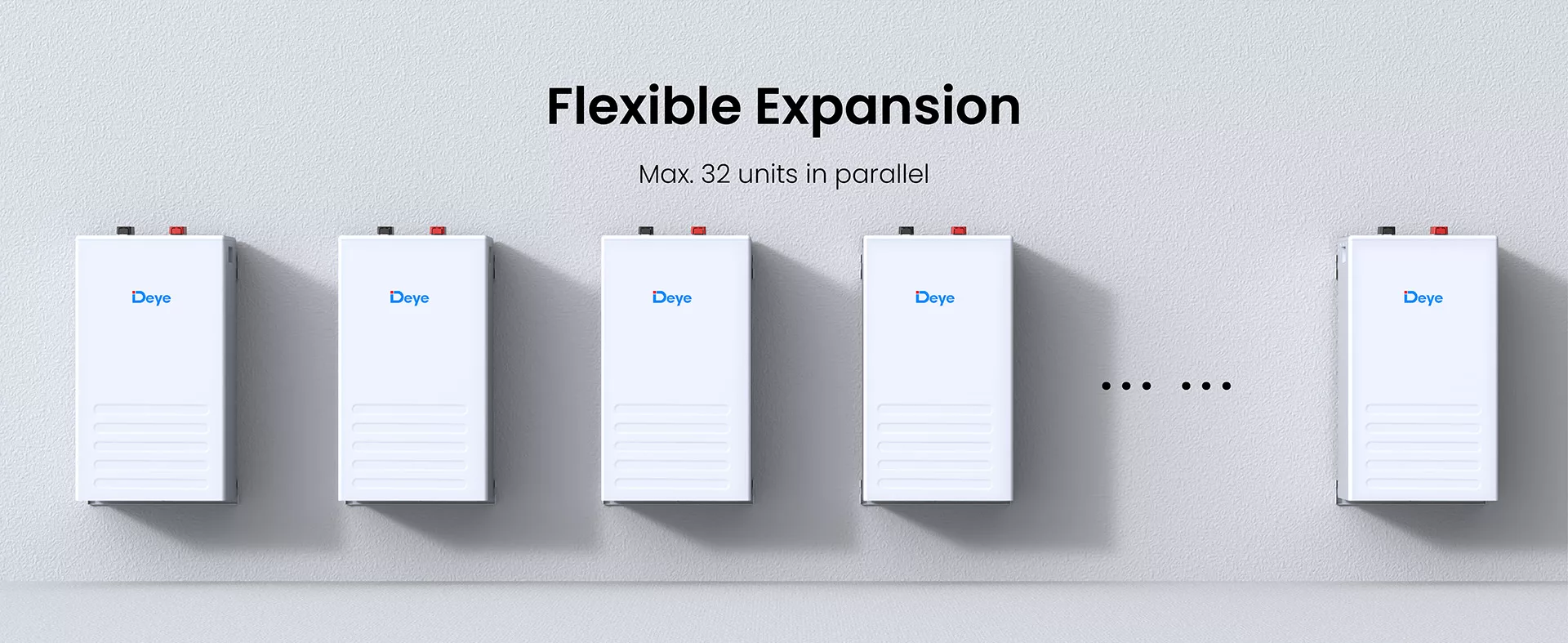

  • Flexible Expansion: Scale your energy storage as your needs grow. The SE-F16 supports parallel connection of up to 32 units, allowing for significant capacity expansion.
  • Easy Maintenance & Monitoring:
    • Benefits from auto-networking capabilities.
    • Offers local monitoring mode for the battery and remote monitoring mode for the Energy Storage System (ESS).

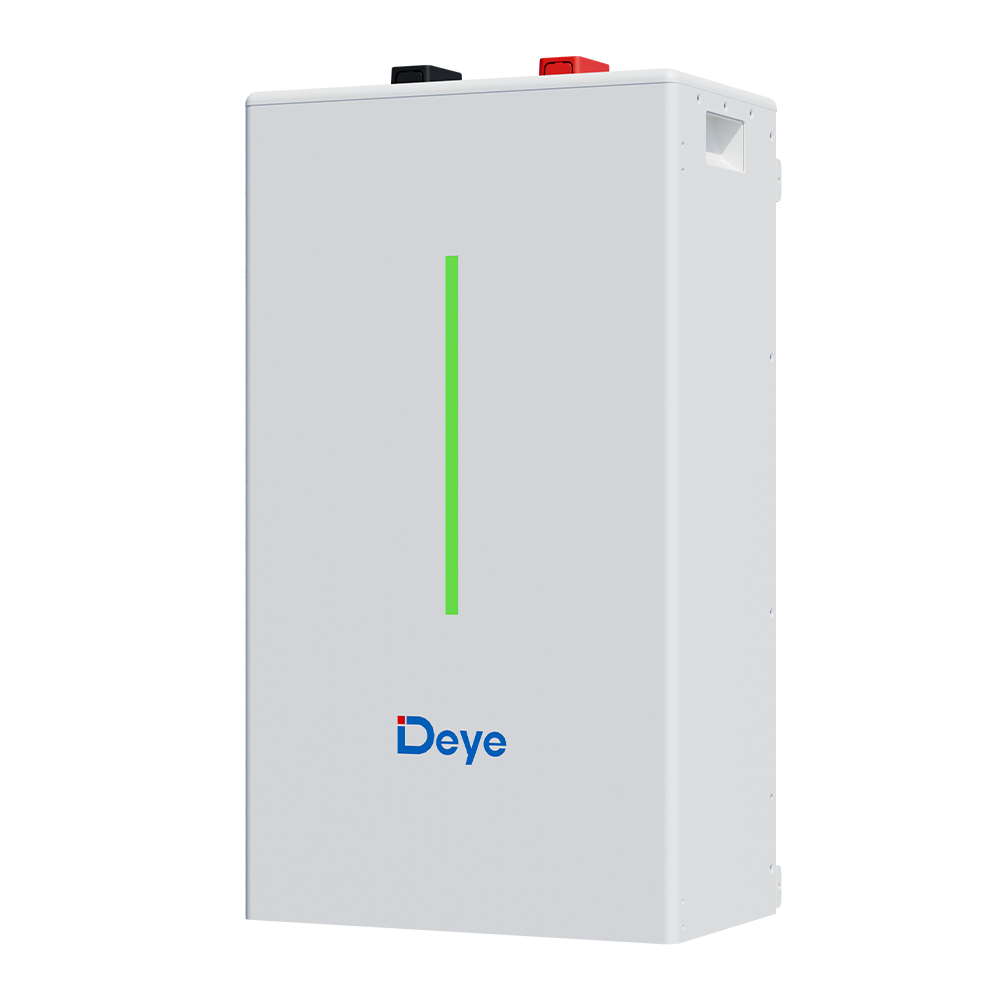

    • Includes clear LED indicators (SOC, working, protecting) and a buzzer for status updates.
  • Versatile Installation & Communication:

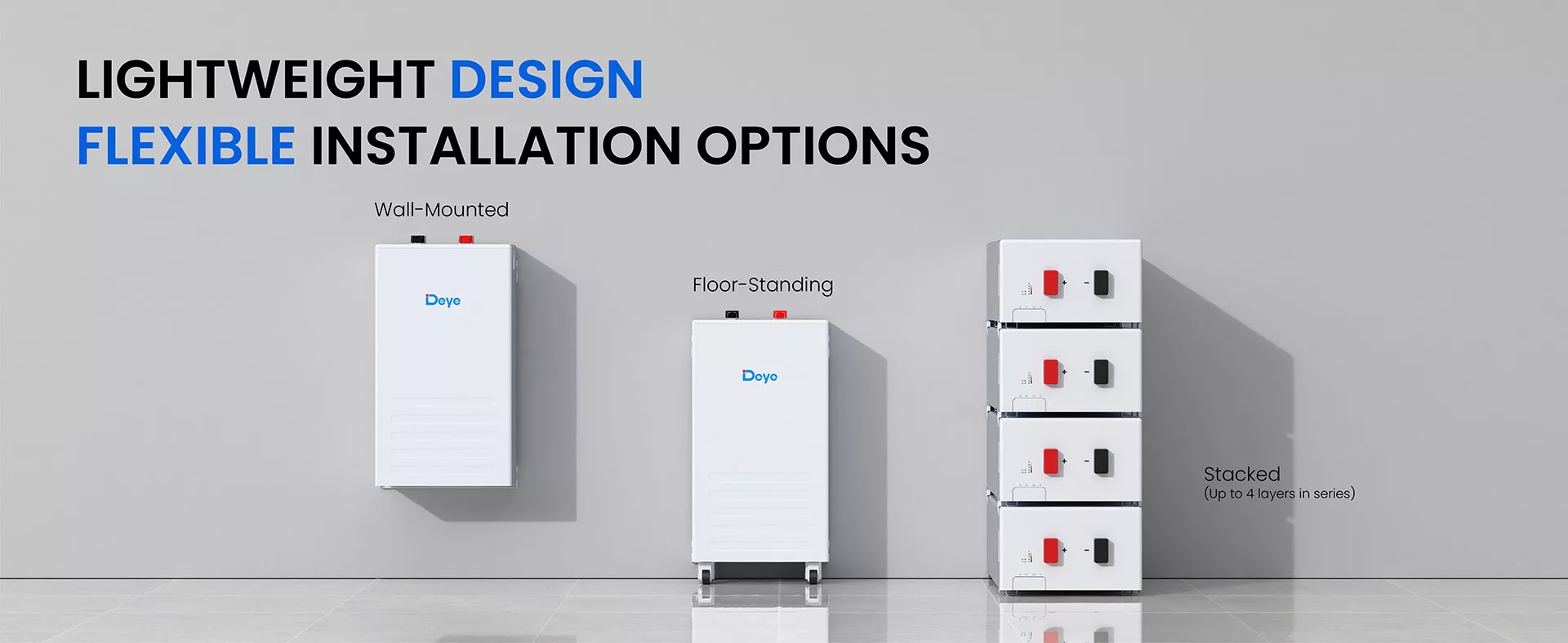

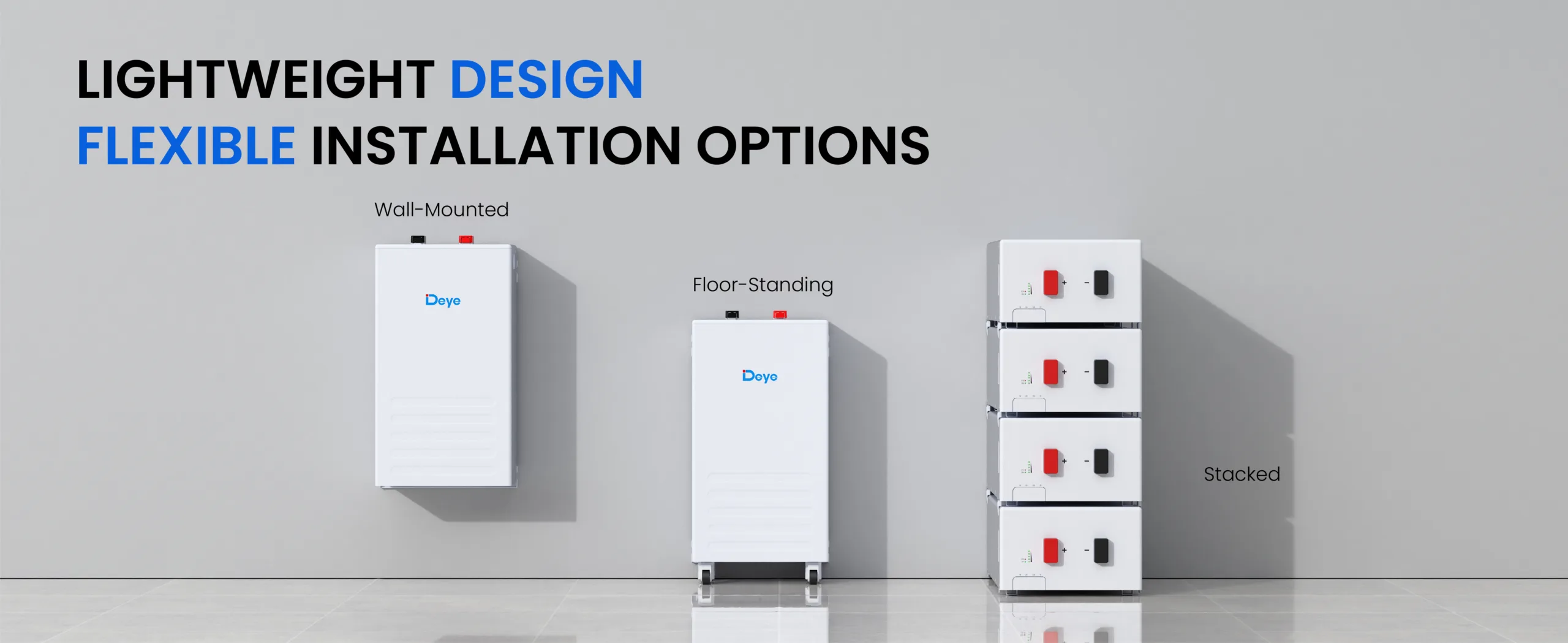

    • Offers flexible installation options including Wall-Mounted, Floor-Mounted, and Stack-Mounted.
    • Equipped with multiple communication interfaces: CAN2.0, RS485, and Bluetooth+APP for seamless integration and control.

The SE-F16 is engineered for resilience and high performance, providing a dependable energy storage backbone for a sustainable future. Its robust design, advanced safety features, and flexible scalability make it an outstanding investment for long-term energy independence and efficiency.
