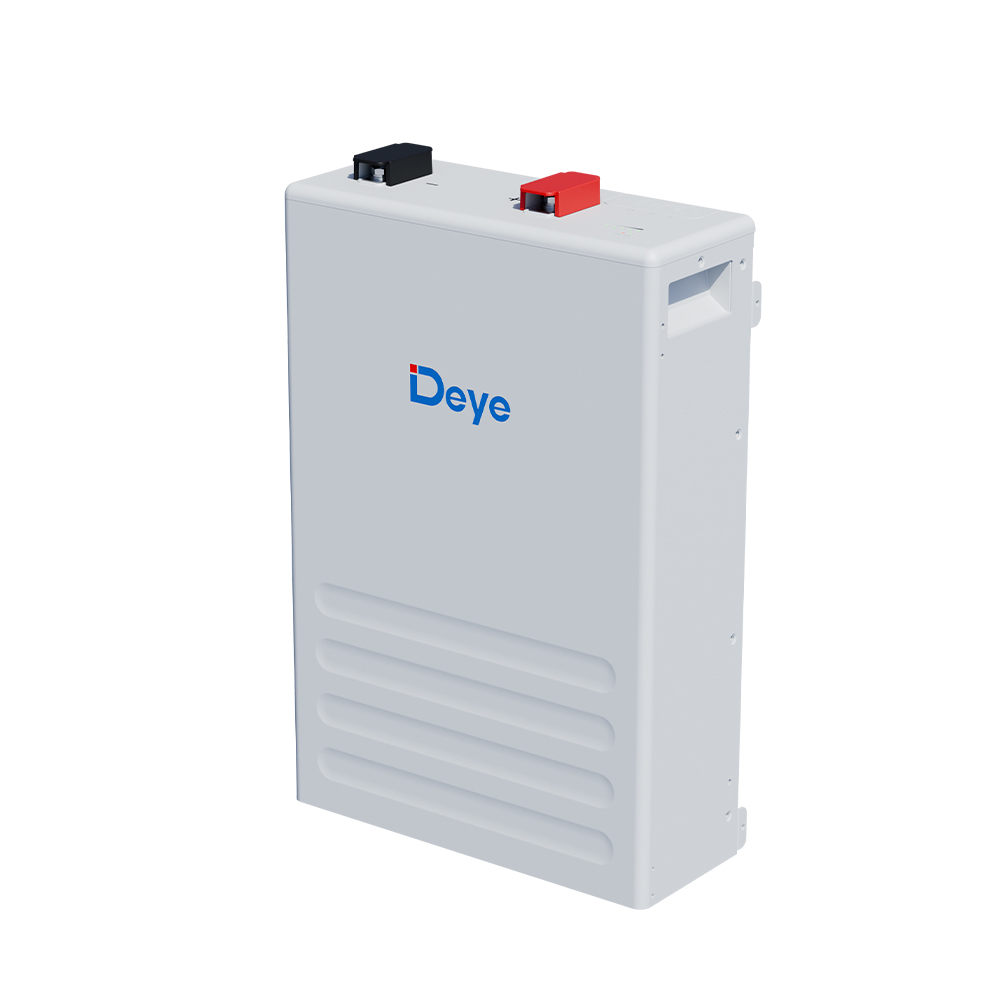

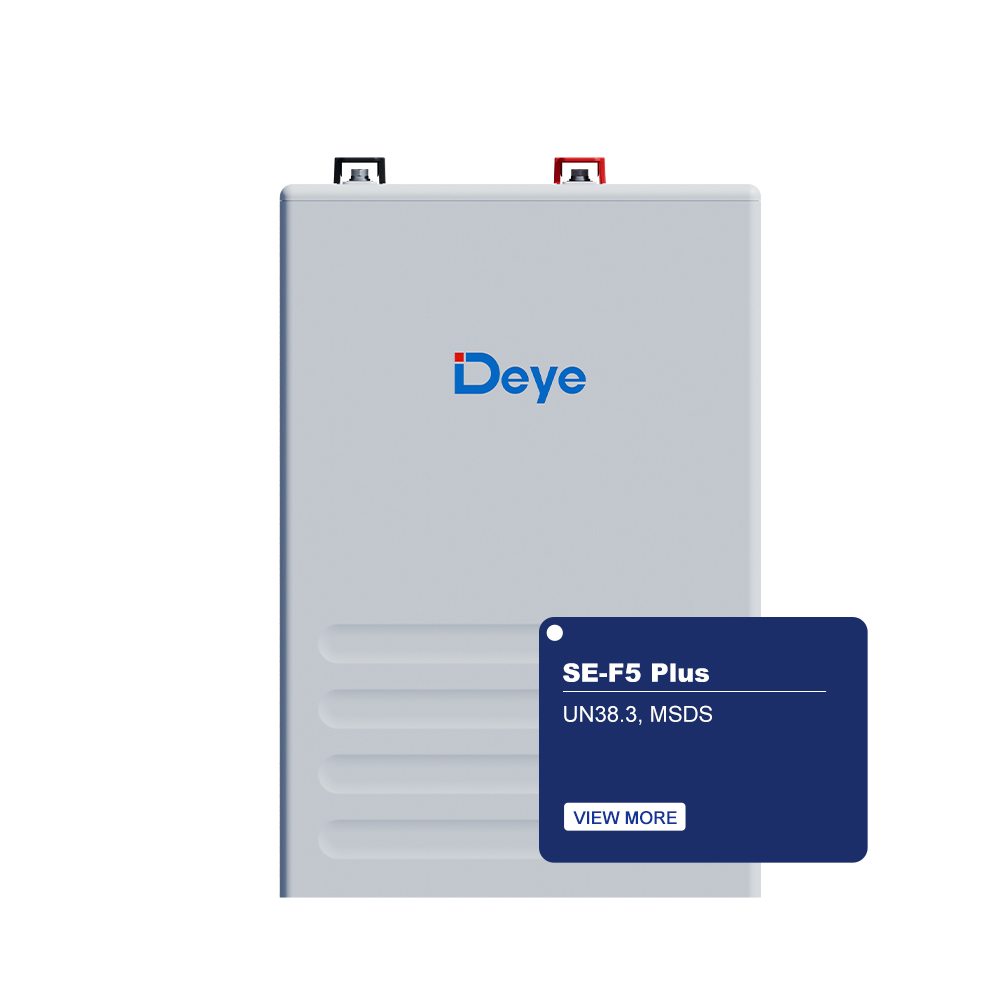

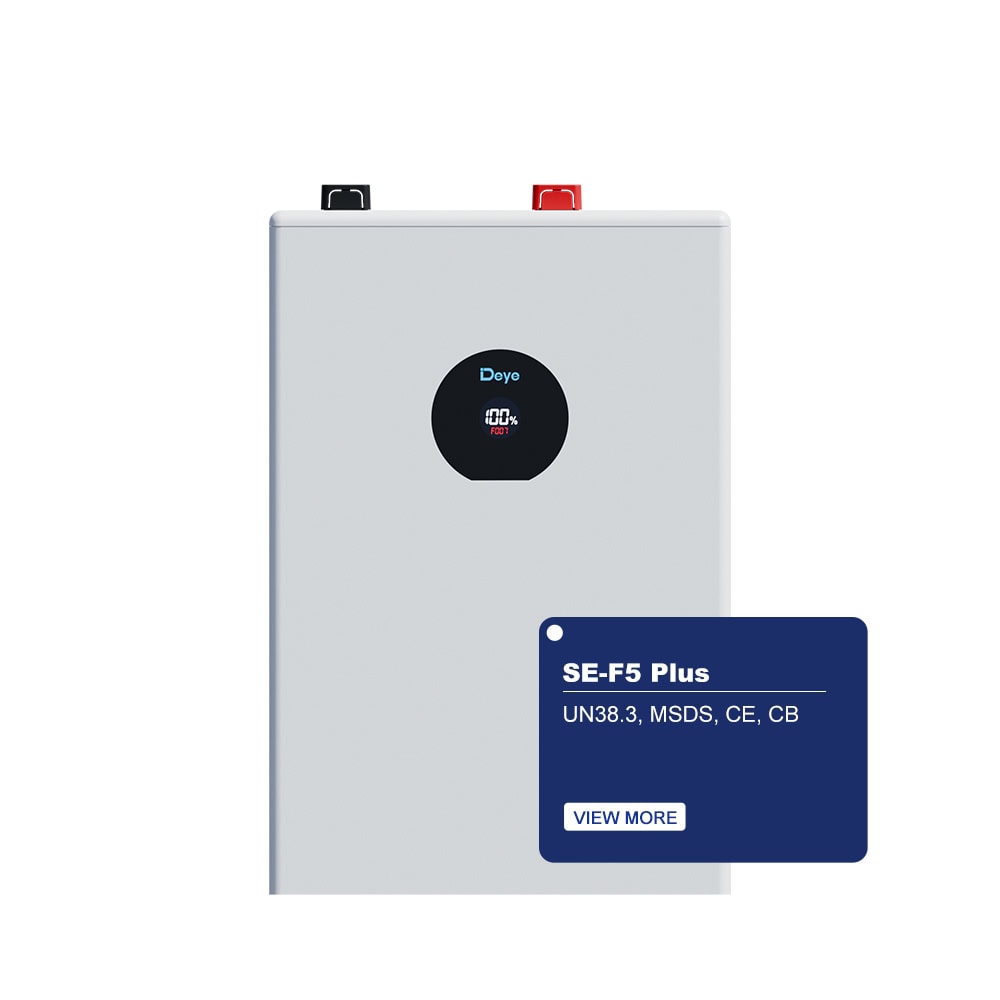

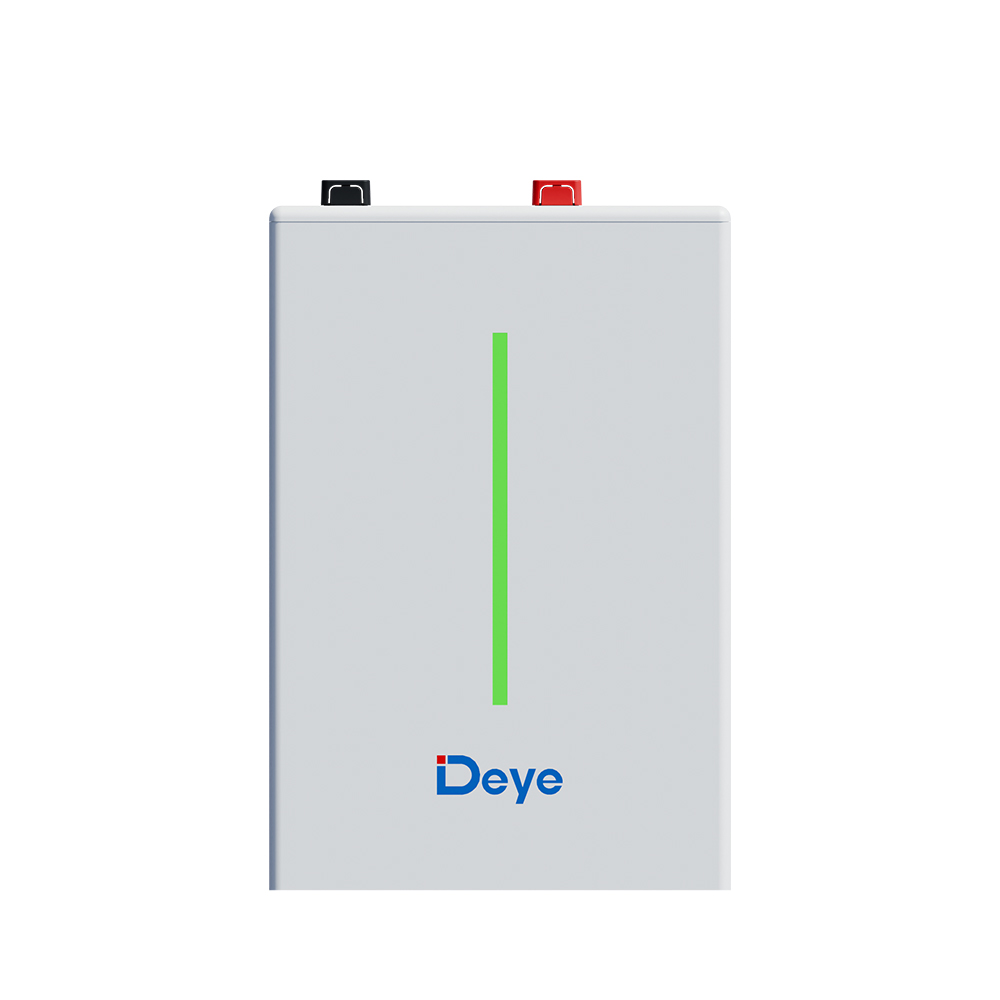

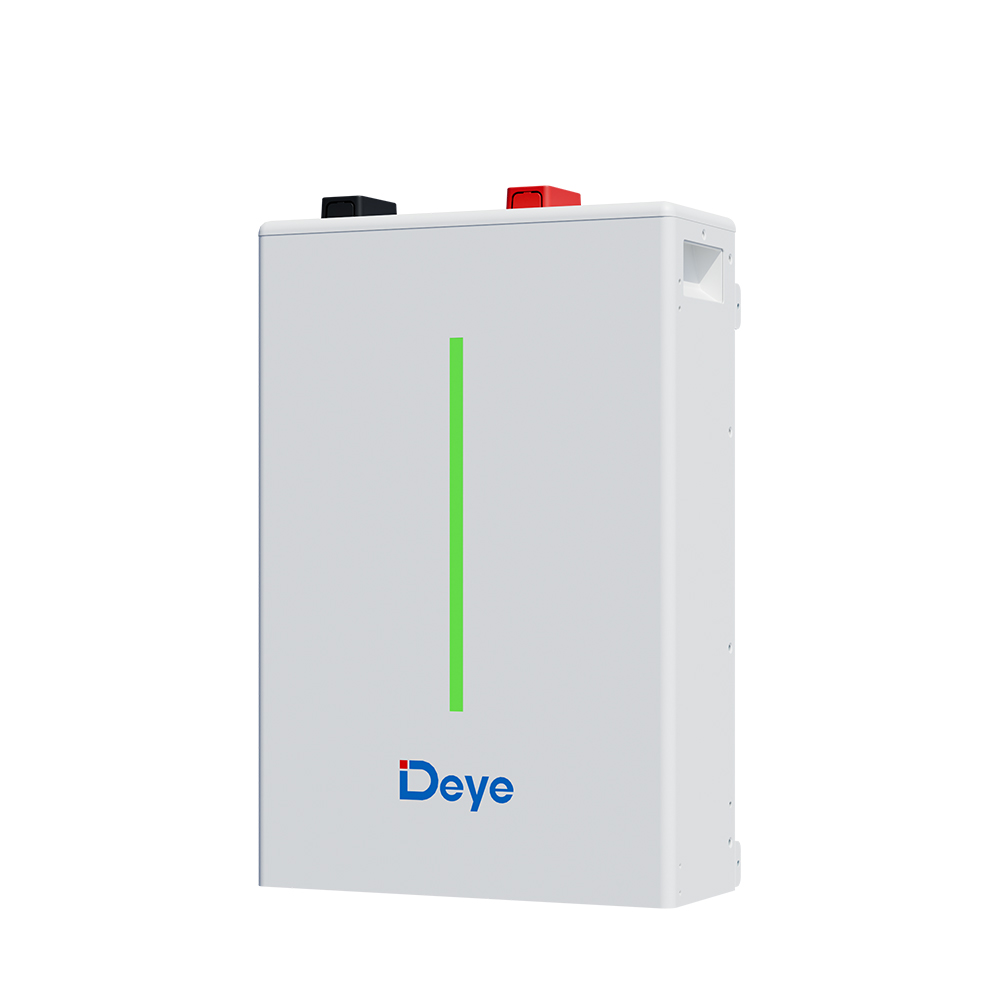

SE-F5 Plus (AS, AF, EU, LATAM) Advanced & Scalable Energy Storage Solution

  • Chemistry & Capacity: Utilizes LiFePO₄ battery chemistry, with a 100 Ah capacity and 5.12 kWh nominal energy
  • Powerful Current: Supports max. continuous charge current 100 A (peak 120 A for 10 sec) and discharge current 120 A (peak 150 A for 10 sec)
  • High DoD & Temperature Range: Recommends 90% depth of discharge. Operates in -20°C to 55°C for discharge, 0 – 55°C for charge
  • Flexible Installation & Monitoring: Allows wall, floor, or stack mounting. Features LED indicators and communication via CAN2.0, RS485, Bluetooth + APP
  • Safety & Certifications: Advanced BMS with active fuse ensures safety. Certified by UN38.3, MSDS
SKU: SE-F5 Plus (AS, AF, EU, LATAM)Categories: Low Voltage Series (LV)
Contact Us

Description

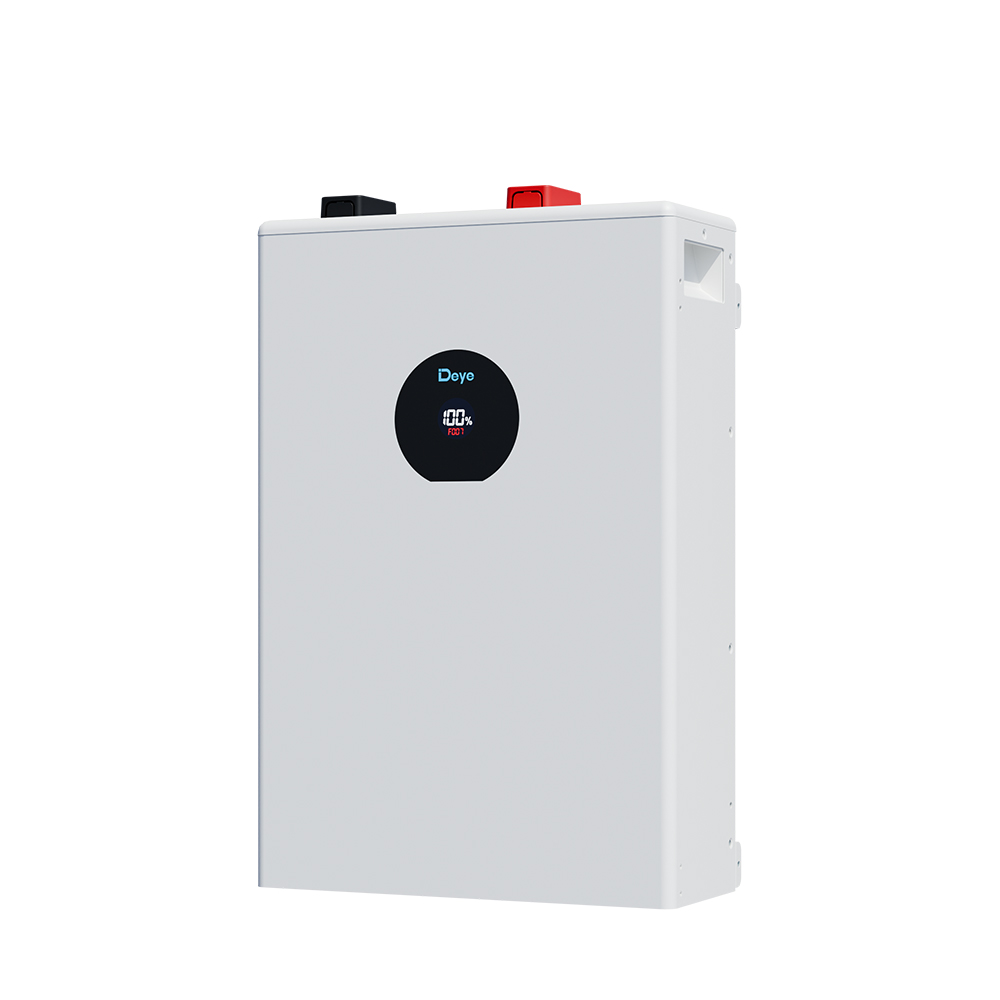

SE-F5 Plus: Advanced & Scalable Energy Storage Solution

The SE-F5 Plus is a high – performance energy storage battery designed to meet diverse energy needs.

Specification Value
Model SE-F5 Plus
Battery Chemistry LiFePO₄
Capacity 100 Ah
Nominal Voltage 51.2 V
Operating Voltage 44.8 V – 57.6 V
Nominal Energy 5.12 kWh
Charge Current (Max Continuous) 100 A
Charge Current (Peak, 10 sec) 120 A
Discharge Current (Max Continuous) 120 A
Discharge Current (Peak, 10 sec) 150 A
Recommend Depth of Discharge (DoD) 90%
Dimensions (W × H × D) 370 × 548 × 140 mm (without hanging board)
Weight Approximate 41 kg

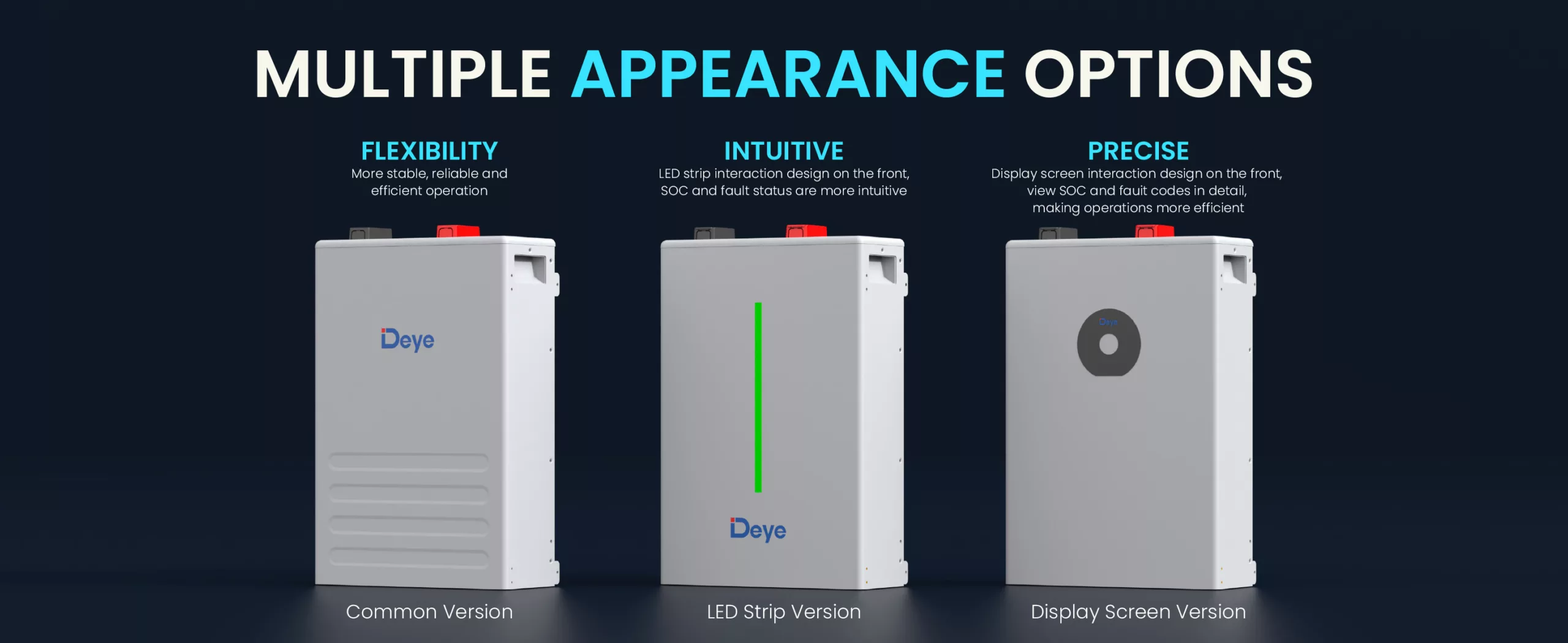

LED Indicator SOC, working, protecting & Buzzer
IP Rating of Enclosure IP21
Operating Temperature (Charge) 0~55°C
Operating Temperature (Discharge) -20°C~55°C
Storage Temperature 0~35°C
Relative Humidity 95% (non-condensing)
Altitude ≤3000m

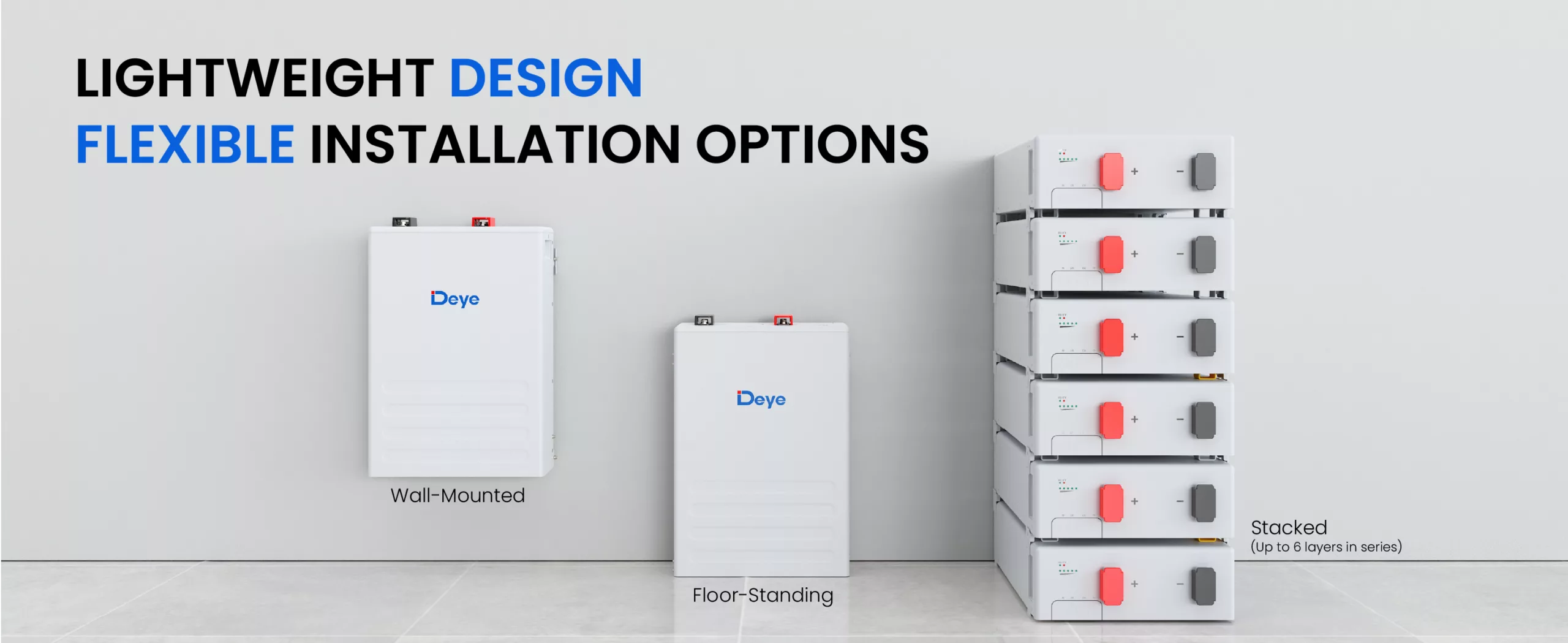

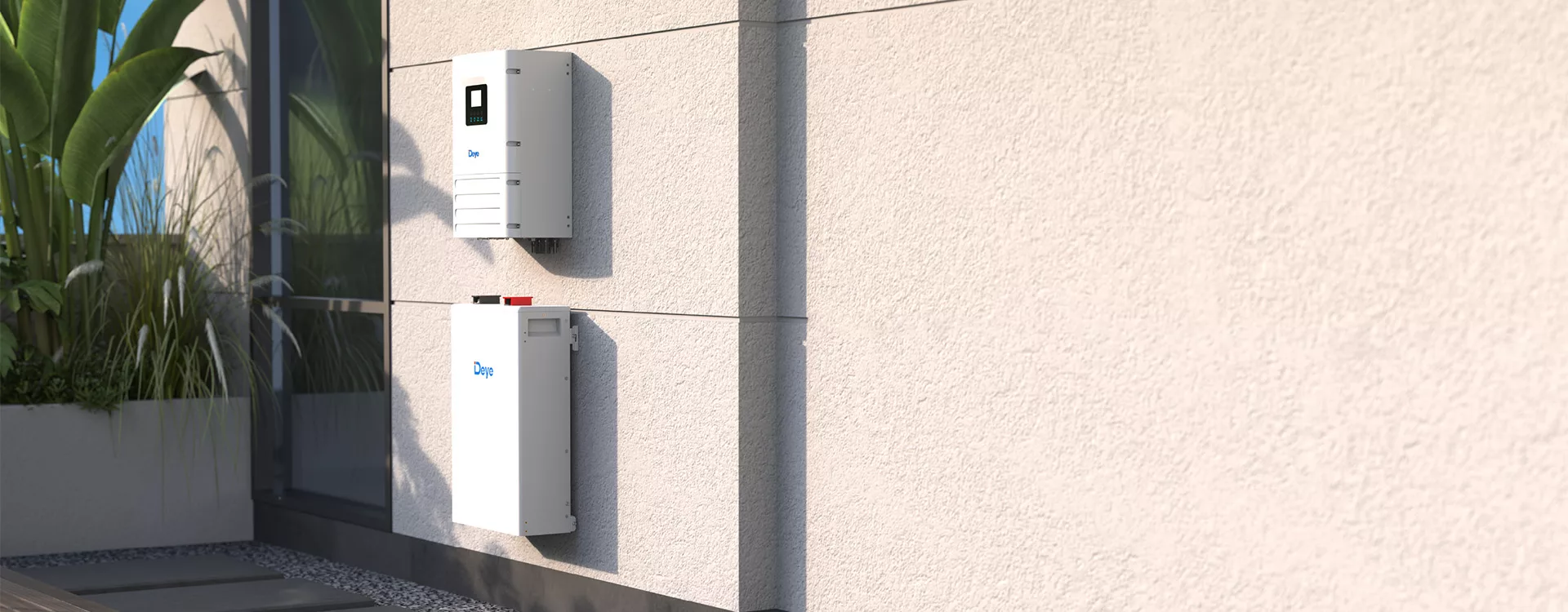

Installation Options Wall-Mounted, Floor-Mounted, Stack-Mounted
Communication CAN2.0, RS485, Bluetooth+APP
Certifications UN38.3, MSDS

Key Features & Benefits:

  • Cutting – Edge Battery Chemistry: Utilizes LiFePO₄, ensuring safety and long – term reliability.
  • Impressive Energy & Power: Boasts a nominal energy of 5.12 kWh, with a capacity of 100 Ah and nominal voltage of 51.2 V. Charge current reaches max. continuous 100 A/peak 120 A (10 sec), while discharge current hits max. continuous 120 A/peak 150 A (10 sec).
  • Extensive Protection & Monitoring: Advanced BMS with active fuse offers comprehensive protection. LED indicators show SOC, working, protecting status, and a buzzer alerts.
  • Flexible Installation & Operation: Supports wall – mounted, floor – mounted, and stack – mounted setups. Operates in a wide temperature range: charge 0 – 55°C, discharge – 20°C – 55°C, with natural cooling.
  • Seamless Communication: Features CAN2.0, RS485, Bluetooth + APP for easy monitoring and control.
  • Certified Quality: Complies with UN38.3 and MSDS, ensuring top – notch quality and safety.
