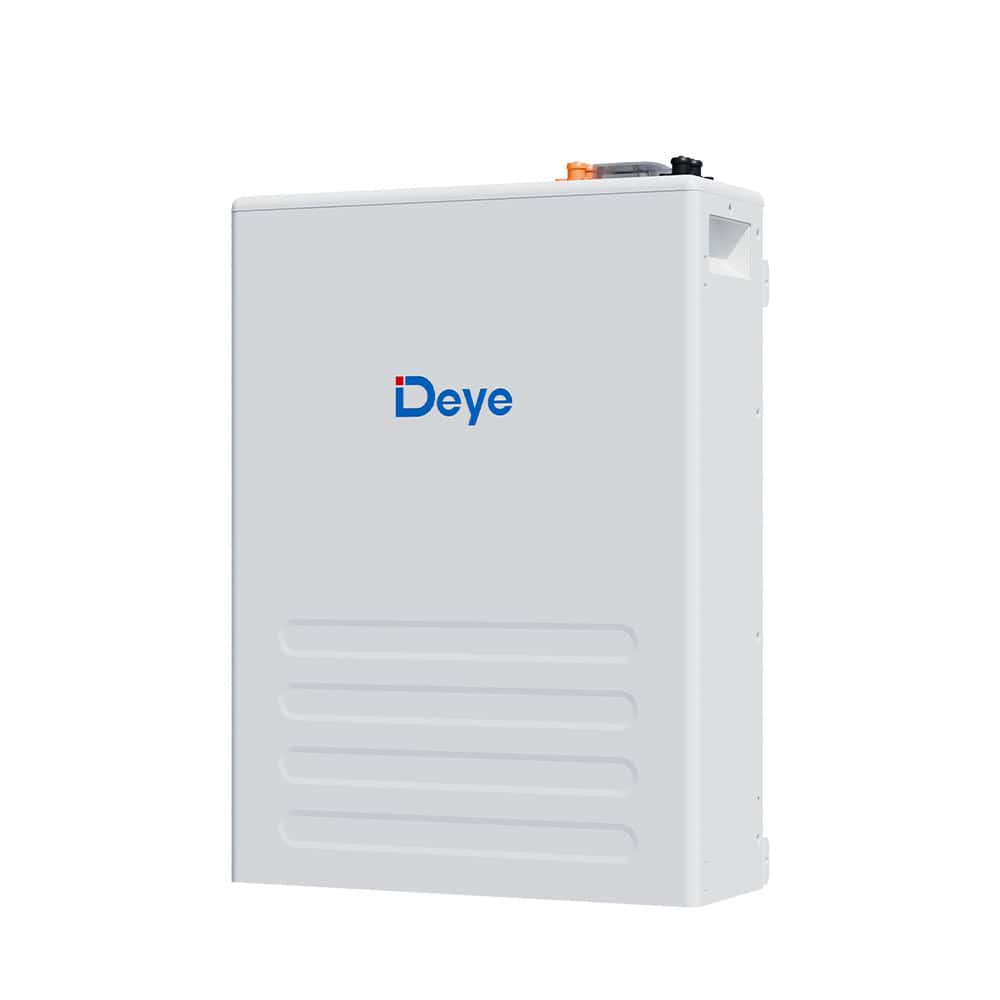

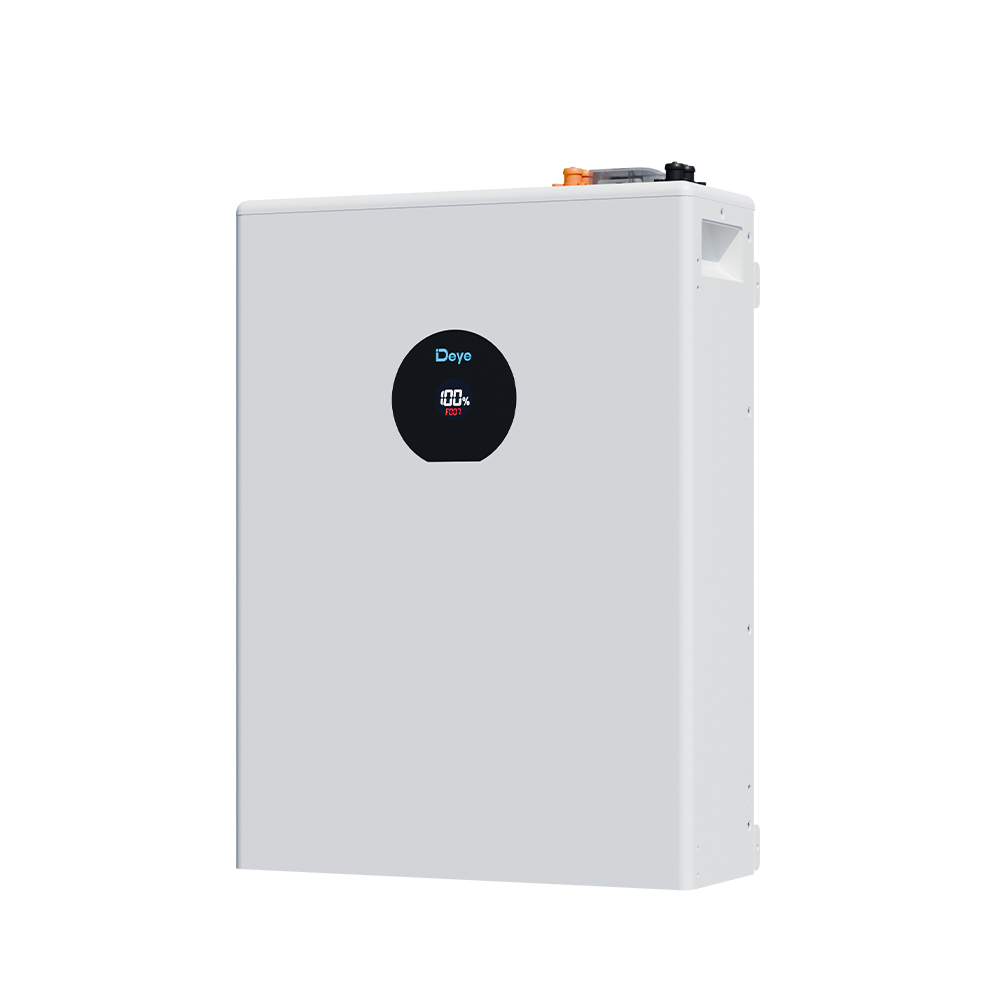

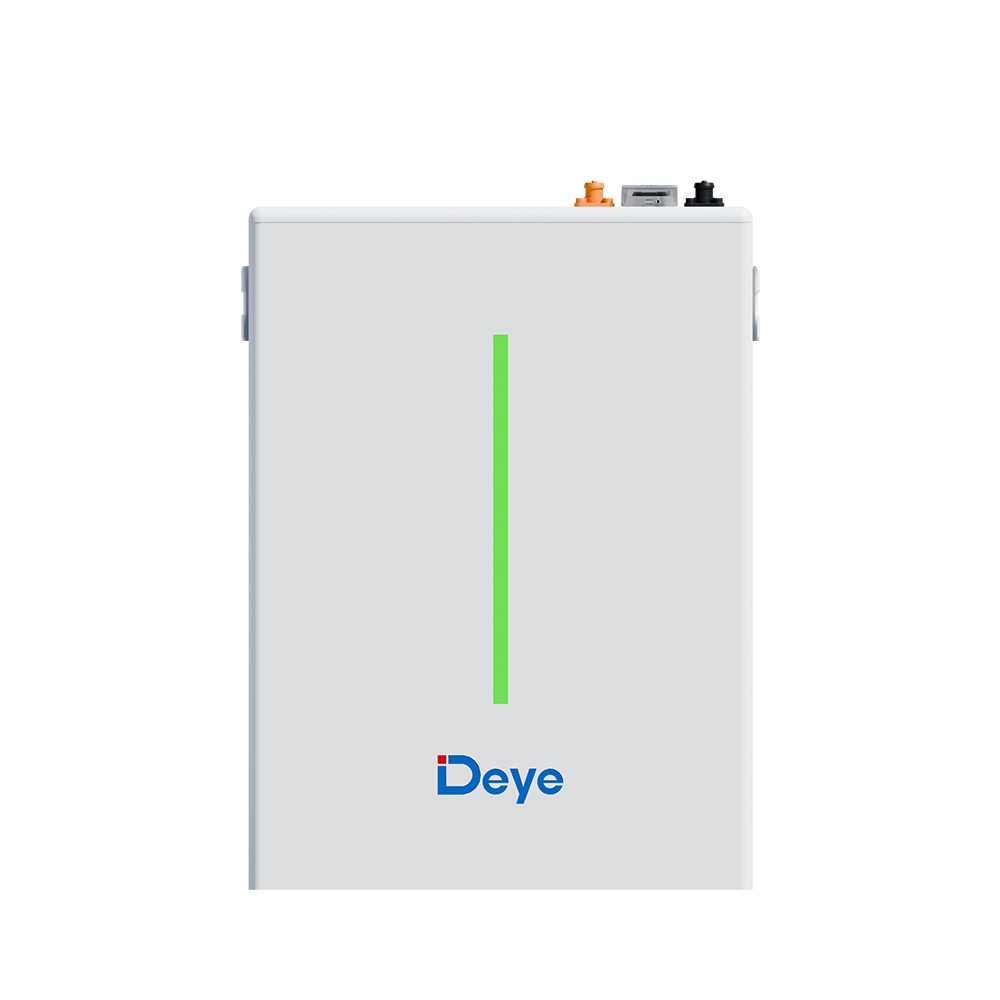

Deye SE-F5 Pro (Global) – High-Performance Battery for Robust Energy Storage

  • High Capacity & Energy: 100 Ah capacity / 5.12 kWh nominal energy
  • Powerful Performance: 100A continuous & 150A peak (120s) charge/discharge
  • Scalable System: Connect up to 32 units in parallel for expansion
  • Deep Cycle Life: >6000 cycles with 90% recommended Depth of Discharge (DoD)
  • Advanced LiFePO₄ Chemistry: Ensures safety and long lifespan
  • Comprehensive BMS: Includes active fuse for enhanced protection
  • Wide Operating Temperature: 0°C to 55°C charge,  -20°C to 55°C discharge
  • Multiple Communication Options: CAN2.0, RS485, Optional WiFi/Bluetooth/APP module

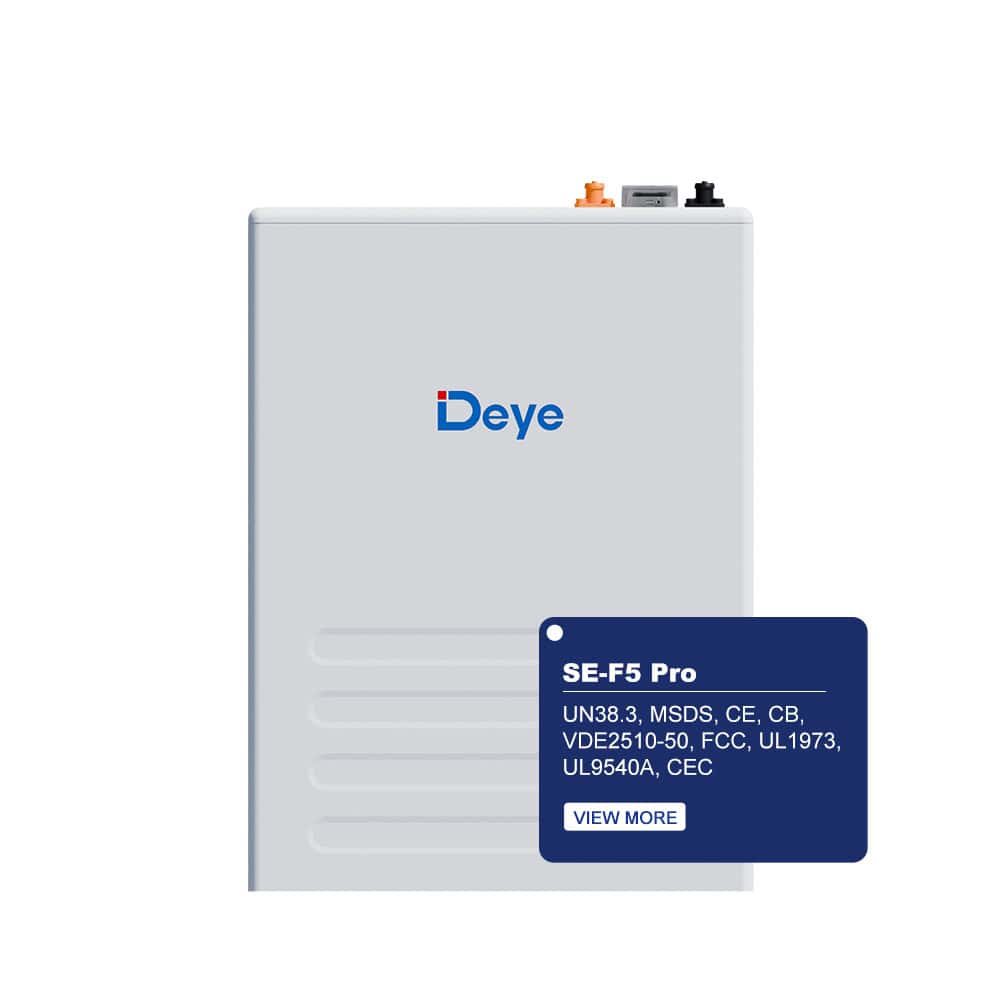

  • Certified Safety: Meets numerous international standards (UN38.3, UL1973, etc.)
SKU: SE-F5 Pro (Global)Categories: Low Voltage Series (LV)
Contact Us

Description

SE-F5 Pro Residential ESS Solution

The SE-F5 Pro is an outstanding residential Energy Storage System (ESS) that revolutionizes home energy management.

Specification Details
Model SE-F5 Pro
Battery Chemistry LiFePO₄
Nominal Voltage 51.2 V
Operating Voltage 44.8 V ~ 57.6 V
Capacity 100 Ah
Nominal Energy 5.12 kWh
Max. Continuous Charge/Discharge Current 100 A
Peak Charge/Discharge Current 150 A (for 120 seconds)
Recommended Depth of Discharge (DoD) 90%
Dimensions (W×H×D) 404 × 547 × 141 mm
Weight 44 kg
IP Rating IP21
Communication CAN2.0, RS485, Optional (WiFi + Bluetooth + APP)

Key Features & Benefits:

  •  Comprehensive Protection: Equipped with an advanced Battery Management System (BMS) and active fuse, it ensures safe operation.
  • Ultra-efficient Performance: Supports a maximum of 1C charge and 1C discharge, enabling rapid energy transfer.

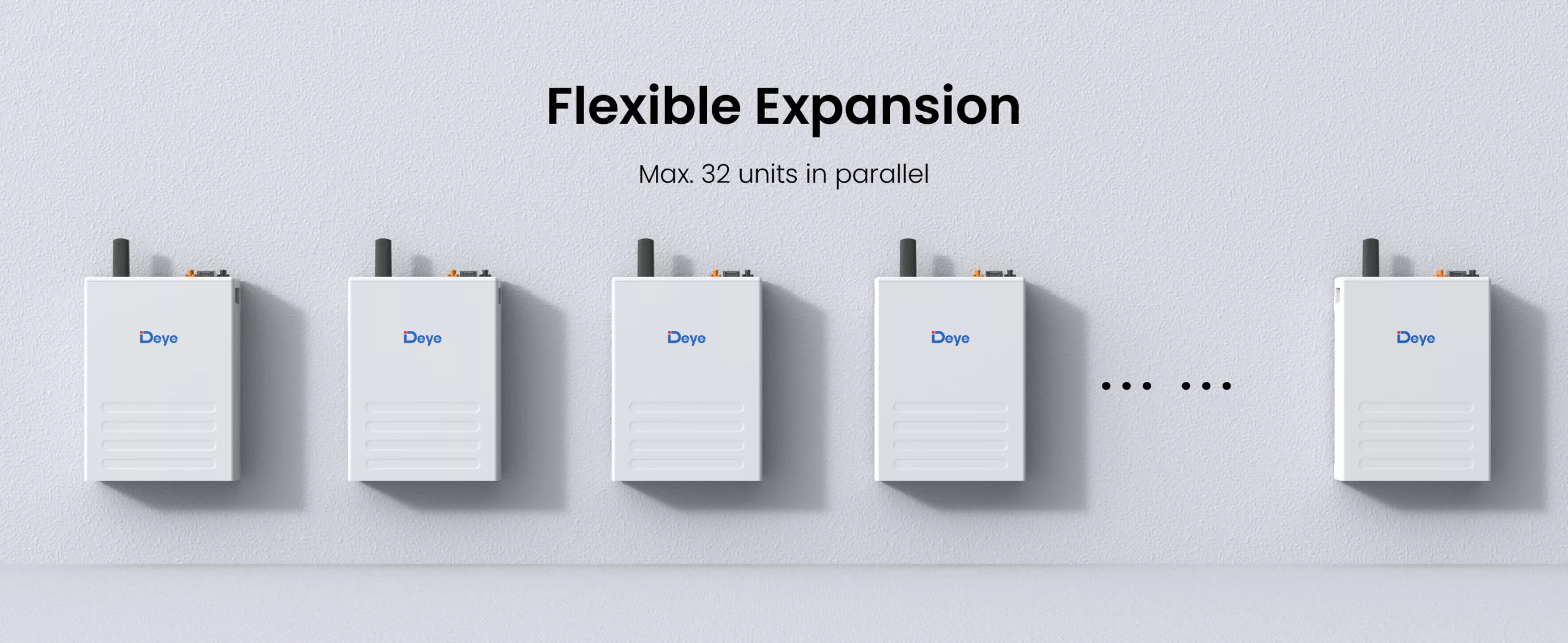

  • Flexible Expansion: Allows up to 32 units to be connected in parallel, easily meeting growing energy needs.
  • Easy Maintenance: Features auto-networking, with local monitoring for the battery and remote monitoring for the ESS, simplifying upkeep.

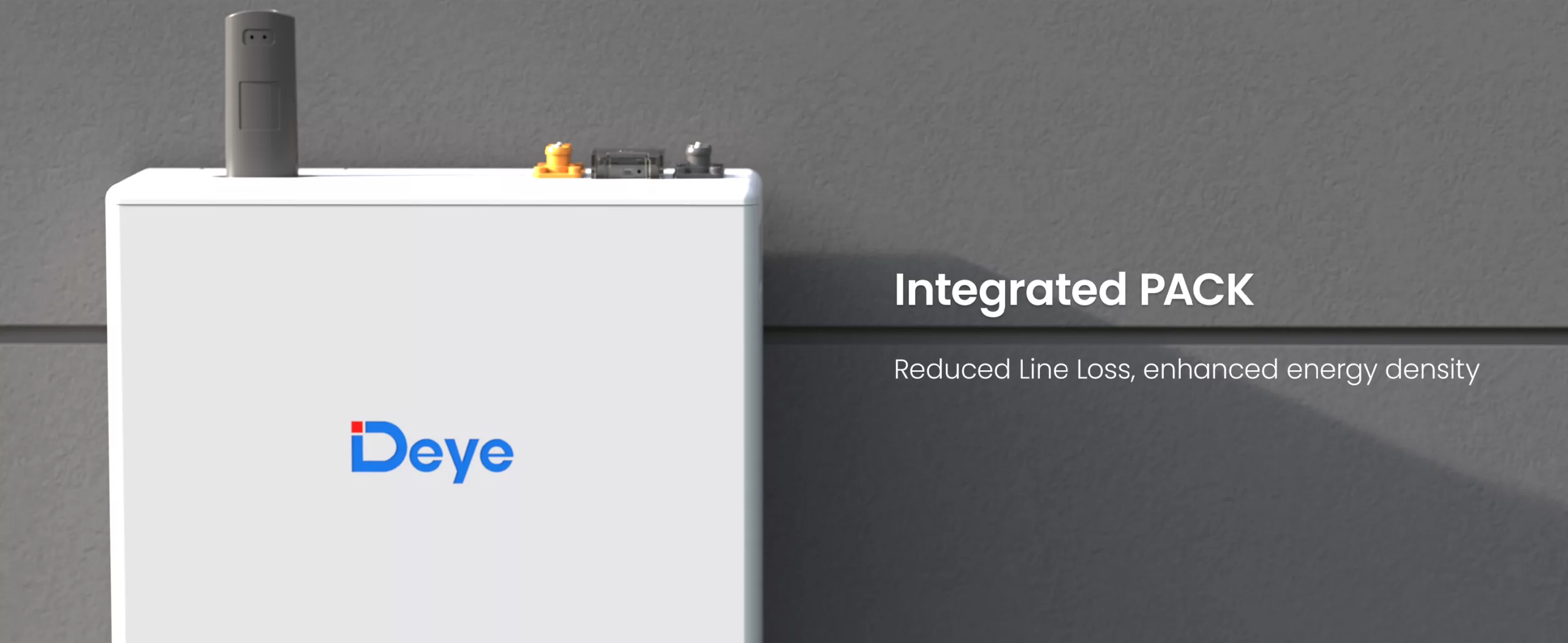

  • Optimized Energy Density: The integrated PACK design reduces line loss and boosts energy density for better storage efficiency.
  • Reliable Durability: Operates reliably in temperatures ranging from -20°C to 55°C with natural cooling, ensuring long-term stability.

With a 100 Ah capacity, 5.12 kWh nominal energy, and a 10-year warranty, the SE-F5 Pro, leveraging LiFePO₄ battery chemistry, is a dependable choice for efficient and secure home energy storage.

Download

Deye SE-F5 Pro Datasheet EN

Deye SE-F5 Pro+SUN-3-3.6-5-6K-OG01LP1-EU-AM2 Solution EN

Deye ESS User Manual SE-F5 Pro EU(EN) V07

Certificate

CE-EMC_SE-F5 Pro_DSS_KSEM2507002016Ver_CE_KS

DSS_KSCR2507001536Ver_RED_KS

CB_IEC 62619_SE-F5 Pro_DSS_BE-53551

Statement

DEYE Statement on Battery Expansion and Insulation Fault

APP Quick Guide

Data Logger Quick Guide DL1000B-WIFI V1.0

Deye Cloud APP Quick Guide English
