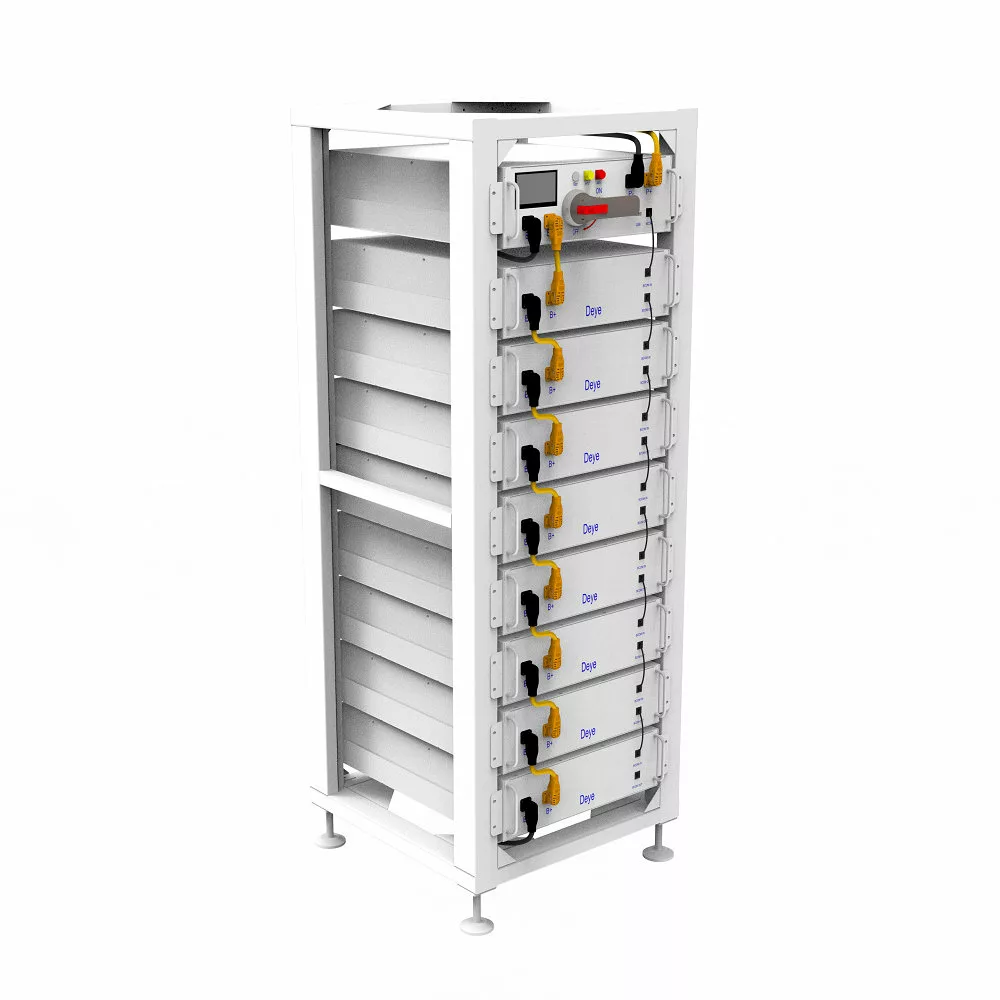

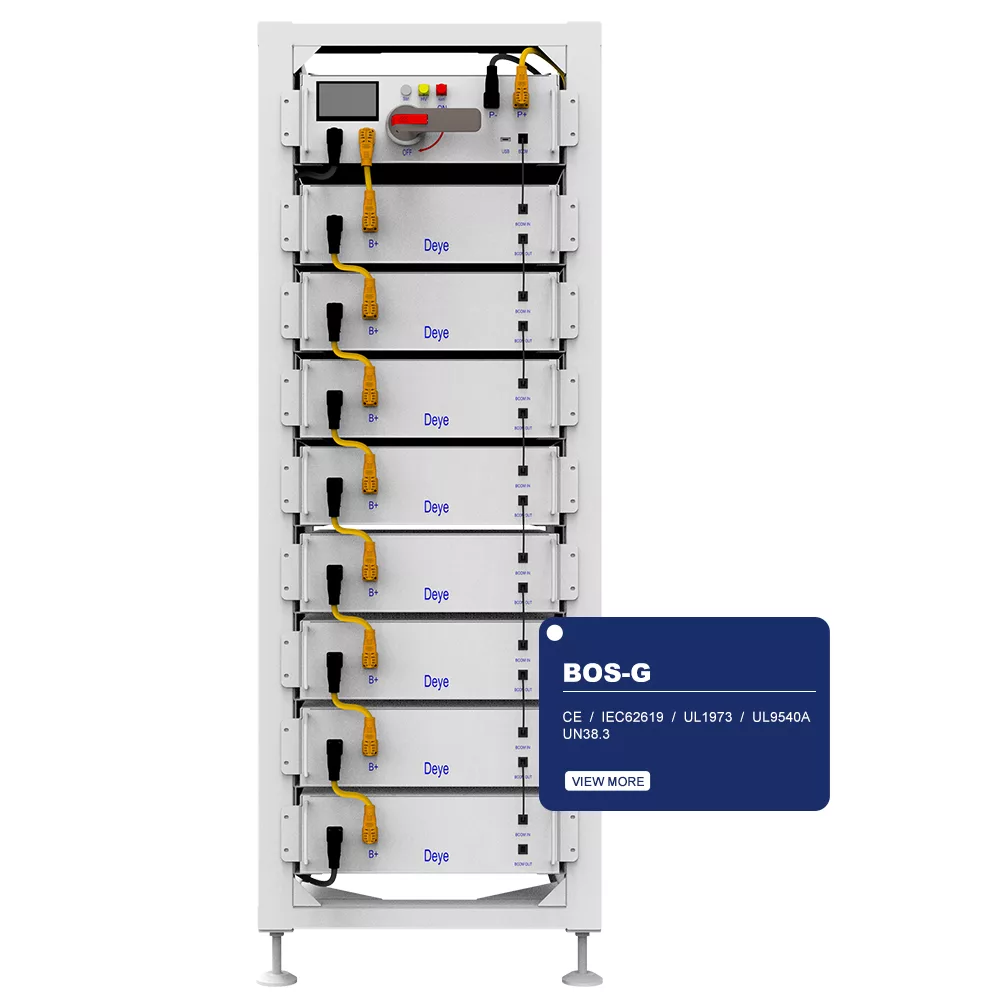

BOS-G(HV)

Store and use solar power battery banks efficiently with the BOS-G(HV). High-voltage capacity and advanced technology make it a perfect backup power solution for your home or business.

  • Quick installation standard of 19-inch embedded designed module is comfortable for installation and maintenance
  • The system can automatically manage the charge and discharge state and balance the current and voltage of each cell
  • The whole module is non-toxic, non-polluting and environmentally friendly
  • Support USB upgrade wifi upgrade(optional), remote upgrade
  • Compatible with Deye inverter
SKU: BOS-G Category:

Description

The BOS-G(HV) from Deye is an advanced system that uses lithium iron phosphate (LiFePO4) solar power battery banks designed specifically for solar energy applications.

With its modular and scalable architecture, it offers a flexible capacity range from 20.48kWh to 61.44kWh. The system consists of rack-mounted battery modules, each with a capacity of 5.12kWh. Multiple modules can parallel connect in strings to achieve the desired storage capacity. The standardized 3U enclosure design enables convenient installation and maintenance.

Key features of the solar power battery banks include a long 10+ year lifespan, integrated battery management system for protection, operating temperatures ranging from -20°C to +55°C, and depth of discharge up to 90% for excellent energy harvest. The intrinsically safe LiFePO4 chemistry also makes the system reliable and eco-friendly.

Advanced monitoring and control capabilities like remote upgrade over WiFi, compatibility with Deye hybrid inverters, and thermal management optimize system performance and lifespan.

With certifications like CE, IEC and UL, the BOS-G(HV) is positioned as a high-quality solar energy storage solution. Its flexible architecture can reliably support small-scale commercial and industrial applications from 20kW to 100kW.

Product Parameters:

Model BOS-G
Main Parameter
Cell Chemistry LiFePO4
Module Energy (kWh) 5.12
Module Nominal Voltage (V) 51.2
Module Capacity (Ah) 100
Battery Module Qty in series. (Optional) 3(Min) 8(Standard US Cluster) 12(Standard EU Cluster)
System Nominal Voltage (V) 153.6 409.6 614.4
System Operating Voltage (V) 124.8~175.2 332.8 ~467.2 499.2~700
System Energy (kWh) 15.36 40.96 61.44
System Usable Energy (kWh)1 13.8 36.86 55.29
Charge/Discharge Current (A)2 Recommend 50
Nominal 100
Peak Discharge(2 mins, 25℃) 125
Working Temperature (°C) Charge: 0~55 / Discharge: -20~55
Status Indicator Yellow: Battery High Voltage Power On
Red: Battery System Alarm
Communication Port CAN2.0/RS485
Humidity 5~85%RH
Altitude ≤2000m
IP Rating of Enclosure IP20
Dimension (W/D/H, mm) 589 *590*1640 589*590*2240
Weight Approximate (kg) 258 434 628
Installation Location Rack Mounting
Storage Temperature (°C) 0~35
Recommend Depth of Discharge 90%
Cycle Life 25±2°C, 0.5C/0.5C, EOL70%≥6000
Warranty3 10 years
Certification CE / IEC62619 / UL1973 / UL9540A / UN38.3

[1] DC Usable Energy, test conditions: 90% DOD, 0.2C charge & discharge at 25°C. System usable energy may vary due to system configuration parameters.
[2] The current is affected by temperature and SOC.
[3] The warranty is due whichever reached the first of the warranty period or life cycle power.

Download

Datasheet-A-HV-3U-Battery-BOS-G-V1.3

Installation-Manual-DEYE-BOS-G-2023.12.22

Inverter compatibility statement

SDS BOS-GX

Warranty T&Cs

DEYE EU BOS-G Manual 英德双语
